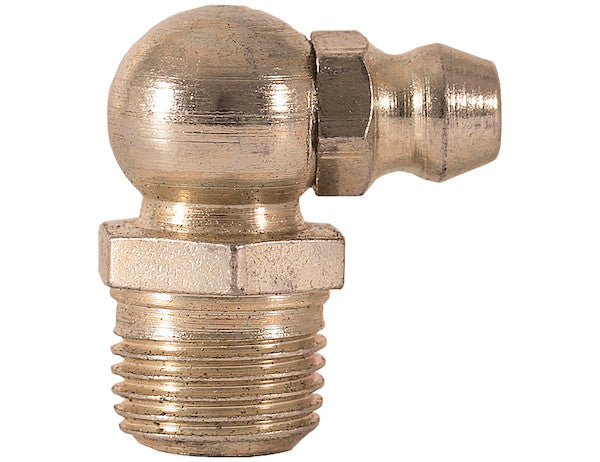

Buyers Products NPT Grease Fittings are available in various configurations to fit your application's requirements. They are sold in multiples of 100.
Specifications
| Angle | 90 |
|---|---|
| Ball Check (y/n) | Yes |
| Finish | Zinc Plated |
| Material | Carbon Steel |
| Overall Size | 0.859 |
| Thread Size | 1/8 NPT |
| Type | Threaded |
Advanced Technical Overview: 1/8 Inch NPT 90-Degree Grease Fittings
The 1/8 Inch NPT Grease Fitting, 90-degree configuration, from Buyers Products is a critical component for preventative maintenance and operational efficiency in mechanical systems. These fittings, often called zerk fittings, serve as the essential interface for introducing lubricants into bearings, bushings, and other moving parts. Precision-engineered for optimal lubricant delivery and retention, this model combines robust material construction with thoughtful design, ensuring reliable performance in demanding industrial, commercial, and heavy-duty applications. Its 90-degree orientation specifically addresses accessibility challenges, making lubrication feasible and efficient even in confined machinery spaces. Understanding these technical specifications is paramount for professionals optimizing machinery longevity and minimizing downtime.
Thread Size (1/8 NPT) - Precision and Compatibility
The "1/8 NPT" designates the National Pipe Taper thread standard, recognized for pressure-tight connections without additional sealants when properly assembled. The tapered thread is inherently self-sealing; as male and female threads tighten, their flanks compress, forming a metal-to-metal seal. The "1/8" nominal pipe size refers to the internal diameter of a standard pipe, not the actual thread diameter (approx. 0.405 inches for 1/8 NPT). This standard ensures broad compatibility across hydraulic, pneumatic, and lubrication systems. 1/8 NPT connections withstand significant operational pressures, vital for high-pressure grease injection. Precision machining of these threads prevents leakage, maintains system integrity, and ensures effective lubricant transfer, preventing contaminant ingress and egress.
Angle (90 Degrees) - Enhanced Accessibility and Ergonomics
The 90-degree angle of this grease fitting is a deliberate design choice, providing superior accessibility where straight or 45-degree fittings are impractical. In complex machinery assemblies, engine compartments, or components with obstructed lubrication points, a 90-degree fitting allows technicians to attach a grease gun with ease. This configuration is particularly beneficial for universal joints, steering linkages, heavy equipment articulation points, and industrial mechanisms with space constraints. The angular bend facilitates ergonomic lubrication, reducing effort and time. Furthermore, the 90-degree design helps orient the fitting to protect it from accidental damage during operation, such as impacts, enhancing its durability and service life.
Material (Carbon Steel) - Strength and Durability
Fabricated from high-quality carbon steel, these grease fittings offer an optimal balance of strength, ductility, and machinability, suiting them for rigorous industrial and heavy-duty environments. Carbon steel, an iron-carbon alloy, is renowned for its high tensile strength and resistance to mechanical stress, ensuring the fitting withstands significant pressures during grease injection without deformation. Its inherent hardness contributes to the durability of the threaded connection, resisting wear and galling after repeated attachment/detachment of grease gun couplers. This material choice provides a robust foundation, ensuring structural integrity under torsional and compressive loads. The selection of carbon steel signifies a commitment to long-term reliability and resistance to typical physical abuses.
Finish (Zinc Plated) - Corrosion Resistance and Longevity
To enhance longevity and performance, these carbon steel grease fittings undergo a comprehensive zinc plating process. Zinc plating, a widely accepted surface treatment, provides a formidable barrier against corrosion and oxidation, critical for metallic components in harsh environments. The zinc layer acts as a sacrificial coating; if scratched, zinc corrodes preferentially to the steel, protecting the base metal via cathodic protection. This electroplated finish significantly extends the fitting's service life, resisting rust in moist, humid, or chemically aggressive atmospheres common in industrial, agricultural, and outdoor machinery. Beyond protection, zinc plating imparts a clean, professional aesthetic, aiding identification and inspection.
Ball Check Mechanism - Preventing Backflow and Contamination
A pivotal feature of these 90-degree NPT grease fittings is the integrated ball check mechanism, a small, spring-loaded ball within the fitting's bore. Its primary function is twofold: first, it prevents backflow of lubricant from the bearing once grease gun pressure is released, ensuring grease remains in place. Second, it acts as a crucial barrier against contaminant ingress (dirt, dust, moisture) into the lubricated area. By sealing the opening when not in use, it protects sensitive internal components from abrasive particles and corrosive agents that accelerate wear. The spring tension is calibrated to allow grease passage under typical injection pressures while keeping the ball seated, preserving system cleanliness and effectiveness.
Overall Size (0.859 Inches) - Compact Design for Confined Spaces
The overall size of 0.859 inches for this 90-degree grease fitting highlights its compact and efficient design. This measurement, likely referring to the overall length or height from the threaded base to the furthest point, signifies minimizing the component's spatial footprint. In engineering where every millimeter counts, a compact fitting allows greater flexibility in machine design and ensures lubrication points can be strategically placed without obstructing other critical components or impeding access. This optimized dimension facilitates installation in tight clearances and prevents the fitting from becoming an obstacle. A smaller profile reduces exposure to external forces, lessening impact damage.
Type (Threaded) - Secure and Reliable Connection
The "Type: Threaded" designation emphasizes the secure and robust connection method. Threaded fittings are universally preferred in critical lubrication applications due to superior mechanical strength, resistance to vibration, and ability to create a high-pressure seal. Unlike press-fit methods, a threaded connection ensures a permanent, reliable interface between the grease fitting and the component. This mechanical advantage allows for repeated attachment/detachment of grease gun couplers without compromising connection integrity. Precisely machined 1/8 NPT threads guarantee a tight, leak-proof seal, preventing lubricant egress under pressure and inhibiting contaminant ingress. This robust attachment is fundamental to maintaining system cleanliness, pressure, and the efficacy of the lubrication regime.
Application & Industry Use Cases - Versatility Across Sectors
These 1/8 Inch NPT 90-degree grease fittings are indispensable across diverse industries. In heavy construction equipment (excavators, bulldozers), they lubricate articulation points and hydraulic cylinder pins in hard-to-reach areas. For agricultural machinery (tractors, harvesters), they ensure smooth operation of pivots and axles, enduring harsh outdoor conditions. The automotive and commercial vehicle sectors utilize them extensively in steering, suspension, and chassis lubrication points for easy servicing. Within industrial manufacturing, they maintain bearings and moving mechanisms on conveyors, presses, and robotic arms. Marine applications benefit from their corrosion resistance in propeller shafts and deck machinery. General MRO operations also rely on these fittings. The 90-degree configuration specifically enables lubrication in confined engine bays, hydraulic systems, and enclosed gearboxes.
Importance of Proper Lubrication & Grease Fittings - Operational Efficiency
Proper lubrication is the cornerstone of machinery longevity, and high-quality grease fittings are its conduits. The primary objective is to reduce friction, minimizing wear, dissipating heat, and preventing premature component failure. Without adequate lubrication, metal-to-metal contact leads to rapid wear, increased energy consumption, catastrophic breakdowns, and shortened equipment lifespans. Grease fittings like the 1/8 NPT 90-degree model ensure lubricants are delivered precisely and efficiently to critical points. A well-designed fitting prevents contaminant introduction during lubrication and retains lubricant within the bearing cavity, maintaining the protective film. Investing in durable fittings is a strategic investment in machinery reliability, impacting operational uptime and maintenance costs.
Installation Best Practices - Ensuring Optimal Performance
Correct installation of grease fittings is critical for performance. Before installation, ensure the female threaded port is clean, free of debris or old sealant. While NPT threads are self-sealing, applying a suitable thread sealant or pipe dope, compatible with operating conditions, can enhance the seal. Apply sealant only to the male threads, avoiding the first thread to prevent contamination. Thread the fitting into the port by hand until snug, then tighten with an appropriate wrench. Over-tightening strips threads or deforms components; under-tightening results in leaks. For 90-degree fittings, orient carefully for optimal grease gun access. A light grease application after installation confirms proper function.
Maintenance & Inspection - Sustaining System Health
Regular maintenance and inspection of grease fittings are essential. Fittings should be routinely cleaned to remove accumulated dirt and old grease from the head, ensuring a clean connection for the grease gun and preventing contaminant ingress. Inspect for damage like bent or broken fittings, stripped threads, or corrosion. A damaged ball check valve, indicated by grease seepage or difficulty injecting, necessitates replacement. Blockages within the fitting (hardened grease, debris) prevent lubricant flow; replace if clearing isn't possible. Repeated attachment of grease gun couplers can cause wear on the fitting head, leading to poor connection and leakage. Proactive replacement prevents machinery failures and maximizes equipment lifespan.
Quality Assurance & Standards - Reliability and Compliance
Quality and reliability of grease fittings are paramount, requiring adherence to stringent manufacturing standards. Buyers Products ensures these 1/8 Inch NPT 90-degree grease fittings meet or exceed relevant industry standards for material composition, thread accuracy, and functional performance. Adherence to standards like SAE or DIN guarantees dimensional consistency, material integrity, and performance under specified pressures/temperatures. Precision machining ensures 1/8 NPT thread accuracy, vital for a leak-proof seal. Quality control rigorously tests the spring-loaded ball check mechanism for consistent opening pressure and effective sealing against backflow/contamination. Manufacturing from high-grade carbon steel with durable zinc plating assures superior corrosion resistance and mechanical strength. Bulk availability facilitates efficient inventory, uniform quality, and cost-effectiveness.
Conclusion - A Strategic Investment in Machinery Longevity
In summary, the 1/8 Inch NPT Grease Fitting with a 90-degree configuration from Buyers Products is a meticulously engineered component for precise, reliable lubrication in challenging access conditions. Its robust zinc-plated carbon steel construction ensures exceptional durability and corrosion resistance, while precision 1/8 NPT threading creates a secure, leak-proof connection. The integrated ball check valve prevents lubricant backflow and contaminant ingress, safeguarding system integrity. The strategic 90-degree angle and optimized 0.859-inch size make this fitting indispensable for maintaining heavy machinery, industrial equipment, and commercial vehicles where space is at a premium. These high-quality fittings reduce friction, extend component lifespan, and contribute significantly to operational efficiency and longevity. For professionals, choosing them is an investment in unparalleled reliability and sustained performance.
