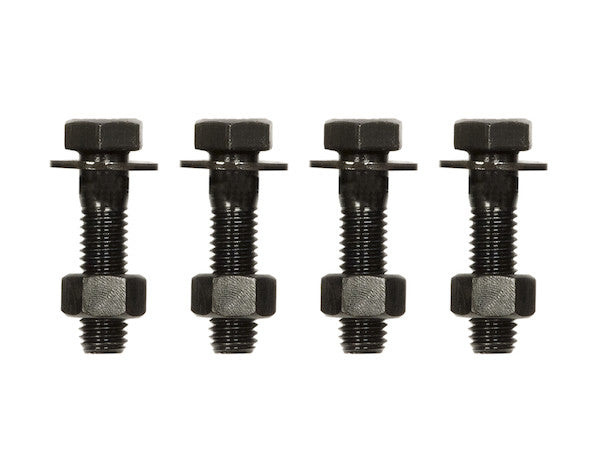

Buyers Products Pintle Hook Mounting Kit is for use with PH30 and PH45 series hitches. It includes: (4) 3/4 in. x 3-1/2 in Grade 8 cap screws, (4) 3/4 in. Grade 8 hex nuts, and (4) 3/4 in. heavy lock washers.
Specifications
| Color | Natural |
|---|---|
| Finish | Zinc Plated Clear |
| M.G.T.W. (lbs) | - |
| M.V.L. (lbs) | - |
| Material | Carbon Steel |
The Buyers Products Pintle Hook Mounting Kit represents a critical assembly of fasteners engineered to provide robust and secure attachment for pintle hooks, specifically the PH30 and PH45 series. In the demanding world of heavy-duty towing and transport, the integrity of every component in the connection system is paramount. This kit is meticulously designed to meet the rigorous performance requirements of such applications, ensuring both operational safety and longevity. Comprising four Grade 8 cap screws measuring 3/4 inch in diameter and 3-1/2 inches in length, four corresponding 3/4 inch Grade 8 hex nuts, and four 3/4 inch heavy lock washers, each element is selected for its superior mechanical properties and ability to withstand extreme loads and environmental stresses. The utilization of Grade 8 fasteners is not merely a specification; it is a fundamental requirement for applications where structural integrity and prevention of catastrophic failure are non-negotiable. This comprehensive description will delve into the technical aspects, material science, and performance characteristics of each component within this indispensable mounting kit, highlighting why its precise composition is essential for secure pintle hook installation.
Grade 8 Cap Screws: The Backbone of the Connection
At the heart of the Pintle Hook Mounting Kit are the four 3/4 inch x 3-1/2 inch Grade 8 cap screws. The designation "Grade 8" is a critical indicator of these fasteners' superior strength and performance, adhering to the SAE J429 standard for bolt mechanical properties. These bolts are manufactured from medium carbon alloy steel, which undergoes a stringent heat treatment process involving quenching and tempering. This heat treatment profoundly alters the steel's microstructure, resulting in significantly enhanced mechanical properties compared to lower-grade fasteners. Specifically, Grade 8 bolts exhibit a minimum tensile strength of 150,000 pounds per square inch (psi), a minimum yield strength of 130,000 psi, and a proof load of 120,000 psi. These figures underscore their exceptional ability to resist stretching, deformation, and ultimate fracture under extreme tension and shear forces.
The specified dimensions are equally crucial. A 3/4 inch diameter provides a substantial cross-sectional area, essential for transmitting the immense shear forces and tensile loads experienced during towing operations. The 3-1/2 inch length is carefully chosen to ensure adequate thread engagement when securing the pintle hook to the mounting structure, while also providing sufficient grip length for the specific thickness of the PH30 and PH45 series hitches and their corresponding mounting plates. Proper thread engagement is vital for achieving the full strength potential of the bolted joint, preventing thread stripping, and distributing loads effectively across the threads. An insufficient grip length could lead to the bolt bottoming out before proper clamping force is achieved, while excessive length might interfere with other components.
The hexagonal head (cap screw implies a hex head) design facilitates the application of high torque during installation. The six-sided head allows for positive wrench engagement, enabling technicians to achieve the precise preload required for Grade 8 fasteners. This controlled application of torque is fundamental to creating a strong, stable, and vibration-resistant joint. The manufacturing process for Grade 8 bolts is complex, often involving cold-forming or hot-forming techniques followed by precision machining and the critical heat treatment. Quality control measures, including hardness testing, tensile testing, and magnetic particle inspection, are typically employed to ensure that each bolt consistently meets the stringent Grade 8 specifications. The use of lesser-grade bolts in such a high-stress, safety-critical application would pose an unacceptable risk of fastener failure, leading to potential detachment of the trailer and severe accidents.
Grade 8 Hex Nuts: The Perfect Counterpart
Complementing the Grade 8 cap screws are the four 3/4 inch Grade 8 hex nuts. It is an industry standard and a fundamental principle of mechanical engineering that nuts used in conjunction with high-strength bolts must possess equivalent or superior mechanical properties to ensure the integrity of the bolted joint. The Grade 8 designation for these nuts aligns with SAE J995 standards, which specify proof load requirements for nuts that are designed to match the tensile strength of Grade 8 bolts. These nuts are also manufactured from heat-treated medium carbon alloy steel, undergoing a similar metallurgical process to the bolts to achieve their high strength characteristics.
The primary function of a hex nut in a bolted joint is to distribute the clamping force exerted by the bolt, preventing localized stress concentrations and providing a secure anchor against which the bolt can be tightened. The 3/4 inch nominal diameter of these nuts precisely matches the 3/4 inch diameter of the cap screws, ensuring a proper fit and optimal thread engagement. The threads within the nut are meticulously formed to Class 2B or similar precision, ensuring smooth assembly, minimal friction, and optimal load distribution across the engaged threads. This precision is critical for preventing galling or cross-threading during installation, especially when applying the high torque values associated with Grade 8 fasteners.
The hexagonal shape of the nut, like the bolt head, allows for efficient application of torque using standard wrenches. The robust design of Grade 8 nuts ensures that they will not strip or deform under the high clamping forces generated by a properly torqued Grade 8 bolt. Substituting these nuts with lower-grade alternatives, even if the bolts are Grade 8, would compromise the entire assembly. A weaker nut would likely fail (strip its threads or fracture) before the Grade 8 bolt could reach its designed preload, thereby rendering the high-strength bolt ineffective and leading to an unreliable and potentially dangerous connection. The synergy between the Grade 8 bolt and Grade 8 nut is what establishes the maximum load-carrying capacity of the fastener system.
Heavy Lock Washers: Guarding Against Loosening
The final essential components in this kit are the four 3/4 inch heavy lock washers. In dynamic and high-vibration environments typical of towing applications, bolted joints are susceptible to loosening over time due to various factors, including cyclic loading, vibration, thermal expansion and contraction, and embedment relaxation. Lock washers are specifically designed to counteract these forces and maintain the integrity of the joint by preventing the nut from rotating loose. The term "heavy" implies a more robust design than standard lock washers, likely featuring increased material thickness and spring constant to provide enhanced resistance to loosening, especially crucial in conjunction with high-strength Grade 8 fasteners.
While various types of lock washers exist (e.g., split ring, internal/external tooth, conical spring), a "heavy lock washer" in this context most commonly refers to a high-strength helical spring lock washer. These washers are typically manufactured from high-carbon spring steel, which is heat-treated to achieve a specific hardness and elasticity. When compressed during tightening, the lock washer deforms elastically, providing a spring force that maintains tension in the bolted joint. The ends of a split helical spring lock washer create a biting edge that slightly digs into the mating surfaces (under the nut and on the mounting surface), providing frictional resistance against rotation. More importantly, the spring tension helps to compensate for minor settling or embedment of the joint components over time, preventing a reduction in clamping force.
The efficacy of a lock washer is directly tied to its ability to maintain sufficient preload in the joint. In heavy-duty applications where Grade 8 fasteners are used, the forces attempting to loosen the joint can be substantial. A heavy lock washer is engineered to withstand these forces and continue exerting its spring tension, thereby minimizing the risk of fastener back-off. It is generally installed under the nut, ensuring that the spring action directly opposes the rotational forces that could loosen the nut. The 3/4 inch size ensures proper fitment with the corresponding bolts and nuts, covering the necessary bearing area to effectively transmit its anti-loosening properties. Without these heavy lock washers, even properly torqued Grade 8 fasteners would be more vulnerable to loosening in high-vibration environments, potentially compromising the safety and stability of the pintle hook connection.
Material and Finish: Durability and Corrosion Resistance
All components within this kit are specified as "Carbon Steel," which is a broad classification. For Grade 8 fasteners, this typically refers to medium carbon alloy steel, which is a steel alloy containing carbon content between 0.25% and 0.60%, along with alloying elements such as manganese, silicon, and often chromium, nickel, or molybdenum in smaller quantities. The precise composition of these alloying elements, combined with the critical heat treatment process (quenching and tempering), is what differentiates Grade 8 from lower grades and provides its exceptional strength, hardness, and toughness. This material choice is fundamental to the structural integrity and long-term reliability of the mounting kit components under severe mechanical stress. Carbon steel, when properly alloyed and heat-treated, offers an excellent balance of strength, ductility, and fatigue resistance, making it ideal for safety-critical applications like pintle hook mounting.
The specified "Zinc Plated Clear" finish applied to these components is a crucial aspect of their design, providing vital corrosion protection. Zinc plating is an electroplating process where a thin layer of zinc is deposited onto the surface of the carbon steel fasteners. This coating serves as a sacrificial layer; in the presence of corrosive elements like moisture and salt, the zinc will corrode preferentially to the underlying steel, thereby protecting the steel substrate from rust and degradation. The "Clear" designation typically refers to a clear chromate conversion coating applied over the zinc layer. This chromate conversion further enhances the corrosion resistance of the zinc coating, creating a passive layer that inhibits the formation of "white rust" (zinc corrosion products) and improves the overall durability of the finish. Zinc plating also offers a clean, bright aesthetic appearance. This level of corrosion protection is particularly important for components used in outdoor, heavy-duty applications like towing, where exposure to road salts, rain, and other environmental corrosives is common. While not as robust as hot-dip galvanizing for extreme outdoor exposure, zinc plating provides excellent protection for general automotive and industrial environments and maintains the precision required for threaded fasteners.
Installation, Torque, and Safety Protocols
The effective performance of the Buyers Products Pintle Hook Mounting Kit is not solely dependent on the inherent quality of its components but also critically relies on correct installation procedures and adherence to specified torque values. For Grade 8 fasteners, proper torque application is paramount. Torque is a rotational force that induces tension, or preload, in the bolt. This preload is the clamping force that holds the joint together, making it resistant to shear forces, vibration, and loosening. The appropriate torque specification for 3/4 inch Grade 8 fasteners must be rigorously followed, typically referencing industry standards or manufacturer's guidelines for the specific pintle hitch application. Using a calibrated torque wrench is essential to ensure that the correct preload is achieved, avoiding both under-torquing (which can lead to joint loosening and failure) and over-torquing (which can stretch or yield the bolt, weakening it, or even cause immediate fracture).
Before installation, it is crucial to ensure that all mating surfaces are clean, dry, and free from debris, rust, or excessive paint buildup, as these can affect friction coefficients and lead to inaccurate torque readings and reduced clamping force. The threads of the bolts and nuts should also be clean and free of damage. During assembly, the heavy lock washers should be placed under the nuts. Fasteners should be tightened in a controlled sequence, if applicable for the mounting pattern, and brought to their final torque in stages to ensure uniform clamping across the entire joint.
The safety implications of using this mounting kit cannot be overstated. Pintle hooks are integral to the safe towing of heavy trailers, and any failure in their attachment could lead to severe accidents, property damage, and personal injury. Therefore, regular inspection of the installed fasteners is strongly recommended. This includes checking for any signs of loosening, corrosion, wear, or deformation. Any fastener showing signs of compromise should be immediately replaced with an exact equivalent from a reputable manufacturer, such as this Buyers Products kit. The engineering behind Grade 8 fasteners, coupled with the precision of their manufacture and the careful selection of complementary components like heavy lock washers, makes this mounting kit a vital safety component for heavy-duty towing operations. Its design reflects a commitment to reliability, performance, and adherence to the highest safety standards in the industry.
Conclusion
The Buyers Products Pintle Hook Mounting Kit, featuring (4) 3/4 in. x 3-1/2 in. Grade 8 cap screws, (4) 3/4 in. Grade 8 hex nuts, and (4) 3/4 in. heavy lock washers, is an indispensable and meticulously engineered solution for securing PH30 and PH45 series pintle hooks. Every component in this kit is chosen and manufactured to the highest standards, ensuring optimal performance and safety in the most demanding towing environments. The selection of Grade 8 fasteners, made from heat-treated medium carbon alloy steel and protected by a durable zinc plated clear finish, provides unmatched tensile strength, shear resistance, and corrosion protection. The inclusion of heavy lock washers further fortifies the assembly against loosening caused by vibration and dynamic loads, thereby preserving the critical preload in the bolted joint.
This kit is more than just an assortment of hardware; it is a precisely matched system designed to meet the rigorous mechanical and environmental challenges inherent in heavy-duty towing. By utilizing components that meet stringent SAE standards for strength and durability, Buyers Products ensures that the connection between your vehicle and trailer remains secure and reliable. Proper installation, including adherence to specified torque values, is crucial to harnessing the full potential of this high-quality mounting kit. Investing in this OEM-specified hardware is an investment in safety, operational efficiency, and the longevity of your towing equipment, providing peace of mind for every journey.
