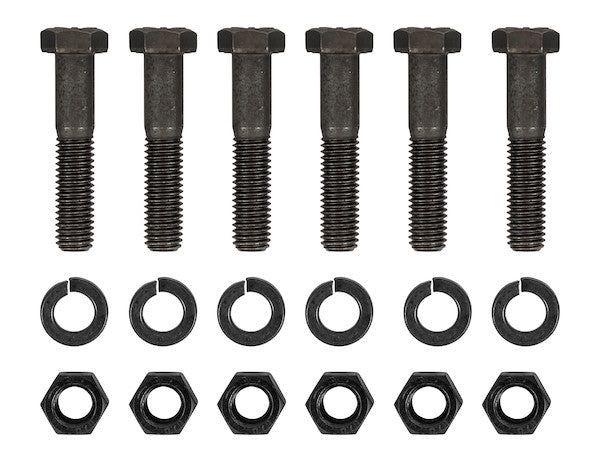

Buyers Products Swivel Type Pintle Hook Mounting Kit is for use with BP100 and BP200 series hitches. It includes: (6) 1/2 in. x 2-1/2 in Grade 8 cap screws, (6) 1/2 in. Grade 8 hex nuts, and (6) 1/2 in. heavy lock washers.
Specifications
| For Use With | Swivel-type pintle hooks |
|---|
In the demanding realm of heavy-duty towing and transport, the integrity of every component in a coupling system is paramount. The Buyers Products Swivel Type Pintle Hook Mounting Kit, designed specifically for the robust BP100 and BP200 series hitches, represents a critical assembly of fasteners engineered to meet the stringent requirements of such arduous applications. This kit is not merely a collection of bolts, nuts, and washers; it is a meticulously specified fastening solution crafted to ensure maximum safety, operational reliability, and longevity under conditions where failure is simply not an option. The selection of Grade 8 fasteners, characterized by their superior strength and resilience, underscores a commitment to engineering excellence and unwavering performance in the face of dynamic loads, significant vibration, and extreme operational stresses typical of commercial and industrial towing environments.
Understanding the critical role of this mounting kit begins with an appreciation for the design philosophy behind heavy-duty pintle hook systems. Swivel-type pintle hooks, such as the Buyers Products BP100 and BP200 series, are designed to provide exceptional articulation and flexibility, particularly beneficial in off-road, construction, and agricultural applications where trailers may encounter uneven terrain or require precise maneuvering. This swivel capability inherently reduces torsional stresses on the towing vehicle and trailer, extending the life of both the hitch and the frame components. However, this enhanced articulation places an even greater emphasis on the integrity of the mounting hardware. The interface between the pintle hook and the vehicle's mounting plate or bumper must be capable of transmitting substantial longitudinal (tractive and braking) forces, as well as vertical and lateral forces, all while resisting the effects of dynamic loading and continuous vibration. The Buyers Products mounting kit addresses these challenges directly by supplying fasteners that are not only dimensionally correct but also possess mechanical properties specifically suited to these high-stress conditions.
The core of this mounting kit's superior performance lies in its exclusive use of Grade 8 fasteners. In the SAE (Society of Automotive Engineers) J429 standard for externally threaded fasteners, Grade 8 represents the highest classification for conventional steel fasteners, signifying a precisely engineered combination of material composition and heat treatment processes. These fasteners are manufactured from medium carbon alloy steel, which undergoes a rigorous quenching and tempering process. This heat treatment dramatically enhances the material's microstructure, resulting in exceptional hardness, tensile strength, and yield strength. Specifically, Grade 8 bolts exhibit a minimum tensile strength of 150,000 pounds per square inch (psi) and a minimum yield strength of 130,000 psi. In comparison, commonly used Grade 5 fasteners offer approximately 120,000 psi tensile strength and 92,000 psi yield strength, while Grade 2 fasteners are significantly weaker. The higher strength of Grade 8 ensures that the mounting bolts can withstand the immense shear and tensile forces encountered during heavy-duty towing operations without deformation or catastrophic failure, thereby preserving the structural integrity of the hitch assembly and preventing the detachment of the towed load.
Each component within the kit is chosen for its specific contribution to the overall robustness of the fastening system. The (6) 1/2 in. x 2-1/2 in. Grade 8 cap screws are the primary load-bearing elements. The 1/2-inch nominal diameter is a standard size for heavy-duty applications, providing a substantial cross-sectional area to resist shear forces. The 2-1/2-inch length is precisely calibrated to accommodate the typical mounting plate thickness of BP100 and BP200 series pintle hooks, ensuring adequate thread engagement with the corresponding hex nuts without excessive protrusion. Cap screws, typically featuring an external hex head, allow for significant torque application, which is crucial for achieving the necessary pre-load in the bolted joint. Pre-load, the internal tension developed in a fastener when it is tightened, is fundamental to the performance of bolted connections. A properly pre-loaded bolt acts like a rigid spring, clamping the joint components together tightly. This clamping force significantly increases the joint's resistance to shear, prevents relative movement between the clamped parts (which can lead to fretting fatigue), and ensures that the fasteners remain tight under dynamic loading. Without adequate pre-load, bolts can experience fatigue failure much more rapidly, especially under cyclic loading conditions prevalent in towing applications.
Complementing the cap screws are the (6) 1/2 in. Grade 8 hex nuts. It is imperative that the nuts used in a high-strength application match or exceed the grade of the bolts. Using a lower-grade nut with a Grade 8 bolt would create a weak point in the fastening system, as the nut's threads could strip before the bolt reaches its full clamping capacity or yield strength. These hex nuts are also made from heat-treated alloy steel, exhibiting mechanical properties that are fully compatible with their Grade 8 bolt counterparts. Their hexagonal geometry facilitates easy and secure tightening using standard wrenches, allowing for precise torque application to achieve the specified pre-load. The careful matching of thread class between the bolts and nuts ensures optimal thread engagement, distributing the load across a maximum number of threads and minimizing localized stress concentrations that could lead to stripping or premature failure.
The final critical component of this mounting kit is the (6) 1/2 in. heavy lock washers. Lock washers play an indispensable role in maintaining the integrity of bolted joints, particularly in environments subject to vibration, shock, or thermal cycling, all of which are common in heavy-duty towing. While proper pre-load is the primary defense against loosening, lock washers provide an additional layer of security by introducing friction, direct interference, or a spring action that resists the nut's tendency to back off from its tightened position. The "heavy" designation for these lock washers indicates a greater material thickness and robust construction compared to standard lock washers. This increased material volume translates to a stronger spring action when compressed, allowing them to exert a more sustained reactive force against the nut and the joint surface. In the context of a split lock washer (a common type for "heavy lock washer" designation), the spring action and the biting edges created by the split provide frictional resistance against rotation, helping to prevent self-loosening mechanisms such as embedment relaxation and vibration-induced back-off. Their inclusion is a deliberate engineering choice to mitigate common failure modes in highly stressed, dynamic applications, ensuring that the primary fasteners remain securely torqued and the pintle hook remains firmly attached to the vehicle.
The application specificity of this mounting kit to Buyers Products BP100 and BP200 series swivel-type pintle hooks is crucial. While general-purpose fasteners might appear similar, they often lack the precise specifications and material properties required for safety-critical towing equipment. The BP100 and BP200 series hitches are designed to accommodate gross trailer weights (GTW) and vertical tongue weights (VTW) that far exceed typical automotive towing capacities, often ranging into tens of thousands of pounds. Such loads generate immense forces on the mounting hardware. During acceleration, braking, and cornering, the fasteners are subjected to complex combinations of shear, tension, and bending stresses. When traversing rough terrain, additional dynamic shock loads and torsional stresses are introduced. The Grade 8 fasteners in this kit are specifically selected to withstand these complex and often unpredictable forces, maintaining the structural integrity of the hitch connection under the most adverse operational conditions. Their high fatigue strength is particularly important, as towing applications involve millions of stress cycles over the lifetime of the equipment. Fatigue is a leading cause of mechanical failure, and using fasteners with superior fatigue resistance is a proactive measure against premature component breakdown.
Proper installation of this mounting kit is as critical as the quality of the components themselves. The installation process typically involves mounting the pintle hook body to a robust mounting plate or cross-member on the vehicle's frame. The six cap screws pass through drilled holes in the pintle hook and the mounting surface, secured by the hex nuts and heavy lock washers. Adherence to precise torque specifications provided by Buyers Products or the vehicle manufacturer is absolutely essential. Over-torquing can stretch and damage the fasteners, potentially leading to brittle failure, while under-torquing results in insufficient pre-load, leaving the joint susceptible to loosening and fatigue. The use of a calibrated torque wrench is highly recommended, and a systematic tightening sequence (e.g., star pattern for multiple fasteners) should be employed to ensure even distribution of clamping force across the mounting surface. Furthermore, proper thread lubrication (if specified) can help achieve more accurate torque readings and prevent galling, particularly with high-strength fasteners. Post-installation, regular inspections for signs of loosening, corrosion, or deformation are vital for ongoing operational safety. Fasteners, even Grade 8, are consumables and may need periodic replacement, especially if they have been subjected to extreme stress or show signs of wear.
In summary, the Buyers Products Swivel Type Pintle Hook Mounting Kit is a meticulously engineered solution designed to meet the rigorous demands of heavy-duty towing applications utilizing BP100 and BP200 series pintle hooks. By providing six sets of 1/2 in. x 2-1/2 in. Grade 8 cap screws, 1/2 in. Grade 8 hex nuts, and 1/2 in. heavy lock washers, this kit offers an uncompromising level of strength, durability, and reliability. The selection of Grade 8 fasteners ensures superior tensile and yield strength, critical for resisting the immense shear and tensile forces encountered during heavy-duty operations. The precision engineering of each component, from the exact dimensions of the cap screws to the high-strength material of the hex nuts and the anti-loosening properties of the heavy lock washers, collectively guarantees a secure and stable connection. This kit not only facilitates the safe and efficient operation of swivel-type pintle hooks but also contributes significantly to the overall safety of the towing system, protecting valuable equipment and personnel. For professionals who cannot afford compromise in their towing apparatus, this mounting kit provides the foundational integrity required for reliable performance under the most challenging conditions, reinforcing the commitment to safety and operational excellence that defines Buyers Products offerings.
