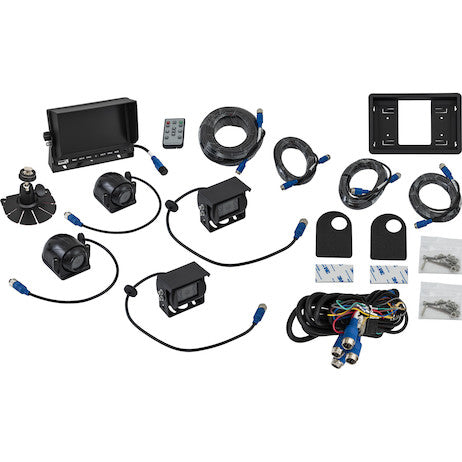

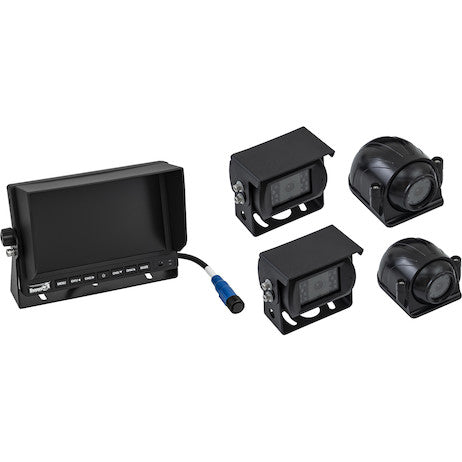

8883060 - Backup Camera System with DVR and Blind Spot Detection

Elevate Operational Safety and Situational Awareness with Our Advanced Backup Camera System

In the complex and dynamic environments of modern vehicle operation, ensuring unparalleled safety and comprehensive situational awareness is paramount. Our Backup Camera System with integrated Digital Video Recorder (DVR) and sophisticated Blind Spot Detection (BSD) technology represents a pinnacle in vehicular safety solutions. Engineered for discerning professionals and demanding applications, this system transcends basic rear-view assistance, offering a multi-faceted approach to preventing accidents, mitigating risks, and enhancing operational efficiency across a diverse range of vehicles.

Modular Visibility: Beyond the Rear View

The core strength of this system lies in its modular design, supporting up to four independent camera feeds. This extensibility allows operators to construct a truly comprehensive surveillance network around their vehicle, effectively eliminating persistent blind spots that challenge even the most experienced drivers. While the primary camera provides crucial rear-view visibility, the capacity for additional cameras (sold separately) transforms the system into a 360-degree monitoring solution. Imagine strategically positioning cameras on the sides of a large RV for lane changes, at the front of a construction vehicle for precise maneuvering, or even internally for cargo monitoring in commercial fleets. This adaptability ensures that operators have an unobstructed view of their surroundings, enhancing safety during reversing, parking, lane changes, and navigating congested areas. The ability to monitor multiple vantage points simultaneously or cycle through them on demand provides an unprecedented level of control and confidence.

Integrated Digital Video Recording (DVR) for Forensic & Operational Insights

Accidents and incidents, while unfortunate, are an unavoidable reality in vehicle operation. Our system integrates robust DVR capabilities, transforming your visibility solution into a powerful evidence capture and operational analysis tool. With a generous 128GB SD card included, the system is primed for extensive footage recording, offering significant storage capacity for continuous or event-triggered video data. This DVR functionality is critical for several key applications:

• Accident Reconstruction and Liability Protection: High-definition video footage provides irrefutable evidence in the event of an accident, protecting operators and businesses from fraudulent claims and facilitating accurate accident reconstruction. Timestamped recordings offer a precise log of events.
• Security and Theft Deterrence: Continuous surveillance footage acts as a deterrent against theft and vandalism, both when the vehicle is in operation and when parked.
• Driver Training and Performance Monitoring: Recorded footage can be invaluable for identifying unsafe driving practices, providing constructive feedback during driver training, and monitoring adherence to safety protocols. This proactive approach leads to improved driving habits and reduced incident rates.
• Fleet Management and Operational Efficiency: For commercial fleets, the DVR provides insights into route efficiency, loading/unloading procedures, and general operational conduct, contributing to better resource management and accountability.
• Compliance and Record Keeping: In industries with stringent regulatory requirements, recorded video serves as a verifiable record of operations, aiding in compliance audits and investigations.

The system intelligently manages storage, typically employing loop recording where older footage is overwritten once the SD card capacity is reached, ensuring that the most recent operational data is always available. The included 128GB SD card offers extended recording times, minimizing the frequency of overwrites and providing a substantial archive of events.

Precision Blind Spot Detection (BSD) with Audible Alerts

Blind spots are inherent challenges in all vehicle designs, posing significant risks during lane changes, turns, and intricate maneuvers. This system directly addresses this critical safety concern with an integrated Blind Spot Detection feature. Utilizing advanced sensor technology, the system continuously monitors the areas adjacent to your vehicle that are traditionally obscured from the driver's direct view or mirrors. When an object, vehicle, or pedestrian enters these predefined blind zones, the system provides immediate, clear audible alerts. These beeps are intuitively designed to grab the driver's attention without being overly distracting, allowing for rapid corrective action.

The BSD system is particularly beneficial for:

• Lane Change Safety: Minimizing the risk of collision when merging or changing lanes on multi-lane highways.
• Urban Driving: Detecting cyclists, pedestrians, or smaller vehicles that can easily disappear into blind spots in congested city environments.
• Parking and Maneuvering: Assisting in tight parking situations or when navigating through narrow passages, where awareness of surrounding obstacles is crucial.
• Large Vehicle Operation: Providing an indispensable safety net for drivers of trucks, buses, and RVs, where blind spots are significantly larger and more dangerous.

The integration of audible alerts with visual information on the monitor creates a multi-sensory warning system, enhancing the driver's perceptual awareness and significantly reducing the likelihood of accidents caused by unseen obstacles.

Ruggedized Camera Technology for Unwavering Performance

The included camera is engineered for durability and high performance under diverse and challenging conditions. Key features include:

• Heated Night Vision: Unlike standard night vision systems that can struggle in extreme cold, our camera incorporates heated night vision technology. This active heating element prevents lens fogging and ice buildup, ensuring crystal-clear imagery even in sub-zero temperatures. Coupled with powerful infrared (IR) LEDs, this feature delivers exceptional visibility in complete darkness, extending the operational window and enhancing safety during nighttime maneuvers. The system intelligently activates night vision as ambient light diminishes, providing seamless transitions between day and night operations.
• Integrated Audio Feed: Beyond visual data, the camera captures an audio feed of its surroundings. This feature can be invaluable for situational awareness, allowing the driver to hear approaching vehicles, verbal warnings from spotters, or other ambient sounds that might indicate a potential hazard not immediately visible. It also contributes to more comprehensive incident recording, capturing crucial sound cues alongside video.
• Extreme Durability (IP69K Rating): The camera boasts an industry-leading IP69K ingress protection rating. This designation signifies the highest level of protection against dust ingress and high-pressure, high-temperature washdowns. It ensures the camera remains fully operational and watertight even when subjected to intense cleaning processes common in commercial, agricultural, and industrial settings. This extreme resilience makes it ideal for environments exposed to harsh weather, dirt, grime, and frequent sanitization, far surpassing the common IP67 rating.
• Optimized Viewing Angle: With a wide 120-degree viewing angle, the camera captures an expansive field of view, minimizing distortion while maximizing the visible area behind the vehicle. This balance ensures that operators can accurately gauge distances and positions of objects within the camera's scope without excessive "fish-eye" effect.
• Sealed Four-Pin Connector: The system utilizes robust, sealed four-pin connectors for all camera connections. This professional-grade connector type ensures a secure, weather-tight, and vibration-resistant electrical connection, preventing signal degradation, moisture ingress, and accidental disconnections—critical for maintaining reliable performance in harsh mobile environments.

Intuitive Monitoring and Control Interface

The heart of the system's human-machine interface is the 7-inch full-color touchscreen monitor. This display is designed for clarity, responsiveness, and ease of use, providing operators with immediate access to critical visual information and system controls.

• High-Resolution Display: The monitor features an 800 x 480 resolution, delivering crisp and clear imagery from all connected cameras. This resolution is optimized for the screen size, ensuring that details are discernible, and the video feed is free from pixelation, even when multiple camera views are displayed simultaneously. The full-color capability provides realistic representation of the environment.
• Responsive Touchscreen: The intuitive touchscreen interface simplifies system navigation, allowing for effortless switching between camera views (single, split-screen, or quad-view modes), adjusting settings, and accessing DVR functions with a tap. This direct interaction enhances operational efficiency and reduces driver distraction compared to button-heavy alternatives.
• Versatile Mounting Solutions: Understanding that vehicles come in various configurations, the system includes multiple mounting brackets: a U Bracket for secure surface mounting, a Pedestal mount for dashboard or console placement, and a Flush mount for integrated, low-profile installations. This versatility ensures optimal positioning of the monitor for ergonomic accessibility and minimal obstruction of the driver's field of vision, regardless of the vehicle type (dimensions: 7.17 in. width, 5.32 in. height, 2.68 in. depth).
• Wireless Remote Control: For enhanced convenience, a wireless remote is included. This allows drivers to control essential functions—such as switching camera views or navigating menu options—without needing to physically reach for the monitor, promoting safer operation and reducing driver fatigue.

Seamless System Integration and Power Versatility

This backup camera system is engineered for seamless integration into a wide array of vehicles, ensuring hassle-free installation and reliable operation.

• Automatic Reverse Activation: The system's intelligent design ensures automatic activation when the vehicle is shifted into reverse, providing immediate visual feedback precisely when it's needed most. This eliminates the need for manual activation, ensuring that the driver's focus remains on the critical task of maneuvering the vehicle. While a generic "Auto On/Off (y/n)" spec might exist for other power management features, the reverse trigger functionality is a core, user-friendly automation.
• Broad Voltage Compatibility (12-24V DC): The system is designed to operate within a wide DC voltage range of 12-24 volts. This universal compatibility makes it suitable for virtually any vehicle, from standard passenger cars and light trucks to heavy-duty commercial vehicles, agricultural machinery, RVs, and marine applications. This eliminates the need for voltage converters in most setups, simplifying installation and ensuring stable power delivery across diverse vehicular electrical systems.
• Extended Cable Length (65 ft): The included 65-foot cable provides ample length for installation on even the largest commercial vehicles, RVs, and trailers. This generous cable length allows for flexible camera placement, ensuring optimal viewing angles and routing possibilities without the need for additional extensions.

Unwavering Reliability and Support

To underscore our commitment to quality and customer satisfaction, the Backup Camera System with DVR and Blind Spot Detection is backed by a comprehensive two-year warranty. This warranty provides peace of mind, assuring customers of the product's durability, reliability, and our dedication to supporting its performance over an extended period. Our robust manufacturing standards and rigorous testing ensure that this system will deliver consistent, high-performance operation in the most demanding scenarios.

Applications Across Industries

The versatility and robust feature set of this system make it an indispensable tool across numerous industries:

• Commercial Transportation: Essential for tractor-trailers, delivery trucks, and buses, enhancing safety in crowded docks, urban streets, and highways.
• Recreational Vehicles (RVs) & Towing: Provides critical assistance for backing up, navigating tight campgrounds, and monitoring towed vehicles or trailers.
• Construction & Agricultural Equipment: Improves visibility around heavy machinery on job sites, reducing accidents involving personnel and property.
• Fleet Management: Offers comprehensive monitoring and recording capabilities that aid in liability protection, driver training, and operational oversight.
• Emergency Services: Enhances situational awareness for fire trucks, ambulances, and police vehicles, especially during intricate maneuvers in high-pressure situations.

Conclusion

The Backup Camera System with DVR and Blind Spot Detection is not merely an accessory; it is an integrated safety and surveillance platform designed to meet the rigorous demands of modern vehicle operation. By combining multi-camera expandability, high-capacity DVR recording, precise blind spot detection, and a rugged, feature-rich camera, all viewed through an intuitive touchscreen monitor, this system offers an unparalleled level of safety, efficiency, and forensic capability. Invest in a solution that not only improves visibility but fundamentally transforms operational awareness, setting a new standard for vehicular safety and professional-grade performance.
