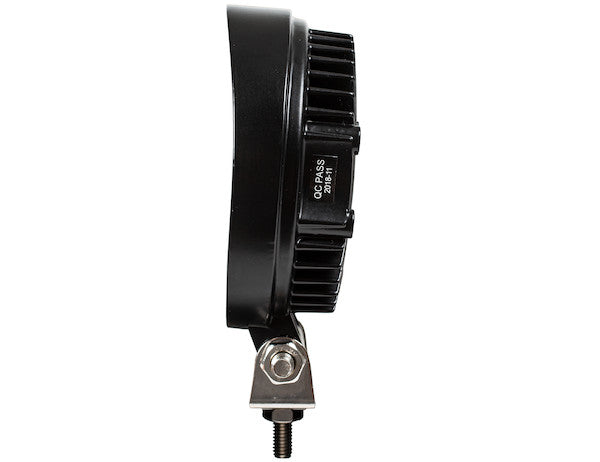

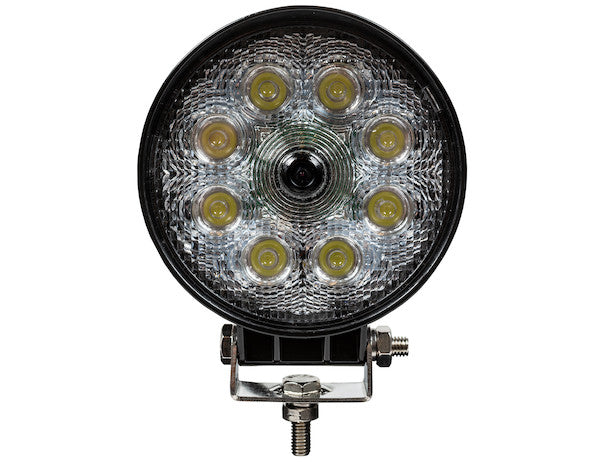

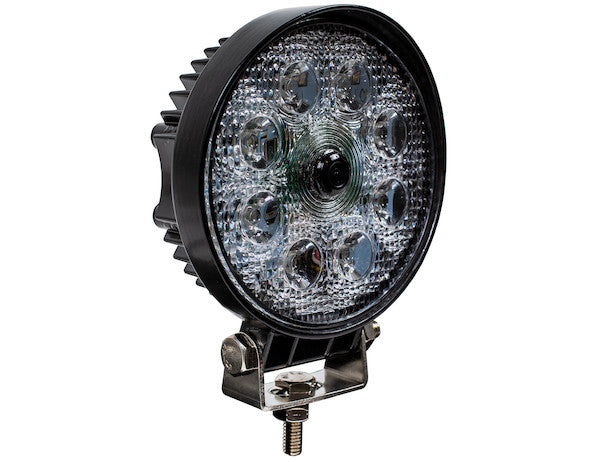

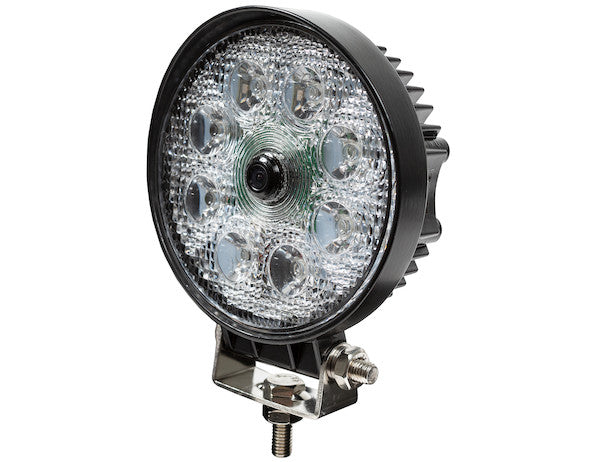

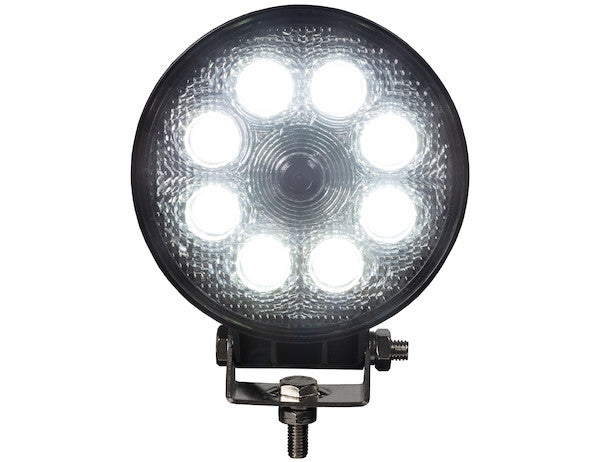

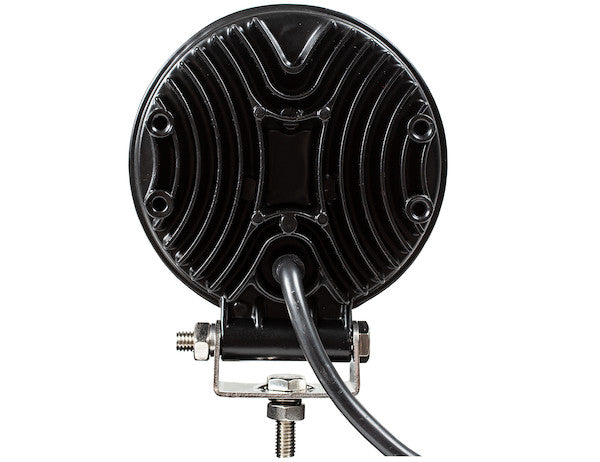

Offering unparalleled versatility, Buyers Products Round LED Flood Light with Built-In Backup Camera is an all-in-one solution for your work trucks and vans. Equipped with a bright 1100 lumen work light and powerful night vision camera, this product packs multiple functions into a single fixture. The camera features a 976x592 pixel resolution (700 TV lines) and night vision capabilities. It has a wide 140?? viewing angle to help capture everything going on around it. The light/camera combo is available with a round or square lens.
Specifications
| Amp draw at 12 Volts | 2.33 |
|---|---|
| Color | Clear |
| Connector | 4-pin Deutsch |
| Hard Wired or Plug | Hard wired |
| Height | 5.39 |
| Housing Material | Die Cast |
| Lens Material | Polycarbonate |
| Lens Shape | Round |
| Lumens | 1100 |
| Mount Type | Stainless steel adjustable stud |
| Type of Plug | Push-in Connectors |
| Voltage | 12 |
The Buyers Products Round LED Flood Light with Built-In Backup Camera represents a significant advancement in vehicular safety and operational efficiency for a diverse range of commercial and industrial applications. This innovative, integrated solution transcends the capabilities of conventional lighting and independent camera systems by converging two critical functions into a single, robust, and highly functional unit. Engineered for the demanding environments encountered by work trucks, utility vehicles, heavy machinery, and service vans, this product is designed to enhance operator situational awareness, mitigate accident risks, and optimize productivity across various operational scenarios.
Advanced Illumination: The 1100 Lumen LED Flood Light
At the core of this versatile fixture is a high-performance LED flood light, delivering a formidable 1100 lumens of illumination. This output is meticulously calibrated to provide broad and consistent light distribution, essential for effectively illuminating work areas, vehicle perimeters, and reverse maneuvering paths. The inherent advantages of Light Emitting Diode (LED) technology are fully leveraged here, offering superior energy efficiency, extended operational lifespan, and exceptional durability compared to traditional incandescent or halogen light sources.
Energy Efficiency and Electrical Design
Operating efficiently at 12 Volts, the flood light draws a mere 2.33 Amperes. This translates to an approximate power consumption of just 27.96 Watts (P = V * I), signifying a remarkably low electrical load on the vehicle's power system. Such efficiency is crucial for vehicles with multiple auxiliary systems, helping to reduce alternator strain, conserve fuel, and extend battery life. The "hard wired" configuration, paired with a robust 4-pin Deutsch connector, ensures a secure, weather-sealed, and vibration-resistant electrical connection, preventing common issues associated with less robust wiring systems, such as intermittent power loss or short circuits in harsh conditions. The clear lens color, coupled with the chosen LED spectrum, provides a crisp, daylight-like white light, optimizing visual clarity and reducing eye strain during prolonged operation.
Durability and Optical Engineering
The flood light's lens is constructed from high-grade polycarbonate, a material renowned for its exceptional impact resistance and optical clarity. This makes the lens impervious to common hazards encountered in industrial settings, such as stone chips, debris impact, and minor abrasions, which could compromise the performance of lesser materials. The round lens shape is aesthetically complementary and contributes to a symmetrical flood light pattern, minimizing hotspots and ensuring even illumination across the target area. The combination of the polycarbonate lens and a precisely engineered reflector system ensures optimal light dispersion, creating a broad and consistent beam pattern that is ideal for illuminating large work zones or wide areas behind a vehicle, maximizing visibility and safety.
Integrated Imaging System: High-Resolution Backup Camera
Complementing the powerful illumination is a sophisticated built-in backup camera, an indispensable tool for modern vehicular operations. This camera is engineered to provide critical visual feedback to the operator, significantly reducing blind spots and enhancing safety during reversing, parking, and complex maneuvering in confined spaces or busy worksites. The integration of a camera into the light fixture simplifies installation, reduces the overall footprint, and ensures that the camera's field of view is always optimally illuminated by its companion flood light.
Advanced Sensor and Resolution
The camera boasts a resolution of 976x592 pixels, which translates to an impressive 700 TV lines (Television Lines) of horizontal resolution. This metric is a key indicator of image detail and clarity, especially pertinent in analog video systems commonly found in vehicle displays. A resolution of 700 TV lines provides significantly sharper and more detailed imagery than standard definition cameras (typically 420-480 TV lines), enabling operators to discern fine details such as small obstacles, ground markings, or the precise distance to objects. This enhanced clarity is paramount for making informed and accurate maneuvering decisions, reducing the likelihood of collisions with personnel, other vehicles, or property.
Expanded Field of View and Situational Awareness
With a wide 140-degree viewing angle, the camera offers an expansive perspective of the area directly behind and to the sides of the vehicle. This broad field of view is a critical safety feature, as it drastically minimizes traditional blind spots inherent to large vehicles. Operators gain comprehensive situational awareness, allowing them to monitor a wider expanse of the environment for dynamic changes, such as approaching vehicles, pedestrians, or unexpected obstacles. While wide-angle lenses inherently introduce some degree of image distortion, particularly at the edges, this is a calculated trade-off to prioritize a comprehensive view, which is more beneficial for safety and maneuverability in a dynamic vehicle environment.
Night Vision Capabilities
A standout feature of the integrated camera is its powerful night vision capability. This is achieved through the incorporation of infrared (IR) illumination, typically provided by integrated IR LEDs, which emit light beyond the visible spectrum. The camera's sensor is specifically designed to be highly sensitive to infrared light, allowing it to capture clear, detailed images even in complete darkness or extremely low-light conditions where visible light is insufficient. This is indispensable for operations that extend into night hours, pre-dawn, or in dimly lit indoor environments such as warehouses. The night vision functionality ensures that the camera's utility is not restricted by ambient light conditions, thereby providing continuous safety and operational continuity around the clock.
Robust Construction and Environmental Resilience
The design and material selection for this integrated flood light and camera system emphasize uncompromising durability, a prerequisite for equipment deployed in challenging outdoor and industrial settings. Every component is chosen for its ability to withstand extreme environmental conditions and the rigors of daily commercial use.
Housing and Mounting
The primary housing is constructed from high-quality die-cast material. Die-casting is a manufacturing process that yields extremely strong, rigid, and dimensionally stable components. For a vehicular light and camera, a die-cast housing offers several critical advantages: superior mechanical strength to resist shock and vibration, excellent thermal conductivity for efficient heat dissipation from the LEDs (which is crucial for extending their lifespan), and inherent electromagnetic shielding. The 5.39-inch height indicates a compact yet substantial form factor, designed for versatile mounting without excessive protrusion.
The mounting system features a stainless steel adjustable stud. Stainless steel is selected for its exceptional resistance to corrosion, rust, and chemical exposure, making it ideal for outdoor applications where moisture, road salts, and industrial contaminants are prevalent. The adjustable stud design provides flexibility in aiming the light and camera to achieve the optimal viewing angle and illumination pattern for specific vehicle configurations and operational needs. This adjustability ensures that the system can be precisely tailored to maximize its effectiveness, regardless of the mounting location on the vehicle.
Ingress Protection and Environmental Performance
While a specific IP (Ingress Protection) rating is not explicitly stated, the choice of die-cast housing, polycarbonate lens, and Deutsch connector strongly indicates a design engineered to meet high standards of environmental sealing. Products of this caliber for vehicular use are typically rated IP67 or IP69K, signifying complete protection against dust ingress and the ability to withstand temporary immersion in water (IP67) or powerful high-temperature, high-pressure water jets (IP69K). Such robust sealing is vital for preventing the ingress of dust, dirt, moisture, and cleaning agents, which could otherwise compromise the electronic components of both the light and the camera, ensuring long-term reliability and performance in demanding conditions.
Synergistic Integration and Operational Benefits
The core value proposition of the Buyers Products Round LED Flood Light with Built-In Backup Camera lies in its seamless and synergistic integration. This is not merely a light and a camera bundled together; it is a unified system where each component enhances the other's functionality, delivering a sum greater than its parts.
Optimized Performance and Space Utilization
The flood light's 1100 lumens directly benefits the camera's performance, especially in challenging low-light scenarios beyond the reach of its integrated IR night vision. By illuminating the area of interest, the flood light enables the camera to capture higher-quality, full-color images (where applicable, depending on camera sensor characteristics) in ambient low light, extending its operational clarity beyond pure infrared monochrome. This combined approach ensures maximum visibility and detail extraction, regardless of the time of day or external lighting conditions.
From an installation perspective, integrating these two functions into a single fixture significantly reduces the complexity and time required for mounting and wiring. Instead of installing two separate units, each requiring its own mounting points, power supply, and signal cabling, operators can deploy a single, compact device. This not only saves valuable mounting space on the vehicle but also streamlines wiring harnesses, reducing potential points of failure and simplifying maintenance. The overall height of 5.39 inches underscores its compact design, making it suitable for a variety of vehicle types without obstructing other vehicle functions or aesthetics.
Target Applications and Enhanced Safety
The versatility and robust design of this integrated light and camera system make it an ideal solution for a broad spectrum of heavy-duty and commercial vehicles. Its primary applications include:
- Work Trucks and Utility Vehicles: For municipal fleets, construction crews, landscaping professionals, and service technicians who require superior rear visibility for safe backing, trailer hookups, and illuminating task areas after dark.
- Heavy Construction Equipment: Excavators, wheel loaders, dozers, and graders benefit from enhanced rear awareness to prevent collisions with ground personnel, other machinery, or structures on busy job sites.
- Agricultural Machinery: Tractors, harvesters, and sprayers can navigate large fields and farmyards more safely, especially when hitching implements or maneuvering in low visibility conditions.
- Delivery and Logistics Vehicles: Vans and box trucks performing frequent stops and maneuvers in urban or crowded environments gain a critical advantage in preventing costly accidents.
- Specialty Vehicles: Emergency response vehicles, refuse trucks, and mining vehicles can leverage the system for improved operational safety in their demanding roles.
The fundamental benefit across all these applications is a dramatic increase in operational safety. By providing operators with a clear, wide-angle view of the rear and periphery of their vehicles, the system actively helps prevent:
- Backing Accidents: A leading cause of property damage and personnel injury in commercial operations.
- Blind Spot Collisions: The 140-degree view significantly mitigates risks associated with obscured areas.
- Damage to Infrastructure: Reducing instances of hitting fixed objects, overhead structures, or other vehicles.
- Operator Fatigue: Reducing the need for constant craning and guesswork, allowing operators to focus on the task at hand with greater confidence.
Installation and Long-Term Value
Installation of this hard-wired system is designed to be straightforward for professional technicians. The 4-pin Deutsch connector ensures a reliable connection for both power and video signals, minimizing potential wiring errors. While requiring a direct connection to the vehicle's electrical system, this method provides the most secure and dependable long-term solution, resisting the disconnections or signal interference that can plague less robust plug-and-play systems.
The long-term value proposition of the Buyers Products Round LED Flood Light with Built-In Backup Camera is substantial. Its durable construction ensures a prolonged service life, minimizing the need for frequent replacements or repairs. The use of LED technology guarantees thousands of hours of reliable illumination, while the robust camera components are designed to perform consistently over time. The investment in such an integrated system translates into quantifiable returns through reduced accident rates, lower insurance claims, less vehicle downtime for repairs, and improved operational efficiency. Ultimately, it provides peace of mind for operators and fleet managers alike, knowing that their vehicles are equipped with a state-of-the-art solution for enhanced safety and performance.
Conclusion
The Buyers Products Round LED Flood Light with Built-In Backup Camera is more than just an accessory; it is an essential safety and productivity tool for any commercial or industrial vehicle. By expertly combining a powerful 1100-lumen LED flood light with a high-resolution, wide-angle, night-vision-equipped backup camera into a single, compact, and highly durable unit, this product offers an unparalleled level of versatility and performance. Its robust die-cast housing, impact-resistant polycarbonate lens, and corrosion-resistant stainless steel mounting stud ensure unwavering reliability in the harshest environments. The efficient 12V operation and secure 4-pin Deutsch connector underscore its professional-grade engineering. For work trucks, vans, and heavy equipment, this integrated solution represents a strategic investment in operational safety, efficiency, and longevity, providing operators with the critical awareness needed to navigate challenging environments with confidence and precision.
