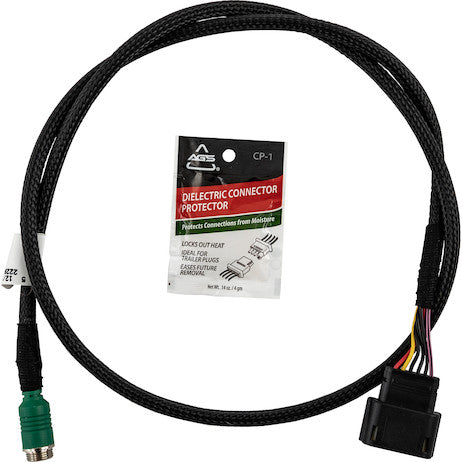

Buyers Products Camera Interface Cables for RAM??, Ford?? and GM?? Trucks allow you to connect your backup camera system to your vehicle's OEM radio/display, offering seamless integration with your truck. The cables utilize the truck's factory wiring for ease of installation. Many variations offered based on truck make and model. NOTE: If your truck model features a digital camera, you will need an 8883350 or 8883355 Relocation Kit in lieu of these Camera Interface Cables.
Specifications
| Cable Length | 41.00" |
|---|
Advanced OEM Integration Solution for Ford F-Series Cab Chassis / Factory Box Delete Trucks (2017-2023)
This technical description details the specialized Camera Interface Cable designed for seamless integration of aftermarket backup camera systems with the Original Equipment Manufacturer (OEM) radio/display in Ford F-250, F-350, F-450, F-550, and F-600 Cab Chassis and Factory Box Delete models manufactured between 2017 and 2023. This product addresses a critical need for fleet managers, upfitters, and commercial vehicle operators who require robust and reliable rear-view visibility solutions without compromising the factory aesthetic or functionality of their vehicle's infotainment system. The primary objective of this interface cable is to facilitate the connection of a standard analog backup camera to the truck’s existing OEM display, leveraging the factory wiring infrastructure for a plug-and-play installation experience.
Product Overview and Application
The Camera Interface Cable serves as a crucial bridge component, enabling the direct integration of a compatible aftermarket analog backup camera with the Ford SYNC® or equivalent OEM display in specified F-Series trucks. This product is specifically engineered for Cab Chassis and Factory Box Delete configurations, which often lack a pre-installed factory backup camera due to their intended application as platforms for various vocational bodies (e.g., service bodies, dump bodies, flatbeds, utility bodies). These configurations require a tailored solution for rear-view camera integration, as the traditional factory camera location (often in the tailgate handle) is absent. The cable ensures that the video feed from an aftermarket camera is correctly routed and displayed on the vehicle's OEM screen, automatically activating when the transmission is shifted into reverse, mimicking the behavior of a factory-installed system.
Technical Specifications and Design Philosophy

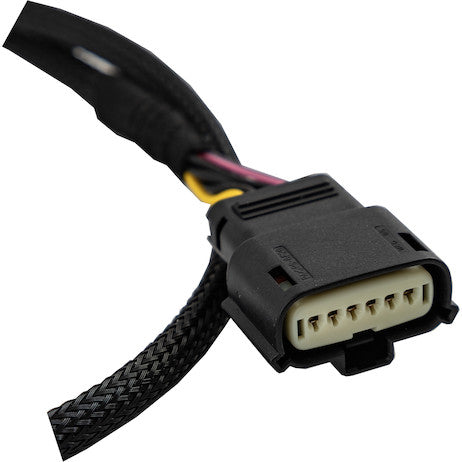

The cable boasts a length of 41.00 inches, meticulously chosen to provide sufficient reach within the vehicle's cabin for common installation scenarios without excessive slack. This length optimizes routing paths, minimizing potential for interference or damage while allowing flexibility in camera placement. The design adheres to automotive-grade standards, utilizing durable materials resistant to the harsh conditions typically encountered in commercial vehicle operations, including temperature fluctuations, vibration, and exposure to minor contaminants. The connectors are precision-engineered to mate perfectly with Ford’s OEM harness connectors, ensuring a secure, low-resistance connection and preventing signal degradation.
Key Technical Features:
- OEM Connector Compatibility: Features vehicle-specific connectors designed to directly interface with Ford's factory wiring harness, eliminating the need for cutting, splicing, or complex wiring modifications. This preserves the integrity of the vehicle's electrical system and simplifies installation.
- Plug-and-Play Installation: Designed for straightforward installation, significantly reducing installation time and labor costs. The cable typically connects inline with the existing OEM head unit or display harness and the aftermarket camera's video output.
- Analog Video Signal Conversion: Primarily designed for standard analog video signals (e.g., CVBS/NTSC). It provides the necessary interface to present this signal to the OEM display in a format it can recognize and process.
- Automatic Reverse Trigger: Leverages the vehicle's existing CAN bus or reverse signal wire to automatically trigger the camera display upon engagement of reverse gear, mirroring factory functionality. This enhances safety and operational efficiency.
- High-Quality Shielding: Incorporates shielding to protect the video signal from electromagnetic interference (EMI) and radio frequency interference (RFI) generated by other vehicle electronics, ensuring a clear and stable video feed.
- Durable Construction: Constructed with automotive-grade wiring and insulation capable of withstanding the rigors of commercial vehicle environments, including temperature extremes, vibration, and potential exposure to fluids.
Integration with OEM Infotainment Systems
Ford F-Series trucks from 2017-2023 primarily utilize the SYNC® 3 and later SYNC® 4 infotainment systems, which feature sophisticated software and hardware architectures. This interface cable is engineered to communicate effectively with these systems. It provides the analog video input necessary for the display to switch modes and present the camera feed. For successful integration, the vehicle's OEM display must have an active backup camera input port that can be enabled or is already active. In some instances, a dealership-level scan tool or an aftermarket diagnostic tool may be required to enable the backup camera input feature in the vehicle's Body Control Module (BCM) or infotainment system settings if it is not enabled by default for Cab Chassis / Box Delete models. This activation process ensures that the OEM system recognizes the presence of a camera and allocates display resources accordingly.
Considerations for Digital Camera Systems
It is imperative to note the distinction between analog and digital camera systems. Modern Ford trucks, particularly higher trim levels or specific configurations, may utilize digital camera systems (e.g., proprietary digital video interfaces or even IP-based cameras). This Camera Interface Cable is specifically designed for analog camera inputs. If the truck model inherently features a digital camera system, this interface cable is not applicable. In such cases, a different solution, specifically a relocation kit such as the 8883350 or 8883355, would be required. These relocation kits are designed to extend or reroute the existing digital camera's proprietary wiring when a factory box or tailgate is removed, maintaining the digital signal integrity. Therefore, prior to purchase and installation, it is crucial to ascertain whether the specific Ford F-Series truck model in question utilizes an analog or digital OEM camera system, or if it has an available analog input for an aftermarket solution.
Installation Procedure and Best Practices
Installation of the Camera Interface Cable is typically straightforward, leveraging the "plug-and-play" design. The general steps involve accessing the rear of the OEM radio/display unit, locating the appropriate factory harness connectors, and inserting the interface cable inline. The aftermarket camera’s video output (typically an RCA connector) then connects to the corresponding input on the interface cable. Power and ground for the aftermarket camera must be sourced appropriately, often from the vehicle’s reverse light circuit or an auxiliary power source, ensuring proper fusing. Professional installation is recommended to ensure correct wiring, proper function, and to avoid any potential damage to vehicle electronics. Installers should always consult the vehicle's service manual and the specific instructions provided with the interface cable and the aftermarket camera for detailed wiring diagrams and best practices.
Pre-Installation Checklist:
- Verify vehicle compatibility (Make, Model, Year, Cab Chassis/Box Delete configuration).
- Confirm the OEM display supports an analog video input.
- Ensure the aftermarket camera is compatible and provides an analog output (e.g., RCA composite video).
- Gather necessary tools (panel removal tools, screwdrivers, multimeter for testing).
- Disconnect the vehicle's battery to prevent electrical shorts during installation.
Benefits for Fleet Operations and Commercial Applications
For Ford F-Series Cab Chassis and Factory Box Delete trucks, which are workhorses in numerous industries, the integration of a reliable backup camera system offers significant operational advantages:
- Enhanced Safety: Provides critical rear-view visibility, reducing the risk of accidents with pedestrians, other vehicles, and obstacles, particularly in congested job sites or loading docks. This is especially vital for vehicles with limited rear visibility due to specialized body installations.
- Reduced Damage Costs: Minimizes costly repairs from backing collisions, extending vehicle lifespan and reducing downtime for repairs.
- Increased Efficiency: Speeds up maneuvering in tight spaces, improving overall operational efficiency and reducing driver fatigue.
- Compliance and Regulations: Helps fleets comply with increasing safety regulations and standards related to rear visibility systems.
- Driver Confidence: Equips drivers with better situational awareness, increasing their confidence and performance.
- Seamless User Experience: Integrates seamlessly with the OEM display, preserving the factory aesthetic and user experience, which is preferred by drivers over aftermarket monitors.
- Preservation of OEM Warranty: By utilizing factory-compatible connectors and avoiding wire cutting, the risk of voiding vehicle electrical warranties is significantly mitigated.
Regulatory Compliance and Standards
The design and construction of this Camera Interface Cable adhere to relevant automotive industry standards for electrical components, ensuring reliable performance and safety. While the cable itself is a component, its function supports the broader compliance of the vehicle with safety mandates like the FMVSS 111 (Federal Motor Vehicle Safety Standard No. 111) regarding rear visibility systems, where applicable to the final vehicle configuration. Manufacturers of such interface cables typically follow standards for electromagnetic compatibility (EMC) to ensure the component does not interfere with other vehicle electronics and is not susceptible to external interference.
Long-Term Reliability and Durability
The choice of high-grade materials and meticulous manufacturing processes ensures the long-term reliability and durability of the Camera Interface Cable. Automotive-grade wiring with robust insulation resists abrasion, chemical exposure (e.g., oils, solvents), and extreme temperatures ranging from sub-zero winter conditions to intense summer heat within the vehicle's cabin. The connectors are designed for multiple mating cycles and maintain electrical integrity over extended periods, minimizing the risk of intermittent connections or signal loss, which is crucial for safety-critical systems like backup cameras. Each cable undergoes quality control checks to confirm continuity, insulation integrity, and proper connector fitment.
Conclusion
The Camera Interface Cable for Ford F-250/350/450/550/600 Cab Chassis / Factory Box Delete models (2017-2023) represents a sophisticated and essential solution for integrating aftermarket analog backup cameras with OEM infotainment systems. Its technical design prioritizes seamless integration, ease of installation, and long-term reliability, directly addressing the unique requirements of vocational trucks lacking factory rear-view solutions. By leveraging the existing vehicle infrastructure and adhering to stringent automotive standards, this product significantly enhances safety, operational efficiency, and driver confidence for a wide range of commercial applications. The critical distinction between analog and digital camera requirements must be carefully observed to ensure the correct product selection, ensuring optimal performance and user satisfaction.
