Buyers Products Camera Interface Cables for RAM??, Ford?? and GM?? Trucks allow you to connect your backup camera system to your vehicle's OEM radio/display, offering seamless integration with your truck. The cables utilize the truck's factory wiring for ease of installation. Many variations offered based on truck make and model. NOTE: If your truck model features a digital camera, you will need an 8883350 or 8883355 Relocation Kit in lieu of these Camera Interface Cables.
Specifications
| Cable Length | 41.00" |
|---|
Advanced OEM Integration: Camera Interface Cable for Ford F-150 XL (2021-2022) with 100A Package and No Rear Bumper Sensors
This technical description details the Camera Interface Cable specifically engineered for the Ford F-150 XL, model years 2021-2022, equipped with the 100A package and notably, without rear bumper parking sensors. This product exemplifies a sophisticated solution for seamlessly integrating aftermarket backup camera systems with the vehicle's original equipment manufacturer (OEM) infotainment display. Its design philosophy centers on leveraging existing vehicle architecture to ensure robust performance, simplified installation, and full functional compatibility, thereby enhancing driver safety and operational efficiency without compromising the vehicle's factory aesthetics or electronic integrity.
Product Overview and Design Rationale
The Camera Interface Cable serves as a critical bridge between a conventional analog aftermarket backup camera and the advanced digital processing capabilities of modern Ford F-150 OEM head units. Modern vehicle infotainment systems, particularly those found in the 2021-2022 Ford F-150 XL, are designed to work with specific camera signal protocols and connector types. Aftermarket cameras often utilize universal composite video (CVBS) signals and proprietary connectors, necessitating an interface that can accurately translate and transmit these signals to the OEM display. This cable specifically addresses this interoperability challenge, ensuring that the visual feed from the aftermarket camera is presented clearly and without degradation on the factory screen.
The targeted application for the Ford F-150 XL with the 100A package and the absence of rear bumper sensors is significant. The 100A package, often referred to as the "XL Base" or "Equipment Group 100A," typically indicates a more fundamental trim level, which may not include a factory-installed backup camera or advanced parking aids as standard equipment. This makes the vehicle an ideal candidate for aftermarket camera integration, as owners frequently seek to add this essential safety feature. The explicit mention of "No Sensors in Rear Bumper" further refines the compatibility, as vehicles with factory parking sensors might have different wiring harnesses or module configurations that could affect camera signal routing or require additional integration steps. This cable is specifically designed for the simpler electrical architecture associated with the absence of these sensors, streamlining installation and ensuring direct compatibility.
Technical Specifications and Interfacing Protocols

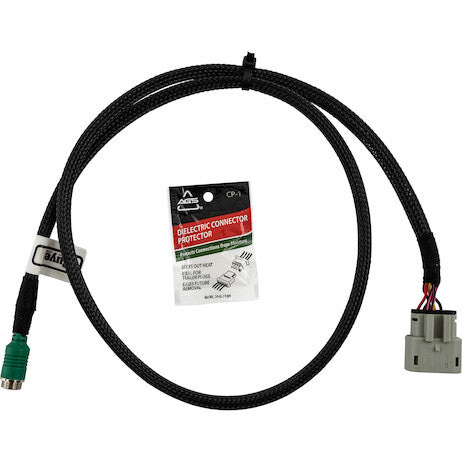

The cable, with a stated length of 41.00 inches, is precisely dimensioned to facilitate connection within the vehicle's dashboard area, typically between the aftermarket camera's wiring harness and the OEM head unit's dedicated camera input port. This length accounts for sufficient slack for routing and strain relief without introducing excessive cable length that could cause signal degradation or clutter. The construction utilizes high-quality shielded cabling to mitigate electromagnetic interference (EMI) and radio-frequency interference (RFI), which are common challenges in automotive electrical environments. This shielding ensures a clean video signal transmission, resulting in a clear and stable image on the OEM display.
At a fundamental level, the interface cable is engineered to convert or adapt the analog video signal from the aftermarket camera (typically a 75-ohm composite video signal) into a format compatible with the Ford F-150's infotainment system. While many OEM systems utilize a proprietary connector for camera input, the underlying signal processing often involves an analog-to-digital conversion within the head unit. This cable provides the physical and electrical bridge, ensuring correct pin-out configurations and signal levels. It leverages the truck's factory wiring harness, which is a key advantage. By tapping into existing OEM wiring, the installation process is simplified, reducing the need for extensive wire-cutting, splicing, or running new dedicated power and ground lines from scratch. This approach preserves the integrity of the vehicle's electrical system and minimizes the risk of installation errors.

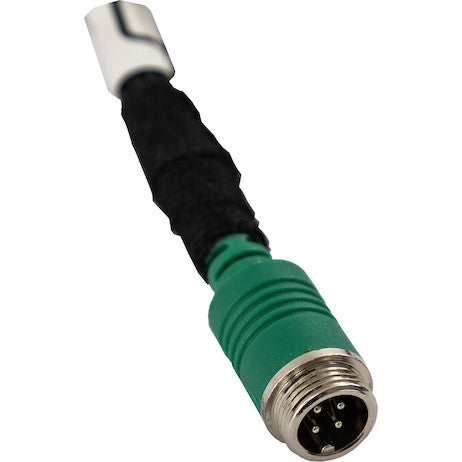

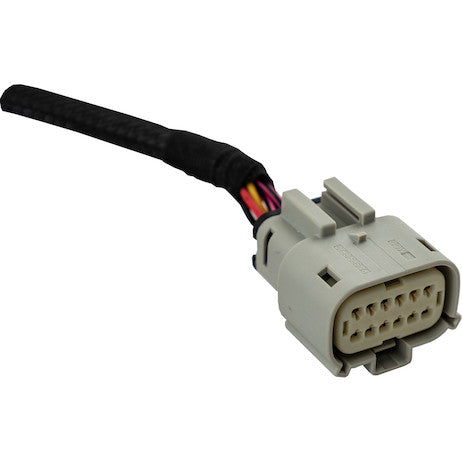

The cable's connectors are meticulously designed to mate perfectly with the Ford F-150's OEM connectors and the aftermarket camera's output. This typically involves a male or female connector designed to plug directly into the back of the Ford head unit, and a corresponding connector (often an RCA-type for video and possibly a two-pin connector for power/ground) to interface with the aftermarket camera harness. The precision of these connectors is paramount to ensure secure connections, prevent signal loss, and maintain resistance to vibration and environmental factors inherent in automotive applications.
Installation and Integration Considerations
Installation of this Camera Interface Cable is designed to be straightforward for professional installers and experienced DIY enthusiasts. The process generally involves accessing the rear of the OEM infotainment unit, disconnecting any existing or blank camera input connectors, and then installing this interface cable. The other end of the cable connects to the aftermarket backup camera's video output. Power for the aftermarket camera is typically sourced from the vehicle's reverse light circuit or an accessory power source, which triggers the camera when the vehicle is shifted into reverse. The interface cable then relays this signal to the head unit, prompting the display to switch to the camera feed.
For the 2021-2022 Ford F-150 XL, certain steps regarding OEM system activation may be necessary. Depending on whether the vehicle originally came "camera-ready" or if the camera input functionality needs to be enabled, a diagnostic tool (such as FORScan or an equivalent OEM-compatible scan tool) might be required to activate the camera input feature within the vehicle's Body Control Module (BCM) or infotainment unit's software. This is a common practice for adding OEM-style features to vehicles that did not originally include them. The interface cable provides the physical connection; software activation completes the functional integration.
It is critical to note the explicit warning provided: "If your truck model features a digital camera, you will need an 8883350 or 8883355 Relocation Kit in lieu of these Camera Interface Cables." This distinction is vital for proper system selection. Newer Ford models, particularly higher trim levels, may utilize digital cameras (e.g., AHD - Analog High Definition, or proprietary digital signals) that transmit data over a different protocol and wiring. The interface cable discussed here is primarily for analog camera integration. A digital camera system requires a different approach, often involving a module to convert the digital signal or a relocation kit to manage an existing digital camera system. This product is specifically designed for scenarios where an analog aftermarket camera is being added to a system expecting an analog input, or where a basic analog input needs to be activated.
Advantages and Benefits of OEM Integration
The primary advantage of using an OEM integration cable like this, as opposed to an aftermarket monitor, is the seamless aesthetic and functional integration. By utilizing the factory display, the vehicle's interior remains uncluttered, preserving the original design and user experience. Drivers benefit from a larger, factory-calibrated screen that is ergonomically positioned for optimal viewing. Furthermore, OEM integration often provides better overall reliability and longevity, as the camera feed is processed through the vehicle's robust infotainment system, which is designed to withstand automotive operating conditions.
From a safety perspective, a well-integrated backup camera system significantly enhances rearward visibility, helping to prevent accidents when reversing. This is particularly valuable for large vehicles like the Ford F-150, where blind spots can be substantial. The ability to display the camera feed directly on the OEM screen means the driver does not need to divert attention to a separate monitor, maintaining focus on the primary display and surrounding environment. For fleet applications or vehicles used for towing, the precise visual guidance offered by a reliable backup camera is indispensable for hitching trailers or navigating tight spaces.
Compatibility and Future-Proofing
While specifically designed for the 2021-2022 Ford F-150 XL with the 100A package and no rear bumper sensors, the underlying design principles of leveraging factory wiring and standard video protocols offer a degree of future-proofing within its specific application domain. As long as the Ford infotainment units in these models retain their current camera input specifications, this cable will remain compatible. However, it is crucial for installers and end-users to verify their specific vehicle configuration against the product's detailed compatibility notes, especially concerning the presence or absence of factory digital cameras or parking sensor systems.
Conclusion
The Camera Interface Cable for Ford F-150 XL (2021-2022) with the 100A Package and no rear bumper sensors represents a sophisticated and highly effective solution for integrating aftermarket backup camera systems into modern Ford trucks. Its technical design prioritizes seamless OEM integration, utilizing existing vehicle wiring for simplified installation and robust performance. By providing a clear and stable video feed to the factory infotainment display, it significantly enhances driver safety, operational convenience, and maintains the aesthetic integrity of the vehicle's interior. This product underscores a commitment to providing high-quality, application-specific solutions that meet the evolving demands of vehicle technology integration while upholding professional standards of reliability and performance.
