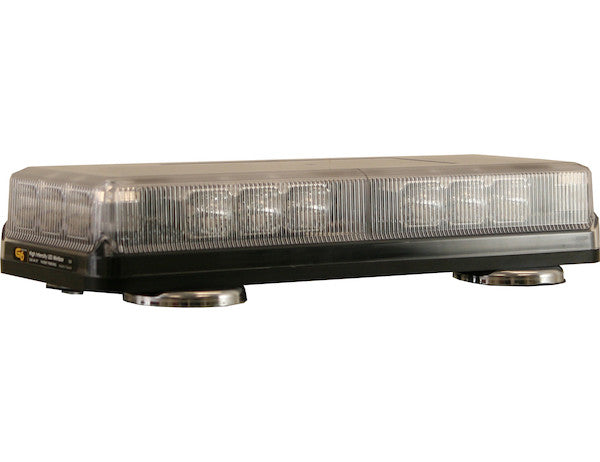

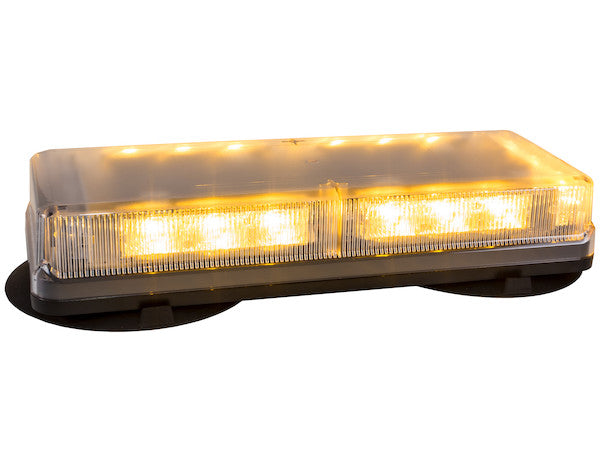

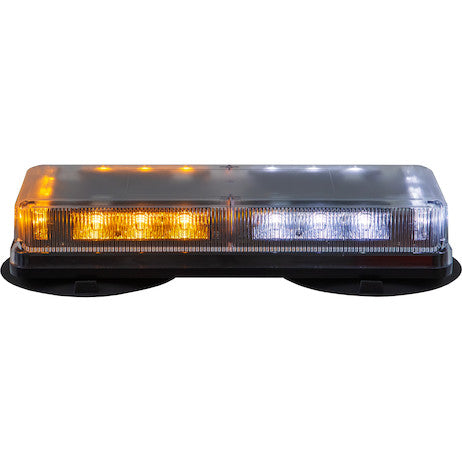

Buyers Products Rectangular 16.5 Inch Rectangular LED Mini Light Bar has 18 LEDs and includes a 15 ft power cord with accessory power plug, on/off switch, and momentary switch. It mounts to your vehicle using two powerful vacuum magnets. A permanent mounting kit is also available. The amber light bar features 19 flash patterns and is SAE J845 Class 1 rated for brightness. Lights are backed with a 5 year warranty.
Specifications
| Amp draw at 12 Volts | 3.20 |
|---|---|
| Base / Mount Type | Surface |
| Built-In Switch | Yes |
| Certification | SAE J845 |
| Class Level | 1 |
| Color | Amber/Clear |
| Depth | - |
| Hard Wired or Plug | Plug |
| Height | 2.900 |
| Housing Material | Plastic |
| Lead Length | 180 |
| Lens Material | Polycarbonate |
| Lens Shape | Rectangular |
| Mount Type | Magnetic |
| Number of Contacts | 1 |
| Number of Flash Patterns | 19 |
| Overall Width | 16.700 |
| SAE Classification | SAE J845 Class 1 |
| Type of Plug | Auxiliary Power Connector |
| Voltage | 12 |
| Wattage | 38 |
Rectangular 18 LED Mini Light Bar - Amber/Clear: Advanced Visibility Solution for Professional Applications
The Buyers Products Rectangular 18 LED Mini Light Bar, presented in an Amber/Clear configuration, represents a pinnacle of compact, high-intensity warning illumination engineered for a diverse range of professional applications. This comprehensive warning light system is meticulously designed to significantly enhance vehicle visibility, thereby improving operational safety across various demanding environments, from construction sites and utility services to emergency response and agricultural operations. Its robust construction, coupled with advanced LED technology and flexible mounting options, positions it as an indispensable safety asset for any 12-volt vehicle requiring superior hazard signaling.
Precision-Engineered LED Illumination and Optical Performance
At the core of this mini light bar's exceptional performance are its 18 high-intensity Light Emitting Diodes (LEDs). Unlike traditional incandescent or strobe lights, LED technology offers distinct advantages critical for demanding applications. Each LED is optimized for maximum light output, ensuring that the amber warning signal penetrates through adverse weather conditions such as fog, rain, snow, and bright daylight. The amber color, universally recognized for caution and warning, is strategically employed to communicate urgency and alert surrounding traffic or personnel to potential hazards or the presence of a working vehicle.
The "Amber/Clear" designation refers to the luminescent output and the protective lens. While the light bar emits a powerful amber warning signal, its outer lens is crafted from clear polycarbonate. This choice of lens material is deliberate, offering not only superior light transmission but also paramount durability and resistance to environmental stressors. The clear lens maintains a sleek, low-profile aesthetic while protecting the internal LED array from road debris, UV radiation, and harsh weather conditions, ensuring sustained optical clarity and performance over the product's extensive lifespan.
Further enhancing its versatility and effectiveness, the light bar features an impressive array of 19 distinct flash patterns. This extensive selection allows operators to choose the most appropriate pattern for specific operational scenarios, ambient lighting conditions, and regional regulatory requirements. Varying flash patterns can differentiate between stationary work zones, moving convoys, or emergency responses, providing dynamic and highly conspicuous signaling. The ability to easily cycle through these patterns via the integrated momentary switch ensures immediate adaptability on the job.
Unparalleled Certification: SAE J845 Class 1 Compliance
A critical distinguishing feature of the Buyers Products Rectangular LED Mini Light Bar is its SAE J845 Class 1 certification. This industry-standard rating is not merely a label but a rigorous testament to the light bar's superior performance and reliability. SAE J845 is a standard published by the Society of Automotive Engineers (SAE) that specifies photometric requirements, test procedures, and general requirements for amber warning lamps. Class 1 is the highest designation within this standard, signifying that the light bar meets the most stringent criteria for brightness, flash rate, and optical dispersion required for primary warning signals on vehicles that are frequently exposed to high-risk situations or high-speed traffic.
Achieving Class 1 certification means the light bar has undergone exhaustive testing for its effective intensity, flash frequency, and light distribution patterns across various angles. This ensures that the warning signal is exceptionally bright and visible from significant distances and from multiple vantage points around the vehicle, crucial for safety on highways, major thoroughfares, and active work sites. For professionals in towing, construction, utility, public safety, and oversized load escort services, Class 1 compliance is often a regulatory mandate and always a critical safety advantage, confirming that the light bar provides the maximum allowable warning power to alert others to their presence and activities.
Robust and Adaptive Mounting Solutions

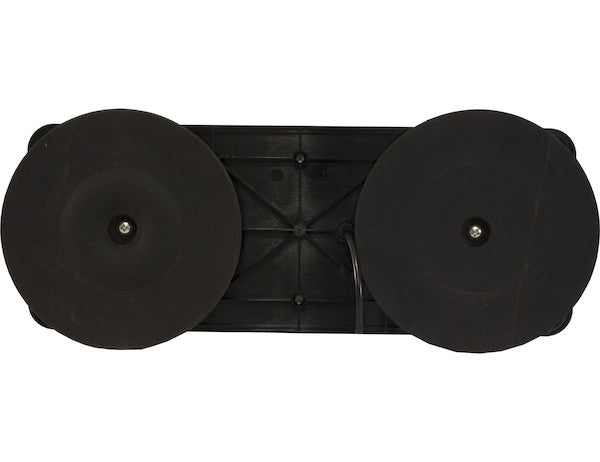

Understanding the dynamic needs of its target users, Buyers Products has engineered this mini light bar with highly flexible and secure mounting options. The primary method of attachment is via two powerful vacuum magnets. These magnets are designed for rapid deployment and removal, making the light bar ideal for temporary installations or situations where a vehicle may be used for multiple purposes. The vacuum magnet system offers exceptional holding strength, ensuring the light bar remains firmly affixed to the vehicle roof even at highway speeds or over rough terrain, without causing damage to the vehicle's paintwork.
For applications demanding a more permanent and robust installation, a permanent mounting kit is also available. This option provides a fixed, bolted-down solution that enhances security against theft and vandalism while offering greater structural integrity for vehicles subjected to extreme vibration or continuous operation. The flexibility to choose between magnetic and permanent mounting underscores the product's adaptability, catering to diverse operational requirements and fleet management strategies. The "Surface" base/mount type indicates suitability for direct mounting onto flat vehicle surfaces, ensuring a streamlined installation process for either method.
Seamless Integration and Intuitive Control
Ease of use and seamless integration into existing vehicle systems are paramount for professional-grade equipment. The Rectangular 18 LED Mini Light Bar excels in this regard, featuring a generous 15-foot (180-inch) power cord. This extended lead length provides ample reach for routing the cable discreetly and efficiently from the light bar's mounting point to the vehicle's power source, typically within the cabin.

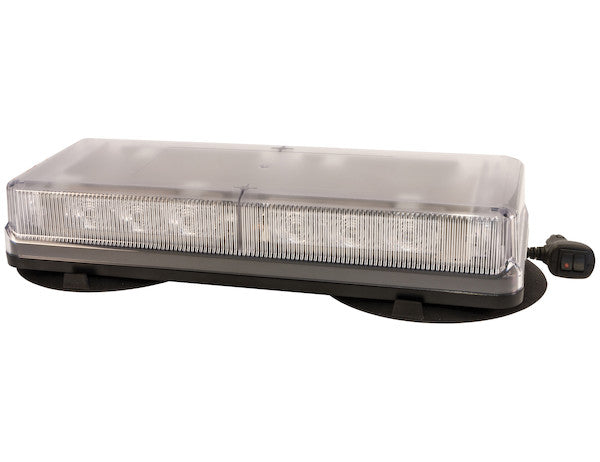

The power cord terminates in a standard auxiliary power connector (commonly known as a cigarette lighter plug), facilitating quick and tool-free installation into any 12-volt vehicle accessory outlet. This "Plug" type connectivity eliminates the need for complex wiring, making it an ideal plug-and-play solution for users who need to deploy warning lights rapidly or move them between vehicles.
Integrated directly into the power plug assembly is a dual-switch control system: an on/off switch and a momentary switch. The on/off switch provides immediate activation or deactivation of the light bar, offering straightforward control. The momentary switch is cleverly incorporated for cycling through the 19 pre-programmed flash patterns. This intuitive control mechanism allows operators to quickly and safely adjust the warning signal without diverting their attention from the task at hand or the surrounding environment, thereby maximizing operational efficiency and safety.
Engineered for Unyielding Durability and Performance
The construction materials and design philosophy of the Buyers Products Mini Light Bar are centered on achieving maximum durability and sustained performance in challenging conditions. The housing is constructed from high-quality plastic, selected for its superior resistance to impact, corrosion, and extreme temperatures. This robust plastic enclosure effectively protects the internal electronic components and LEDs from environmental ingress, including dust, moisture, and road salts, which are common culprits of premature failure in lesser-quality warning lights.
The lens, as previously noted, is made from durable polycarbonate. This material is renowned for its exceptional impact strength – many times greater than glass or acrylic – making it highly resistant to shattering from flying debris, branches, or accidental impacts. Furthermore, polycarbonate offers excellent optical clarity and inherent UV resistance, preventing yellowing or hazing over time and ensuring the amber light output remains crisp and vibrant throughout the product's life. The rectangular lens shape not only contributes to the light bar's streamlined appearance but also facilitates effective light distribution across its 16.700-inch overall width.

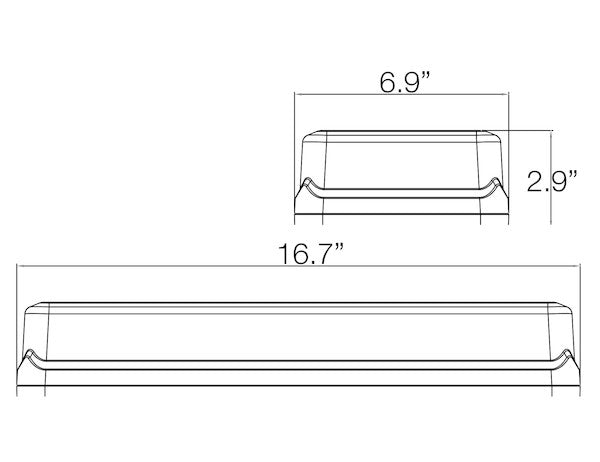

With a low-profile height of just 2.900 inches, the light bar minimizes aerodynamic drag and maintains a discreet presence when not in use. This compact form factor is particularly beneficial for roof-mounted applications, reducing wind noise and fuel consumption. The system operates efficiently on a 12-volt DC electrical system, drawing only 3.20 amperes. This low current draw, coupled with a total wattage of 38 watts, indicates efficient energy conversion from the LEDs, minimizing strain on the vehicle's electrical system while delivering powerful illumination.
Diverse Applications Across Industries
The versatility and high performance of the Rectangular 18 LED Mini Light Bar make it suitable for an expansive array of professional applications where enhanced visibility and safety are paramount:
- Construction and Road Work: Indispensable for warning traffic of active construction zones, road closures, or slow-moving heavy equipment, ensuring worker safety and efficient traffic management.
- Utility Services: Critical for power line crews, telecommunications technicians, and water/sewer maintenance personnel who often operate on roadsides, shoulders, or in areas with obscured visibility.
- Towing and Recovery: Essential for tow truck operators and roadside assistance vehicles to safely perform their duties, especially during nighttime or inclement weather conditions.
- Pilot Cars and Oversize Load Escorts: Provides the necessary warning signals to alert other drivers to wide, long, or otherwise irregular loads, ensuring smooth and safe passage.
- Municipal and Department of Transportation (DOT) Vehicles: Supports snow plows, street sweepers, park maintenance, and other government service vehicles in maintaining public infrastructure safely.
- Agricultural Operations: Crucial for tractors and farm machinery that need to travel on public roads, especially during planting and harvesting seasons, to warn motorists of slow-moving vehicles.
- Emergency Support and Security: Ideal for volunteer firefighters, private security patrols, incident management teams, and campus safety vehicles requiring a highly visible, yet portable, warning solution.
Long-Term Reliability and Support
Buyers Products stands firmly behind the quality and durability of this Rectangular 18 LED Mini Light Bar, offering a comprehensive 5-year warranty. This extended warranty period is a testament to the manufacturer's confidence in the product's design, materials, and manufacturing excellence. It provides users with peace of mind, knowing that their investment is protected against potential defects or premature failure under normal operating conditions. The inherent longevity of LED technology, typically far exceeding traditional lighting sources, further contributes to a low total cost of ownership, reducing maintenance downtime and replacement expenses over the operational life of the vehicle.
Conclusion
The Buyers Products Rectangular 18 LED Mini Light Bar - Amber/Clear is more than just a warning light; it is a meticulously engineered safety system designed to meet the rigorous demands of professional use. Its blend of high-intensity 18-LED illumination, SAE J845 Class 1 certification, robust polycarbonate and plastic construction, and versatile magnetic or permanent mounting options creates an unparalleled solution for vehicle visibility. With intuitive controls and a plug-and-play installation, this light bar offers superior performance, reliability, and adaptability across a spectrum of industries. Backed by a 5-year warranty, it represents a smart and essential investment for any organization prioritizing operational safety and compliance.
