8891178 - 77 Inch Oval LED Light Bar Kit

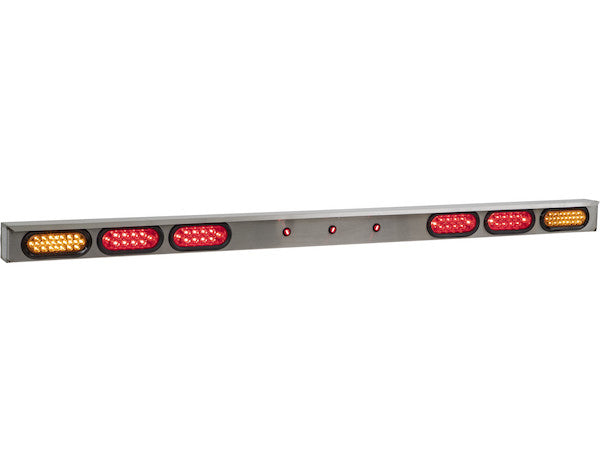

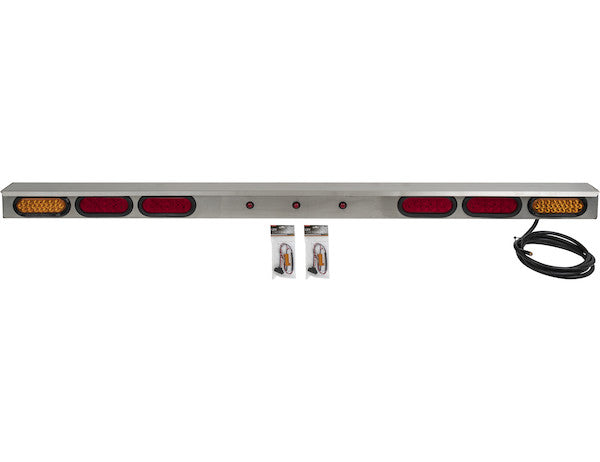

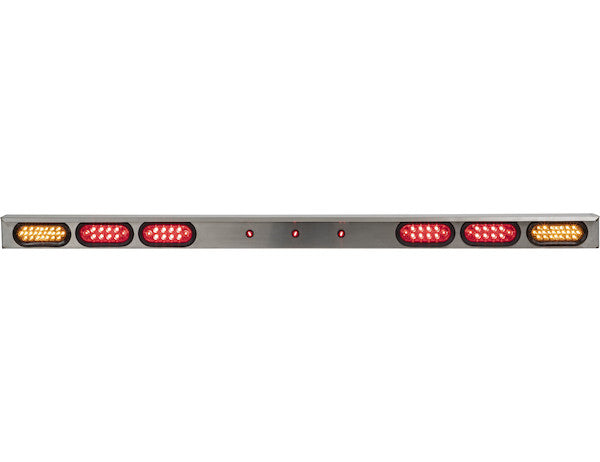

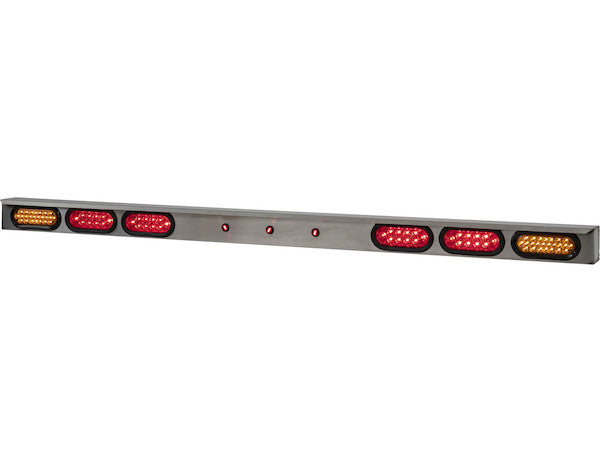

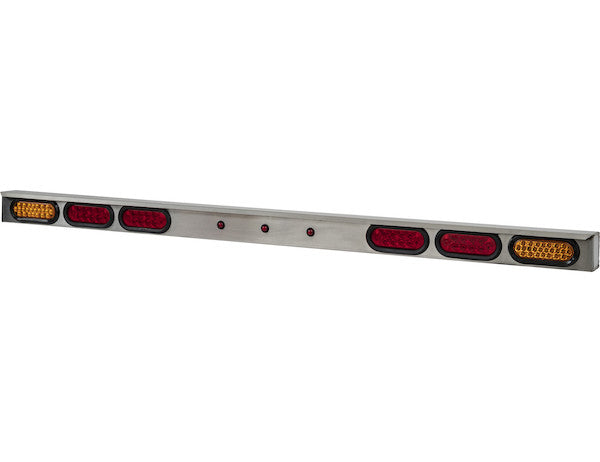

Buyers Products 77 Inch Oval LED Light Bar Kit with Reverse Lights is an all-in-one rear lighting solution for municipal-sized salt spreaders. The kit features four 6 in. oval stop-turn-tail lights (each with 10 red LEDs), two 6 in. oval strobe lights (each with 24 amber LEDs), and three .75 in. round marker lights (each with three red LEDs). The kit also comes with a wire harness and LED load equalizers with turn signal. All of the DOT-approved lights are encased in a stainless steel light box. The kit comes fully assembled for easy installation. Strobe lights are backed with a 5 year warranty. DOT lights are backed with a limited lifetime warranty.

Specifications

Advanced Technical Overview: 77 Inch Oval LED Light Bar Kit for Municipal Applications

The Buyers Products 77 Inch Oval LED Light Bar Kit represents a highly engineered, comprehensive rear lighting solution specifically developed for the demanding operational environment of municipal-sized salt spreaders. This system integrates multiple critical lighting functions into a single, robust, and pre-assembled unit, ensuring superior visibility, enhanced safety, and long-term reliability for vehicles engaged in vital public service operations under challenging conditions. The design prioritizes compliance with stringent Department of Transportation (DOT) regulations and addresses the unique challenges posed by corrosive materials, extreme weather, and continuous vibration.

Integrated Lighting Architecture and Functional Breakdown

This 77-inch LED light bar kit is precisely configured with a total of nine distinct lighting units, each serving a specific safety and regulatory function. The arrangement and type of lights are optimized for maximum conspicuity and operational efficiency.

1. Stop-Turn-Tail (STT) Lights: Four 6-inch Oval Units with 10 Red LEDs Each

The core of the rear lighting functionality is provided by four individual 6-inch oval stop-turn-tail lights. These lights are critical for conveying fundamental vehicle intentions to following traffic and pedestrians. Each unit incorporates ten high-intensity red LEDs, providing distinct and brilliant illumination for each mode of operation:

• Stop Function: When the vehicle's brakes are applied, all ten LEDs illuminate at maximum intensity, providing an immediate and unmistakable signal to following vehicles. The rapid illumination characteristic of LEDs, as opposed to the slower ramp-up time of incandescent bulbs, significantly reduces reaction time for other drivers, thereby enhancing safety.
• Turn Function: Upon activation of the turn signal, the LEDs within the selected light flash in a clear, sequential, or synchronous pattern, indicating the vehicle's intended change of direction. The bright amber LEDs ensure high visibility even in adverse weather or bright sunlight. The inclusion of two LED load equalizers within the kit is crucial for ensuring proper flash rates and preventing "hyper-flashing" often associated with converting traditional incandescent systems to lower-current LED configurations, maintaining signal integrity with existing vehicle electrical systems.
• Tail Function: During standard vehicle operation, a subset of the LEDs within each unit provides continuous, lower-intensity illumination, serving as a constant rear presence and delineating the vehicle's position. This consistent red light is vital for night-time visibility and adverse weather conditions.

The 6-inch oval form factor is a widely adopted standard in heavy-duty and commercial vehicle applications, offering a substantial illuminated area for superior visibility while maintaining a streamlined profile. The choice of red LEDs and red lenses for these functions is in strict adherence to DOT regulations for rear-facing primary safety lighting.

2. Strobe Lights: Two 6-inch Oval Units with 24 Amber LEDs Each

Beyond standard DOT lighting, the kit integrates two powerful 6-inch oval strobe lights, each equipped with 24 high-output amber LEDs. These strobes are specifically designed for warning and hazard indication, crucial for vehicles operating in dynamic and potentially dangerous environments such as road maintenance, construction zones, or emergency situations during salt spreading operations. Key features include:

• Amber LED Color: Amber is universally recognized as a warning color in vehicular lighting, offering high contrast against most backgrounds and effectively drawing attention.
• High-Intensity Output: With 24 LEDs per unit, these strobes produce a significant light output, ensuring visibility over long distances and in conditions of reduced visibility, such as fog, snow, or nighttime operations.
• Advanced Flash Patterns: The strobes operate with a "QUAD FLASH, ALTERNATING AND SYNCHRONIZED" pattern, at a rate of 304 flashes per minute. The quad flash pattern delivers a distinct, high-impact burst of light, while the alternating and synchronized functionality between the two strobe units creates a dynamic and attention-grabbing visual signal. Synchronization ensures a coherent and impactful warning signature, further enhancing safety by making the vehicle's presence unmistakable. This sophisticated flash pattern is engineered to meet or exceed industry standards for warning light effectiveness, such as SAE J595 Class 1 or 2.

The integration of these robust strobe lights provides an essential layer of safety, alerting other motorists to the presence of a working vehicle and the potential hazards associated with its operations, particularly during winter maintenance activities.

3. Marker Lights: Three 0.75-inch Round Units with 3 Red LEDs Each

To further comply with DOT regulations regarding vehicle dimension illumination, the kit includes three compact 0.75-inch round marker lights. Each marker light contains three red LEDs, strategically positioned to clearly define the overall width and presence of the salt spreader. These smaller, yet highly effective, lights ensure that the full breadth of the vehicle, particularly its extremities, is visible to other road users, especially during low-light conditions. Their discrete size allows for flexible placement while still providing the required regulatory compliance.

Robust Encasement and Material Science: The 304 Stainless Steel Light Box

All nine individual light units are securely encased within a single, continuous light box constructed from premium 304 Stainless Steel. This material choice is paramount for the longevity and performance of the kit in the intended application:

• Corrosion Resistance: 304 Stainless Steel is an austenitic stainless steel renowned for its excellent resistance to corrosion from a wide range of aggressive media, including road salt, brine solutions, de-icing chemicals, and atmospheric exposure. This property is absolutely critical for salt spreader equipment, where direct contact with corrosive agents is inevitable and pervasive.
• Mechanical Strength and Durability: With a length of 77.00 inches, a height of 4.00 inches, and a depth of 3.00 inches, the light box provides substantial protection against physical impacts, vibrations, and debris often encountered during municipal operations. The inherent strength of 304 SS ensures structural integrity over years of service, minimizing the risk of damage to the internal lighting components.
• Temperature Stability: Municipal operations, particularly winter maintenance, expose equipment to extreme temperature fluctuations. 304 Stainless Steel maintains its mechanical properties across a broad temperature range, ensuring the housing remains intact and protective regardless of ambient conditions.
• Aesthetic and Maintenance Benefits: The natural finish of stainless steel provides a professional appearance and is relatively easy to clean, resisting staining and discoloration.

The pre-assembled nature of the kit means that all lights are factory-installed and pre-wired within this robust stainless steel housing, drastically simplifying installation for the end-user. This also ensures that each component is correctly seated and sealed, maximizing the ingress protection against water, dust, and other contaminants.

Electrical Integration and System Optimization

The kit includes a comprehensive wire harness designed for heavy-duty vehicular applications. This harness features high-quality, weather-resistant connectors and appropriately gauged wiring to ensure reliable power delivery and signal integrity across the entire 12-volt system. The total wattage of the system is 41.04W, indicating an efficient power draw characteristic of LED technology while providing ample light output.

As previously mentioned, the inclusion of two LED load equalizers is a critical component for seamless integration with existing vehicle electrical systems. These devices simulate the electrical load of traditional incandescent bulbs, preventing issues such as rapid-flash turn signals (hyper-flashing) or diagnostic trouble codes (DTCs) that can occur when low-current LED lights are connected to circuits designed for higher-current incandescent lamps. This ensures that the vehicle's onboard computer and flashers operate correctly without modification.

Compliance and Warranty: A Commitment to Quality and Performance

The entire lighting kit, including all stop-turn-tail and marker lights, is DOT-approved. This certification signifies that the lights meet or exceed the rigorous safety and photometric standards established by the Department of Transportation for visibility, light output, beam pattern, and color. For municipal applications, regulatory compliance is not merely a feature but a mandatory operational prerequisite, ensuring legal and safe use on public roadways.

Buyers Products stands behind the durability and performance of this kit with an exceptional warranty structure:

• Strobe Lights: Backed by a 5-year warranty, reflecting confidence in the high-performance LEDs and control electronics used in these demanding warning light applications.
• DOT Lights (Stop-Turn-Tail, Marker): Covered by a limited lifetime warranty. This unparalleled commitment underscores the superior quality, robust construction, and expected longevity of the LED components and their housing. The inherent advantages of LED technology – including their resistance to shock and vibration, extended operational life (often exceeding 50,000 hours), and lower power consumption – are fully leveraged, leading to significantly reduced maintenance costs and downtime over the lifespan of the vehicle.

Advantages for Municipal Salt Spreader Operations

The 77 Inch Oval LED Light Bar Kit is meticulously engineered to address the specific operational challenges faced by municipal salt spreaders:

• Enhanced Safety During Critical Operations: Salt spreading operations often occur in the most hazardous conditions: blizzards, freezing rain, low visibility, and nighttime. The bright, multi-functional LED lighting, especially the synchronized amber strobes, dramatically increases vehicle conspicuity, protecting both the operating crew and the public.
• Corrosion Resistance: The 304 stainless steel housing provides unparalleled protection against the highly corrosive salt and brine environments, which rapidly degrade less robust materials, leading to premature failure.
• Vibration and Impact Resistance: Heavy-duty vehicle operation and the inherent vibrations from spreading equipment necessitate lighting that can withstand constant jarring. The robust construction and solid-state nature of LEDs provide superior resistance to shock and vibration compared to traditional filament bulbs.
• Reduced Maintenance and Operational Costs: The extended lifespan of LED components, coupled with a limited lifetime warranty on DOT lights, translates directly into reduced frequency of replacement and lower labor costs associated with maintenance. This is crucial for municipal fleets where operational uptime is paramount.
• Energy Efficiency: LED technology consumes significantly less power than incandescent lighting, reducing the load on the vehicle's electrical system and potentially contributing to minor fuel savings over extensive operational periods.
• Ease of Installation: The fully assembled kit, including the pre-wired harness and load equalizers, significantly streamlines the installation process, minimizing vehicle downtime and allowing quick deployment.

Conclusion

The Buyers Products 77 Inch Oval LED Light Bar Kit is not merely a collection of lights; it is a highly integrated, purpose-built safety system. Its robust design, advanced LED technology, comprehensive functionality, and exceptional material specification make it an indispensable asset for any municipal entity operating salt spreaders. By providing unparalleled visibility, extreme durability against harsh environmental factors, and significant long-term operational cost savings, this kit stands as a benchmark in heavy-duty vehicular lighting solutions, ensuring the safety and efficiency of critical public services.
