8891709 - Amber/Green Dual Row 5 Inch LED Strobe Light

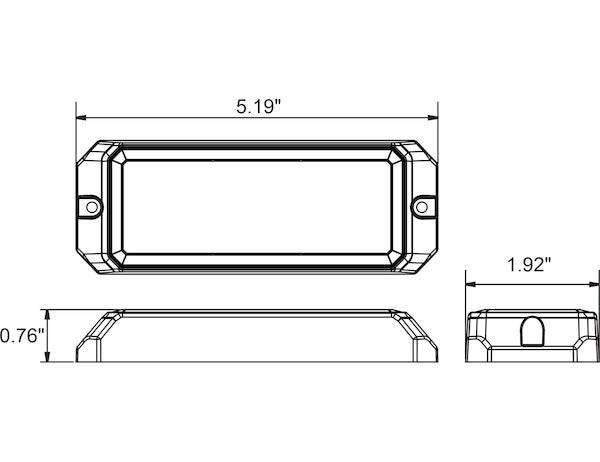

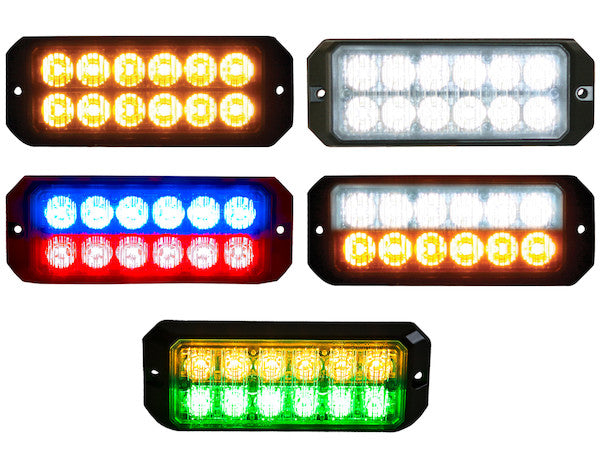

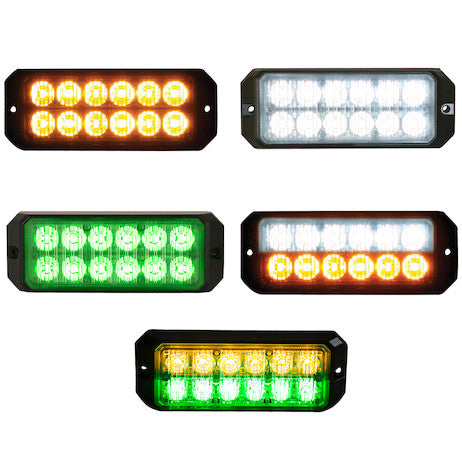

Buyers Products 5.19 Inch Rectangular LED Strobe Light has 12 LEDs. It features 25 flash patterns with alternating and synchronous functions. The light is available in your choice of several solid or color combinations. Solid colors have a SAE J595 Class 1 rating for brightness and are CA13 certified. All lights are rated IP67 for water and dust resistance. A 90?? aluminum mounting bracket is sold separately. Lights are backed with a 5 year warranty.

Specifications

Advanced Technical Overview: Buyers Products Amber/Green Dual Row 5-Inch LED Strobe Light

The Buyers Products 5.19-inch Rectangular LED Strobe Light, specifically engineered in an Amber/Green dual-color configuration, represents a pinnacle of contemporary warning illumination technology. Designed for professional-grade applications requiring superior visibility and unwavering reliability, this unit integrates advanced optical engineering with robust construction to deliver optimal performance across diverse operational environments. This technical brief provides an in-depth analysis of its features, operational parameters, and structural integrity, elucidating its suitability for critical safety and signaling roles.

Optical Design and Illumination Dynamics

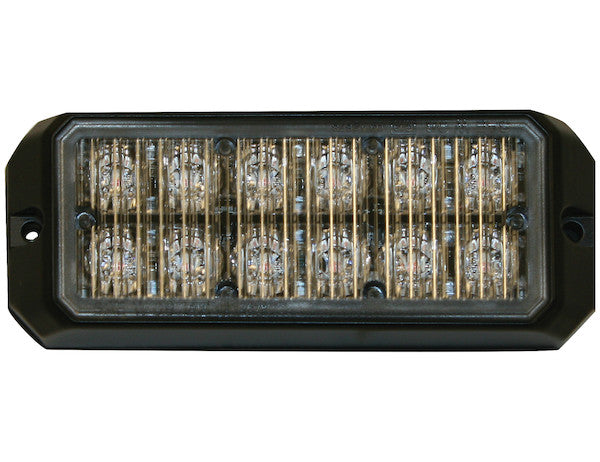

High-Intensity LED Matrix and Dual-Row Configuration

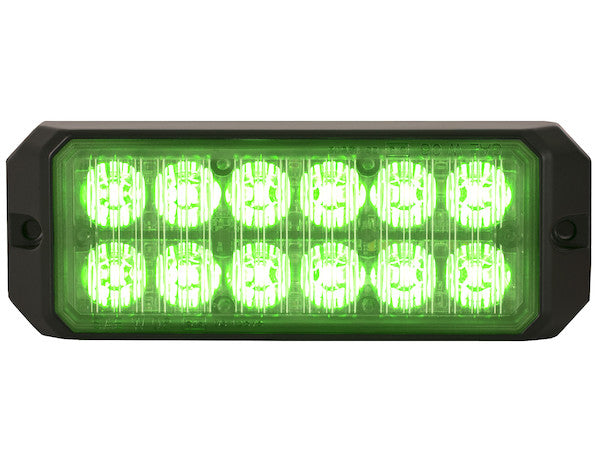

At the core of this strobe light's exceptional performance lies its integrated matrix of 12 high-intensity Light Emitting Diodes (LEDs). These LEDs are strategically arranged in a dual-row configuration within the 5.19-inch rectangular form factor. This dual-row design is pivotal for two primary reasons: first, it facilitates the simultaneous or alternating emission of distinct amber and green light, enhancing the product's versatility for multi-purpose signaling; second, it optimizes light output and dispersion, ensuring a broad and intense visual footprint. LEDs, by their inherent nature, offer superior luminous efficacy, extended operational lifespans, and significantly improved resistance to shock and vibration compared to traditional incandescent or gas-discharge strobe technologies.

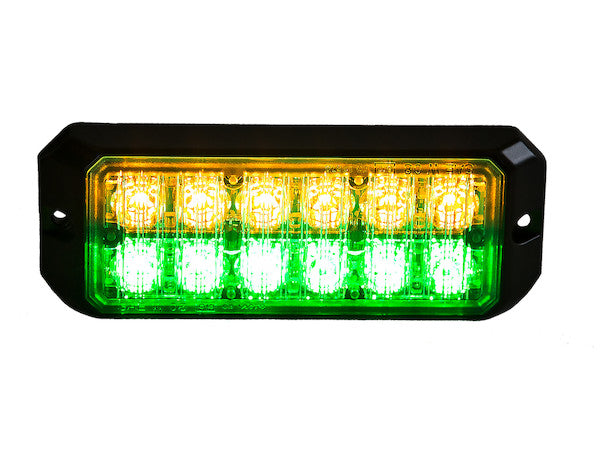

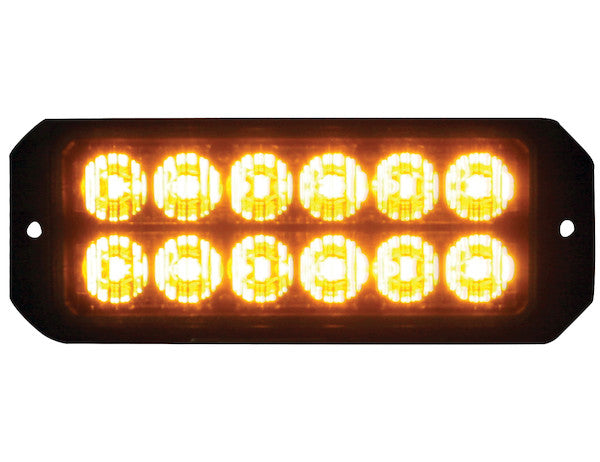

Chromaticity and Application Specifics: Amber and Green Wavelengths

The selection of Amber and Green as primary signaling colors for this unit is a deliberate design choice, catering to specific regulatory and operational requirements across various industries. Amber light, characterized by its wavelength spectrum typically ranging from 590 to 620 nanometers, is universally recognized for caution, warning, and non-emergency service vehicles. Its high visibility in both daylight and low-light conditions makes it indispensable for construction, utility, towing, municipal, and road maintenance applications, where compliance with standards such as SAE J595 (Class 1 for solid amber variants) and CA13 is often mandatory. The amber component of this light ensures compliance and effective warning in these conventional scenarios.

Conversely, green light, with wavelengths typically between 495 and 570 nanometers, serves a distinct and evolving set of applications. While less common than amber or red, green lighting is increasingly adopted for specific roles such as volunteer fire and emergency medical services (in jurisdictions where permitted), command vehicles, industrial safety zones, security personnel, and specialized agricultural or port operations. The distinctiveness of green light helps differentiate vehicles or personnel from standard warning signals, conveying specific operational status or authority. The integration of both amber and green in a dual-row configuration allows for an unparalleled level of signaling flexibility. Depending on the selected flash pattern, the unit can project either color independently, alternate between the two, or combine them to create unique and highly discernible visual alerts. This capability is particularly beneficial for organizations requiring adaptable warning solutions for diverse operational contexts, ensuring optimal conspicuity and situational awareness.

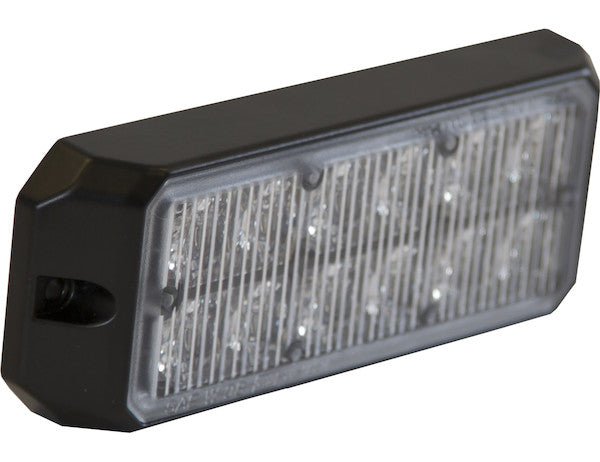

Optimized Light Dispersion and Lens Technology

The rectangular polycarbonate lens is meticulously engineered to maximize the light output and beam dispersion from the 12 LEDs. Polycarbonate, a robust thermoplastic polymer, is selected for its superior optical clarity, exceptional impact resistance (rendering it virtually shatterproof), and inherent UV stability. This ensures the lens maintains its transparency and structural integrity even after prolonged exposure to harsh environmental conditions, preventing yellowing or degradation that could compromise light output. The lens design likely incorporates specialized optics, such as Total Internal Reflection (TIR) lenses or fresnel patterns, to precisely direct and amplify the LED light, creating a wide viewing angle and intense flash characteristics essential for effective warning signals at various distances and angles.

Advanced Flash Pattern Management and Synchronization

Versatile Flash Pattern Library: 25 Modes of Operation

This LED strobe light is equipped with an impressive library of 25 distinct flash patterns. This extensive selection is crucial for adapting the warning signature to different operational scenarios, environmental conditions, and regulatory requirements. For instance, rapid, high-frequency flash patterns are highly effective for emergency response and immediate hazard warnings, capturing attention quickly. Slower, more deliberate patterns might be suitable for static warning applications, conveying presence without excessive urgency. Some patterns may simulate rotating beacons, while others provide highly directional or alternating flashes. The ability to switch between these patterns allows operators to optimize visibility and communication in real-time, enhancing overall safety and operational effectiveness.

The control mechanism for selecting these patterns is integrated into the unit's internal circuitry, accessible typically via a dedicated pattern wire, which when momentarily pulsed to ground or power (depending on the design), cycles through the available patterns. This allows for seamless integration with existing vehicle control panels or auxiliary switches, providing ease of operation without the need for a built-in switch on the light itself, streamlining installation.

Advanced Synchronization and Alternating Functionality

The inclusion of both alternating and synchronous functions elevates the operational capabilities of this strobe light. The alternating function allows the light to produce a dynamic, oscillating flash sequence, which can be particularly effective in drawing attention. In a dual-color unit, this could mean alternating between amber and green sections, or alternating flash sequences within each color component. This visual oscillation significantly enhances conspicuity, especially in visually cluttered environments.

The synchronous function is a critical feature for applications involving multiple warning lights on a single vehicle or an array of equipment. It enables multiple strobe lights to flash in unison, creating a powerful, coordinated visual warning signature. This synchronized effect greatly increases the perceived intensity and uniformity of the warning system, making the vehicle or equipment more noticeable and identifiable from a distance. For complex vehicle setups, such as large utility trucks, heavy construction machinery, or municipal fleets, synchronous flashing ensures that the entire warning system operates harmoniously, projecting a consistent and compelling message to surrounding traffic and personnel. This typically involves a dedicated sync wire that interconnects multiple units, allowing one light to act as a master controlling the flash pattern and timing of all connected slave units.

Uncompromised Durability and Environmental Resistance

IP67 Environmental Protection Rating

Adherence to the IP67 ingress protection standard is a testament to the robust engineering of this LED strobe light. The 'IP' code, an international standard (IEC 60529), classifies and rates the degree of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in mechanical casings and electrical enclosures. The rating '6' signifies "dust tight," meaning no ingress of dust is permitted. This is critically important for applications in dusty environments such as construction sites, agricultural fields, off-road utility operations, and unpaved roads, where fine particulate matter could otherwise degrade internal components and optical clarity. The rating '7' denotes protection against the effects of temporary immersion in water, specifically up to 1 meter (3.3 feet) for 30 minutes. This level of water resistance ensures reliable operation in heavy rain, snow, sleet, pressure washing, and even accidental submersion, making the unit impervious to typical environmental moisture challenges encountered in demanding outdoor applications.

Robust Construction Materials: Die-Cast Housing and Polycarbonate Lens

The structural integrity of the strobe light is maintained through its carefully selected materials. The housing is constructed from a high-quality die-cast material, typically an aluminum alloy. Die-cast aluminum offers several inherent advantages: exceptional strength-to-weight ratio, superior thermal management capabilities (critical for dissipating heat generated by the LEDs, thus extending their lifespan), and excellent corrosion resistance. This makes the housing capable of withstanding physical impacts, sustained vibration, and harsh chemical exposures common in industrial and vehicular settings. The intrinsic properties of die-cast metal also contribute to electromagnetic compatibility (EMC), minimizing interference with other vehicle electronics.

As previously mentioned, the polycarbonate lens further reinforces the unit's resilience. Its superior impact resistance protects the internal LED array from debris, stones, and accidental bumps, ensuring continued optical performance. The material's inherent resistance to temperature fluctuations, from extreme cold to intense heat, further contributes to its long-term reliability without cracking or becoming brittle.

Electrical and Installation Specifications

Universal Voltage Compatibility and Power Efficiency

Operating within a broad voltage range of 12-24 Volts DC, this LED strobe light offers universal compatibility with nearly all standard vehicle electrical systems, from passenger cars and light trucks (12V) to heavy-duty trucks, construction equipment, and industrial machinery (24V). This wide voltage tolerance simplifies fleet management and reduces inventory complexity, as a single product SKU can serve diverse vehicle types. With an amp draw of 2.2 amps at 12 volts and a total wattage of 26.0 watts, the unit demonstrates high power efficiency. LED technology inherently consumes less power than traditional lighting, minimizing the strain on vehicle alternators and batteries, which is particularly beneficial for vehicles operating auxiliary equipment or frequently idling.

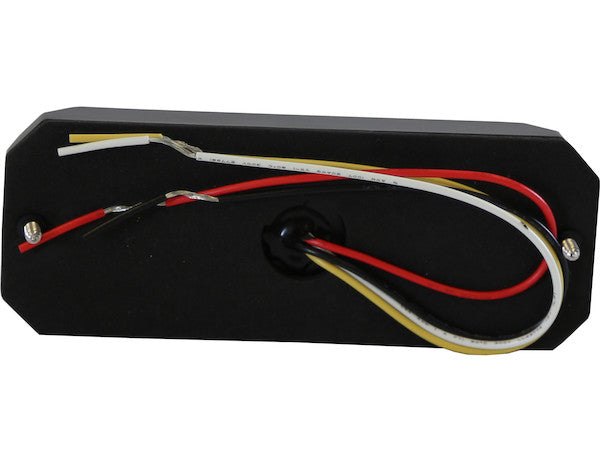

Seamless Integration: Hard-Wired with Blunt Cut Leads

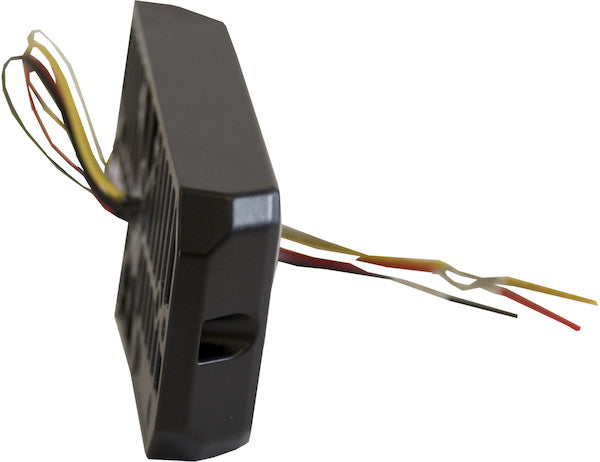

The light is designed for professional hard-wired installation, featuring a blunt cut connector with stripped leads. This configuration, comprising 4 wires (typically for power, ground, pattern selection, and synchronization), ensures a secure, permanent electrical connection directly into the vehicle's electrical system or an external control module. The 8.00-inch lead length provides sufficient slack for proper wire routing and connection points, facilitating a neat and robust installation. The absence of a built-in switch or included plug promotes integration with existing vehicle control systems, adhering to professional installation standards and minimizing points of failure associated with external switches or temporary plugs.

Mounting Versatility: Surface Mount with Bolt-On Option

The designated mounting type is surface mount with a bolt-on mechanism. This means the light is designed to be securely fastened directly to a flat surface of the vehicle or equipment. The bolt-on method ensures a stable and permanent attachment, critical for applications where the light will be exposed to significant vibration, impact, or high-speed airflow. While the light itself does not include a grommet or base, an optional 90-degree aluminum mounting bracket is available separately. This accessory expands installation flexibility, allowing the light to be positioned at an angle or in locations where a direct surface mount is not feasible, further optimizing visibility and compliance with specific mounting requirements. The aluminum bracket ensures corrosion resistance and maintains structural integrity consistent with the light's robust design.

Regulatory Adherence and Warranty

While the specific Amber/Green dual-color configuration may have nuanced regulatory interpretations, it is important to note that solid-color variants of this product line achieve SAE J595 Class 1 rating for brightness and are CA13 certified. SAE J595 Class 1 is the highest standard for directional warning lamps, indicating superior light output suitable for emergency vehicles and work zone applications where maximum visibility is paramount. CA13 certification, a California standard, often serves as a benchmark for demanding performance and reliability in vehicular warning systems. The IP67 rating further underscores compliance with critical environmental protection standards.

Buyers Products stands behind the quality and durability of this LED strobe light with a comprehensive 5-year warranty. This extensive warranty period reflects the manufacturer's confidence in the product's engineering, material quality, and long-term operational reliability. It provides significant assurance to professional users, minimizing total cost of ownership through reduced maintenance, repair, and replacement expenses over the product's lifecycle.

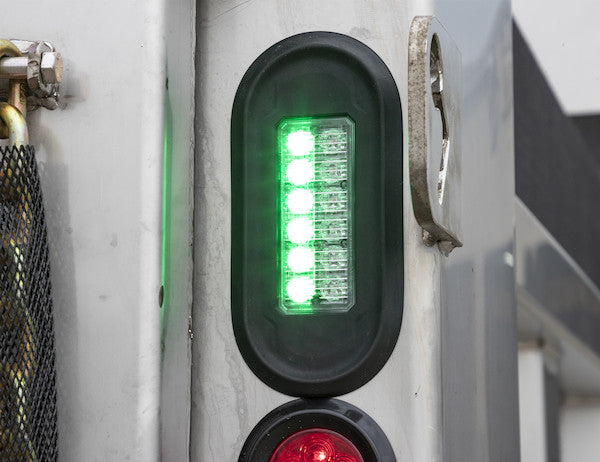

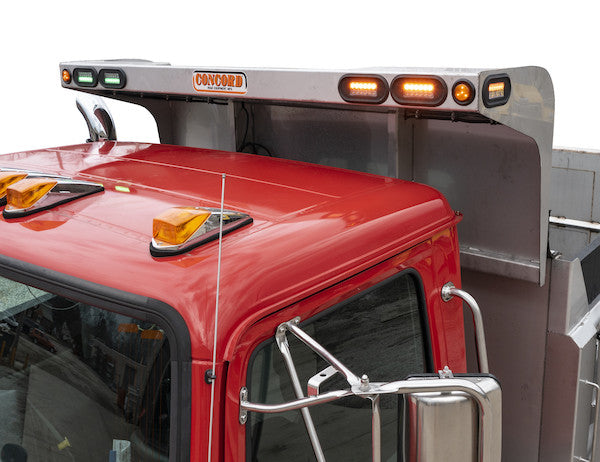

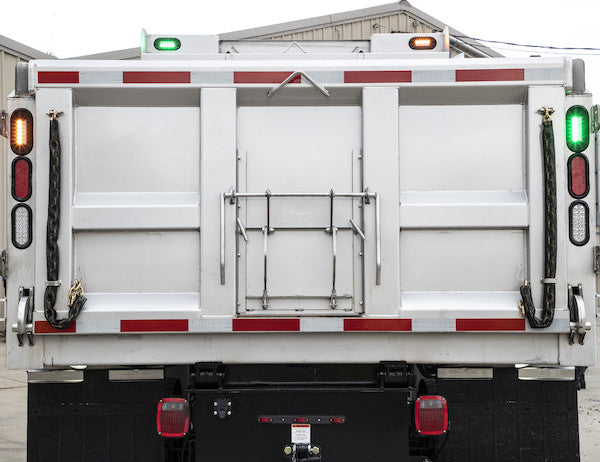

Applications and Operational Utility

The Amber/Green Dual Row 5-Inch LED Strobe Light is ideally suited for a broad spectrum of professional applications that demand high-performance, versatile, and durable warning illumination. Typical use cases include:

• Utility and Construction Vehicles: Enhancing safety for municipal, telecommunications, electrical, and gas utility crews, as well as heavy machinery operators in dynamic construction environments.
• Roadside Assistance and Towing: Providing critical warning signals for vehicles stopped on highway shoulders or at accident scenes.
• Agricultural and Off-Road Equipment: Improving visibility of slow-moving or wide agricultural machinery, and specialized off-road vehicles.
• Security and Industrial Safety: Designating specific vehicles or areas within industrial complexes, ports, or security zones where distinct green signals are required, in combination with universal amber warnings.
• Volunteer Emergency Services: Where local regulations permit, the amber/green combination can provide specialized signaling for volunteer first responders, differentiating them from full-time emergency services.

Conclusion

The Buyers Products Amber/Green Dual Row 5-Inch LED Strobe Light represents a sophisticated solution for demanding warning light applications. Its combination of high-intensity 12-LED technology, versatile dual-color amber/green output, extensive flash pattern options, and robust IP67-rated die-cast construction ensures exceptional visibility, durability, and operational flexibility. With universal 12-24V compatibility, efficient power consumption, and professional hard-wired installation, this unit is engineered to integrate seamlessly into diverse vehicle and equipment fleets. Backed by a 5-year warranty, it offers a reliable, long-term investment for professionals requiring a superior and adaptable warning illumination system, ultimately enhancing safety and operational efficiency across critical sectors.
