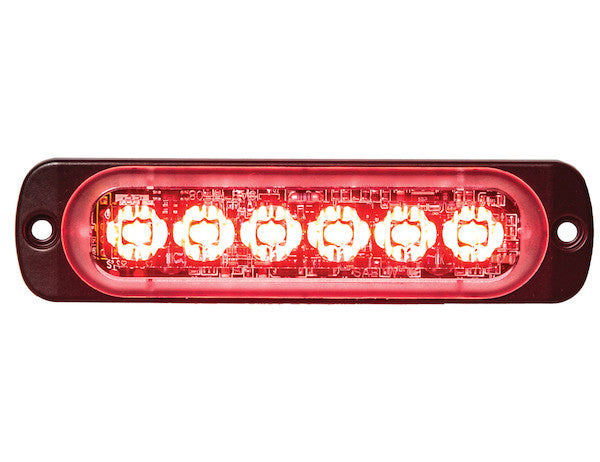

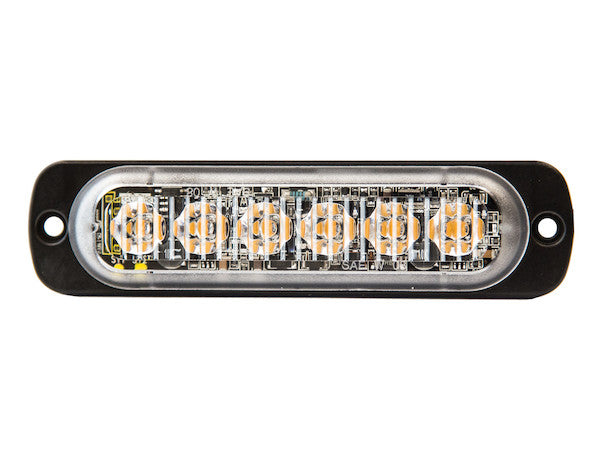

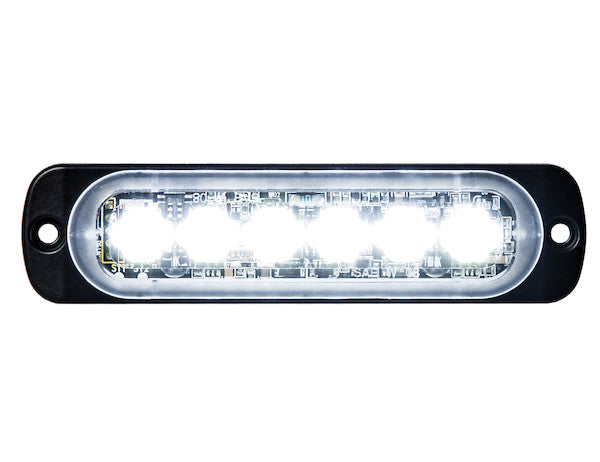

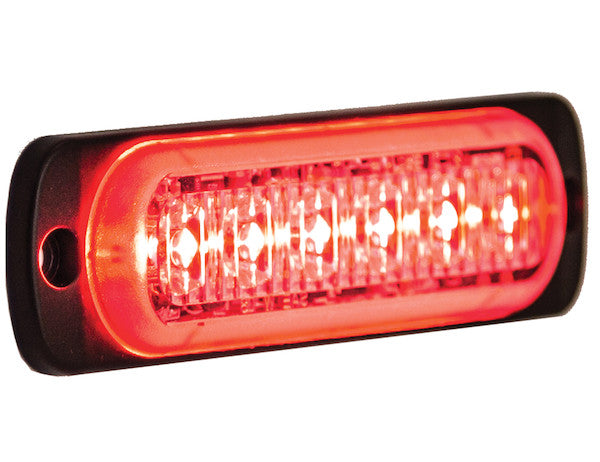

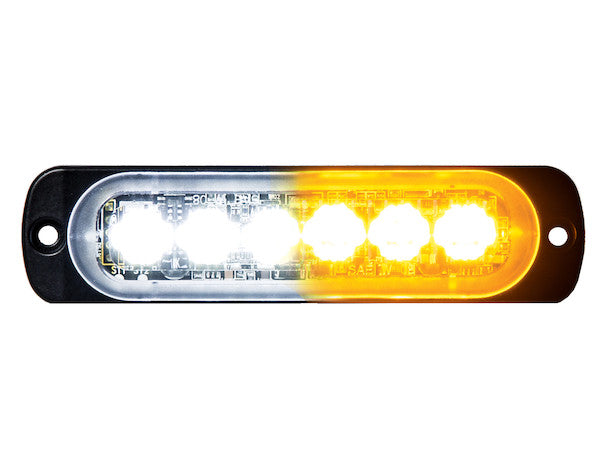

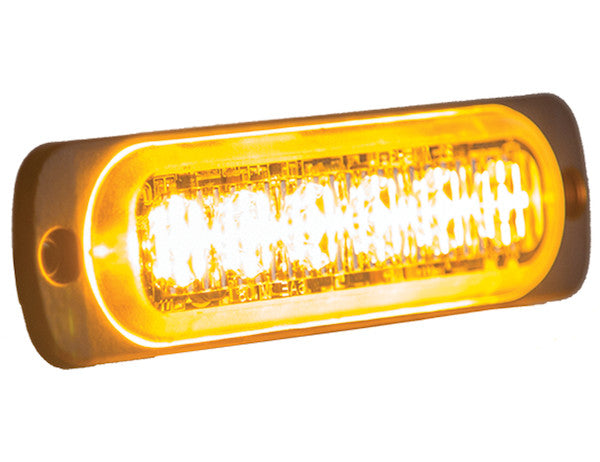

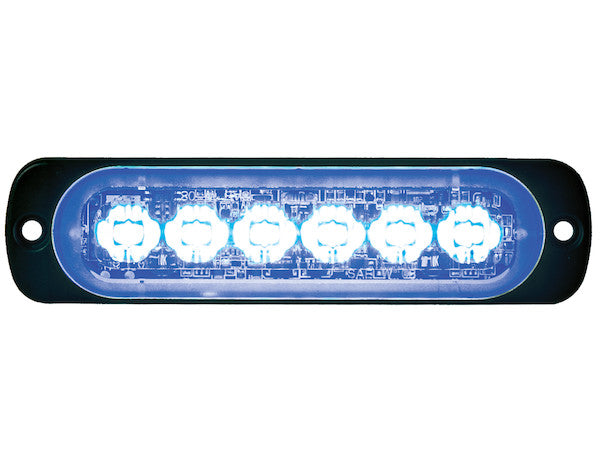

Buyers Products Thin 4.5 Inch Horizontal LED Strobe Light Series is designed with a thin .35 in. profile to fit tight areas. The 12-24V strobe light has six LEDs and features 19 flash patterns with alternating and synchronous features. Lights are rated IP67 for water and dust resistance and are available in several colors. The solid colors have a SAE J595 Class 1 rating for brightness (if mounted horizontally) and CA13 certification. Bezels and 90?? mounting brackets are sold separately. Lights are backed with a 5 year warranty.
Specifications
| Alternating Function (Y/N) | Y |
|---|---|
| Amp draw at 12 Volts | 1 |
| Base / Mount Type | Surface |
| Certification | SAE J595 Class 1, IP67 |
| Class Level | 1 |
| Color | Red |
| Connector | Blunt Cut |
| Grommet/Base Included | Y |
| Hard Wired or Plug | Hard Wired |
| Height | 1.100 |
| Housing Material | Aluminum |
| Lead Length | 9.5 |
| Lens Shape | Rectangular |
| Mount Type | Surface |
| Number of Flash Patterns | 19 |
| Number of Wires | 4 |
| Overall Width | 4.400 |
| Synchronous Function | Y |
| Type of Plug | Blunt Cut |
| Voltage | 12-24 |
Advanced Technical Overview: Buyers Products Thin 4.5 Inch Red Horizontal LED Strobe Light
The Buyers Products Thin 4.5 Inch Red Horizontal LED Strobe Light represents a pinnacle in modern vehicle warning illumination technology, meticulously engineered to deliver superior visibility and operational reliability in the most demanding environments. This professional-grade warning light is designed for seamless integration into a diverse array of vehicular platforms, including emergency response, municipal, utility, construction, and agricultural applications where space optimization and uncompromised performance are paramount. The design philosophy behind this strobe light series centers on maximizing conspicuity while minimizing physical footprint, offering an ideal solution for discreet yet highly effective warning signal deployment.
Precision Engineering for Minimalist Integration

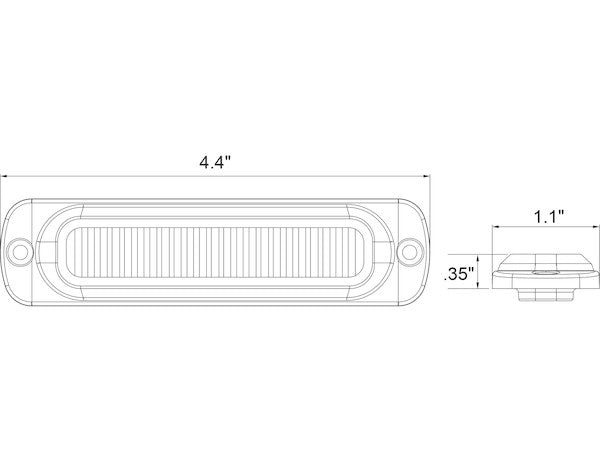

A hallmark of this particular series is its exceptionally thin profile, measuring a mere 0.35 inches (approximately 8.89 mm) in depth. This slender form factor is a critical design advantage, allowing for installation in previously unaccommodating spaces such as narrow grille sections, bumper crevices, side mirrors, or under cabinet edges where bulkier lighting solutions would be impractical. The compact dimensions, with an overall width of 4.400 inches (approximately 11.18 cm) and a height of 1.100 inches (approximately 2.79 cm), ensure that the light can be strategically positioned to achieve optimal light dispersion without obstructing existing vehicle components or detracting from the vehicle's aesthetic. The horizontal orientation, specifically called out in the product title, is vital for achieving the SAE J595 Class 1 brightness rating, ensuring maximum horizontal light output and visibility from lateral perspectives. This low-profile design not only facilitates stealthy integration but also reduces the potential for damage from impacts, a common concern in rugged operational scenarios.
High-Efficiency LED Technology and Optical Performance
At the core of the Buyers Products strobe light are six high-intensity Light Emitting Diodes (LEDs), chosen for their unparalleled energy efficiency, extended operational lifespan, and instantaneous illumination capability. Unlike traditional incandescent or Xenon strobe tubes, LEDs offer robust resistance to shock and vibration, making them inherently more durable for vehicular applications. The specified color for this model is red, a color universally recognized for urgent warning and emergency signaling. The specific wavelength of red light (typically in the 620-750 nm range) possesses excellent atmospheric penetration characteristics, ensuring superior visibility through fog, rain, or dust, and at greater distances, which is critical for safety applications.
The optical system is further enhanced by a precisely engineered rectangular lens. This lens is designed to optimize the light output from the six LEDs, shaping and directing the light beam to maximize intensity and spread. The result is a powerful, uniform light pattern that effectively captures attention without creating uncomfortable glare for onlookers. The SAE J595 Class 1 certification, applicable when the light is mounted horizontally, affirms that this device meets stringent standards for optical brightness and performance, making it suitable for primary warning applications where maximum visibility is required under all ambient light conditions. This certification signifies that the light's effective candela output and flash characteristics adhere to specified regulatory benchmarks for emergency and hazardous vehicle lighting.
Furthermore, the inclusion of CA13 certification, often referring to California Title 13, Section 27000 et seq., underscores this product's compliance with rigorous standards set for emergency vehicle warning lights in California. This typically involves specific requirements for flash rates, patterns, and intensity, ensuring interoperability and effectiveness within regulated emergency signaling systems. Such certifications are crucial for agencies and operators who must adhere to strict state-specific regulations for their vehicle fleets, reinforcing the light's suitability for professional deployment.
Dynamic Flash Patterns and Advanced Synchronization Capabilities
Operational flexibility is a key attribute of the Buyers Products LED strobe light, which features an impressive array of 19 distinct flash patterns. This versatility allows users to select the most appropriate warning pattern for specific scenarios, environments, or regulatory requirements. Different flash patterns serve various purposes: some are designed for maximum attention-grabbing at high speeds, while others are optimized for static scene warnings to minimize visual fatigue for continuous viewing. The ability to customize the flash pattern enhances safety protocols by adapting the warning signal to prevailing conditions, such as dense traffic, rural roads, or nighttime operations.
Beyond individual pattern selection, the light incorporates both alternating and synchronous functions. The alternating function permits a pairing of lights to flash sequentially, creating a dynamic visual sweep that is highly effective in drawing attention. For instance, two lights can be set to flash in an "ABAB" sequence, enhancing the perceived motion of the warning signal. The synchronous function, on the other hand, enables multiple units to flash in perfect unison, creating a unified and powerful visual presence. This is particularly advantageous when deploying several lights across a vehicle – such as on the front grille, sides, and rear – to establish a cohesive and undeniable perimeter of warning illumination. These synchronization capabilities are managed via a dedicated wire in the four-wire blunt cut connector system, allowing for sophisticated multi-light configurations without requiring additional external controllers for basic synchronization.
Robust Durability and Environmental Resilience
Designed for unrelenting performance in harsh operational environments, the Buyers Products Thin LED Strobe Light boasts an IP67 ingress protection rating. This designation is a critical indicator of the light's superior resistance to environmental contaminants. The "IP" stands for "Ingress Protection," with the first digit '6' signifying complete protection against dust ingress, meaning no dust can penetrate the enclosure. The second digit '7' indicates protection against the effects of temporary immersion in water, specifically up to 1 meter (3.3 feet) for 30 minutes. This level of sealing ensures reliable operation regardless of heavy rain, snow, road spray, power washing, or dusty construction sites, significantly extending the product's operational life and reducing maintenance requirements.
The structural integrity of the light is further reinforced by its robust aluminum housing. Aluminum is an ideal material for such applications due to its exceptional properties: it offers a high strength-to-weight ratio, excellent corrosion resistance (especially vital in environments exposed to road salts or chemicals), and superior thermal conductivity. The latter property is crucial for dissipating heat generated by the LEDs, preventing thermal degradation and ensuring consistent light output and longevity. The lens, typically manufactured from durable polycarbonate, complements the housing by providing impact resistance against road debris, stone chips, and minor collisions, while maintaining optical clarity and UV stability over time.
Versatile Power Compatibility and Simplified Installation
The operational voltage range of 12-24V DC is a significant advantage, providing broad compatibility with nearly all common vehicle electrical systems. This dual-voltage capability eliminates the need for separate models for 12V light-duty vehicles and 24V heavy-duty trucks, industrial equipment, or specialized machinery, simplifying inventory management and application flexibility. The nominal 1 Amp current draw at 12 Volts signifies a highly efficient power consumption profile for the six high-output LEDs, minimizing the load on the vehicle's electrical system and allowing for the integration of multiple units without requiring extensive electrical system upgrades. This low power consumption contributes to reduced fuel consumption and extended battery life, particularly important for vehicles that operate for long periods with warning lights active.

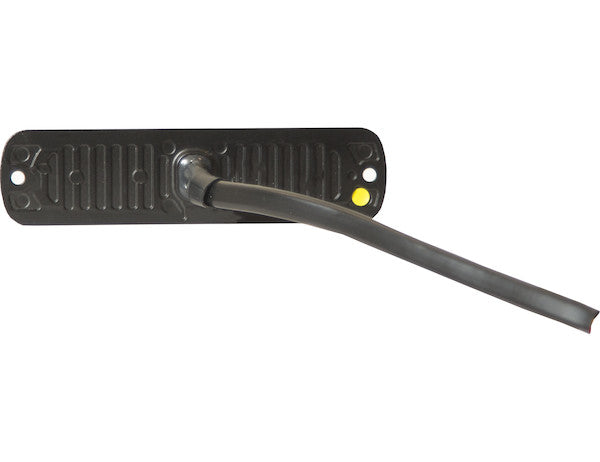

Installation is designed for simplicity and durability, utilizing a surface mount type. The light is hard-wired via a 9.5-inch lead length, providing ample wiring for connection to the vehicle's electrical system. The blunt cut connector style, comprising four wires, allows for robust, direct connections, minimizing points of failure associated with complex plugs or adapters. These four wires typically include power (+12/24V), ground, a pattern selection wire, and a synchronization wire. The pattern selection wire often cycles through the 19 patterns with a momentary application of power, while the synchronization wire connects multiple units for master-slave or simultaneous operation. While the light includes a grommet/base for direct surface mounting, Buyers Products offers optional bezels and 90-degree mounting brackets (sold separately). These accessories further enhance installation versatility, allowing for flush-mount aesthetics with bezels or precise angular positioning with brackets to direct light where it is most effective, customizing the light’s appearance and function to specific vehicle contours or operational requirements.
Broad Spectrum of Professional Applications
The Buyers Products Thin 4.5 Inch Red Horizontal LED Strobe Light is an indispensable component for a wide array of professional applications where high-visibility warning is critical. In the emergency services sector, this red strobe light is suitable for fire apparatus, ambulances, police support vehicles, and incident command units, providing crucial warnings to motorists and pedestrians at accident scenes, traffic stops, or while in transit. For municipal and utility fleets, these lights enhance safety during roadside work, infrastructure maintenance, or snow removal operations, alerting other drivers to the presence of active service vehicles. Construction vehicles, from excavators to road pavers, can utilize these strobes to delineate work zones and ensure the safety of personnel operating near heavy machinery. Agricultural equipment, often operating on public roads or in low-visibility conditions, also benefits from the potent warning capability of these robust LED strobes. The slim profile allows for discrete mounting, making it an excellent choice for unmarked or covert applications where the warning light needs to be hidden until activated.
Commitment to Quality and Long-Term Reliability
Buyers Products stands firmly behind the engineering and manufacturing excellence of this Thin 4.5 Inch Red Horizontal LED Strobe Light, offering a comprehensive 5-year warranty. This extensive warranty period serves as a testament to the product's quality, durability, and the manufacturer's confidence in its long-term performance. A 5-year warranty is a substantial commitment in the automotive lighting industry, providing peace of mind to purchasers and minimizing the total cost of ownership over the product's operational lifespan. It underscores that this warning light is not merely a compliance item but a significant investment in safety and operational efficiency, engineered for years of reliable service in challenging conditions. The combination of advanced LED technology, robust construction materials, comprehensive certifications, and a strong warranty ensures that this product delivers exceptional value and uncompromised safety performance for demanding professional applications.
