Buyers Products 4.5 Inch Thin Mount Vertical LED Strobe Light is designed with a thin .35 in. profile to fit tight areas. The 12-24V strobe light has six LEDs and features 19 flash patterns with alternating and synchronous features. Lights are rated IP67 for water and dust resistance and are available in several colors. The solid colors have a SAE J595 Class 1 rating (if mounted vertically) and CA13 certification. Bezels and 90?? mounting brackets are sold separately. Lights are backed with a 5 year warranty.
Specifications
| Alternating Function (Y/N) | Y |
|---|---|
| Amp draw at 12 Volts | 1 |
| Base / Mount Type | Surface |
| Certification | SAE J595 Class 1, IP67 |
| Class Level | 1 |
| Color | Amber |
| Connector | Blunt Cut |
| Grommet/Base Included | Y |
| Hard Wired or Plug | Hard Wired |
| Height | 4.400 |
| Housing Material | Aluminum |
| Lead Length | 9.5 |
| Lens Shape | Rectangular |
| Mount Type | Surface |
| Number of Flash Patterns | 19 |
| Number of Wires | 4 |
| Overall Width | 1.100 |
| Synchronous Function | Y |
| Type of Plug | Blunt Cut |
| Voltage | 12-24 |
Advanced Technical Overview: Thin 4.5 Inch Amber Vertical LED Strobe Light
The Thin 4.5 Inch Amber Vertical LED Strobe Light represents a pinnacle of compact, high-performance warning illumination, meticulously engineered for demanding professional applications. This device combines a revolutionary ultra-thin profile with robust construction and advanced optical technology to deliver unparalleled visibility and safety across diverse operational environments. Designed to integrate seamlessly into modern vehicle architectures, its vertical orientation and minimal footprint provide maximum flexibility for discreet yet highly effective placement, addressing the critical need for compliance-driven, high-intensity warning signals in industries ranging from construction and utility services to municipal operations and emergency support.
Precision Engineering: Ultra-Thin Profile and Vertical Design

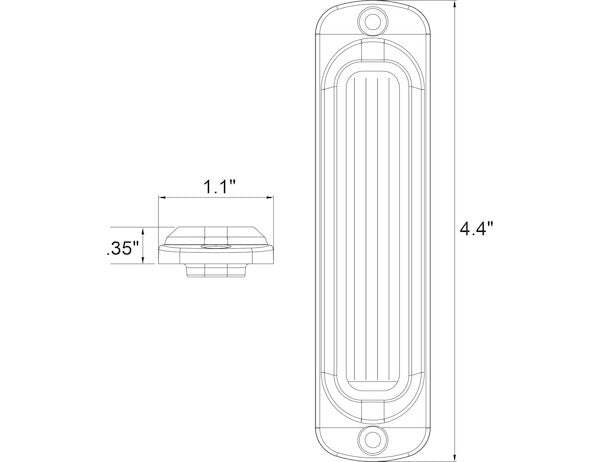

At the core of this strobe light's innovative design is its exceptionally thin .35 inch profile, coupled with a compact 4.400-inch height. This ultra-slim form factor is a significant engineering achievement, specifically tailored to overcome the common challenges associated with mounting auxiliary lighting on modern vehicles, which often feature limited surface area and complex aerodynamic contours. The vertical orientation, as implied by its designation and crucial for achieving its SAE J595 Class 1 rating, ensures that the light's emission pattern is optimized for maximum conspicuity when integrated into vertical surfaces such as vehicle grilles, side panels, or rear pillars. This design choice not only enhances the aesthetic integration by reducing visual bulk but also contributes to minimal aerodynamic drag, an important consideration for vehicle efficiency. The overall width of 1.100 inches further reinforces its ability to fit into tight, constrained spaces, making it an ideal solution for fleet managers and vehicle upfitters seeking high-impact warning capabilities without compromising vehicle aesthetics or structural integrity. The rectangular lens shape is carefully calibrated to complement the vertical form factor, projecting a wide and impactful beam pattern that cuts through adverse weather conditions and ambient light, ensuring the amber warning is unmistakably perceived from significant distances and various angles.
Advanced LED Illumination: Power and Efficiency

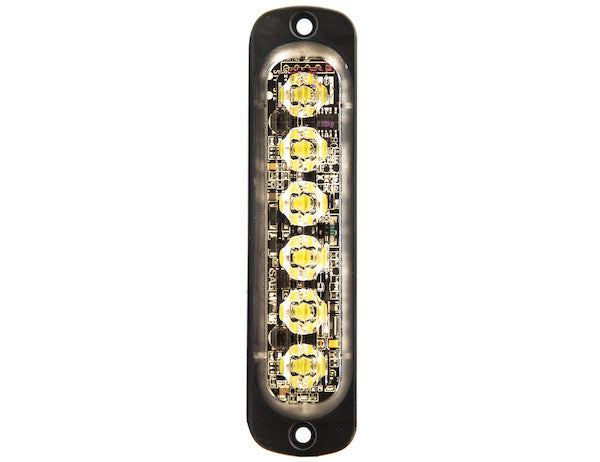

This strobe light is equipped with an array of six high-intensity Light Emitting Diodes (LEDs), specifically chosen for their superior performance characteristics compared to traditional incandescent or halogen light sources. LEDs offer several inherent advantages critical for professional warning applications:
- Energy Efficiency: Operating at a low amp draw of just 1 Amp at 12 Volts, these LEDs significantly reduce the electrical load on the vehicle's power system. This efficiency minimizes battery drain, extends the operational life of the vehicle's electrical components, and allows for simultaneous operation of multiple warning devices without taxing the alternator. The broad voltage compatibility (12-24V DC) further expands its utility, making it seamlessly compatible with both light-duty trucks and heavy-duty commercial equipment, ensuring consistent performance across diverse fleet compositions.
- Exceptional Longevity: LEDs boast a significantly longer operational lifespan, often tens of thousands of hours, dramatically reducing maintenance frequency and associated costs. Their solid-state nature eliminates fragile filaments, rendering them highly resistant to shock and vibration, which are common stressors in mobile applications.
- Instant-On Capability: Unlike gas-discharge strobes or incandescent bulbs, LEDs provide immediate, full-intensity illumination. This instantaneous response is vital for warning signals, ensuring maximum impact from the very first flash.
- Optimized Amber Spectrum: The selection of amber LEDs is deliberate and aligns with industry best practices and regulatory requirements for warning lights on utility, construction, and service vehicles. Amber light possesses excellent atmospheric penetration properties, making it highly visible in fog, rain, snow, and bright daylight conditions. Its distinct wavelength is universally recognized as a cautionary signal, effectively communicating potential hazards and demanding attention from other road users.
Dynamic Warning: 19 Flash Patterns with Synchronous and Alternating Features
The integrated control system offers an impressive repertoire of 19 distinct flash patterns, providing unparalleled versatility to adapt to specific operational requirements and environmental conditions. This extensive selection allows operators to choose the most effective pattern for attracting attention, minimizing visual fatigue for observers, and complying with varying local regulations. For instance, rapid, high-frequency patterns are effective for immediate hazard warnings, while slower, more deliberate sequences might be preferred for stationary work zones. Furthermore, the inclusion of both alternating and synchronous functions elevates the system's conspicuity capabilities:
- Alternating Function: When multiple units are installed on a vehicle, the alternating function enables lights to flash sequentially, creating a dynamic, "left-right" or "front-back" visual sweep. This motion effect is exceptionally effective at drawing attention, particularly in high-traffic areas, by simulating movement and enhancing the perception of the vehicle's presence.
- Synchronous Function: This advanced feature allows multiple strobe lights to flash in perfect unison, creating a unified and powerful visual presence. Synchronized flashing is particularly effective for large vehicles or fleets, where a coordinated display significantly amplifies the overall warning impact. It enables complex light arrays to function as a single, coherent warning system, enhancing recognition and reducing confusion for other drivers. The ability to program units for master/slave operation or mutual synchronization ensures flexible system design and installation.
Uncompromising Durability: IP67 and Robust Construction
The Thin 4.5 Inch Amber Vertical LED Strobe Light is engineered for extreme resilience, holding an IP67 Ingress Protection rating. This certification signifies:
- IP6x (Dust Tight): The unit is completely protected against dust ingress. This is critical for environments laden with particulate matter, such as construction sites, agricultural fields, or unpaved roads, ensuring internal components remain clean and operational.
- IPx7 (Water Immersion): The unit can withstand temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. This level of water resistance guarantees reliable performance through heavy rain, snow, slush, pressure washing, and accidental submersion, making it ideal for outdoor and all-weather applications.
- Exceptional Strength-to-Weight Ratio: Providing robust protection against impacts, vibrations, and mechanical stress without adding excessive weight to the vehicle.
- Superior Heat Dissipation: Aluminum acts as an effective heat sink, drawing heat away from the internal LED components. This thermal management is crucial for maintaining LED efficiency, preventing premature degradation, and extending the overall lifespan of the light.
- Corrosion Resistance: Aluminum naturally forms a protective oxide layer, making it highly resistant to corrosion from road salts, chemicals, moisture, and environmental pollutants. This characteristic ensures the light maintains its aesthetic and structural integrity over years of exposure to harsh conditions.
Regulatory Excellence: SAE J595 Class 1 and CA13 Certification
Adherence to stringent regulatory standards is paramount for professional warning lights, and this product excels in this regard:
- SAE J595 Class 1 Rating: This is the highest designation for warning lights under the Society of Automotive Engineers (SAE) J595 standard, specifically applicable when the light is mounted vertically. Class 1 certified lights are designed to be visible under all ambient light conditions, including bright daylight, ensuring maximum conspicuity and safety. This rating implies superior photometric performance, including intensity, effective flash rate, and light distribution, making it suitable for primary warning applications on emergency, utility, and construction vehicles where extreme visibility is non-negotiable. Compliance with SAE J595 Class 1 is a testament to the light's capability to provide a high level of warning effectiveness, critical for protecting workers and preventing accidents.
- CA13 Certification: This certification specifically addresses the stringent requirements for warning lights in California, often considered one of the most demanding regulatory environments globally. CA13-certified lights meet specific intensity, color, and flash pattern criteria mandated by the California Highway Patrol (CHP) and other state agencies. For operators working within California or in regions with similar advanced safety standards, CA13 compliance is essential for legal operation and demonstrates a commitment to the highest levels of safety performance. This certification ensures that the light provides sufficient warning to meet California's high visibility standards for tow trucks, construction vehicles, utility vehicles, and other specialized mobile equipment.
Seamless Integration and Installation: Hard-Wired Blunt Cut Connection
The Thin 4.5 Inch Amber Vertical LED Strobe Light features a hard-wired design with a blunt cut connector and a 9.5-inch lead length. This configuration offers significant advantages for professional installation:
- Customizable and Secure Connection: The blunt cut wires allow installers to create a permanent, custom-length connection tailored to the specific vehicle and mounting location. This eliminates excess wiring, reduces potential points of failure, and ensures a robust electrical connection that can withstand vibrations and environmental stressors.
-
Four-Wire System: The standard four-wire setup typically includes:
- Power (e.g., Red wire, 12-24V DC input)
- Ground (e.g., Black wire)
- Pattern Select/Trigger (e.g., Yellow wire, for cycling through the 19 flash patterns)
- Synchronization (e.g., White wire, for coordinating multiple units)
- Surface Mount Design: The surface mount type simplifies installation, requiring only a flat surface for secure attachment. The included grommet/base provides an additional layer of protection, sealing the mounting points against moisture and dust ingress, which is crucial for maintaining the IP67 rating post-installation.
- Accessory Integration: While designed for direct surface mounting, the availability of separately sold bezels and 90-degree mounting brackets provides enhanced versatility. Bezels offer a clean, finished look, covering mounting hardware and improving aesthetic integration, especially for exposed installations. The 90-degree mounting brackets enable installation on surfaces perpendicular to the desired light emission direction, offering solutions for complex vehicle geometries and specific warning coverage requirements. These accessories ensure that the light can be optimally positioned and presented in a wide array of applications.
Comprehensive 5-Year Warranty: A Commitment to Quality
Buyers Products backs this Thin 4.5 Inch Amber Vertical LED Strobe Light with a robust 5-year warranty. This extensive warranty period serves as a powerful testament to the manufacturer's confidence in the product's engineering quality, material durability, and long-term reliability. For commercial and industrial users, a substantial warranty significantly reduces the total cost of ownership by mitigating potential repair or replacement expenses over an extended period. It provides peace of mind, ensuring that the investment in safety equipment is protected and that the light will perform consistently for years, even under rigorous operational demands. This commitment to enduring quality underscores the product's suitability for critical safety applications where reliability is non-negotiable.
Versatile Applications and Target Markets
The technical specifications and robust features of the Thin 4.5 Inch Amber Vertical LED Strobe Light make it an indispensable safety component across numerous professional sectors:
- Construction and Road Maintenance: Essential for heavy machinery, excavators, dump trucks, and road paving equipment, providing critical warning signals in active work zones to protect both operators and passersby.
- Utility Services: Ideal for utility trucks, bucket trucks, and service vehicles, ensuring visibility during roadside repairs, power line maintenance, and infrastructure work.
- Municipal and Government Fleets: Suited for sanitation vehicles, street sweepers, public works trucks, and park maintenance vehicles, enhancing public safety during daily operations.
- Emergency Support Vehicles: While not a primary emergency light, it serves as an excellent auxiliary warning for tow trucks, incident response units, and support vehicles, particularly in amber-restricted zones or for specific warning functions.
- Agricultural and Mining: Provides critical visibility for tractors, harvesters, and specialized mining equipment, especially in low-light conditions or expansive operational areas.
- Pilot Cars and Oversize Load Transport: Used to mark the front, rear, and sides of pilot vehicles escorting oversize loads, ensuring clear communication of potential hazards to oncoming and trailing traffic.
Conclusion
The Thin 4.5 Inch Amber Vertical LED Strobe Light stands as a testament to advanced engineering in the field of vehicle safety and warning illumination. Its ultra-compact, vertically oriented design, combined with high-intensity amber LED technology, offers a sophisticated solution for integration into modern vehicle fleets. With 19 versatile flash patterns, synchronous and alternating capabilities, and a wide 12-24V operational range, it provides adaptability for any demanding scenario. The robust IP67-rated aluminum housing guarantees exceptional resistance to environmental stressors, while the prestigious SAE J595 Class 1 and CA13 certifications underscore its superior performance and regulatory compliance. Backed by a comprehensive 5-year warranty and designed for secure, customizable hard-wired installation, this strobe light is not merely a component; it is a critical safety investment, engineered to enhance visibility, protect personnel, and ensure operational integrity in the most challenging professional environments.
