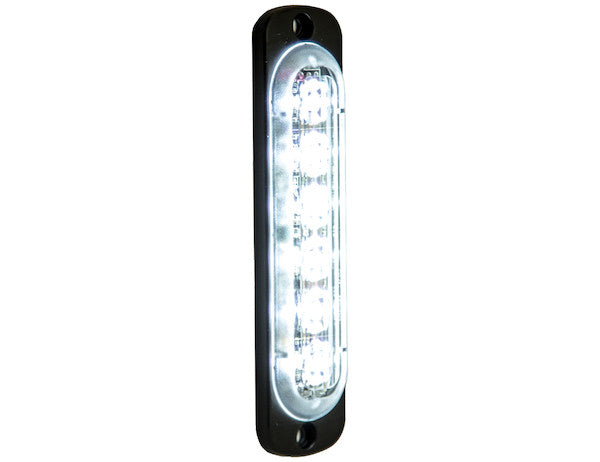

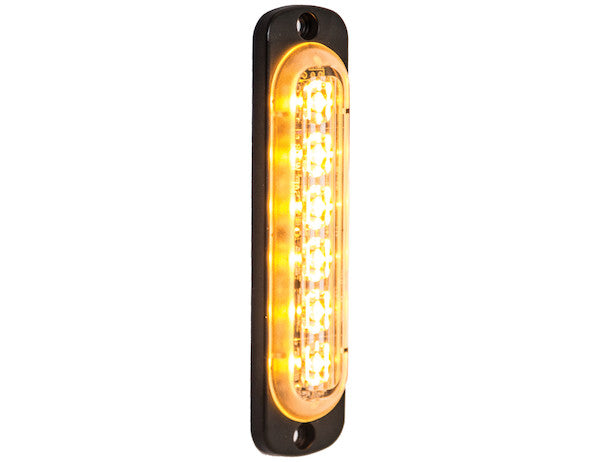

Buyers Products 4.5 Inch Thin Mount Vertical LED Strobe Light is designed with a thin .35 in. profile to fit tight areas. The 12-24V strobe light has six LEDs and features 19 flash patterns with alternating and synchronous features. Lights are rated IP67 for water and dust resistance and are available in several colors. The solid colors have a SAE J595 Class 1 rating (if mounted vertically) and CA13 certification. Bezels and 90?? mounting brackets are sold separately. Lights are backed with a 5 year warranty.
Specifications
| Alternating Function (Y/N) | Y |
|---|---|
| Amp draw at 12 Volts | 1 |
| Base / Mount Type | Surface |
| Certification | SAE J595 Class 1, IP67 |
| Class Level | 1 |
| Color | Clear |
| Connector | Blunt Cut |
| Grommet/Base Included | Yes |
| Hard Wired or Plug | Hard Wired |
| Height | 4.400 |
| Housing Material | Aluminum |
| Lead Length | 9.5 |
| Lens Shape | Rectangular |
| Mount Type | Surface |
| Number of Flash Patterns | 19 |
| Number of Wires | 4 |
| Overall Width | 1.100 |
| Synchronous Function | Y |
| Type of Plug | Blunt Cut |
| Voltage | 12-24 |
Advanced Technical Overview: Thin 4.5 Inch Clear Vertical LED Strobe Light
The Thin 4.5 Inch Clear Vertical LED Strobe Light represents a pinnacle in compact, high-performance warning illumination solutions, meticulously engineered to meet the demanding requirements of various professional and industrial applications. Designed by Buyers Products, this unit integrates cutting-edge LED technology with a remarkably slender profile, providing exceptional versatility and robust durability. Its clear lens configuration, coupled with a powerful LED array, ensures maximum visibility and compliance with stringent safety standards, positioning it as an indispensable component for enhancing operational safety in dynamic environments.
Precision Engineering: Ultra-Thin Profile and Robust Construction

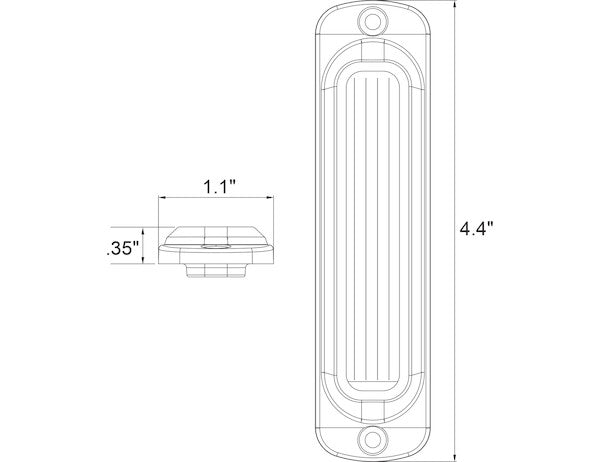

A defining characteristic of this LED strobe light is its ultra-thin profile, measuring merely 0.35 inches in depth. This minimalist design is not merely an aesthetic choice; it is a critical engineering feature that unlocks unprecedented flexibility in mounting and integration. Traditional strobe lights, often bulkier, can be challenging to install in constrained spaces or on surfaces where protrusion might interfere with functionality or aerodynamics. The slender form factor of this unit mitigates these issues, allowing for seamless flush-mount integration into vehicle body panels, equipment frames, or architectural elements without significant modification. This reduction in profile also contributes to minimized aerodynamic drag when mounted on moving vehicles, potentially improving fuel efficiency and reducing wind noise, while also safeguarding the unit from potential impacts in tight operational scenarios.
The housing of the strobe light is meticulously crafted from high-grade aluminum. Aluminum is selected for its superior strength-to-weight ratio, exceptional thermal conductivity, and inherent resistance to corrosion. The aluminum chassis serves as an efficient heat sink, effectively dissipating thermal energy generated by the six high-intensity LEDs. This thermal management is crucial for maintaining optimal LED performance, preventing premature degradation, and extending the operational lifespan of the light source. Furthermore, the robust aluminum construction provides formidable protection against mechanical shock, vibration, and environmental stressors commonly encountered in heavy-duty applications, such as construction sites, agricultural fields, or utility service routes.
Complementing the robust housing is a durable, clear polycarbonate lens. Polycarbonate is specifically chosen for its outstanding impact resistance, optical clarity, and UV stability. Unlike cheaper plastics that can yellow or become brittle over time when exposed to sunlight, polycarbonate maintains its transparency and structural integrity, ensuring consistent light output and visual effectiveness throughout the product's lifespan. The clear lens optimizes the transmission of the pure white light emitted by the LEDs, maximizing candela output and ensuring a distinct, high-contrast warning signal that cuts through various environmental conditions, from bright daylight to inclement weather.
Advanced Illumination: Six High-Intensity LEDs and Optical Optimization
At the core of this warning light's performance are six state-of-the-art Light Emitting Diodes (LEDs). These LEDs are not merely illumination sources; they are engineered for maximum luminous efficacy and reliability. Compared to traditional incandescent or gas-discharge strobe tubes, LEDs offer several distinct advantages:
- Extended Lifespan: LEDs boast significantly longer operational hours, often exceeding 50,000 to 100,000 hours, which dramatically reduces maintenance requirements and total cost of ownership.
- Energy Efficiency: Operating at a mere 1 Amp draw at 12 Volts, these LEDs convert a higher percentage of electrical power into light, minimizing energy consumption and lessening the strain on a vehicle's electrical system. This is particularly beneficial for battery-powered or auxiliary equipment.
- Instant-On Capability: LEDs illuminate instantly at full brightness, providing immediate visual warning without any warm-up delay.
- Vibration and Shock Resistance: As solid-state devices, LEDs are inherently more resistant to shock and vibration compared to fragile filaments or gas-filled tubes, making them ideal for mobile and off-road applications.
The optical design, including the specific configuration of the six LEDs and the internal reflector system, is optimized to achieve a broad and intense light dispersion pattern suitable for vertical mounting. While the light itself is clear, the emitted white light provides a universal warning signal that is highly effective across a wide range of emergency, utility, and safety scenarios.
Electrical Integration and Dynamic Pattern Control
The Thin 4.5 Inch Clear Vertical LED Strobe Light features broad voltage compatibility, operating efficiently across a 12-24V DC input range. This universal voltage design simplifies integration into a diverse array of vehicle platforms, from standard light-duty trucks and vans (12V systems) to heavy-duty commercial vehicles, construction equipment, and industrial machinery (24V systems). The intelligent internal circuitry automatically adjusts to the input voltage, ensuring consistent performance and preventing electrical damage. The hard-wired "blunt cut" connector with a 9.5-inch lead length provides a secure and permanent electrical connection, critical for installations that demand maximum reliability and resistance to environmental factors like moisture and dust, which could compromise plug-in connections. The four-wire configuration allows for comprehensive control, enabling synchronization and pattern selection functionalities.
A key operational advantage of this strobe light is its extensive selection of 19 distinct flash patterns. This versatility allows operators to choose the most appropriate pattern for specific operational contexts, regulatory mandates, or environmental conditions. Rapid, attention-grabbing patterns are ideal for high-risk situations, while slower, more deliberate patterns might be suitable for static warnings. Beyond individual pattern selection, the unit incorporates advanced alternating and synchronous features. These functions are particularly valuable for multi-light installations:
- Synchronous Function: Allows multiple strobe lights connected within a system to flash in unison, creating a powerful, unified warning signal that enhances visibility and recognition.
- Alternating Function: Enables lights within a system to flash in an alternating sequence (e.g., left lights flash, then right lights flash), which can create a dynamic, eye-catching visual effect that further commands attention.
These programmable features are controlled via a dedicated wire, typically a pattern-select or sync wire, allowing for easy configuration post-installation, often without needing to access the physical unit itself. This level of control provides operators with the flexibility to adapt their warning systems to evolving situational requirements, ensuring maximum effectiveness and compliance.
Uncompromised Durability: IP67 Environmental Protection
Designed for the most challenging operational environments, this LED strobe light carries an IP67 ingress protection rating. This international standard certification signifies an exceptional level of resistance against environmental contaminants:
- 'IP6X' (Dust Tight): The first digit, '6,' indicates that the enclosure is completely protected against dust ingress. This means no dust particles can penetrate the housing, preventing potential damage to internal electronic components, ensuring optimal performance, and extending the lifespan of the unit in dusty environments such as construction sites, agricultural operations, or desert conditions.
- 'IPX7' (Immersion up to 1 meter): The second digit, '7,' signifies protection against the effects of temporary immersion in water. The light can withstand being submerged in water up to a depth of 1 meter (approximately 3.3 feet) for up to 30 minutes without harmful ingress. This capability makes the unit suitable for marine applications, vehicles operating in heavy rain, during power washing, or even accidental submersion, guaranteeing uninterrupted functionality in adverse wet conditions.
The combination of these ratings ensures that the internal electronics and LEDs remain pristine and fully operational, regardless of exposure to dust, dirt, mud, snow, rain, or high-pressure washing. This robust environmental sealing is a testament to the product's engineering for reliability and longevity in the field.
Rigorous Certification and Regulatory Compliance
Adherence to industry-leading safety and performance standards is paramount for professional-grade warning lights. This Thin 4.5 Inch Clear Vertical LED Strobe Light is meticulously engineered to meet and exceed critical certifications, ensuring its legality and effectiveness in demanding applications.
The unit carries an SAE J595 Class 1 rating when mounted vertically. SAE J595 is a standard published by the Society of Automotive Engineers (SAE) that specifies the minimum photometric and environmental requirements for directional flashing optical warning devices for authorized emergency, maintenance, and service vehicles. A Class 1 rating is the highest classification, signifying that the light meets the most stringent intensity requirements, making it suitable for primary warning applications where maximum visibility is crucial, such as on emergency vehicles (police, fire, EMS), tow trucks, utility service vehicles, and construction equipment operating on public roadways. The "vertical mounting" caveat is crucial; the optical design and testing for this certification are specific to its intended orientation, ensuring proper light distribution and intensity when installed as specified.
Furthermore, the product boasts CA13 certification. CA Title 13, also known as California Vehicle Code Title 13, is one of the most rigorous and comprehensive standards for warning light systems in North America. It dictates specific performance criteria for emergency vehicle warning lights concerning flash rates, light intensity, color, and patterns. Achieving CA13 certification signifies that this strobe light meets these elevated standards, making it compliant for use on emergency and authorized vehicles within California and often recognized as a benchmark for quality and performance in other jurisdictions. As with SAE J595, this certification is contingent upon vertical mounting to ensure the light performs as intended and certified within its specified optical parameters.
These certifications underscore the product's technical excellence and its suitability for operations where safety and regulatory compliance are non-negotiable. They provide assurance to procurement managers, fleet operators, and end-users that the light will perform effectively and legally in critical warning scenarios.
Flexible Installation and Comprehensive Support
The surface mount design of the Thin 4.5 Inch Clear Vertical LED Strobe Light facilitates straightforward installation on virtually any flat surface. The inclusion of a grommet/base simplifies the mounting process and contributes to the IP67 sealing by providing a secure interface between the light and the mounting surface. While designed for direct surface attachment, the product offers enhanced versatility through separately sold accessories, including bezels and 90° mounting brackets. Bezels can provide a clean, finished appearance, concealing mounting hardware and integrating the light more smoothly into vehicle aesthetics. The 90° mounting brackets significantly expand installation options, allowing for perpendicular mounting to surfaces that might otherwise be unsuitable, thus optimizing light placement for maximum visibility in various vehicle and equipment configurations.
The thoughtful design allows for strategic placement on vehicles such as grille mounts, bumper mounts, side fender mounts, or on the rear of trucks and utility vehicles. For industrial applications, these lights can be affixed to forklifts, overhead cranes, or stationary machinery to demarcate hazardous areas.
Reinforcing the manufacturer's commitment to quality and customer satisfaction, the Thin 4.5 Inch Clear Vertical LED Strobe Light is backed by a comprehensive 5-year warranty. This extensive warranty period provides significant peace of mind, assuring buyers of the product's long-term reliability and the manufacturer's confidence in its engineering and materials. It minimizes the risk of unexpected replacement costs and underscores the inherent durability and robust design of the LED strobe light, making it a sound investment for critical safety applications.
Conclusion
In summary, the Thin 4.5 Inch Clear Vertical LED Strobe Light stands as an exemplar of advanced warning light technology, meticulously designed for superior performance, durability, and versatility. Its ultra-thin profile, robust aluminum housing, and impact-resistant clear polycarbonate lens address critical challenges in installation and environmental resilience. The integration of six high-intensity LEDs, coupled with 19 dynamic flash patterns and essential alternating/synchronous functions, ensures maximum visibility and adaptability for diverse operational needs. Electrical compatibility across 12-24V systems and a low current draw underscore its energy efficiency and broad applicability. Furthermore, its IP67 dust and water ingress rating, alongside stringent SAE J595 Class 1 and CA13 certifications (when mounted vertically), affirms its reliability and compliance with the highest safety standards. With flexible surface mounting options, accessory compatibility, and a robust 5-year warranty, this LED strobe light provides an unparalleled solution for professionals seeking an effective, long-lasting, and regulation-compliant warning illumination device in an increasingly demanding operational landscape.
