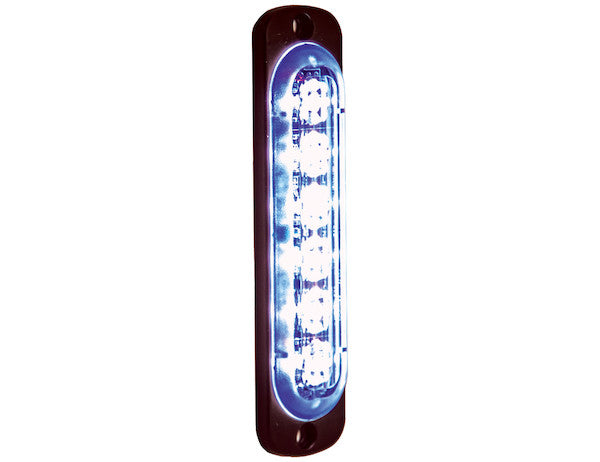

8891914 - Thin 4.5 Inch Blue Vertical LED Strobe Light

Buyers Products 4.5 Inch Thin Mount Vertical LED Strobe Light is designed with a thin .35 in. profile to fit tight areas. The 12-24V strobe light has six LEDs and features 19 flash patterns with alternating and synchronous features. Lights are rated IP67 for water and dust resistance and are available in several colors. The solid colors have a SAE J595 Class 1 rating (if mounted vertically) and CA13 certification. Bezels and 90?? mounting brackets are sold separately. Lights are backed with a 5 year warranty.

Specifications

Advanced Technical Overview: Thin 4.5 Inch Blue Vertical LED Strobe Light

The Buyers Products 4.5 Inch Thin Mount Vertical LED Strobe Light represents a paradigm shift in compact, high-performance warning illumination. Engineered with precision and built for resilience, this blue LED strobe light is designed to deliver unparalleled visibility and reliability in a diverse array of demanding operational environments. Its distinctive ultra-thin profile, robust construction, and advanced LED technology coalesce to provide a superior warning solution for professionals requiring discreet yet highly effective optical signaling.

Precision Engineering: Ultra-Compact Design and Robust Construction

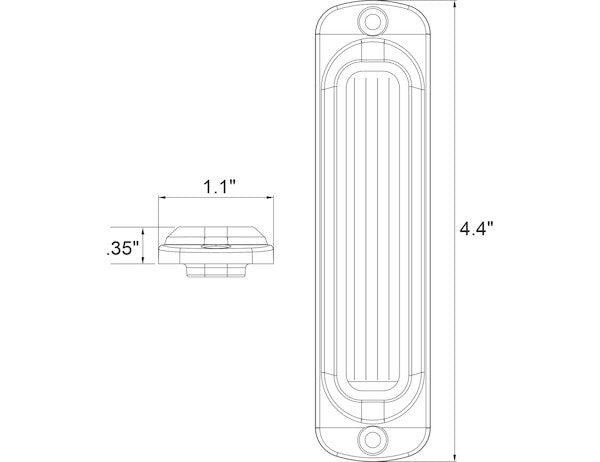

At the core of this innovative strobe light is its remarkably thin 0.35-inch (approximately 8.9 mm) profile. This minimal depth is a critical design feature, enabling installation in challenging and confined spaces where traditional warning lights would be impractical or impossible. The vertical orientation further enhances its versatility, allowing for seamless integration into vehicle contours, grille areas, or side panels without compromising aesthetics or creating aerodynamic drag. This slim form factor is not merely an aesthetic choice; it significantly reduces the likelihood of damage from impacts or snags in harsh operational settings, contributing to a longer operational life.

The housing material is constructed from high-grade aluminum, chosen specifically for its superior thermal management properties and inherent resistance to corrosion. Aluminum effectively dissipates heat generated by the LEDs, a crucial factor in maintaining optimal LED performance and extending their lifespan. In demanding outdoor applications, resistance to environmental degradation is paramount. The aluminum housing provides exceptional protection against rust, oxidation, and chemical exposure, ensuring the light maintains its structural integrity and aesthetic appearance over years of service. Furthermore, the robust construction ensures resistance to vibration and shock, common stressors in mobile equipment applications, thereby maintaining optical alignment and electrical connections under dynamic conditions.

Complementing its durable housing is an IP67 ingress protection rating. This international standard signifies that the light is completely dust-tight (the '6' in IP67) and capable of withstanding immersion in water up to 1 meter for 30 minutes (the '7' in IP67). This level of protection is essential for lights deployed on vehicles exposed to heavy rain, snow, road spray, pressure washing, or dusty construction sites. The sealed design prevents the intrusion of moisture and particulate matter, which are common causes of premature failure in lesser-protected electronic devices, thereby ensuring consistent performance in even the most severe weather and environmental conditions.

Advanced Illumination Technology and Optical Performance

This strobe light incorporates six high-intensity Light Emitting Diodes (LEDs), meticulously selected for their brightness, energy efficiency, and extended operational lifespan. Unlike traditional incandescent bulbs, LEDs offer instant-on functionality, superior vibration resistance, and significantly lower power consumption. The rapid response of LEDs ensures that the warning signal is perceived immediately, a critical factor in preventing incidents. With a nominal amp draw of just 1 Ampere at 12 Volts, this unit minimizes the load on a vehicle's electrical system, making it an ideal choice for installations where power efficiency is a key concern without compromising light output.

The light features a rectangular lens, precisely engineered to optimize the beam pattern of the blue LEDs. The specific optical design of the lens ensures that the light is projected effectively, maximizing visibility and enhancing the warning signal's impact over a wide viewing angle. The choice of blue LEDs is highly strategic. In many jurisdictions globally, blue warning lights are reserved exclusively for authorized emergency services, such as law enforcement, fire departments, or emergency medical services. Their distinct color commands immediate attention and is universally recognized as an indicator of an official emergency presence. It is imperative for users to verify local and regional regulations governing the use of blue warning lights to ensure compliance.

Versatility in power delivery is assured by its 12-24V operating range. This wide voltage compatibility makes the strobe light suitable for installation across a vast spectrum of vehicles, from standard 12V automotive systems found in passenger cars and light trucks to 24V systems commonly found in heavy-duty commercial vehicles, construction machinery, and fleet operations. This dual-voltage capability simplifies inventory management and provides greater flexibility for fleet managers and installers.

Sophisticated Warning Patterns and System Integration

A hallmark of this advanced strobe light is its comprehensive suite of 19 distinct flash patterns. This extensive selection allows operators to choose the most appropriate warning signal for specific operational contexts, ambient conditions, and regulatory requirements. From fast, attention-grabbing bursts suitable for high-speed approaches to more deliberate, rhythmic patterns for stationary work zones, the ability to customize the flash pattern significantly enhances the efficacy of the warning system. The selection of these patterns is typically controlled via a dedicated control wire, offering flexibility and ease of adjustment during installation or operation.

Further enhancing its functionality are the integrated alternating and synchronous features. When multiple strobe lights are installed on a single vehicle or an array of equipment, these features enable sophisticated coordination of light output:

• Synchronous Function: This mode allows multiple units to flash in perfect unison, creating a unified and highly impactful visual warning signature. Synchronized flashing can enhance the perceived size and presence of the vehicle, making it more noticeable from a distance and in complex traffic environments.
• Alternating Function: In contrast, alternating patterns allow lights to flash in a staggered or opposing sequence. For instance, a pair of lights could flash left-right-left-right, generating a dynamic, "sweeping" effect that can be particularly effective at drawing attention and indicating movement or direction. This creates a highly perceptible warning signal that captures peripheral vision more effectively.

The intelligent integration of these modes ensures that a cohesive and highly visible warning system can be established, maximizing safety for both operators and the public.

Certifications and Regulatory Compliance

Compliance with rigorous industry standards is a testament to the quality and performance of this LED strobe light. It proudly carries a SAE J595 Class 1 rating (when mounted vertically), alongside CA13 certification, and an IP67 rating:

• SAE J595 Class 1: This certification, issued by the Society of Automotive Engineers, denotes a high-intensity warning light suitable for primary warning applications. Class 1 lights are designed to be visible during daylight hours and are typically used on vehicles that require maximum visibility, such as emergency vehicles, highway maintenance trucks, and certain utility vehicles. The "Class 1" designation signifies that the light meets the highest standards for light output and flash pattern consistency, ensuring effective communication of danger or presence under challenging visibility conditions. The caveat of "if mounted vertically" highlights the importance of correct installation to achieve the specified light distribution and intensity required for this rating.
• CA13 Certification: This refers to the Canadian General Standards Board (CGSB) 13 standard for Warning Lights and Devices, primarily for emergency and public safety vehicles. CA13 certification ensures that the light meets specific performance and safety criteria mandated for use in Canada, affirming its suitability for critical applications in Canadian jurisdictions. This certification covers aspects such as photometric output, color consistency, flash frequency, and environmental durability.
• IP67 Rating: As previously detailed, this signifies complete protection against dust ingress and resistance to water immersion, assuring reliable operation in the most adverse environmental conditions.

These certifications collectively underscore the light's capability to perform reliably and effectively, meeting stringent safety and operational requirements across North American markets.

Installation and Integration Details

The Buyers Products Thin Mount LED Strobe Light is designed for hard-wired installation, providing a robust and secure electrical connection. It features a 4-wire blunt cut connector, allowing for flexible integration into existing vehicle wiring harnesses. Typically, these four wires serve distinct functions:

• Red Wire: Positive power input (12-24V DC).
• Black Wire: Negative ground connection.
• Yellow/White Wire (Pattern Select): Momentary connection to ground to cycle through the 19 flash patterns. Some systems may allow for a continuous connection to ground for a specific pattern.
• Blue/Green Wire (Synchronization): Connection to the corresponding synchronization wire of other identical strobe lights to enable synchronous or alternating flash patterns.

This standardized wiring scheme facilitates straightforward installation for qualified technicians. The surface mount design allows for direct attachment to flat surfaces, providing a clean and secure fit. While the unit includes basic mounting hardware or a grommet, optional accessories such as bezels and 90-degree mounting brackets are available separately. These accessories can further enhance the installation, offering additional aesthetic integration, physical protection, or specific mounting angles tailored to unique application requirements. The 9.5-inch lead length provides ample flexibility for routing wires to the power source and control switch.

Long-Term Reliability and Application Versatility

Buyers Products stands behind the quality and durability of this LED strobe light with a comprehensive 5-year warranty. This extensive warranty period reflects the manufacturer's confidence in the product's engineering, material quality, and manufacturing excellence, offering peace of mind and assurance of long-term operational integrity for the end-user. The robust construction and high-grade components are designed to withstand continuous operation in demanding environments, minimizing downtime and maintenance requirements.

The versatility of this thin 4.5-inch blue vertical LED strobe light makes it an indispensable safety component across a broad spectrum of industries and applications:

• Emergency Services: As a primary or auxiliary warning light for police cruisers, ambulance units, fire apparatus, and other first responder vehicles where blue lights are legally authorized. Its slim profile allows for discreet integration into grille, bumper, or mirror housings.
• Construction and Road Maintenance: Enhancing visibility on work sites, flagging vehicles, and road maintenance equipment, particularly in areas requiring specific color recognition for safety protocols.
• Utility Vehicles: For telecommunications, electrical, gas, and water utility fleets, providing essential warning signals during roadside work or infrastructure maintenance.
• Tow and Recovery Operations: Supplementing existing warning systems on tow trucks and recovery vehicles to enhance visibility during roadside assistance and vehicle recovery.
• Security Patrol: For private security services, campus security, or industrial plant security vehicles where a prominent and recognized warning signal is required.
• Agricultural Equipment: Increasing the visibility of large agricultural machinery operating on public roads or in open fields.
• Industrial and Mining Applications: Providing crucial safety signals on heavy machinery and specialized vehicles in challenging industrial and mining environments.

Conclusion

The Buyers Products Thin 4.5 Inch Blue Vertical LED Strobe Light is a cutting-edge warning solution, distinguished by its ultra-compact design, robust all-weather construction, and advanced LED illumination capabilities. With its high-intensity blue output, comprehensive flash patterns, synchronous/alternating functionality, and adherence to stringent certifications like SAE J595 Class 1 and CA13, this light offers unparalleled performance and reliability. Its wide voltage compatibility, efficient power consumption, and extended 5-year warranty further solidify its position as a premier choice for professionals seeking a durable, high-visibility, and compliant warning light for critical applications. The ability to integrate discreetly while delivering a powerful, unmistakable warning signal makes it an invaluable asset for enhancing operational safety and situational awareness in any demanding environment.
