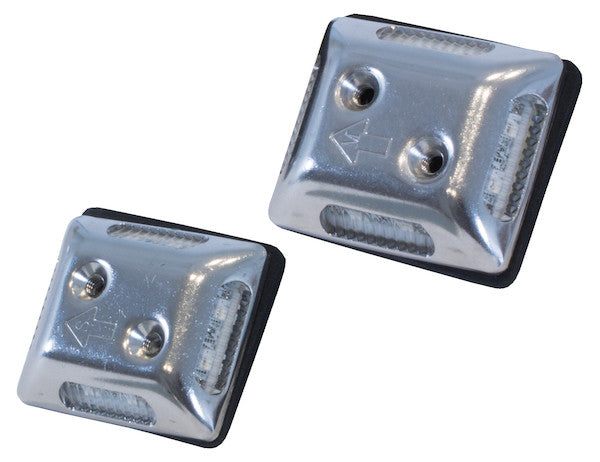

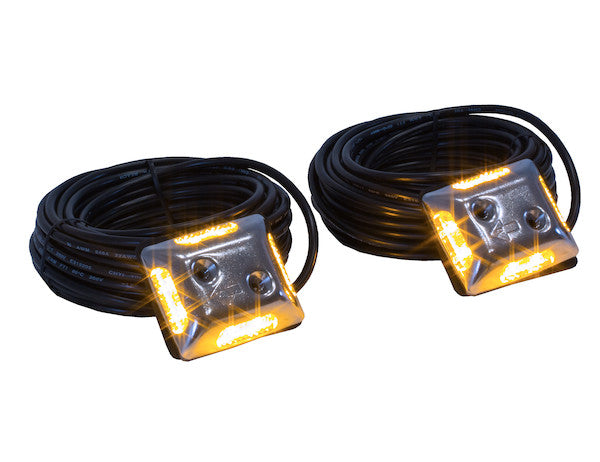

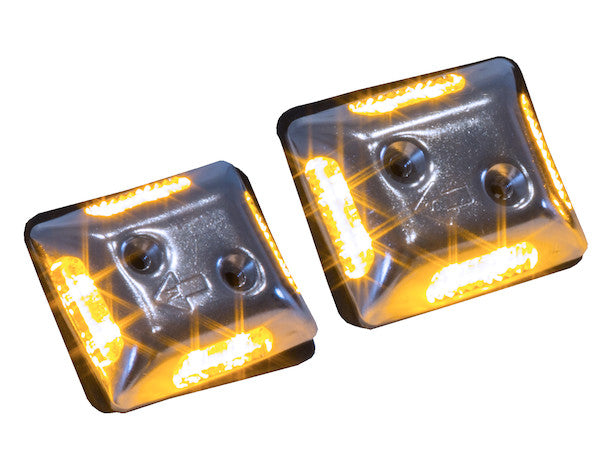

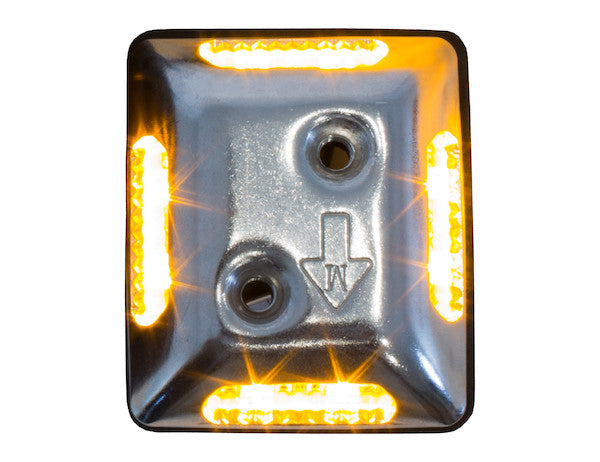

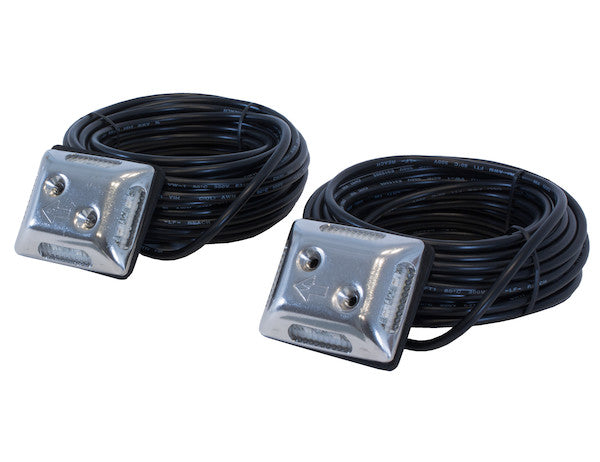

Buyers Products Crush-Resistant Strobe Light Set features two multi-directional strobes. Patented gyroscopic technology automatically turns the strobes on when in a horizontal position and off when vertical, making them ideal for lift gates, ramps, tailgates, and other similar applications. Their durable stainless steel construction protects them from forklifts and other common ground-level impacts. The automatic on/off function can be bypassed for traditional strobe uses, like marking the corners of dump trucks, bumpers, outriggers, or service bodies. The lights must be wired to an auxiliary switch (sold separately, see "Accessories" below) to be manually actuated for these applications. The strobes can be wired for synchronous or alternating patterns and feature a 35 ft cable. The kit includes stainless steel mounting hardware, 6 extra wiring grommets, a rubber gasket, and backing plates for each light. The lights are backed by a 5 year warranty.
Specifications
| Alternating Function (Y/N) | Y |
|---|---|
| Amp draw at 12 Volts | 0.1 |
| Base / Mount Type | Surface |
| Certification | IP68 |
| Class Level | 3 |
| Color | Amber |
| Grommet/Base Included | Y |
| Hard Wired or Plug | Hard Wired |
| Height | 2.560 |
| Housing Material | Aluminum |
| Lead Length | 9.5 |
| Lens Shape | Rectangular |
| Mount Type | Surface |
| Number of Flash Patterns | 1 |
| Number of Wires | 4 |
| Overall Width | 2.170 |
| Synchronous Function | Y |
| Type of Plug | Blunt Cut |
| Voltage | 12-24 |
Advanced Technical Overview: Buyers Products Crush-Resistant Strobe Light Set
The Buyers Products Crush-Resistant Strobe Light Set redefines vehicular safety lighting through an exceptional fusion of intelligent automation, unparalleled physical robustness, and sophisticated electrical engineering. This dual-unit system is meticulously designed to meet the rigorous demands of industrial, commercial, and heavy-duty operational environments, providing critical visual alerts while withstanding the most severe mechanical and environmental stresses. This comprehensive technical overview explores the advanced features, material science, and operational benefits that establish this product as an industry benchmark for intelligent and durable warning illumination.
Engineered Durability: The Crush-Resistant Composite Structure
The core innovation behind the Crush-Resistant Strobe Light Set lies in its multi-material construction engineered for extreme resilience. The external structure is crafted from high-grade stainless steel, a material renowned for its superior tensile strength, remarkable impact resistance, and inherent corrosion-inhibiting properties. This robust outer shell provides formidable protection against localized impacts from heavy equipment such as forklifts, pallet jacks, and other ground-level machinery, which are pervasive hazards in loading docks, warehouses, and construction sites. The selection of stainless steel ensures that the critical internal components remain protected, minimizing downtime and replacement costs associated with physical damage. This structural integrity is paramount for safety devices deployed in vulnerable, low-mounted positions.
Complementing the stainless steel exterior, the internal housing material is specified as aluminum. This strategic choice is driven by aluminum's excellent thermal conductivity and favorable strength-to-weight ratio. Within a high-intensity LED strobe light, effective thermal management is crucial for the longevity and stable performance of the light-emitting diodes and associated drive circuitry. The aluminum housing efficiently dissipates heat, preventing thermal degradation of the LEDs and ensuring consistent light output, color temperature, and flash pattern fidelity over the product's lifespan. The combination of an impact-resistant stainless steel exoskeleton and a thermally optimized aluminum core represents a sophisticated engineering approach, creating a warning light system that is not only crush-resistant but also thermally stable and structurally balanced for prolonged heavy-duty service.
Patented Gyroscopic Technology: Intelligent Orientation Sensing
A distinctive and patented feature of this strobe light set is its integrated gyroscopic technology, which provides intelligent, automated control based on physical orientation. This advanced micro-electromechanical system (MEMS) sensor continuously monitors the angular position and motion of the strobe units. The system is precisely calibrated to automatically activate the strobes upon detecting a horizontal orientation and deactivate them when a vertical position is resumed. This automation is a significant advancement for dynamic vehicle components such as hydraulic lift gates, retractable loading ramps, and articulating tailgates.
In operational contexts, the need for immediate and reliable visual warnings as these components transition from a stowed to a deployed state is critical for preventing accidents. Manual activation often leads to human error or delays. The gyroscopic automation eliminates this vulnerability by ensuring that warning lights are engaged precisely when the component poses a hazard (e.g., a lift gate in its horizontal, lowered position) and disengaged when it is safely stowed. This contributes to enhanced workplace safety, compliance with operational protocols, and energy efficiency by preventing unnecessary illumination. The precision and responsiveness of the gyroscopic sensor ensure reliable state detection, making it an invaluable tool for enhancing safety in dynamic vehicle operations.
Versatile Actuation: Automatic and Manual Operational Modes
Beyond its innovative gyroscopic automation, the Buyers Products Strobe Light Set offers comprehensive operational versatility through a user-selectable manual bypass function. This dual-mode capability ensures the lights can serve a broad spectrum of safety applications, adapting to both dynamic and static warning requirements. While the automatic mode excels for articulating components, the manual override function allows for traditional, continuous warning light operation when specific orientation-based activation is not desired.
For scenarios demanding constant visual conspicuity—such as marking the permanent extremities of large commercial vehicles like dump trucks, defining the footprint of deployed outriggers, or highlighting the perimeters of service bodies—the gyroscopic sensor can be bypassed. This effectively transforms the units into robust, manually controlled warning lights. To activate this manual mode, the strobes require wiring to an auxiliary switch (sold separately). This design choice emphasizes professional integration, allowing fleet managers and installers to configure the lighting system precisely to their operational needs, whether for automated hazard warning on moving parts or continuous perimeter marking on stationary equipment. This flexibility enhances safety protocols across diverse applications without compromising the lights' core durability or optical performance.
Advanced Optical Design and Flash Patterns for Superior Conspicuity
Each unit in the Crush-Resistant Strobe Light Set features multi-directional strobes, meticulously engineered to project light with exceptional angular visibility. This crucial design aspect ensures that the warning signal is discernible from a wide range of approach vectors, effectively alerting personnel and traffic regardless of their position relative to the light source. The chosen amber light color adheres to widely accepted industry standards for caution and warning signals, offering optimal visibility across varying ambient light conditions and weather phenomena without being associated with primary emergency vehicle status. This makes them universally recognizable and compliant for commercial and industrial applications.
The strobe lights offer advanced pattern synchronization capabilities, allowing for either synchronous or alternating flash patterns between the two units. Synchronous flashing, where both strobes activate and deactivate in unison, creates a powerful, unified visual pulse that commands immediate attention to a specific area or vehicle perimeter. Conversely, the alternating flash pattern, where strobes illuminate out of phase, generates a dynamic, "chasing" effect. This pattern is particularly effective at capturing peripheral vision and conveying a sense of urgency or movement, which is beneficial for warning about active machinery or dynamic vehicle operations. While the product specifies a single primary flash pattern (excluding the sync/alt capability between units), this indicates a highly optimized pattern engineered for maximum warning efficacy and compliance with Class 3 standards, prioritizing impact over pattern variety.
Robust Electrical Integration and Energy Efficiency
Designed for universal compatibility within commercial fleets, the strobe light set operates within a broad 12-24 Volt DC electrical system range. This wide voltage tolerance simplifies integration across a diverse fleet of vehicles and heavy equipment, eliminating the need for voltage conversion modules and streamlining installation processes. A critical operational advantage is the remarkably low current draw of just 0.1 Amp at 12 Volts. This ultra-efficient power consumption minimizes the electrical load on the vehicle's battery and alternator, reducing the risk of electrical system strain and preserving battery life, particularly important for applications involving extended periods of warning light operation. Low current draw contributes directly to reduced operational costs and enhanced system reliability.
The lights are hard-wired with a blunt cut type plug, a design choice prioritizing durability and secure electrical connections over convenience. Hard-wiring provides superior resistance to vibration, moisture ingress, and accidental disconnections—common failure points in demanding environments. The 4-wire configuration typically comprises power, ground, a synchronization lead for inter-unit pattern coordination, and a control lead for the gyroscopic sensor bypass. Furthermore, the inclusion of a generous 35 ft cable length offers substantial flexibility for optimal mounting positions and routing across large vehicles or complex equipment layouts, mitigating the need for additional cable extensions and potential splice points. The individual light's 9.5-inch lead length provides ample wire for robust connections at the light unit itself.
IP68 Certification: Uncompromising Environmental Protection
A cornerstone of this product's industrial-grade quality is its IP68 (Ingress Protection) certification. This designation represents an elite level of environmental sealing, ensuring reliable performance in the harshest conditions:
- IP6x (Dust Tight): The "6" indicates complete protection against dust ingress. This means no dust particles, even fine particulate matter prevalent in construction, agricultural, or mining environments, can penetrate the enclosure. This prevents internal contamination that could degrade optical performance or compromise sensitive electronic circuitry, ensuring sustained high visibility and operational integrity.
- IPx8 (Immersion Protection): The "8" signifies protection against continuous immersion in water beyond 1 meter for specified durations (typically 30 minutes or more). This makes the strobes impervious to heavy rainfall, snow, ice, direct high-pressure washing, and even temporary submersion. This level of waterproofing is achieved through precision-machined housing components, robust rubber gaskets, and sealed cable glands, ensuring the internal electronics remain dry and functional irrespective of environmental moisture, significantly extending product longevity and reliability.
The IP68 rating is a critical technical assurance for safety-critical components deployed in outdoor and industrial settings, where exposure to environmental contaminants and moisture is routine.
Class 3 Warning Light Designation: Defined Performance Standards
The Class Level 3 designation for these strobe lights refers to a specific performance category within industry standards, such as SAE J595, which governs directional flashing optical warning devices. Class 3 lights are characterized by their output intensity and flash patterns suitable for general warning applications. These are typically employed on utility vehicles, maintenance equipment, construction machinery, and other commercial vehicles where effective visual conspicuity is essential for alerting pedestrians, motorists, and other operators to potential hazards, slow-moving vehicles, or stationary work zones. While distinct from higher-intensity Class 1 or 2 lights used for primary emergency response, Class 3 strobes provide a strong, unmistakable warning signal that meets established safety requirements for their intended operational context. This classification assures buyers that the light's performance metrics, including intensity, flash rate, and color, conform to recognized safety standards for industrial and commercial warning applications, contributing directly to site safety and regulatory compliance.
Integrated Installation Components for Robust Mounting

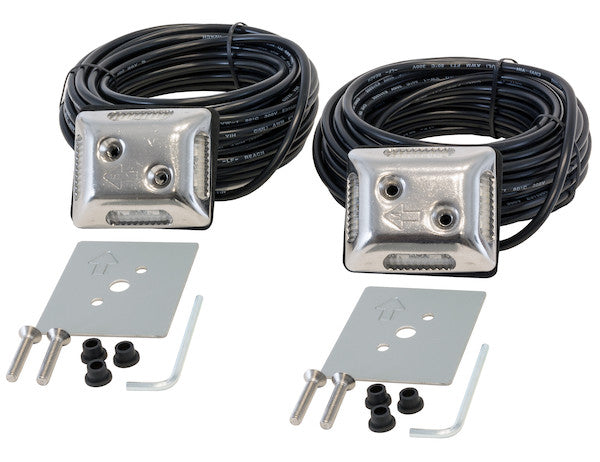

The Buyers Products Crush-Resistant Strobe Light Set is engineered for seamless surface mounting, offering versatility for integration onto various vehicle and equipment surfaces. The comprehensive installation kit includes all essential stainless steel mounting hardware. The use of stainless steel for fasteners is critical; it provides superior resistance to corrosion and rust, ensuring long-term structural integrity and preventing attachment failures in harsh, outdoor environments. Additionally, the kit provides 6 extra wiring grommets, ensuring that all cable entry points through vehicle panels are meticulously sealed against dust and moisture, preventing electrical system vulnerabilities. Each light is supplied with a high-quality rubber gasket, creating a watertight seal between the light housing and the mounting surface, further enhancing environmental protection. Backing plates for each light are included to distribute mounting forces evenly across the installation surface, preventing material fatigue or deformation of thinner vehicle panels and ensuring a secure, vibration-resistant attachment. These carefully selected and integrated components underscore a commitment to facilitating a professional, durable, and weather-resistant installation, which is paramount for maximizing the operational lifespan and reliability of the warning light system.
Unwavering Confidence: 5-Year Warranty
The Crush-Resistant Strobe Light Set is backed by an exceptional 5-year warranty, a powerful testament to the manufacturer's profound confidence in its engineering integrity, material quality, and manufacturing precision. This extensive warranty period significantly enhances the total cost of ownership by insulating against unforeseen product failures and replacement expenses over a substantial operational horizon. For fleet managers and equipment operators, a 5-year warranty signals a commitment to long-term reliability and customer satisfaction, providing critical assurance for investments in safety-critical equipment. It underscores the product's design for enduring performance in the most demanding commercial and industrial applications.
Conclusion: A Benchmark for Industrial Safety Lighting
The Buyers Products Crush-Resistant Strobe Light Set represents a paradigm shift in industrial safety lighting. Its unique confluence of heavy-duty stainless steel and aluminum construction for unparalleled crush and thermal resistance, patented gyroscopic technology for intelligent automated activation, and versatile manual bypass functionality makes it exceptionally adaptable to a broad spectrum of challenging applications. Bolstered by its IP68 environmental protection, Class 3 warning light performance, ultra-low power consumption, and a comprehensive, robust installation kit, this system offers a superior blend of reliability, efficiency, and safety. The industry-leading 5-year warranty further cements its position as a premium, long-term investment for optimizing operational visibility and safety in the most rigorous industrial and commercial environments.
