Buyers Products 5 Inch Surface Mount Ultra-Thin LED Strobe Light is designed with an ultra-slim .26 in. profile to fit tight areas. The 12-24V strobe light features 23 flash patterns with alternating and synchronous features. It's available in your choice of several solid or color combinations. Solid colors have a SAE J595 Class 1 rating and are CA13 certified. All lights are IPX8 waterproof rated. Lights include 3M??? self-adhesive tape for simple fastening. An optional 90?? mounting bracket is sold separately for a more permanent installation. Lights are backed with a 5 year warranty.
Specifications
| Alternating Function (Y/N) | Y |
|---|---|
| Amp draw at 12 Volts | 1 |
| Base / Mount Type | Surface |
| Certification | SAE J595 Class 1, IPX8, CA13 |
| Class Level | 1 |
| Color | Red |
| Connector | Blunt Cut |
| Grommet/Base Included | Y |
| Hard Wired or Plug | Hard Wired |
| Height | 1.180 |
| Housing Material | Aluminum |
| Lead Length | 9.5 |
| Lens Shape | Rectangular |
| Mount Type | Surface |
| Number of Flash Patterns | 23 |
| Number of Wires | 4 |
| Overall Width | 5.140 |
| Synchronous Function | Y |
| Type of Plug | Blunt Cut |
| Voltage | 12-24 |
Advanced Technical Overview: Ultra-Thin 5-Inch Red LED Strobe Light for Professional Applications
The Ultra Thin 5 Inch Red LED Strobe Light from Buyers Products represents a pinnacle in compact, high-performance warning illumination, meticulously engineered for demanding professional environments. This advanced surface-mount LED strobe light is a critical safety component, designed to deliver exceptional visibility and operational reliability across a broad spectrum of utility, emergency, and commercial applications. Its robust construction, sophisticated optical design, and adherence to stringent industry standards establish it as an indispensable solution for enhancing vehicle and personnel safety.
Precision Engineering and Ultra-Thin Profile

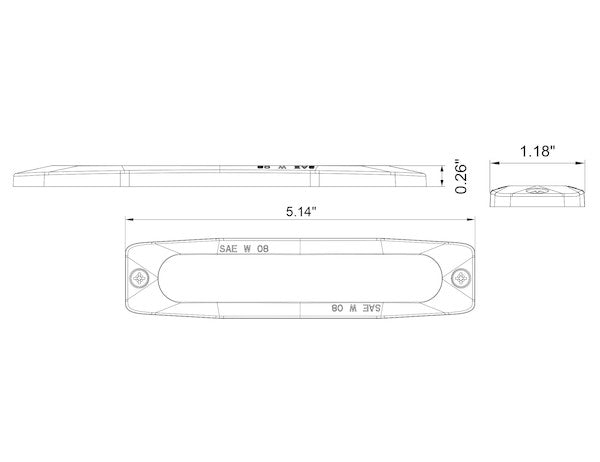

At the core of this product's innovation is its ultra-slim profile, measuring a mere 0.26 inches (approximately 6.6 mm) in thickness. This incredibly compact design is not merely an aesthetic feature; it is a fundamental engineering achievement that significantly expands mounting versatility. Its minimal protrusion reduces aerodynamic drag, making it suitable for high-speed applications without compromising vehicle dynamics. Furthermore, the discreet nature of its design allows for seamless integration into tight spaces and complex vehicle architectures where traditional, bulkier lighting solutions would be impractical or obstructive. The overall width of 5.140 inches (approximately 130.5 mm) provides a substantial illuminated surface area, ensuring effective light dispersion despite the unit's slimness. The rectangular lens shape is optimized for wide-angle visibility, distributing the powerful red LED output across a broad horizontal plane to maximize situational awareness for other drivers and personnel.
Advanced LED Optical System and Red Light Efficacy
This strobe light leverages state-of-the-art Light Emitting Diode (LED) technology, offering significant advantages over incandescent lighting in terms of energy efficiency, longevity, and durability. LEDs boast an operational lifespan orders of magnitude greater than traditional bulbs, drastically reducing maintenance cycles and associated costs. Their solid-state nature renders them highly resistant to shock and vibration, which are common stressors in mobile applications. Additionally, LEDs provide instant-on illumination, eliminating warm-up times and ensuring immediate warning activation.
The selection of red LEDs for this specific model is deliberate and strategic. Red light possesses unique characteristics that make it particularly effective for warning and emergency signaling. Its longer wavelength penetrates atmospheric obscurants such as fog, rain, snow, and smoke more effectively than shorter wavelengths like blue or white light. This superior penetration ensures that the warning signal remains highly visible and impactful even in adverse weather conditions or dusty work environments. Furthermore, red light is universally recognized as a signal for danger, stop, or caution, eliciting an immediate and instinctive response from observers. This psychological association, combined with the intense strobing effect, significantly enhances the urgency and effectiveness of the warning.
Dynamic Flash Patterns and Synchronization Capabilities
To cater to diverse operational requirements and regional regulations, this Ultra Thin Red LED Strobe Light is equipped with 23 distinct flash patterns. This extensive library of patterns allows operators to select the most appropriate visual alert for any given situation, from subtle cautionary flashes to high-intensity, rapid bursts designed to command immediate attention. The ability to customize the flash pattern is crucial for adapting to different ambient light conditions, traffic speeds, and specific hazard scenarios.
A key technical differentiator is its integrated alternating and synchronous functionality. These features are paramount for professional installations involving multiple strobe lights on a single vehicle or an array of vehicles.
- Synchronous Function: When multiple lights are synchronized, they flash in perfect unison, creating a powerful, unified visual statement. This coordinated flashing significantly increases the perceived intensity and impact of the warning system, making the vehicle more conspicuous from greater distances and angles. It projects a cohesive and professional image for emergency and utility fleets.
- Alternating Function: Conversely, the alternating function allows lights to flash sequentially, creating a dynamic, chasing, or oscillating effect. This pattern introduces movement into the warning signal, which can be particularly effective at drawing attention in complex visual environments or when indicating the direction of traffic flow around an incident scene.
Robust Electrical Architecture and Universal Compatibility
Designed for broad utility, this LED strobe light operates within a wide voltage range of 12-24V. This universal compatibility ensures seamless integration with virtually any vehicle's electrical system, from standard 12V automotive batteries found in passenger vehicles and light trucks to the 24V systems prevalent in heavy-duty commercial vehicles, construction equipment, and certain marine applications. This eliminates the need for voltage converters or specific models for different vehicle types, simplifying inventory and installation processes for fleet managers and installers.
The electrical efficiency of the unit is noteworthy, with an amp draw of only 1 Amp at 12 Volts. This low power consumption minimizes the load on the vehicle's electrical system, reducing strain on alternators and batteries. This is particularly beneficial for vehicles that require multiple warning lights or operate for extended periods with their engines off, such as during roadside assistance or incident management, thereby preserving battery life and ensuring operational readiness. The "Hard Wired" connection with a "Blunt Cut" type provides a secure, permanent electrical interface, essential for preventing accidental disconnections in rugged operating conditions. The 9.5-inch lead length offers sufficient flexibility for routing and connecting wires within the vehicle's electrical harness, ensuring a professional and durable installation.
Uncompromised Durability and Environmental Protection
The operating environments for professional vehicles are often harsh, demanding components that can withstand extreme conditions. This Ultra Thin Red LED Strobe Light is constructed with an aluminum housing, a material chosen for its exceptional strength-to-weight ratio, superior corrosion resistance, and excellent thermal conductivity. Aluminum effectively dissipates heat generated by the LEDs, which is crucial for maintaining optimal operating temperatures and extending the lifespan of the electronic components.
Further bolstering its resilience is an IPX8 waterproof rating. The Ingress Protection (IP) rating system classifies and rates the degree of protection provided against the intrusion of solid objects and water. An IPX8 rating signifies that the light is protected against continuous immersion in water beyond 1 meter. This certification means the light is fully sealed and capable of operating reliably even when submerged, making it impervious to heavy rain, pressure washing, snow, ice, and dust ingress. This level of environmental protection ensures consistent performance in all weather conditions and demanding industrial settings, from construction sites to marine environments.
Certifications for Unrivaled Performance and Compliance
Compliance with industry standards is not just a regulatory requirement; it is a testament to the product's quality, performance, and safety. This strobe light proudly holds SAE J595 Class 1 certification and CA13 certification, specifically for its solid color configurations like this red model.
- SAE J595 Class 1: The Society of Automotive Engineers (SAE) J595 standard defines performance requirements for electric emergency warning lights. A Class 1 rating is the highest classification, designating warning lights suitable for use on emergency vehicles where the highest level of light intensity and visibility is critical. Lights meeting Class 1 must exhibit superior optical output, broad beam patterns, and specific flash rate characteristics to ensure they are highly conspicuous in all ambient light conditions, including bright daylight. This certification confirms that the red strobe light delivers the necessary candela output and flash characteristics required for primary warning signals on public roadways.
- CA13 Certified: California Title 13 (CA13) outlines strict standards for emergency vehicle lighting within the state of California, often regarded as one of the most rigorous regulatory frameworks in North America. CA13 certification specifically ensures that warning lights meet stringent requirements for color, intensity, flash pattern, and placement on emergency and public safety vehicles. For professional operators, CA13 compliance is crucial for legal operation within California and often serves as a benchmark for high-quality warning lights in other regions due to its comprehensive nature.
Versatile Installation and Mounting Solutions

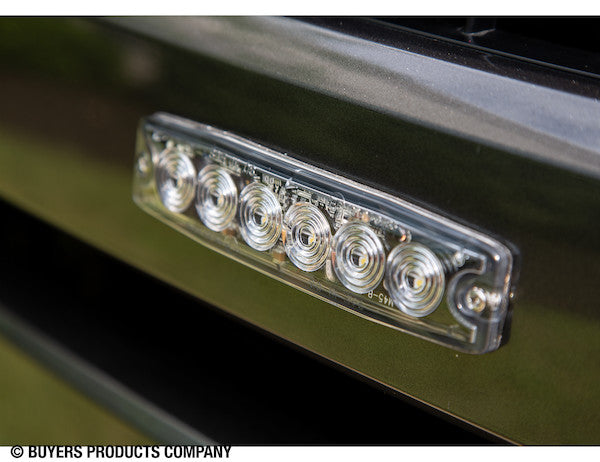

The "Surface Mount" design is chosen for its simplicity and versatility. This method allows the light to be securely affixed directly onto flat surfaces of a vehicle, offering flexibility in placement on cabs, bumpers, grilles, side panels, or toolboxes. Each unit comes with 3M™ self-adhesive tape, providing a convenient and immediate method for initial positioning or for applications where a non-invasive attachment is preferred. This high-strength adhesive ensures a reliable bond to a variety of substrates, complementing the ultra-thin profile for a sleek, integrated look.
For applications requiring a more permanent and robust installation, an optional 90-degree mounting bracket is available and sold separately. This bracket is engineered to provide a mechanically fastened solution, enhancing security against vibrations, impacts, or potential tampering. The 90-degree angle offers additional flexibility for mounting the light perpendicular to a surface, allowing for precise light projection and optimizing visibility in specific scenarios, such as illuminating side approaches or defining vehicle perimeters. The inclusion of a grommet/base further ensures a clean, protected entry point for the wiring, preventing chafing and maintaining the integrity of the IPX8 seal.
Strategic Applications Across Industries
The Ultra Thin 5 Inch Red LED Strobe Light is purpose-built for a wide array of professional applications where paramount visibility and safety are non-negotiable. Its red light output and Class 1 intensity make it ideal for:
- Emergency Services: Essential for police cruisers, fire apparatus, ambulances, and other first responder vehicles, where red is a primary warning color.
- Tow and Recovery Vehicles: Enhances safety during roadside assistance and vehicle recovery operations, alerting approaching traffic to hazards.
- Construction and Road Maintenance: Crucial for vehicles operating in active work zones, signaling presence and warning against potential dangers.
- Utility Fleets: Provides vital warning for vehicles involved in power line maintenance, telecommunications, and municipal services.
- Security and Patrol Vehicles: Offers a highly visible deterrent and warning for security personnel.
- Industrial and Agricultural Equipment: Increases visibility for large machinery operating in challenging environments.
- Marine Applications: Given its IPX8 rating, it is also suitable for marine vessels requiring warning or signal lights, resisting saltwater corrosion and submersion.
Commitment to Quality and Long-Term Reliability
Buyers Products stands behind the superior engineering and manufacturing quality of this Ultra Thin Red LED Strobe Light with a comprehensive 5-year warranty. This extended warranty period is a clear demonstration of confidence in the product's durability, reliability, and long-term performance under rigorous operational conditions. It provides professional users with assurance, minimizing concerns about premature failure and offering protection for their investment. The combination of high-grade materials, advanced LED technology, stringent environmental sealing, and adherence to leading industry certifications culminates in a warning light solution that not only meets but exceeds the demands of modern professional applications, ensuring optimal safety and operational continuity for years to come.
