Buyers Products 5 Inch Surface Mount Ultra-Thin LED Strobe Light is designed with an ultra-slim .26 in. profile to fit tight areas. The 12-24V strobe light features 23 flash patterns with alternating and synchronous features. It's available in your choice of several solid or color combinations. Solid colors have a SAE J595 Class 1 rating and are CA13 certified. All lights are IPX8 waterproof rated. Lights include 3M??? self-adhesive tape for simple fastening. An optional 90?? mounting bracket is sold separately for a more permanent installation. Lights are backed with a 5 year warranty.
Specifications
| Alternating Function (Y/N) | Y |
|---|---|
| Amp draw at 12 Volts | 1 |
| Base / Mount Type | Surface |
| Certification | SAE J595 Class 1, IPX8, CA13 |
| Class Level | 1 |
| Color | Red/Blue |
| Connector | Blunt Cut |
| Grommet/Base Included | Y |
| Hard Wired or Plug | Hard Wired |
| Height | 1.180 |
| Housing Material | Aluminum |
| Lead Length | 9.5 |
| Lens Shape | Rectangular |
| Mount Type | Surface |
| Number of Flash Patterns | 23 |
| Number of Wires | 4 |
| Overall Width | 5.140 |
| Synchronous Function | Y |
| Type of Plug | Blunt Cut |
| Voltage | 12-24 |
Advanced Technical Overview: Ultra-Thin 5-Inch Red/Blue LED Strobe Light for Professional Applications
The Buyers Products Ultra-Thin 5-Inch Red/Blue LED Strobe Light represents a pinnacle in compact, high-performance auxiliary warning illumination, meticulously engineered for demanding professional environments. This advanced surface-mount LED strobe system integrates cutting-edge optical and electrical technologies within an exceptionally svelte form factor, ensuring optimal visibility, uncompromising durability, and extensive operational versatility across a broad spectrum of vehicle platforms and critical applications. Designed to meet and exceed stringent industry standards, this lighting solution provides a robust and reliable signaling capability essential for enhancing safety and operational efficiency.
Precision Engineering and Ultra-Slim Profile

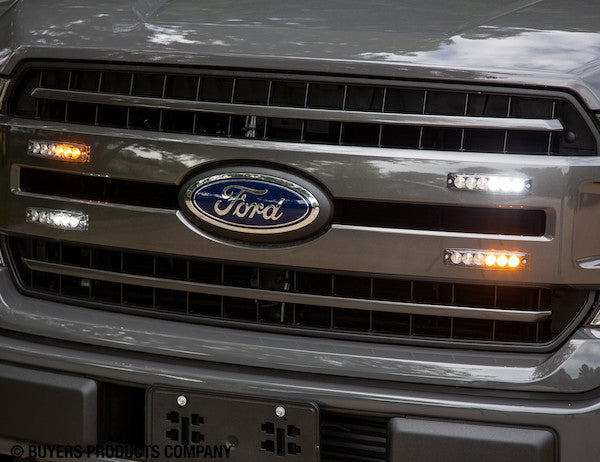

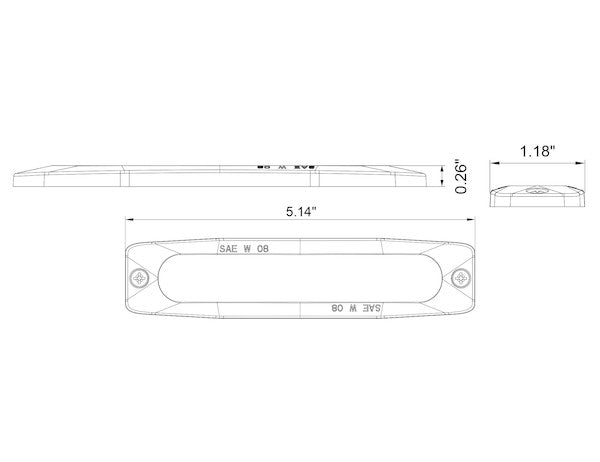

At the core of this product's innovation is its ultra-slim profile, measuring a mere 0.26 inches (approximately 6.6 mm) in thickness. This remarkably compact dimension is a critical design feature, facilitating seamless integration into areas where traditional, bulkier strobe lights would be impractical or aesthetically undesirable. The reduced footprint allows for discreet mounting on various surfaces of a vehicle, including grilles, bumpers, side panels, or cab structures, without obstructing aerodynamics or impacting the vehicle's inherent design lines. Despite its minimalist depth, the light maintains a robust overall width of 5.140 inches, providing a substantial luminous surface for maximum light output and dispersion. The housing material is meticulously crafted from high-grade aluminum, chosen for its exceptional strength-to-weight ratio, superior thermal dissipation properties, and inherent resistance to corrosion. This aluminum construction not only contributes to the light's longevity but also ensures that the internal LED components operate within optimal temperature ranges, thereby maximizing their lifespan and maintaining consistent photometric performance. The rectangular lens shape is specifically designed to optimize the beam spread, ensuring a wide viewing angle and high intensity, which is crucial for effective warning signaling from various perspectives.

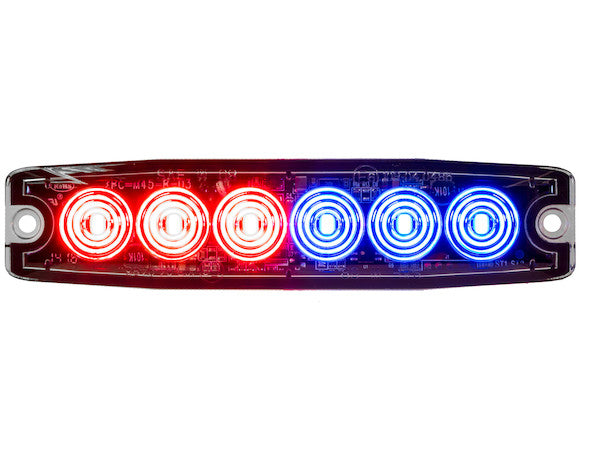

Advanced LED Technology and Bi-Color Spectrum (Red/Blue)
This Ultra-Thin LED Strobe Light leverages state-of-the-art Light Emitting Diode (LED) technology, renowned for its superior energy efficiency, extended operational life, and instantaneous illumination capabilities compared to conventional incandescent or halogen light sources. LEDs offer significant advantages in terms of vibration resistance, minimal heat generation (external), and rapid response times, all of which are vital for emergency and warning applications. The specific Red/Blue color combination featured in this model is of particular significance. Red and blue are universally recognized and legally mandated colors for emergency vehicle identification in many jurisdictions, primarily used by law enforcement, fire departments, and certain medical services. The careful selection and calibration of these LED emitters ensure high chromaticity and intense, saturated light output, maximizing contrast against ambient light conditions for superior conspicuity during both day and night operations. The bi-color capability allows for dynamic visual signaling, crucial for conveying urgency and identifying official authority. The optical design focuses on maximizing the photon output and directing it efficiently, preventing light bleed and ensuring that the emitted light is concentrated where it is most needed for optimal warning effect.
Dynamic Flash Patterns and Synchronization Capabilities
Operational versatility is a cornerstone of this strobe light's design, evidenced by its inclusion of 23 distinct flash patterns. This extensive array of patterns empowers operators to select the most appropriate visual signal for specific situations, maximizing effectiveness and adherence to regional regulations. The ability to switch between various patterns – from rapid bursts to slower, more deliberate pulses – allows for adaptation to diverse environmental conditions, traffic speeds, and incident types. Furthermore, the light incorporates both alternating and synchronous flash functions, significantly enhancing its utility. The alternating function enables two or more interconnected lights to flash in an opposing sequence, creating a dynamic and highly attention-grabbing effect. The synchronous function, conversely, allows multiple lights to flash in unison, providing a unified and powerful warning presence. These synchronization capabilities are crucial for creating comprehensive warning systems on larger vehicles or when multiple lights are deployed on different sections of a vehicle, ensuring cohesive and impactful visual communication to surrounding traffic and personnel. The embedded control circuitry manages these complex patterns with precision, providing seamless transitions and reliable performance.
Robust Electrical Specifications and Universal Compatibility
Engineered for widespread compatibility, the strobe light operates within a broad voltage range of 12-24 Volts DC. This dual-voltage capability ensures seamless integration with virtually all standard vehicle electrical systems, from light-duty trucks and utility vehicles (12V) to heavy-duty equipment, commercial vehicles, and municipal fleets (24V). This eliminates the need for voltage converters or specific models, simplifying inventory and installation processes for fleet managers and upfitters. The electrical current draw is remarkably efficient, consuming approximately 1 Amp at 12 Volts. This low amperage draw is vital for minimizing the strain on vehicle electrical systems, preserving battery life, and allowing for the installation of multiple warning lights without overloading the electrical infrastructure. The light is designed for hard-wired installation, featuring a blunt-cut connector with a 9.5-inch lead length and a total of four wires. This configuration provides a secure and permanent electrical connection, reducing the risk of accidental disconnection or intermittent operation common with plug-and-play solutions in harsh environments. The hard-wired design also allows for customized wiring routes and optimal concealment, contributing to a cleaner and more professional installation.
Uncompromising Durability and Environmental Resilience
For applications where environmental exposure is a constant, the Ultra-Thin LED Strobe Light offers exceptional resilience. It boasts an IPX8 waterproof rating, which is among the highest classifications for ingress protection. An IPX8 rating signifies that the device is suitable for continuous immersion in water under conditions specified by the manufacturer, typically implying full protection against dust ingress and high-pressure water jets, and even extended submersion. This level of protection ensures that the internal electronics and optical components remain impervious to moisture, rain, snow, ice, dust, and other particulate matter commonly encountered in outdoor and industrial settings. This superior environmental sealing makes the light ideal for use on vehicles exposed to severe weather conditions, pressure washing, or operations in dusty or muddy environments. The robust aluminum housing further contributes to this durability, acting as a protective shell against physical impacts, vibrations, and temperature extremes. Designed to operate reliably across a wide range of temperatures, the light maintains its photometric stability and functional integrity from freezing conditions to intense heat, making it suitable for global deployment.
Certifications, Compliance, and Industry Standards
Compliance with established industry standards is paramount for professional-grade warning lights, particularly those intended for public safety and emergency services. This Ultra-Thin LED Strobe Light, in its solid color configurations, proudly carries an SAE J595 Class 1 rating and is CA13 certified. The SAE J595 standard, developed by the Society of Automotive Engineers, outlines performance requirements for directional warning lamps. A Class 1 rating signifies the highest intensity level, indicating that the light is suitable for use on emergency vehicles and can provide effective warning signals in all lighting conditions, including bright daylight. This classification is critical for ensuring maximum visibility and safety on roadways and work sites. CA13 certification refers to compliance with California Title 13 regulations, which are among the most stringent standards for emergency vehicle lighting in North America. These regulations dictate specific requirements for light intensity, color, flash patterns, and mounting, ensuring that warning lights are effective and do not cause undue distraction or confusion. The Red/Blue color combination, while not explicitly carrying the "solid color" designation for SAE J595 Class 1 in the description, implies its adherence to similar rigorous performance criteria appropriate for emergency applications. These certifications underscore the product's superior performance, reliability, and suitability for critical warning applications where regulatory compliance is non-negotiable.
Flexible Mounting and Installation Solutions
The versatility of this strobe light extends to its installation options, designed to accommodate a variety of vehicle surfaces and operator preferences. The primary mounting method utilizes high-strength 3Mâ„¢ self-adhesive tape, which is included with the light. This industrial-grade adhesive provides a secure, yet non-invasive, fastening solution, ideal for quick deployment or when drilling into the vehicle body is not desired. The adhesive tape ensures a firm bond to clean, flat surfaces, distributing load evenly and offering excellent resistance to shear forces, temperature fluctuations, and moisture. For applications demanding a more permanent and mechanically robust installation, an optional 90-degree mounting bracket is available and sold separately. This bracket allows for a more traditional bolt-on attachment, providing enhanced resistance to extreme vibrations, impacts, and prolonged exposure to harsh conditions. The availability of both adhesive and bracket mounting options provides installers with the flexibility to choose the method best suited to the specific vehicle, mounting location, and operational requirements, ensuring optimal security and longevity of the installation.
Broad Spectrum of Professional Applications
Given its technical specifications and certifications, the Ultra-Thin 5-Inch Red/Blue LED Strobe Light is ideally suited for a comprehensive range of professional applications where high-visibility warning signals are paramount:
- Law Enforcement and Public Safety: The Red/Blue color combination is specifically tailored for police vehicles, sheriff's departments, and other authorized public safety agencies, providing unmistakable identification and warning at incident scenes, during pursuits, or while conducting traffic stops.
- Fire and EMS: Fire apparatus, ambulances, and rapid response medical units can utilize these strobes for enhanced conspicuity, aiding in safe navigation through traffic and marking emergency zones.
- Utility and Municipal Fleets: Vehicles involved in roadside maintenance, utility repair, snow removal, and waste management benefit from the high-intensity warning, ensuring the safety of personnel and passing motorists.
- Construction and Road Work: Construction vehicles, pilot cars, and heavy machinery operating in active work zones can employ these lights to alert workers and the public to potential hazards and operational boundaries.
- Towing and Recovery: Tow trucks and recovery vehicles require powerful warning lights to ensure visibility during roadside assistance and vehicle recovery operations, particularly in low-light or adverse weather conditions.
- Industrial and Agricultural Environments: Forklifts, specialized industrial vehicles, and agricultural equipment operating in large facilities or fields can use these strobes to signal their presence and movement, improving safety in congested or active areas.
The compact design further extends its utility to covert or low-profile vehicle applications where visible warning lights need to be discreet when not in use.
Quality Assurance and Warranty
Buyers Products stands behind the superior engineering and manufacturing quality of this Ultra-Thin LED Strobe Light with a comprehensive 5-year warranty. This extensive warranty period underscores the manufacturer's confidence in the product's durability, reliability, and long-term performance under rigorous operational demands. A 5-year warranty provides end-users with significant peace of mind, assuring them of a substantial return on investment and protection against defects in materials or workmanship. This commitment to quality and customer satisfaction reinforces the product's positioning as a premium, high-performance solution within the auxiliary lighting market.
Conclusion
The Ultra-Thin 5-Inch Red/Blue LED Strobe Light represents a state-of-the-art warning illumination solution, meticulously designed to meet the exacting requirements of professional and emergency service applications. Its ultra-slim profile, high-intensity Red/Blue LED technology, extensive flash pattern versatility, robust electrical specifications, and uncompromising environmental resilience collectively establish it as a leading choice for enhancing vehicle conspicuity and operational safety. Supported by rigorous certifications (SAE J595 Class 1, CA13) and a robust 5-year warranty, this strobe light delivers unparalleled performance, reliability, and value. For professionals demanding the highest standards in auxiliary warning lighting, this product offers an advanced, durable, and highly effective solution that integrates seamlessly into critical operational workflows, ensuring safety and compliance in the most challenging environments.
