Buyers Products 5 Inch Surface Mount Ultra-Thin LED Strobe Light is designed with an ultra-slim .26 in. profile to fit tight areas. The 12-24V strobe light features 23 flash patterns with alternating and synchronous features. It's available in your choice of several solid or color combinations. Solid colors have a SAE J595 Class 1 rating and are CA13 certified. All lights are IPX8 waterproof rated. Lights include 3M??? self-adhesive tape for simple fastening. An optional 90?? mounting bracket is sold separately for a more permanent installation. Lights are backed with a 5 year warranty.
Specifications
| Alternating Function (Y/N) | Y |
|---|---|
| Amp draw at 12 Volts | 1 |
| Base / Mount Type | Surface |
| Certification | SAE J595 Class 1, IPX8, CA13 |
| Class Level | 1 |
| Color | Amber/Red |
| Connector | Blunt Cut |
| Grommet/Base Included | Y |
| Hard Wired or Plug | Hard Wired |
| Height | 1.180 |
| Housing Material | Aluminum |
| Lead Length | 9.5 |
| Lens Shape | Rectangular |
| Mount Type | Surface |
| Number of Flash Patterns | 23 |
| Number of Wires | 4 |
| Overall Width | 5.140 |
| Synchronous Function | Y |
| Type of Plug | Blunt Cut |
| Voltage | 12-24 |
Advanced Technical Overview: Ultra-Thin 5-Inch Amber/Red LED Strobe Light for Professional Applications
The Ultra-Thin 5-Inch Amber/Red LED Strobe Light represents a pinnacle in modern vehicular warning illumination, engineered to meet the stringent demands of professional and industrial environments. This sophisticated device is meticulously designed to provide superior visibility and operational reliability, featuring an exceptionally slim profile, robust construction, and advanced electrical functionalities. Its amber/red color configuration is specifically chosen to comply with a wide array of regulatory standards for caution and warning signals, making it an indispensable safety component for a diverse range of vehicles and equipment.
Innovative Design and Form Factor: Precision Engineering for Optimal Integration

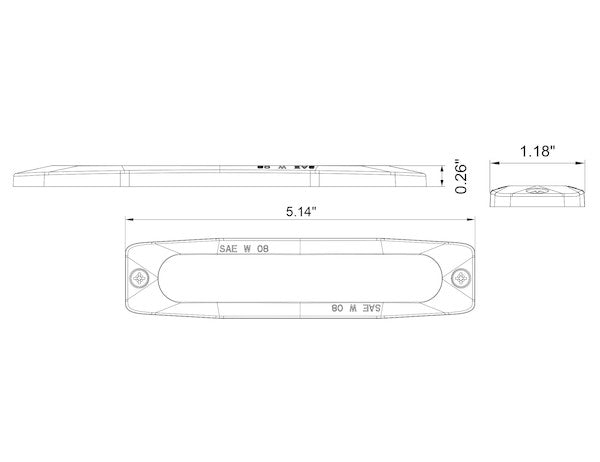

At the core of this product's appeal is its ultra-thin profile, measuring a mere 0.26 inches (approximately 6.6 mm) in depth. This exceptionally low-profile design is a critical advantage, enabling discreet and seamless integration into tight spatial constraints where conventional warning lights would be impractical or aesthetically disruptive. The 5-inch (5.140 inches overall width) rectangular form factor, coupled with its minimal height of 1.180 inches, ensures that the light can be mounted on various surfaces without significant protrusion, minimizing aerodynamic drag and reducing the risk of accidental impact. This streamlined design is particularly beneficial for applications on modern vehicle bodywork, equipment panels, or within confined machinery compartments where space optimization is paramount. The housing material, high-grade aluminum, contributes significantly to both the structural integrity and thermal management of the unit. Aluminum's inherent properties provide excellent heat dissipation capabilities, which is crucial for maintaining the operational longevity and efficiency of the integrated LED array, especially during prolonged periods of use. Furthermore, aluminum offers superior resistance to corrosion and environmental degradation, ensuring the light maintains its aesthetic and functional performance even in harsh operating conditions involving exposure to moisture, road salts, or chemical agents.
Advanced LED Technology and Optimized Illumination Performance
This strobe light leverages state-of-the-art Light Emitting Diode (LED) technology to deliver powerful and efficient illumination. LEDs are chosen over traditional incandescent or xenon strobe technologies due to their superior lifespan, significantly lower power consumption, instantaneous full-intensity light output, and exceptional resistance to shock and vibration – factors critical for mobile and industrial applications. The Amber/Red color combination is strategically employed to maximize visibility and compliance. Amber (or yellow) is universally recognized as a warning color, often indicating caution or slow-moving vehicles, particularly prevalent in utility, construction, and towing operations. Red, while often associated with emergency vehicles, can also serve as a strong warning or stop signal, offering a distinct visual contrast that enhances attention-grabbing capabilities when combined with amber. The optical design ensures that the light emitted is highly directional and intense, optimizing its effective projected area for maximum visual impact across wide viewing angles, thereby enhancing safety for both operators and the public.
Versatile Flash Patterns and Advanced Synchronization Capabilities
A key operational feature of this LED strobe light is its extensive suite of 23 distinct flash patterns. This comprehensive selection allows users to choose the most appropriate pattern for specific operational contexts, regulatory requirements, or to achieve varying levels of conspicuity. The ability to switch between multiple patterns provides flexibility, ensuring the light can adapt to different visibility conditions or specific warning protocols. The integration of both alternating and synchronous functions further elevates the light's utility in multi-light installations. The alternating function allows individual lights within a system to flash sequentially, creating a dynamic and highly noticeable warning array that effectively draws attention. The synchronous function, conversely, enables multiple strobe lights to flash in unison. This capability is invaluable for creating a cohesive and impactful warning signature across larger vehicles or equipment arrays, ensuring uniformity and maximizing the perception of a singular, powerful warning presence. This synchronization is typically achieved via a dedicated control wire, allowing for seamless integration and coordinated operation of multiple units from a single control point. This advanced functionality enhances overall system efficacy and simplifies complex warning light setups.
Robust Electrical Architecture and Power Management
Designed for broad compatibility, the strobe light operates within a wide voltage range of 12-24 Volts DC. This universal voltage compatibility makes it suitable for integration into virtually any vehicle electrical system, from light-duty trucks and vans (12V) to heavy-duty commercial vehicles and industrial machinery (24V), eliminating the need for voltage-specific models and simplifying inventory management. The nominal amp draw at 12 Volts is 1 Amp, indicating remarkable energy efficiency. This low power consumption minimizes the strain on the vehicle's electrical system, reduces parasitic load, and contributes to fuel efficiency, especially when multiple lights are installed. The connection type is hard-wired with a blunt cut, featuring 4 wires. This configuration provides a highly reliable and secure electrical connection, impervious to the vulnerabilities often associated with plug-and-play connectors in demanding environments. The 9.5-inch lead length offers sufficient flexibility for routing wiring during installation, allowing for professional and tidy integration. The internal circuitry incorporates robust power regulation and transient voltage protection, safeguarding the LEDs from voltage spikes and fluctuations inherent in vehicular electrical systems, thereby enhancing the product's overall reliability and lifespan.
Unparalleled Durability and Environmental Resilience: IPX8 Certification
Environmental resilience is a cornerstone of this product's design, underscored by its IPX8 waterproof rating. The Ingress Protection (IP) rating system, defined by IEC standard 60529, quantifies the degree of protection provided against solid objects and liquids. An IPX8 rating signifies that the device is protected against continuous immersion in water under conditions specified by the manufacturer, typically implying full waterproof capability even beyond 1 meter. This exceptional level of protection ensures the strobe light remains fully functional even when exposed to severe weather conditions, high-pressure washing, or accidental submersion, making it ideal for marine, off-road, and heavy-duty industrial applications where moisture exposure is constant. Complementing the IPX8 rating, the aluminum housing material provides additional environmental protection against dust, dirt, and corrosive elements, while the rectangular lens shape is engineered to resist impact and maintain optical clarity over time. The solid-state nature of LED technology inherently provides superior resistance to vibration and mechanical shock compared to traditional lighting solutions, further enhancing its durability in rugged applications.
Versatile Mounting and Installation Solutions
The strobe light is engineered for flexible and secure installation. Its primary surface mount design is facilitated by pre-applied 3M™ self-adhesive tape, providing a quick, clean, and effective fastening method for non-permanent or less invasive installations. The 3M adhesive is renowned for its high bond strength and resistance to environmental factors, ensuring a reliable attachment when applied to properly prepared surfaces. For applications demanding a more permanent and robust mechanical fixture, an optional 90° mounting bracket is available separately. This bracket allows for a more secure, bolt-on installation, providing enhanced stability and impact resistance, and also offers versatility in mounting orientation for optimal light projection. The inclusion of a grommet/base further ensures a complete and professional installation, sealing any entry points and protecting wiring. The blunt cut connector type reinforces the professional installation paradigm, allowing for custom wiring harnesses and direct integration into the vehicle's electrical system, ensuring optimal electrical integrity.
Certifications and Regulatory Compliance: SAE J595 Class 1 and CA13
Adherence to industry standards and regulatory compliance is paramount for warning lights, and this product excels in this regard. The light holds an SAE J595 Class 1 rating. The Society of Automotive Engineers (SAE) J595 standard defines the performance requirements for flashing lights on vehicles. Class 1 certification represents the highest intensity level, signifying that the light is suitable for primary warning applications where maximum visibility is critical, even in bright daylight conditions. This certification is essential for applications such as emergency vehicles, utility trucks, and construction equipment operating on public roadways. Furthermore, the solid colors are CA13 certified. CA13 refers to Title 13, Article 8 of the California Code of Regulations, which sets specific standards for warning lamp performance, particularly for amber and red lights used on authorized emergency vehicles, tow trucks, and other specified vehicles. This certification ensures the light meets stringent performance criteria for chromaticity, flash rate, and light output, making it legally compliant for use in California and other jurisdictions that adopt similar or equivalent standards. These certifications collectively affirm the product's capability to deliver reliable, high-performance warning signals that meet national and regional safety and legal requirements.
Commitment to Quality and Long-Term Reliability
The Ultra-Thin 5-Inch Amber/Red LED Strobe Light is backed by a comprehensive 5-year warranty, a testament to the manufacturer's confidence in its design, materials, and workmanship. This extended warranty period provides end-users with assurance regarding the product's durability and long-term performance, significantly reducing the total cost of ownership (TCO) by minimizing maintenance requirements and potential replacement costs. This commitment to quality underscores the product's suitability for demanding professional applications where reliability is non-negotiable. The inherent longevity of LED technology, coupled with the robust physical and electrical design, positions this strobe light as a superior choice for any application requiring dependable, high-visibility warning signals.
Primary Applications and Target Environments
Given its technical specifications and regulatory compliance, this strobe light is ideally suited for a broad spectrum of professional applications. These include, but are not limited to: utility service vehicles (telecommunications, electrical, gas, water), construction and road maintenance equipment, municipal service vehicles (waste management, snow removal), towing and recovery operations, agricultural machinery, and various industrial safety applications where visible warnings are critical for operational safety. Its ultra-thin profile also makes it suitable for discreet integration into OEM vehicle designs or for users who prioritize minimal aesthetic impact while maintaining maximum safety functionality.
In conclusion, the Ultra-Thin 5-Inch Amber/Red LED Strobe Light offers a sophisticated blend of cutting-edge LED technology, intelligent design, robust construction, and comprehensive regulatory compliance. Its exceptional slimness, versatile flash patterns, broad voltage compatibility, and superior environmental protection position it as an industry-leading solution for demanding warning illumination requirements across a multitude of professional sectors. This product not only enhances operational safety but also delivers long-term value through its durability, efficiency, and manufacturer-backed warranty.
