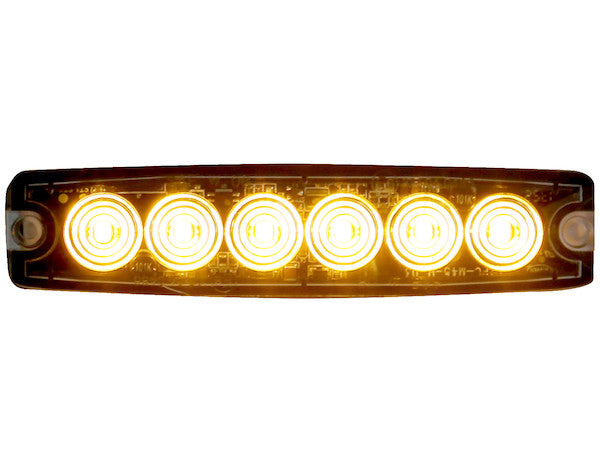

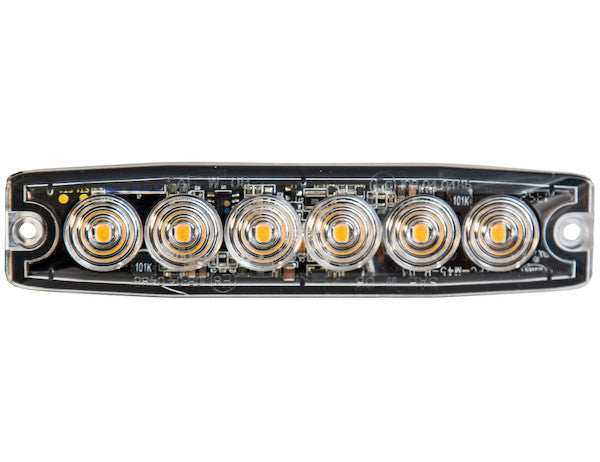

Buyers Products 5 Inch Surface Mount Ultra-Thin LED Strobe Light is designed with an ultra-slim .26 in. profile to fit tight areas. The 12-24V strobe light features 23 flash patterns with alternating and synchronous features. It's available in your choice of several solid or color combinations. Solid colors have a SAE J595 Class 1 rating and are CA13 certified. All lights are IPX8 waterproof rated. Lights include 3M??? self-adhesive tape for simple fastening. An optional 90?? mounting bracket is sold separately for a more permanent installation. Lights are backed with a 5 year warranty.
Specifications
| Alternating Function (Y/N) | Y |
|---|---|
| Amp draw at 12 Volts | 1 |
| Base / Mount Type | Surface |
| Certification | SAE J595 Class 1, IPX8, CA13 |
| Class Level | 1 |
| Color | Amber/Green |
| Connector | Blunt Cut |
| Grommet/Base Included | Y |
| Hard Wired or Plug | Hard Wired |
| Height | 1.180 |
| Housing Material | Aluminum |
| Lead Length | 9.5 |
| Lens Shape | Rectangular |
| Mount Type | Surface |
| Number of Flash Patterns | 23 |
| Number of Wires | 4 |
| Overall Width | 5.140 |
| Synchronous Function | Y |
| Type of Plug | Blunt Cut |
| Voltage | 12-24 |
Advanced Technical Overview: Ultra-Thin 5 Inch Green/Amber LED Strobe Light
The Ultra Thin 5 Inch Green/Amber LED Strobe Light represents a paradigm shift in compact, high-performance warning illumination. Engineered for demanding professional environments, this surface-mount LED strobe light by Buyers Products integrates cutting-edge optical technology with a remarkably slim form factor, providing unparalleled versatility and robust reliability. Designed to meet stringent safety and operational requirements, this unit is a critical component for enhancing visibility and ensuring safety across a multitude of applications, from commercial fleets and utility vehicles to industrial machinery and emergency response. Its dual-color Amber/Green output offers specialized signaling capabilities for diverse operational contexts.
Precision Engineering and Compact Design

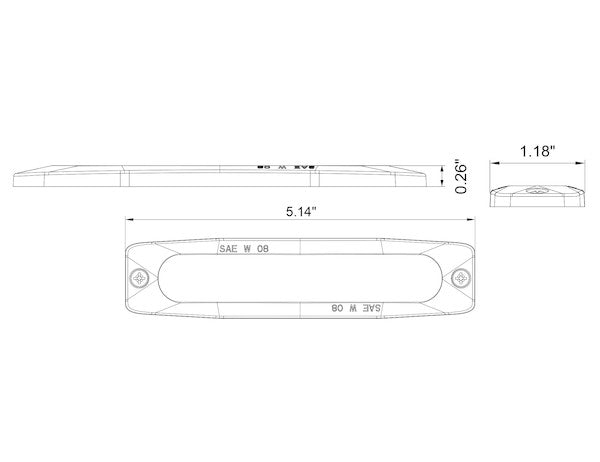

The defining characteristic of this LED strobe light is its ultra-thin profile, measuring a mere 0.26 inches in depth. This exceptionally slender design is not merely an aesthetic advantage; it is a critical engineering feat that allows for discreet and aerodynamic integration into tight spaces where conventional bulkier lighting solutions would be impractical or impossible. The minimized protrusion reduces the risk of impact damage, minimizes air resistance on vehicle applications, and maintains the vehicle's aesthetic integrity. With an overall width of 5.140 inches and a height of 1.180 inches, its rectangular lens shape is optimized for efficient light distribution, ensuring that the warning signal is broad and easily perceptible without sacrificing intensity. The unit's base and mount type are designed for surface application, facilitating straightforward installation on flat panels.Advanced LED Optics and Signaling Capabilities

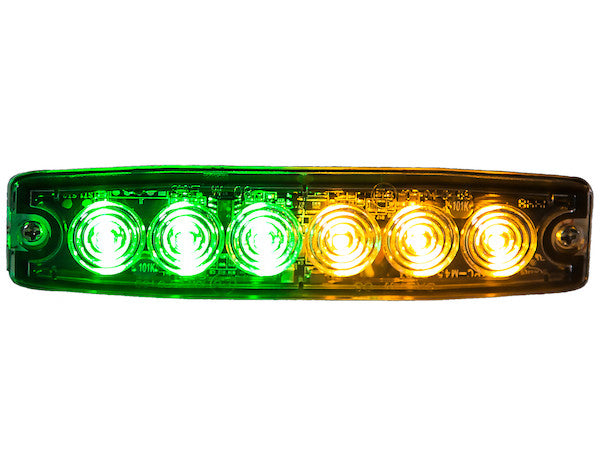

At the core of this strobe light's superior performance is its advanced LED array, specifically configured for Green/Amber output. Amber is universally recognized as a warning color for construction, utility, and road maintenance vehicles, signifying caution and potential hazards. Green, conversely, holds specific significance in various professional sectors, often indicating safety zones, medical personnel, or specific operational statuses in industrial or military applications. The combination of these two distinct colors in a single unit offers exceptional adaptability, allowing operators to convey precise messages or adapt to different regulatory environments without requiring multiple fixtures. The LED technology itself provides several inherent advantages over traditional incandescent or xenon strobes, including significantly longer operational lifespan (tens of thousands of hours), superior energy efficiency (consuming only 1 Amp at 12 Volts), instantaneous full-intensity illumination, and exceptional resistance to vibration and shock, which are common stresses in mobile applications.The unit features 23 distinct flash patterns, offering extensive customization to suit various operational requirements and regional regulations. This multiplicity of patterns allows for tailored signaling, from rapid, high-impact bursts for immediate hazard warnings to slower, more sustained flashes for general presence indication. The ability to select specific flash patterns ensures that the light's output is optimized for maximum visibility and comprehension in diverse environmental conditions and distances. Furthermore, the inclusion of both alternating and synchronous functions elevates the potential for complex, multi-light warning systems. When multiple lights are installed, the synchronous function allows them to flash in unison, creating a unified and highly conspicuous warning signature. The alternating function, conversely, enables lights to flash in an offset sequence, generating a dynamic, eye-catching effect that can be particularly effective in drawing attention to the full dimensions of a vehicle or hazard zone. These features are critical for creating compliant and effective visual warning systems that adhere to the highest standards of safety and operational efficiency.
Robust Construction and Environmental Resilience
Durability is paramount for warning lights operating in challenging outdoor and industrial environments, and this Ultra Thin LED Strobe Light is meticulously engineered to withstand severe conditions. The housing material is constructed from high-grade aluminum, renowned for its exceptional strength-to-weight ratio, excellent thermal conductivity, and inherent resistance to corrosion. The aluminum chassis serves as an efficient heat sink, effectively dissipating thermal energy generated by the LEDs, which is crucial for maintaining optimal performance, preventing premature component degradation, and extending the overall lifespan of the unit. This robust construction ensures that the internal electronics are well-protected against physical impacts, dust, and moisture ingress.A critical aspect of its robust design is its IPX8 waterproof rating. The Ingress Protection (IP) rating system defines the sealing effectiveness of electrical enclosures against intrusion from foreign bodies and moisture. An IPX8 rating signifies that the device is protected against continuous immersion in water under conditions specified by the manufacturer, typically meaning it can withstand prolonged submersion beyond 1 meter. This level of waterproofing makes the strobe light impervious to heavy rain, snow, road spray, pressure washing, and even temporary submersion, rendering it ideal for marine applications, off-road vehicles, and equipment regularly exposed to harsh weather or wash-down procedures. The inclusion of a grommet/base further enhances the sealing at the mounting surface, preventing water infiltration into the vehicle or equipment chassis.
Electrical Integration and Power Management
Designed for universal compatibility, the Ultra Thin LED Strobe Light operates across a wide voltage range of 12-24 Volts DC. This broad input voltage capability makes it suitable for integration into virtually any vehicle electrical system, from standard 12V automotive systems to 24V heavy-duty truck, construction, and marine applications, eliminating the need for voltage converters and simplifying inventory management. The low amp draw of 1 Amp at 12 Volts underscores its energy efficiency, minimizing strain on the vehicle's electrical system and battery, thereby supporting longer operational periods and reducing fuel consumption associated with alternator loads.The light is hard-wired with a blunt-cut connector, featuring four wires with a lead length of 9.5 inches. This configuration provides a secure and permanent electrical connection, which is vital for reliability in applications subject to vibration and exposure to the elements. The four-wire setup typically includes power, ground, and separate wires for flash pattern selection and synchronization, offering comprehensive control over the light's functionality. This hard-wired approach minimizes potential points of failure associated with removable plugs, ensuring a consistent and robust electrical interface.
Versatile Mounting Solutions

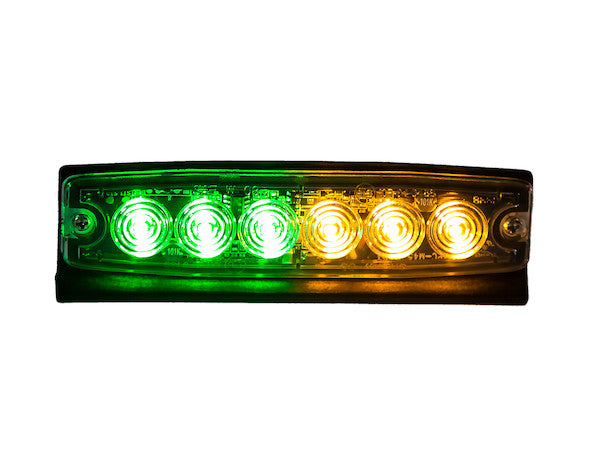

The design prioritizes ease of installation without compromising security. The primary mounting method involves surface application, facilitated by pre-applied 3M™ self-adhesive tape. This high-strength adhesive provides a quick, clean, and secure initial fastening solution, ideal for smooth, prepared surfaces where minimal drilling is desired. For applications requiring enhanced mechanical security, exposure to extreme forces, or specific mounting angles, an optional 90° mounting bracket is available separately. This bracket provides a more permanent and robust installation, ensuring the light remains firmly in place even under severe operational stresses such as heavy vibration, impacts, or extreme winds. This dual-option mounting strategy offers installers the flexibility to choose the most appropriate and secure method for their specific vehicle or equipment type and operational environment.Certifications and Regulatory Compliance
Compliance with industry standards and regulations is a cornerstone of professional-grade warning lights. This Ultra Thin LED Strobe Light achieves a SAE J595 Class 1 rating. SAE J595 is a standard from the Society of Automotive Engineers that specifies minimum photometric requirements, flash rate, and other characteristics for vehicular warning lamps. A Class 1 rating signifies the highest intensity level, meaning the light is approved for use in all conditions, including bright daylight, and is suitable for primary warning applications on emergency vehicles, utility trucks, and other service vehicles that require maximum visibility. Furthermore, the light is CA13 certified, indicating compliance with California Title 13 regulations, which govern the use of warning lights on emergency and public utility vehicles within the state of California, one of the most stringent regulatory environments in the United States. These certifications collectively affirm the product's superior performance, reliability, and legality for a broad spectrum of critical applications, providing peace of mind to operators and fleet managers.Long-Term Reliability and Support
The commitment to quality and durability is underscored by a comprehensive 5-year warranty. This extensive warranty period reflects the manufacturer's confidence in the product's design, materials, and manufacturing processes, assuring customers of a long service life and protection against potential defects. This level of post-purchase support translates into a lower total cost of ownership by minimizing maintenance, repair, and replacement expenses over the product's lifespan, making it a sound investment for any professional operation.Diverse Application Spectrum
The Ultra Thin 5 Inch Green/Amber LED Strobe Light is ideally suited for a wide array of applications demanding high-visibility warning signals:- Utility and Construction: Essential for road hazard warnings, utility line work, trenching operations, and construction sites where the amber light signals caution and the green can denote specific equipment status or safe zones.
- Commercial and Fleet Vehicles: Enhances safety for tow trucks, delivery vans, maintenance vehicles, and municipal fleets, particularly in urban environments or on highways.
- Agricultural Equipment: Provides crucial visibility for tractors, harvesters, and other farm machinery operating in fields or on public roads, especially during dawn, dusk, or adverse weather.
- Industrial and Mining: Ideal for heavy machinery, forklifts, and personnel carriers within factories, warehouses, and mining operations, where visibility significantly reduces accident risks. The green color can be utilized for 'all clear' signals or specific operational states.
- Emergency and Public Safety (where applicable): While specifically amber/green, these lights can augment existing warning systems, or be utilized by specialized units (e.g., hazmat, park rangers) where these colors are appropriate for warning and situational awareness.
- Marine Applications: The IPX8 rating makes it suitable for installation on boats and marine vessels for signaling or enhancing visibility in congested waterways or during low light conditions.
Conclusion
The Ultra Thin 5 Inch Green/Amber LED Strobe Light sets a new benchmark for compact, high-performance warning illumination. Its innovative ultra-thin design, coupled with advanced Amber/Green LED technology, 23 versatile flash patterns, and robust construction, positions it as an indispensable safety component. With certifications like SAE J595 Class 1 and CA13, alongside an IPX8 waterproof rating and a 5-year warranty, this light offers not only superior visibility and operational flexibility but also unparalleled durability and reliability. It represents an intelligent investment for professionals seeking to enhance safety, ensure compliance, and optimize operational efficiency across the most demanding applications, providing a critical visual cue to protect personnel, equipment, and the public.
