Buyers Products Ultra Thin 3.5 Inch LED Strobe Light Series is designed with an extremely slim .26 in. profile. The lights are rated SAE J595 Class 1 and CA13 certified. They feature 12 flash patterns with synchronous and alternating functions. The surface mounted lights are available in several colors. They can be fastened with screws or the included 3M??? self-adhesive tape. Built to withstand the toughest conditions, the lights feature an IPX8 waterproof rating. 90?? mounting brackets are sold separately. Lights are backed with a 5 year warranty.
Specifications
| Alternating Function (Y/N) | Y |
|---|---|
| Amp draw at 12 Volts | 0.50 |
| Base / Mount Type | Surface |
| Certification | SAE J595 Class 1 |
| Class Level | 1 |
| Color | Red |
| Connector | Blunt Cut |
| Grommet/Base Included | Yes |
| Hard Wired or Plug | Hard Wired |
| Height | 1.180 |
| Housing Material | Aluminum |
| Lead Length | 9.5 |
| Lens Shape | Rectangular |
| Mount Type | Surface |
| Number of Flash Patterns | 16 |
| Number of Wires | 4 |
| Overall Width | 3.450 |
| Synchronous Function | Y |
| Type of Plug | Blunt Cut |
| Voltage | 12-24 |
| Wattage | 10.55 |
Advanced Engineering & Performance: The Ultra Thin 3.5 Inch Red LED Strobe Light
The Ultra Thin 3.5 Inch Red LED Strobe Light represents a pinnacle in compact, high-performance warning illumination technology, meticulously engineered by Buyers Products. Designed to meet the stringent demands of diverse professional applications, this device integrates cutting-edge solid-state lighting (SSL) principles with robust mechanical and electrical design, delivering unparalleled visibility, reliability, and ease of integration. This comprehensive description delves into the technical specifications, design philosophy, operational advantages, and compliance standards that define this exceptional product.
Precision Design and Form Factor Optimization

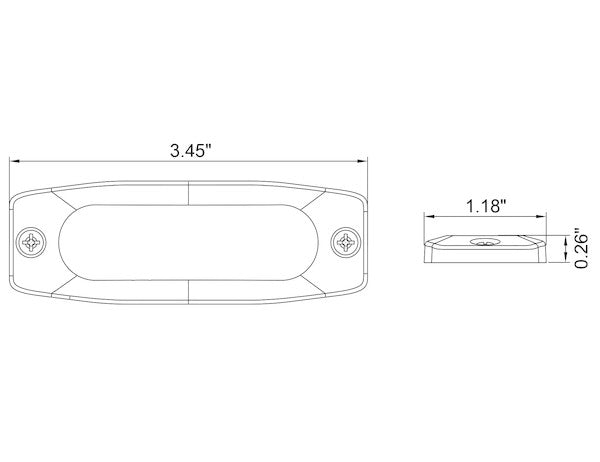

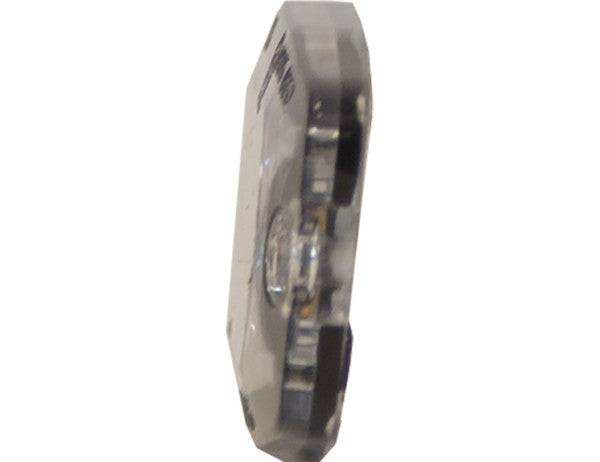

At the core of the Ultra Thin 3.5 Inch Red LED Strobe Light's innovation is its remarkably slim profile, measuring an astounding 0.26 inches (6.6 mm) in depth. This minimalist form factor is a significant engineering achievement, enabling discreet and versatile mounting options that are unfeasible for bulkier conventional strobe lights. The compact dimensions – an overall width of 3.450 inches (87.63 mm) and a height of 1.180 inches (29.97 mm) – ensure that the light can be seamlessly integrated into tight spaces, on vehicle panels, grille inserts, bumpers, or equipment surfaces without protruding excessively or obstructing other components. This low-profile design not only contributes to the aesthetic integration with modern vehicle designs but also minimizes aerodynamic drag and reduces the potential for damage from impacts or snags in demanding operational environments.
The rectangular lens shape is optimized for efficient light distribution, ensuring a broad and impactful visual footprint despite the compact size. The precision-molded lens material is selected for its optical clarity, UV resistance, and impact durability, maintaining peak photometric performance over the product's extensive lifespan. The integration of this low-profile lens with the slim housing results in a highly functional yet aesthetically unobtrusive warning light solution.
Superior Illumination Technology and Optical Performance
This strobe light harnesses the power of advanced Light Emitting Diode (LED) technology, renowned for its superior energy efficiency, extended operational life, and instantaneous illumination capabilities compared to traditional incandescent or xenon flash tubes. The emission of a vivid Red light is specifically chosen for its high contrast against various backgrounds and its widely recognized association with warning and emergency signaling, maximizing visual impact and immediate recognition. The specific chromaticity of the Red LEDs is carefully controlled to comply with regulatory requirements, ensuring optimal visibility in both daylight and low-light conditions.
Equipped with 16 distinct flash patterns, this unit offers exceptional versatility in signaling. These patterns are not merely aesthetic variations but are scientifically designed to cut through visual noise and attract attention effectively. The inclusion of both synchronous and alternating functions allows for advanced multi-unit installations. Synchronous operation ensures that multiple lights flash in unison, creating a powerful, coordinated visual warning effect that commands attention. Alternating operation, conversely, involves lights flashing sequentially, generating a dynamic, "chasing" effect that is highly effective at conveying urgency and directionality, particularly when mounted in pairs or arrays. The ability to program these patterns via a dedicated control wire provides installers with granular control over the warning signature, enabling customization to suit specific operational protocols or regional regulations. This flexibility enhances safety by allowing operators to select the most appropriate and effective warning mode for any given situation.
Robust Durability and Environmental Resilience
Engineered for unwavering performance in the most challenging conditions, the Ultra Thin 3.5 Inch Red LED Strobe Light boasts an IPX8 waterproof rating. This certification signifies that the unit is protected against continuous immersion in water under specific conditions (depth and time, as defined by testing standards), rendering it impervious to rain, snow, road spray, and even temporary submersion. This level of ingress protection is critical for vehicles and equipment exposed to severe weather, frequent washing, or harsh industrial environments, preventing water intrusion that can lead to electrical failure or corrosion.
The housing material is constructed from high-grade aluminum, a material celebrated for its exceptional strength-to-weight ratio, superior thermal conductivity, and inherent resistance to corrosion. The aluminum chassis serves as an effective heat sink, dissipating thermal energy generated by the LEDs to maintain optimal operating temperatures, thereby extending the lifespan and ensuring consistent light output over time. Furthermore, the robust aluminum construction provides formidable protection against mechanical shock, vibration, and impacts, which are common stressors in mobile and heavy-duty applications. The exterior surfaces are typically treated with a durable finish, enhancing resistance to chemical exposure, UV degradation, and abrasion. This combination of material selection and design principles ensures sustained reliability and structural integrity throughout the product's operational life, significantly reducing maintenance requirements and total cost of ownership.
Advanced Electrical Architecture and Power Management
The electrical design of the Ultra Thin 3.5 Inch Red LED Strobe Light is optimized for wide compatibility and efficient power consumption. Operating across a broad voltage range of 12-24 Volts DC, this light is compatible with a vast array of vehicle electrical systems, from standard 12V automotive to 24V heavy-duty trucks and industrial machinery, eliminating the need for voltage converters and simplifying installation. The modest amp draw of 0.50 Amps at 12 Volts translates to a power consumption of approximately 6 Watts (using P=V*I), or 10.55 Watts as per specified wattage, ensuring minimal drain on the vehicle's electrical system and alternator, even when multiple units are deployed. This energy efficiency contributes to reduced fuel consumption and extended battery life, particularly critical in applications where vehicles may be idling for extended periods with warning lights active.

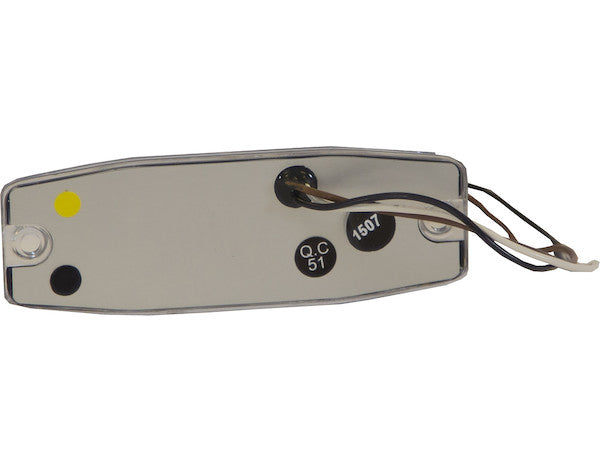

The unit features a hard-wired connection with a blunt-cut connector and a 9.5-inch lead length, comprising 4 wires. This configuration provides a secure and reliable electrical interface, superior to plug-and-play options in high-vibration or moisture-prone environments. The multi-wire design typically includes power, ground, and separate control wires for pattern selection and synchronization/alternation. This granular control wiring facilitates seamless integration with existing vehicle warning systems and simplifies the creation of complex warning light setups. The internal circuitry is designed with robust protections against transient voltages, reverse polarity, and overcurrent conditions, safeguarding the LEDs and control electronics from electrical spikes and misconnections, thereby enhancing overall system reliability and longevity.
Certifications and Regulatory Compliance
Compliance with industry-specific standards is paramount for warning devices, ensuring consistent performance and regulatory acceptance. The Ultra Thin 3.5 Inch Red LED Strobe Light is certified to SAE J595 Class 1, a rigorous standard established by the Society of Automotive Engineers (SAE) for warning lights. Class 1 certification denotes the highest level of light output and flash intensity required for primary warning devices, suitable for emergency vehicles, utility vehicles, and applications where maximum visibility is critical, even in bright daylight conditions. This certification guarantees that the light meets stringent photometric requirements, including candela output, flash rates, and light distribution patterns, across various observation angles.
Furthermore, the light is CA13 certified, indicating compliance with specific regulations, often pertaining to state or provincial requirements, particularly in North America. Such certifications are crucial for ensuring the product meets local legal mandates for vehicle warning lights, facilitating legal operation and preventing potential fines or safety compromises. Adherence to these standards underscores the product's commitment to safety and its suitability for professional deployment in critical signaling roles. These certifications provide end-users with the assurance that the product has undergone rigorous testing and meets the demanding performance and quality benchmarks expected of professional-grade warning equipment.
Flexible Installation and Mounting Solutions
The surface-mounted design of the Ultra Thin 3.5 Inch Red LED Strobe Light offers exceptional flexibility in installation. The unit is designed to be secured directly to a flat surface, leveraging its slim profile for minimal protrusion. Two primary mounting methods are provided to accommodate diverse application requirements and installer preferences. The first method involves traditional screw fastening, utilizing integrated mounting points for a permanent and highly secure mechanical attachment. This is ideal for applications where maximum security and resistance to aggressive environmental factors are paramount.
Alternatively, the light includes 3M™ self-adhesive tape, providing a robust, non-invasive mounting solution. This high-strength adhesive offers excellent bond integrity to a variety of prepared surfaces, simplifying installation and eliminating the need for drilling into vehicle body panels, which can be advantageous for maintaining vehicle integrity or in situations where drilling is prohibited. The adhesive tape is carefully selected for its weather resistance and long-term adhesion capabilities, ensuring that the light remains securely attached under various environmental stresses. For specialized mounting scenarios, optional 90° mounting brackets are available separately. These brackets offer enhanced versatility, enabling precise angle adjustments and alternative placement options, such as mounting on vertical surfaces or in recessed areas, further expanding the application possibilities for this highly adaptable warning light.
Applications and Operational Versatility
The Ultra Thin 3.5 Inch Red LED Strobe Light is an indispensable safety component across a broad spectrum of industries and applications. Its high-intensity red illumination, combined with a slim profile and robust construction, makes it ideal for emergency response vehicles (fire apparatus, ambulances, police cruisers), construction and utility fleets (road maintenance, municipal services, telecommunications), towing and recovery vehicles, agricultural machinery, and any application requiring enhanced situational awareness and warning signaling. The ability to customize flash patterns and synchronize multiple units allows for tailored warning configurations that effectively communicate vehicle presence and operational status to other road users and personnel in the vicinity, significantly enhancing worker safety and preventing accidents. Whether deployed as a primary warning light or as supplemental illumination to existing systems, its performance characteristics ensure maximum visibility and impact.
Commitment to Quality and Long-Term Value
Buyers Products stands behind the superior quality and enduring performance of the Ultra Thin 3.5 Inch Red LED Strobe Light with a comprehensive 5-year warranty. This extensive warranty period reflects the manufacturer's confidence in the product's engineering, material selection, and manufacturing processes. It provides purchasers with substantial peace of mind, ensuring protection against defects in materials and workmanship under normal operating conditions. This commitment to product longevity and customer satisfaction underscores the value proposition of this advanced LED strobe light, making it a reliable and cost-effective investment for enhancing operational safety and compliance over many years of service.
