Buyers Products Ultra Thin 3.5 Inch LED Strobe Light Series is designed with an extremely slim .26 in. profile. The lights are rated SAE J595 Class 1 and CA13 certified. They feature 12 flash patterns with synchronous and alternating functions. The surface mounted lights are available in several colors. They can be fastened with screws or the included 3M??? self-adhesive tape. Built to withstand the toughest conditions, the lights feature an IPX8 waterproof rating. 90?? mounting brackets are sold separately. Lights are backed with a 5 year warranty.
Specifications
| Alternating Function (Y/N) | Y |
|---|---|
| Amp draw at 12 Volts | 0.50 |
| Base / Mount Type | Surface |
| Certification | SAE J595 Class 1 |
| Class Level | 1 |
| Color | Blue |
| Connector | Blunt Cut |
| Grommet/Base Included | Y |
| Hard Wired or Plug | Hard Wired |
| Height | 1.180 |
| Housing Material | Aluminum |
| Lead Length | 9.5 |
| Lens Shape | Rectangular |
| Mount Type | Surface |
| Number of Flash Patterns | 16 |
| Number of Wires | 4 |
| Overall Width | 3.450 |
| Synchronous Function | Y |
| Type of Plug | Blunt Cut |
| Voltage | 12-24 |
| Wattage | 10.55 |
Product Overview: Advanced Blue LED Warning Illumination
The Ultra Thin 3.5 Inch Blue LED Strobe Light represents a pinnacle in compact, high-performance warning illumination technology, meticulously engineered for demanding professional applications. This device is not merely a light source; it is a critical safety component designed to maximize visibility and convey urgency in diverse operational environments. With an exceptionally slender profile of just 0.26 inches, a length of 3.45 inches, and a height of 1.18 inches, this blue LED strobe light integrates seamlessly into vehicle aesthetics while delivering uncompromising warning capabilities. Its strategic design minimizes aerodynamic drag and visual intrusion, making it ideal for discreet or space-constrained installations without sacrificing luminous efficacy. The vibrant blue output, globally recognized for specific warning and emergency signaling, is produced by high-efficiency LEDs housed within a durable, rectangular lens, ensuring broad light dispersion and attention-grabbing intensity. This product adheres to rigorous industry standards, including SAE J595 Class 1 and CA13 certifications, affirming its superior performance, reliability, and regulatory compliance for critical safety applications. Equipped with a versatile range of 16 distinct flash patterns, coupled with advanced synchronous and alternating functions, this strobe light allows for sophisticated multi-unit installations that enhance situational awareness for motorists and pedestrians alike. Constructed with an robust aluminum housing and boasting an IPX8 waterproof rating, the unit is built to endure the most challenging environmental conditions, from extreme weather to prolonged water exposure. The flexible mounting options, including screw-based attachment and a pre-applied 3M self-adhesive tape, alongside the availability of optional 90-degree mounting brackets, ensure effortless integration onto a myriad of vehicle surfaces. Powered by a wide 12-24V DC input, with an efficient current draw of 0.50 Amperes at 12 Volts, this blue LED strobe light is a testament to cutting-edge design, operational efficiency, and unwavering commitment to safety, backed by a comprehensive 5-year warranty.
Precision Engineering and Profile Optimization

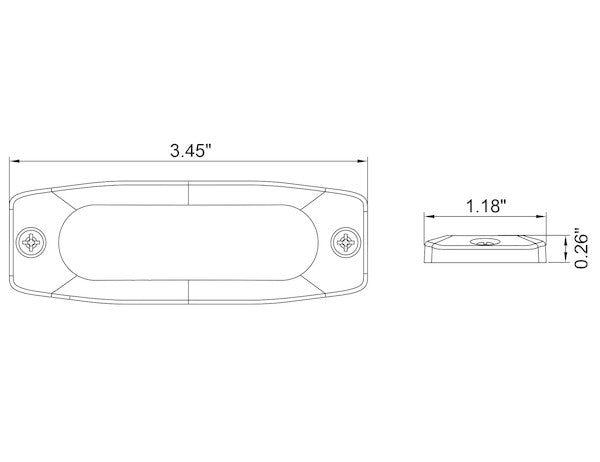

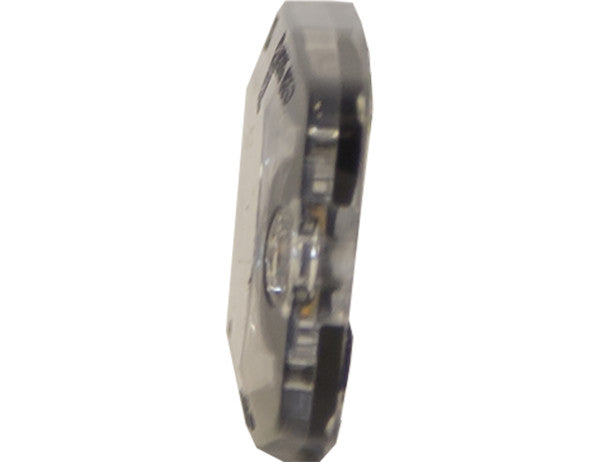

The defining characteristic of the Ultra Thin 3.5 Inch Blue LED Strobe Light is its remarkably slender 0.26-inch (approximately 6.6 mm) profile. This ultra-thin design is not merely an aesthetic choice but a deliberate engineering decision that offers several distinct advantages. Firstly, it allows for exceptionally discreet mounting, minimizing the device's footprint and reducing its susceptibility to impact in dynamic operational scenarios. For vehicles requiring a low-profile installation to maintain aerodynamic efficiency or aesthetic integrity, this slim design is paramount. The overall dimensions, measuring 3.450 inches in width and 1.180 inches in height, ensure a compact form factor that can be accommodated in tight spaces where bulkier warning lights would be impractical. The rectangular lens shape is optimized to complement the slim housing, providing a wide and uniform beam pattern. This geometric configuration is crucial for maximizing lateral visibility, ensuring that the intense blue light is observable from a broad range of angles, which is vital for communicating warnings effectively in multi-directional traffic or complex work zones. The precision in manufacturing tolerances, down to the millimeter, reflects a commitment to quality and performance, ensuring that each unit meets the stringent design specifications. The reduced protrusion from the mounting surface also minimizes the potential for snags or accidental damage, contributing to the light's overall longevity and reliability in demanding applications.
High-Performance LED Emitters and Optical System
At the core of this warning light's exceptional performance lies its advanced Light Emitting Diode (LED) technology. Unlike traditional incandescent or xenon strobe lights, LEDs offer superior energy efficiency, significantly extended operational lifespans, and instantaneous full brightness, eliminating warm-up times. The blue LED emitters specifically chosen for this product are selected for their optimal wavelength and intensity, designed to cut through various atmospheric conditions, including fog, rain, and bright daylight, ensuring maximum visibility. Blue light, in particular, possesses unique spectral properties that make it highly effective for warning signals in certain jurisdictions, often reserved for law enforcement, emergency services, and specific security applications due to its distinct psychological impact and high conspicuity. The internal optical system is meticulously engineered to complement these high-output LEDs. Precision-designed reflectors and diffusers work in concert to collect and project the emitted light into a concentrated, yet widely dispersed, beam pattern. This optical configuration ensures that the powerful blue flashes are distributed effectively across a wide viewing angle, preventing "hot spots" while maximizing overall luminous output. The result is a highly effective visual signal that commands attention and clearly indicates the presence of an emergency or hazardous situation, crucial for public and operational safety. The efficiency of the LED system also translates to reduced heat generation compared to older technologies, which contributes to the prolonged life of the electronic components and the overall durability of the unit.
Uncompromising Regulatory Compliance (SAE J595 Class 1 & CA13)
Adherence to established industry standards is a non-negotiable aspect of professional-grade warning equipment, and the Ultra Thin 3.5 Inch Blue LED Strobe Light excels in this regard by holding both SAE J595 Class 1 and CA13 certifications. The SAE J595 Class 1 designation is a paramount standard for vehicular warning lights, signifying that the device meets or exceeds rigorous performance criteria for light output intensity, flash rate, and environmental durability. Class 1 lights are designed for primary warning applications, indicating they are suitable for use where maximum visibility is required to warn motorists and pedestrians of a potential hazard or emergency, particularly in high-speed traffic or low-light conditions. This certification involves extensive testing for vibration resistance, moisture ingress, temperature extremes, and photometric output consistency over time. The CA13 certification specifically refers to Title 13 of the California Code of Regulations, which sets forth stringent standards for emergency vehicle lighting within California. Obtaining CA13 compliance means the strobe light meets the rigorous requirements for photometric performance, optical characteristics, and operational reliability mandated by one of the most demanding regulatory bodies in North America. This dual certification provides end-users with absolute assurance that the product is engineered to deliver reliable, high-performance warning illumination that complies with critical safety regulations, enabling legal and effective operation in a broad range of professional settings, particularly within jurisdictions that adopt these stringent standards. For operators of emergency, utility, or public safety vehicles, these certifications are indispensable for ensuring operational legality and maximum warning effectiveness.
Sophisticated Flash Pattern Management and Synchronization
The Ultra Thin 3.5 Inch Blue LED Strobe Light is equipped with an impressive array of 16 distinct flash patterns, offering unparalleled versatility to suit a multitude of operational scenarios and regional signaling requirements. These patterns range from rapid, attention-grabbing bursts to more sustained, highly visible flashes, each designed to convey urgency and presence effectively. Users can select from patterns such as single, double, triple, and quad flashes, as well as more complex sequences like "accelerating" or "random" patterns, providing customization to optimize visibility and impact. Beyond individual unit performance, a critical feature is the integrated synchronous and alternating functionality. This capability allows multiple strobe lights to be interconnected and operate in a coordinated manner, dramatically enhancing the overall visual impact of a warning system. In synchronous mode, all connected lights flash simultaneously, creating a powerful, unified visual signal that is easily perceived from a distance. Conversely, in alternating mode, lights can flash in a staggered sequence (e.g., left-right, front-back), which generates a dynamic, sweeping effect that is highly effective at drawing attention and indicating the direction of travel or a hazardous zone. This advanced synchronization allows for the creation of sophisticated warning arrays on vehicles, ensuring that the combined output of multiple lights is more effective than individual units operating independently. The ability to switch between these modes provides tactical flexibility, allowing operators to adapt their warning signature to specific traffic conditions, environmental factors, or mission requirements, thereby significantly improving safety for both personnel and the public. The intuitive control interface for pattern selection and synchronization ensures ease of use and rapid deployment.
Industrial-Grade Durability and Environmental Protection
Designed to thrive in the most challenging operational environments, the Ultra Thin 3.5 Inch Blue LED Strobe Light boasts an industrial-grade construction focused on maximum durability and environmental resilience. A cornerstone of its ruggedness is the IPX8 waterproof rating. This prestigious ingress protection standard signifies that the unit is not only dust-tight and protected against powerful water jets but is also capable of continuous immersion in water beyond 1 meter, with the exact depth and duration specified by the manufacturer. For practical applications, this translates to exceptional resistance against heavy rainfall, vehicle washdowns, river crossings, or even accidental submersion, ensuring uninterrupted operation in virtually any wet condition. The housing material is crafted from high-quality aluminum, a material chosen for its superior strength-to-weight ratio, excellent corrosion resistance, and effective thermal dissipation properties. The aluminum chassis protects the sensitive internal LED components and electronics from physical impacts, road debris, and corrosive elements like road salt, chemicals, and exhaust fumes. Furthermore, efficient heat management is crucial for the longevity and consistent performance of LEDs; the aluminum housing acts as a natural heat sink, drawing heat away from the diodes and preventing premature degradation. Beyond water and impact resistance, the strobe light is engineered to withstand extreme temperature fluctuations, from intense summer heat to freezing winter conditions, ensuring reliable performance across diverse climates. Its robust design also provides inherent vibration and shock resistance, critical for installation on heavy machinery, emergency vehicles, and off-road applications where constant movement and jarring are commonplace. This comprehensive approach to durability guarantees a warning light that performs reliably year after year, minimizing downtime and replacement costs in critical service applications.
Flexible and Secure Mounting Solutions
The versatility of the Ultra Thin 3.5 Inch Blue LED Strobe Light extends to its intelligent and adaptable mounting system, providing users with multiple secure options for installation on a diverse range of vehicles and equipment. The primary mounting methods include traditional screw-based attachment and a convenient, pre-applied 3M self-adhesive tape. Screw mounting offers the highest level of security and permanence, ensuring the light remains firmly affixed even under extreme vibration, impact, or high-speed conditions. The carefully positioned mounting holes on the unit facilitate quick and precise installation using standard fasteners, making it an ideal choice for permanent fleet integrations. Alternatively, the included 3M self-adhesive tape provides a powerful, industrial-strength bond that allows for rapid, non-invasive installation on smooth, clean surfaces. This method is particularly advantageous when drilling holes is undesirable or impractical, offering flexibility for temporary setups or installations on surfaces that cannot be permanently altered. The high-performance 3M adhesive is designed for demanding outdoor environments, ensuring reliable adhesion against weather, temperature changes, and vehicle movement. For enhanced directional control and specialized installation requirements, optional 90-degree mounting brackets are available separately. These brackets allow the light to be positioned at right angles to the mounting surface, facilitating precise aiming of the light output to optimize visibility in specific directions or to conform to unique vehicle contours. This flexibility ensures that the strobe light can be optimally integrated into virtually any vehicle application, from the side panels of a utility truck to the grille of an emergency vehicle, maximizing its effectiveness and ensuring proper compliance with visibility standards. The thoughtful inclusion of multiple mounting options underscores the product's adaptability and user-centric design.
Optimized Electrical Architecture and System Integration
The electrical design of the Ultra Thin 3.5 Inch Blue LED Strobe Light is meticulously optimized for broad compatibility, efficiency, and robust integration into diverse vehicle electrical systems. Operating across a wide voltage range of 12-24V DC, this warning light is universally compatible with most automotive, truck, and heavy equipment platforms, eliminating the need for specialized voltage converters or specific vehicle configurations. This dual-voltage capability makes it an ideal solution for mixed fleets or international operations. Despite its powerful light output, the unit exhibits an exceptionally low current draw of just 0.50 Amperes at 12 Volts. This minimal power consumption is a significant advantage, reducing the electrical load on the vehicle's battery and alternator. Lower amp draw translates directly to prolonged battery life, reduced strain on the charging system, and the ability to install multiple warning lights without overloading the vehicle's electrical infrastructure. The rated wattage of 10.55 Watts further underscores its energy efficiency. The light is designed for hard-wired integration, featuring a robust blunt cut connector with a 9.5-inch lead length, providing ample wire for routing and connection within the vehicle's wiring harness. The inclusion of four distinct wires (typically power, ground, pattern select, and synchronization wire) offers comprehensive control over the light's functions. The pattern select wire allows for easy cycling through the 16 flash patterns, while the synchronization wire enables seamless coordination with other compatible strobe lights, facilitating complex, multi-unit warning systems. This hard-wired, blunt-cut configuration ensures a durable, weather-resistant electrical connection, free from the vulnerabilities of plug-and-play connectors in harsh environments, making it a reliable choice for long-term, mission-critical applications where consistent performance is paramount.
Strategic Applications of Blue Warning Illumination
The application of blue warning illumination is highly strategic and often legally restricted, making the Ultra Thin 3.5 Inch Blue LED Strobe Light a specialized tool for specific professional sectors. In many jurisdictions, blue lights are exclusively reserved for law enforcement agencies, fire departments (especially volunteer fire-fighters in certain regions), and emergency medical services (EMS). The distinctive blue hue serves as an unmistakable signal, immediately conveying the presence of an emergency vehicle or personnel, and demanding immediate attention and yielding behavior from other road users. Beyond traditional emergency services, blue strobe lights may also be utilized by security patrols for critical infrastructure, certain utility company vehicles, or Department of Transportation (DOT) personnel in specific contexts where rapid identification and high visibility are paramount for public safety and operational efficiency. For law enforcement, these lights provide crucial visibility during traffic stops, accident scenes, or tactical operations, enhancing officer safety and controlling traffic flow. For fire and EMS, they ensure quick and safe navigation through congested areas, alerting the public to their urgent response. The high contrast and visibility of blue light are particularly effective during nighttime operations, dusk, dawn, and in adverse weather conditions, cutting through ambient light and environmental obscurities more effectively than some other colors. The discreet, ultra-thin profile of this particular blue strobe light allows for stealthy integration on unmarked vehicles or specialized equipment, providing critical warning capabilities when needed without a constant, overt presence. Understanding the legal limitations and specific operational needs associated with blue warning lights is essential for proper deployment and compliance, ensuring that this powerful illumination tool serves its intended purpose of enhancing safety and communication in critical situations.
Long-Term Reliability and Manufacturer Support
Investing in warning lights for professional applications demands assurances of long-term reliability and robust manufacturer support, both of which are central to the value proposition of the Ultra Thin 3.5 Inch Blue LED Strobe Light. The inherent characteristics of LED technology itself contribute significantly to the product's longevity. LEDs typically boast operational lifespans far exceeding traditional incandescent bulbs, often rated for tens of thousands of hours of continuous use. This translates directly to reduced maintenance requirements, fewer bulb replacements, and a lower total cost of ownership over the product's lifespan. The robust construction, including the aluminum housing and IPX8 waterproofing, further enhances this reliability by protecting the internal components from environmental degradation and physical damage, ensuring consistent performance even in the harshest conditions. Beyond the intrinsic durability of the product, Buyers Products stands behind this LED strobe light with a comprehensive 5-year warranty. This extensive warranty period serves as a powerful testament to the manufacturer's confidence in the quality, craftsmanship, and enduring performance of their product. Such a warranty provides users with significant peace of mind, knowing that their investment is protected against manufacturing defects and premature failure. In the unlikely event of an issue, the warranty coverage ensures that repairs or replacements are handled efficiently, minimizing downtime for essential vehicles and maintaining operational readiness. This commitment to product support underscores a dedication to customer satisfaction and the delivery of high-quality, reliable safety equipment that professionals can depend on when it matters most, contributing to safer working environments and more efficient operations.
Installation Best Practices and System Design Considerations
Proper installation and thoughtful system design are paramount to maximizing the effectiveness and longevity of the Ultra Thin 3.5 Inch Blue LED Strobe Light. When planning an installation, consider the vehicle's specific application and the required warning zones. For optimal 360-degree visibility, multiple units should be strategically placed around the vehicle – front, rear, and sides. The ultra-thin profile allows for versatile placement on grilles, bumpers, side mirrors, headache racks, or even interior dash/rear deck applications where light can project through glass. When utilizing multiple lights, leveraging the synchronous and alternating functions is crucial. For synchronized operation, ensure that the designated sync wires from all connected lights are correctly joined according to the manufacturer's instructions. This creates a powerful, unified flash pattern that is highly noticeable. For alternating patterns, specific wiring configurations or controller programming may be required to achieve desired left-right or front-back sequences, significantly enhancing directional warning. Before final mounting, meticulously clean the surface if using the 3M adhesive tape, ensuring it is free from dirt, grease, and moisture to guarantee optimal bond strength. For screw mounting, pilot holes should be drilled precisely to avoid damage to the vehicle and ensure a secure fit. Always route wiring away from heat sources, sharp edges, and moving parts, using appropriate conduits or protective sleeves to prevent chafing and electrical shorts. All electrical connections should be watertight and securely crimped or soldered, then sealed with heat shrink tubing or marine-grade electrical tape, especially given the IPX8 rating. Adhering to the 12-24V DC operating range is critical, and any auxiliary switching should be appropriately rated for the aggregate current draw of all connected lights. Periodically inspect mounts and wiring for wear or damage. By following these best practices, users can ensure their blue LED strobe light system performs reliably, safely, and to its full potential, contributing to enhanced operational safety and compliance.
Conclusion
The Ultra Thin 3.5 Inch Blue LED Strobe Light stands as a exemplary solution for demanding professional warning applications, seamlessly blending state-of-the-art LED technology with robust engineering and uncompromising regulatory compliance. Its distinct ultra-thin profile (0.26 inches) not only ensures discreet integration but also minimizes aerodynamic impact, making it ideal for a wide array of vehicles and equipment where space and aesthetics are critical. The high-performance blue LED emitters, combined with a precision optical system and rectangular lens, deliver a powerful, attention-grabbing light output that is highly effective across diverse environmental conditions. Certifications to SAE J595 Class 1 and CA13 standards underscore its superior performance, reliability, and legality for primary warning signals in the most stringent regulatory environments, particularly vital for emergency services and security personnel. With 16 dynamic flash patterns and advanced synchronous and alternating functions, this strobe light offers unparalleled versatility for creating highly effective and coordinated multi-unit warning systems. Its industrial-grade construction, featuring an aluminum housing and an IPX8 waterproof rating, guarantees exceptional durability and resistance to extreme weather, impacts, and prolonged water immersion, ensuring consistent operation in the harshest conditions. Flexible mounting options, including screw attachment and 3M self-adhesive tape, alongside optional 90-degree brackets, facilitate easy and secure installation on virtually any surface. Furthermore, its optimized electrical architecture, supporting 12-24V DC input with a low 0.50 Amp draw, ensures energy efficiency and broad compatibility without taxing vehicle electrical systems. Backed by a comprehensive 5-year warranty, this product represents a smart, long-term investment in safety and operational efficiency. The Ultra Thin 3.5 Inch Blue LED Strobe Light is more than just a warning device; it is a critical safety asset, meticulously designed to enhance visibility, mitigate risks, and provide reliable, compliant warning illumination for the professionals who depend on it every day.
