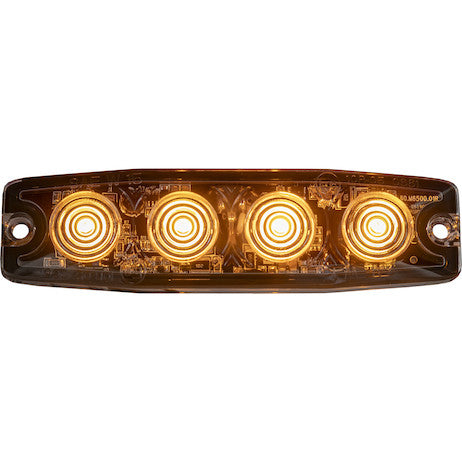

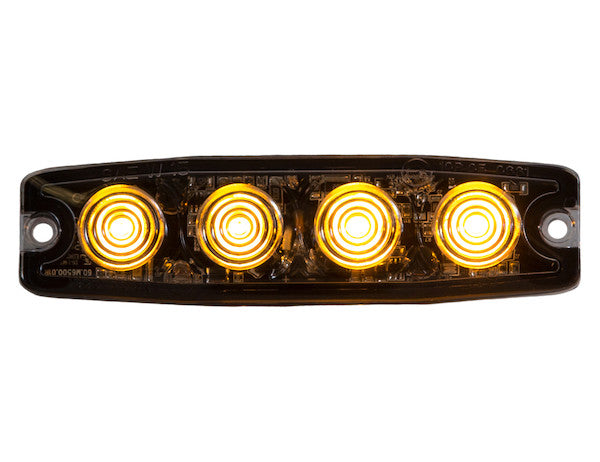

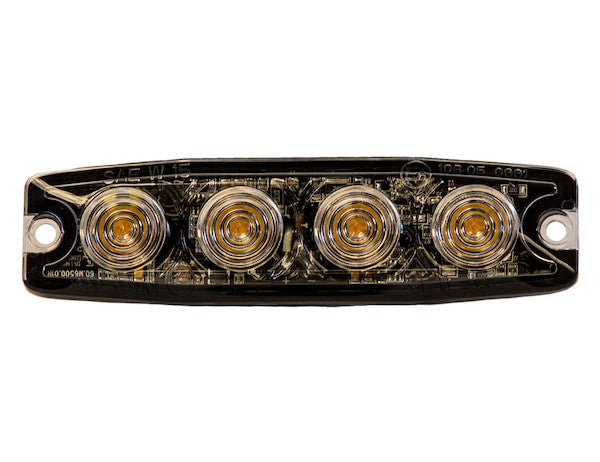

8892240 - Ultra Thin 4.5 Inch Amber LED Strobe Light

Buyers Products Ultra Thin 4.5 Inch LED Strobe Light Series is designed with a slim .26 in. profile to accommodate tight spaces. The 12-24V strobe lights feature 23 flash patterns with synchronous and alternating functions. The lights are available in various color combinations and are CA13 certified. Solid color variants are rated SAE J595 Class 1. Build to withstand the toughest conditions, the lights are rated IPX8 waterproof. 3M??? self-adhesive tape is included for simple fastening. An optional 90?? mounting bracket is sold separately for a more permanent installation. Lights are backed with a five year warranty.

Specifications

Advanced Engineering and Superior Visibility: The Ultra Thin 4.5 Inch Amber LED Strobe Light

In the demanding realm of vehicle safety and operational visibility, the Buyers Products Ultra Thin 4.5 Inch Amber LED Strobe Light stands as a paradigm of sophisticated engineering, robust construction, and uncompromised performance. Designed to integrate seamlessly into a diverse array of vehicular platforms, this warning light system offers an exceptional combination of a remarkably slim profile, advanced LED technology, and rigorous certification, ensuring optimal safety and compliance for professional applications. This comprehensive technical overview delves into the intricate design, functional capabilities, and operational advantages that position this strobe light as a premier choice for discerning operators.

Precision Design and Form Factor Optimization

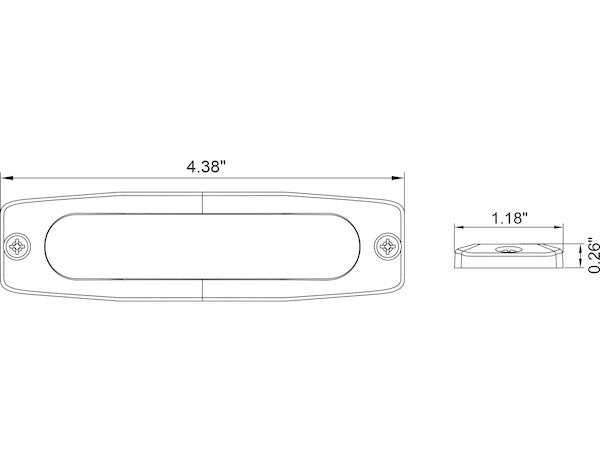

The defining characteristic of this LED strobe light is its ultra-thin profile, measuring a mere 0.26 inches (approximately 6.6 mm) in depth. This exceptionally slender form factor represents a significant advancement in warning light design, addressing critical considerations such as aerodynamic efficiency, reduced visual obstruction, and discreet integration into modern vehicle aesthetics. Traditional strobe lights, often bulkier, can present challenges in mounting locations with limited clearance or where minimal protrusion is desired. The 0.26-inch profile allows for flush or near-flush mounting on vehicle surfaces, minimizing drag coefficients and contributing to fuel efficiency, especially crucial for large commercial fleets. Furthermore, its compact dimensions – an overall width of 4.380 inches (111.25 mm) and a height of 1.180 inches (29.97 mm) – ensure it occupies minimal real estate while delivering expansive light output. This optimized form factor facilitates versatile installation across various vehicle types, from utility vans and construction equipment to municipal service vehicles and heavy-duty trucks, without compromising structural integrity or aesthetic appeal.

The housing of the strobe light is meticulously crafted from high-grade aluminum. Aluminum is selected for its superior thermal conductivity, which is paramount for effective heat dissipation in LED devices. LEDs, while energy-efficient, generate heat at the junction, and efficient thermal management is crucial for preserving lumen output, color stability, and extending the operational lifespan of the diodes. The aluminum housing acts as an integrated heatsink, preventing thermal runaway and ensuring consistent performance under prolonged use. Beyond its thermal properties, aluminum offers exceptional corrosion resistance, particularly important for devices exposed to harsh environmental elements such as road salts, industrial pollutants, and extreme weather conditions. Its inherent strength-to-weight ratio also contributes to the light's overall durability without adding excessive mass to the vehicle. The rectangular lens shape is specifically engineered to optimize light dispersion, ensuring a broad and uniform beam pattern that maximizes visibility from various angles, which is critical for effective warning signaling.

Advanced Optoelectronics and Signaling Capabilities

At the core of this warning light is an advanced array of amber Light Emitting Diodes. Amber is a globally recognized and regulated color for cautionary and warning applications, particularly in contexts such as roadside assistance, construction zones, utility work, and slow-moving or oversized vehicle escort. The specific wavelength of amber light, typically around 590-600 nm, is highly effective for daytime visibility due to its contrast against natural light and its ability to penetrate atmospheric obscurants like fog and dust more effectively than other colors. The LEDs are selected for their high luminous efficacy, providing intense light output necessary for Class 1 certification while maintaining remarkably low power consumption.

The strobe light offers an impressive repertoire of 23 distinct flash patterns. This extensive selection provides operators with the flexibility to choose patterns best suited for specific situational requirements, environmental conditions, or jurisdictional regulations. Different flash patterns serve varying purposes: high-frequency bursts for urgent warnings, slower, more deliberate flashes for prolonged visibility, and specific directional patterns for guiding traffic. The ability to customize the flash pattern enhances the light's utility and allows for clearer communication of intentions to other road users, significantly improving safety at work sites and during roadside operations.

Enhancing its operational versatility, the unit incorporates both synchronous and alternating functions. The synchronous function allows multiple strobe lights within a system to flash in unison, creating a powerful, unified warning signal that is highly attention-grabbing and unambiguous. This is particularly effective when multiple lights are deployed on a single vehicle or across a convoy, providing a cohesive visual impact. Conversely, the alternating function enables lights to flash sequentially or in opposing patterns. This creates a dynamic visual effect that can further enhance perceived urgency and directionality. For instance, two lights mounted front and rear could alternate, drawing attention to the vehicle's extremities. These coordinated flashing capabilities are crucial for constructing sophisticated warning systems that optimize visibility and communication within complex operational environments, contributing directly to accident prevention and incident management effectiveness.

Electrical Integration and Power Management

The Ultra Thin Amber LED Strobe Light is engineered for broad electrical compatibility, operating within a 12-24V DC range. This wide voltage input ensures seamless integration across a vast spectrum of vehicles, encompassing light-duty automobiles, medium-duty commercial trucks, heavy-duty vocational vehicles, and various industrial or agricultural equipment. The internal power management system incorporates robust voltage regulation, protecting the sensitive LED components from voltage spikes and fluctuations common in automotive electrical systems, thereby ensuring consistent light output and prolonging device longevity. The ability to operate across this voltage range eliminates the need for vehicle-specific variants, simplifying inventory management and installation procedures for fleet operators.

Despite its high output, the strobe light exhibits an exceptionally low current draw of just 0.65 Amperes at 12 Volts. This low power consumption is a significant advantage, minimizing the load on the vehicle's electrical system and reducing the risk of battery drain, especially when multiple warning lights are in operation or when the vehicle is idling for extended periods. The energy efficiency of LED technology, coupled with optimized circuit design, contributes to lower operating costs and a reduced environmental footprint compared to older, high-current discharge lamps.

Connectivity is facilitated via a hard-wired blunt cut connector system, featuring four distinct wires with a generous lead length of 9.5 inches (241.3 mm). The blunt cut design offers maximum flexibility for custom wiring applications, allowing installers to integrate the light directly into existing vehicle harness systems or to create bespoke wiring solutions tailored to specific needs. The four-wire configuration typically includes a positive power lead, a negative ground lead, a pattern select/synchronization wire, and an alternating function wire. This setup provides comprehensive control over the light's functions, enabling not only power activation but also seamless pattern selection and synchronization/alternation with other compatible units. Hard-wired connections inherently offer superior resistance to environmental ingress and vibration compared to plug-and-play connectors, ensuring robust electrical integrity in challenging operational environments.

Unwavering Durability and Environmental Resilience

The Buyers Products Ultra Thin Strobe Light is constructed to endure the most rigorous operational conditions, a commitment underscored by its impressive IPX8 waterproof rating. The Ingress Protection (IP) code, as defined by international standard IEC 60529, quantifies the degree of protection provided by mechanical casings and electrical enclosures against intrusion from solid objects and water. An IPX8 rating signifies the highest level of water immersion protection, indicating that the device is capable of continuous submersion in water beyond 1 meter depth under conditions specified by the manufacturer, without harmful effects. For this strobe light, this translates to complete immunity against high-pressure washing, prolonged exposure to heavy rain, snow, sleet, and even accidental temporary submersion, making it unequivocally suitable for marine, off-road, and severe weather applications. This exceptional water resistance is achieved through precision-engineered seals, durable gasket materials, and a tightly integrated housing structure, preventing moisture intrusion that could lead to electrical shorts, corrosion, or optical degradation.

Further bolstering its resilience, the product's construction is designed to withstand mechanical stress and environmental extremes. The robust aluminum housing, combined with a durable, impact-resistant lens, protects the internal LED array and driver electronics from physical shocks, vibrations, and abrasive elements commonly encountered in demanding work environments. The specified use of stainless steel screws (3.5mm diameter, 20mm length) for more permanent installations ensures excellent corrosion resistance and robust mechanical fastening, maintaining structural integrity over the product's extensive lifespan, even in the presence of moisture or corrosive substances.

Regulatory Compliance and Safety Assurance

Compliance with industry standards and certifications is not merely a legal requirement but a fundamental assurance of performance and safety. The Ultra Thin Amber LED Strobe Light carries multiple prestigious certifications, affirming its adherence to stringent quality and operational benchmarks.

• SAE J595 Class 1: For solid color variants, including this amber model, the light is rated SAE J595 Class 1. The Society of Automotive Engineers (SAE) J595 standard specifies the minimum photometric and environmental requirements for directional warning lamps. Class 1 is the highest intensity rating, denoting suitability for primary warning applications where visibility is critical, even in bright ambient light or high-speed traffic conditions. Achieving Class 1 certification requires the light to meet specific candela output levels at various angles, ensuring it is highly visible from a significant distance and across a wide field of view. This certification is crucial for vehicles operating in high-risk environments, ensuring that the warning signal is unmistakable and effective in preventing incidents.
• CA13 Certified: The light is also CA13 certified, referring to California Title 13, Section 27003 of the California Vehicle Code. This regulation pertains to the standards for emergency vehicle warning lights and public utility vehicles in California. CA13 certification ensures that the light meets specific intensity, flash rate, and color requirements mandated by one of the most rigorous state vehicle codes in the United States. This compliance is vital for vehicles operating in or through California, providing assurance that the warning light system adheres to the required safety parameters for legal operation.
• IPX8: As previously detailed, this certification signifies exceptional resistance to water ingress, providing reliability in all weather conditions and through rigorous cleaning processes.

These certifications collectively underscore the product's superior design, manufacturing quality, and unwavering commitment to safety, providing fleet managers and procurement professionals with confidence in its regulatory compliance and operational efficacy.

Installation Versatility and Application Spectrum

The Ultra Thin 4.5 Inch Amber LED Strobe Light is engineered for maximum installation flexibility. Its surface mount design is inherently adaptable to a wide range of vehicle body panels, grilles, bumpers, and other flat or contoured surfaces. For immediate, non-invasive deployment, the light comes equipped with industrial-grade 3M™ self-adhesive tape. This high-bond adhesive offers rapid application, excellent shear strength, and weather resistance, providing a secure initial attachment without the need for drilling. Proper surface preparation, including cleaning and degreasing, is essential to maximize the adhesive's performance and ensure long-term bonding.

For applications demanding enhanced physical security, extreme durability, or specific mounting angles, an optional 90° mounting bracket is available for separate purchase. This bracket allows for a more permanent and robust installation, utilizing the included stainless steel screws for mechanical fastening. The 90-degree orientation can be particularly useful for mounting on vertical surfaces, such as the side of a vehicle's bed, toolboxes, or roof racks, allowing the light to project its warning signal optimally. The choice between adhesive and mechanical mounting provides installers with the flexibility to select the most appropriate method based on the application's demands, vehicle surface, and desired level of permanence.

The broad applicability of this amber LED strobe light extends across numerous industries and operational scenarios. It is an indispensable safety component for utility vehicles involved in roadside maintenance, telecommunications, and power line work. Construction vehicles, including excavators, bulldozers, and loaders, benefit from its high visibility in dynamic job site environments. Tow trucks and recovery vehicles rely on effective warning lights to secure incident scenes and ensure the safety of personnel. Municipal fleets, ranging from sanitation trucks to public works vehicles, utilize these lights for visibility during service operations. Additionally, agricultural machinery, oversized load escorts, and various commercial vehicles requiring enhanced visibility for compliance or safety purposes are ideal candidates for this robust and high-performing warning light system.

Commitment to Quality and Long-Term Value

Buyers Products stands behind the superior quality and craftsmanship of the Ultra Thin 4.5 Inch Amber LED Strobe Light with a comprehensive five-year warranty. This extensive warranty period serves as a powerful testament to the manufacturer's confidence in the product's durability, reliability, and long-term performance. It provides purchasers with substantial peace of mind, knowing that their investment is protected against defects in materials and workmanship. This commitment to product support minimizes potential downtime and associated costs, reinforcing the light's value proposition as a dependable, long-term safety solution for any fleet or operational requirement.

In conclusion, the Ultra Thin 4.5 Inch Amber LED Strobe Light represents a pinnacle of innovation in vehicle warning light technology. Its sleek, ultra-thin profile, advanced amber LED optics, versatile flash patterns, broad voltage compatibility, and exceptional environmental resilience converge to deliver an unparalleled safety solution. Coupled with rigorous certifications like SAE J595 Class 1 and CA13, and backed by a five-year warranty, this strobe light is not merely a component; it is a critical safety asset designed to enhance visibility, mitigate risks, and ensure regulatory compliance across a multitude of demanding professional applications.
