Buyers Products Ultra Thin 4.5 Inch LED Strobe Light Series is designed with a slim .26 in. profile to accommodate tight spaces. The 12-24V strobe lights feature 23 flash patterns with synchronous and alternating functions. The lights are available in various color combinations and are CA13 certified. Solid color variants are rated SAE J595 Class 1. Build to withstand the toughest conditions, the lights are rated IPX8 waterproof. 3M??? self-adhesive tape is included for simple fastening. An optional 90?? mounting bracket is sold separately for a more permanent installation. Lights are backed with a five year warranty.
Specifications
| Alternating Function (Y/N) | Y |
|---|---|
| Amp draw at 12 Volts | 0.65 |
| Base / Mount Type | Surface |
| Certification | SAE J595 Class 1, IPX8, CA13 |
| Class Level | 1 |
| Color | Red |
| Connector | Blunt Cut |
| Grommet/Base Included | Y |
| Hard Wired or Plug | Hard Wired |
| Height | 1.180 |
| Housing Material | Aluminum |
| Lead Length | 9.5 |
| Lens Shape | Rectangular |
| Mount Type | Surface |
| Number of Flash Patterns | 23 |
| Number of Wires | 4 |
| Overall Width | 4.380 |
| Synchronous Function | Y |
| Type of Plug | Blunt Cut |
| Voltage | 12-24 |

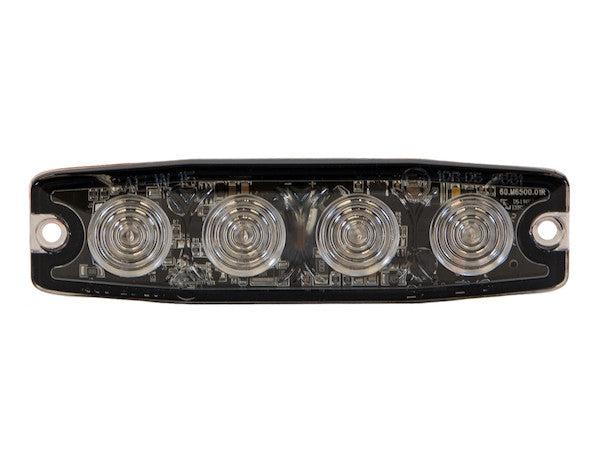

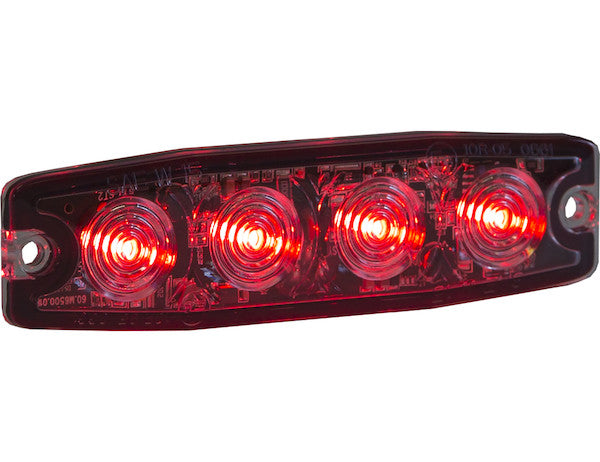

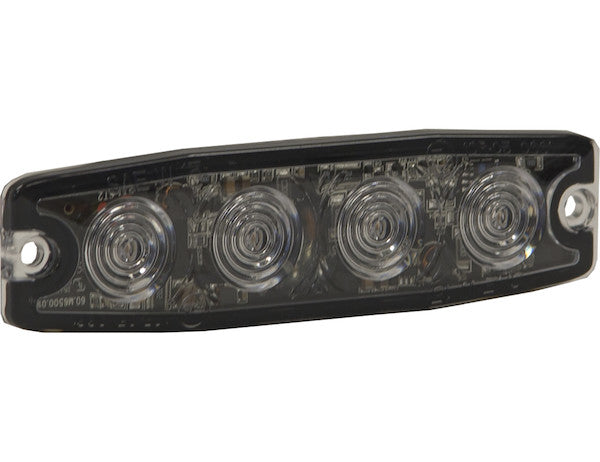

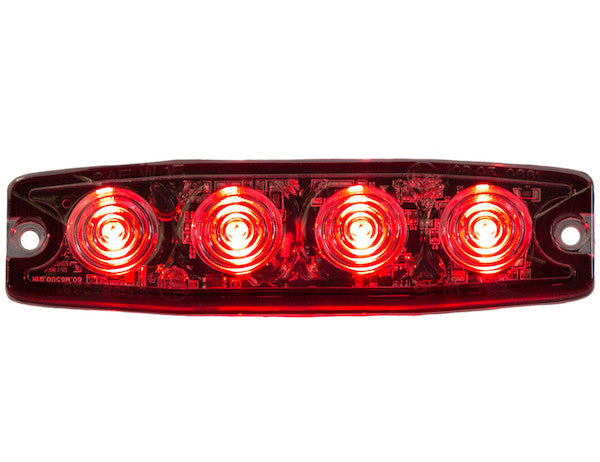

Advanced Technical Overview: Ultra Thin 4.5 Inch Red LED Strobe Light
The Buyers Products Ultra Thin 4.5 Inch Red LED Strobe Light represents a pinnacle of contemporary safety lighting technology, engineered for high-visibility warning applications across a diverse range of operational environments. This detailed technical exposition will delve into the intricate design, advanced functionality, robust construction, and comprehensive compliance standards that define this exceptional warning light. Designed with a meticulous attention to detail, its ultra-thin profile, robust construction, and sophisticated LED array position it as a superior choice for professionals demanding uncompromising performance and reliability.
Precision Engineering & Form Factor

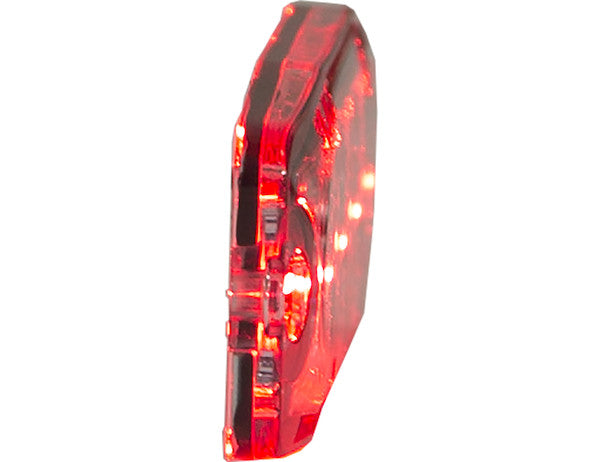

At the core of this product's innovation is its remarkably slim profile, measuring an astonishing 0.26 inches (approximately 6.6 mm) in depth. This 'ultra-thin' design is not merely an aesthetic consideration but a critical engineering achievement that significantly enhances its utility. The reduced depth allows for seamless integration into extremely confined spaces where traditional strobe lights would be impractical or impossible to mount. This attribute is particularly beneficial for modern vehicle designs with tight panel gaps, aerodynamic considerations, or limited surface area availability. With an overall width of 4.380 inches (111.25 mm) and a height of 1.180 inches (29.97 mm), the rectangular lens shape is optimized for maximum light dispersion while maintaining a compact footprint. This precision in form factor minimizes visual obstruction and offers a sleek, integrated look, crucial for maintaining vehicle aesthetics and reducing potential snag points.
The surface mount design, coupled with the included 3M™ self-adhesive tape, offers an exceptionally versatile and non-invasive initial installation solution. The industrial-grade 3M adhesive ensures a robust bond to a variety of substrates, providing secure fastening without the need for drilling in many applications. This feature is particularly valuable when preserving vehicle integrity or for temporary mounting requirements. For applications demanding a more permanent and mechanically secure installation, an optional 90° mounting bracket is available separately. This bracket facilitates precise angular positioning, enhances resistance to severe vibrations and impacts, and ensures long-term operational stability, making it ideal for heavy-duty commercial vehicles or off-road equipment.
Advanced LED Technology & Optical Performance
This strobe light exclusively utilizes Light Emitting Diode (LED) technology, renowned for its superior energy efficiency, extended operational lifespan, and instantaneous illumination. Unlike incandescent or xenon strobe tubes, LEDs offer a solid-state design, inherently resistant to shock and vibration, which is paramount for vehicle-mounted warning systems. The choice of a Red LED output is highly deliberate, aligning with specific regulatory requirements and psychological responses associated with emergency and warning signals. Red light is universally recognized as a signal for danger, stop, or critical warning, making this unit invaluable for applications such as emergency responder vehicles, traffic management, construction zones, and utility operations.
The internal optical system is meticulously engineered to maximize the photometric output and visibility of the red LEDs. While specific lumen or candela ratings are not detailed, the SAE J595 Class 1 certification attests to its high-intensity light output, ensuring effective visual warning even in bright daylight conditions and over significant distances. The multi-LED array, combined with precisely designed reflectors and lens elements, generates a focused and intense flash pattern that pierces through ambient light, fog, and precipitation, significantly enhancing situational awareness for other road users and personnel.
Electrical Architecture & Power Management
The operational voltage range of 12-24V DC provides exceptional electrical compatibility, allowing seamless integration into a wide array of vehicle electrical systems, from standard 12V automotive batteries to 24V heavy-duty trucks, construction equipment, and marine vessels. This broad compatibility simplifies inventory management and expands the potential application base for fleet operators and individual users alike. The unit exhibits an impressively low current draw of 0.65 amps at 12 volts, signifying its high energy efficiency. This minimal power consumption reduces the load on a vehicle's electrical system, mitigating the risk of battery drain, extending alternator life, and allowing for the installation of multiple units without overburdening the power supply. The "Hard Wired" configuration with a "Blunt Cut" connector type and four wires provides a direct and secure electrical connection, minimizing potential points of failure often associated with plug-and-play connectors in demanding environments. This approach allows for customized wiring routes and ensures a robust, weather-sealed electrical interface when properly installed.
Dynamic Flash Patterns & Synchronization Capabilities
A key functional differentiator of this strobe light is its extensive suite of 23 distinct flash patterns. This wide selection enables operators to choose the most appropriate warning signal for various scenarios, ranging from rapid, attention-grabbing bursts to more deliberate, rhythmic pulsations. The ability to customize flash patterns is critical for distinguishing between different types of warnings (e.g., active incident vs. stationary hazard) and for adapting to local regulations or agency protocols.
Further enhancing its versatility are the integrated synchronous and alternating functions. When multiple strobe lights are deployed on a single vehicle or across a fleet, these functions enable them to operate in a coordinated manner:
- Synchronous Function: All connected lights flash simultaneously, creating a powerful, unified visual impact that effectively commands attention. This is often preferred for broad visibility and a clear, unmistakable warning.
- Alternating Function: Connected lights flash in an alternating sequence (e.g., left-right, front-rear), producing a dynamic, sweeping effect that greatly enhances perception of motion and direction. This "wig-wag" pattern is particularly effective for drawing attention to the vehicle's perimeter or for traffic direction.
The interplay of these functions, combined with the 23 selectable patterns, offers an unparalleled level of visual signaling control, contributing significantly to overall operational safety and visibility.
Uncompromising Durability & Environmental Resilience
The Buyers Products Ultra Thin Strobe Light is engineered for extreme resilience, designed to operate flawlessly in the most challenging environmental conditions. Its primary certification for environmental resistance is an IPX8 rating. The Ingress Protection (IP) rating system, defined by IEC standard 60529, quantifies the degree of protection provided by mechanical casings and electrical enclosures against intrusion from foreign bodies and moisture. An IPX8 rating signifies that the device is protected against the effects of continuous immersion in water under conditions specified by the manufacturer, typically meaning submersion beyond 1 meter for extended periods. This level of waterproofing makes the light suitable for:
- Marine applications where exposure to spray, washdowns, and even accidental submersion is possible.
- Heavy-duty vehicle applications subjected to continuous rain, snow, sleet, and high-pressure washing.
- Construction and agricultural environments where dust, mud, and water are pervasive.
The housing material is constructed from robust aluminum, a material chosen for its optimal balance of strength, lightweight properties, and superior thermal conductivity. Aluminum effectively dissipates heat generated by the LEDs, which is crucial for maintaining optimal operating temperatures and extending the lifespan of the electronic components. Furthermore, aluminum exhibits excellent corrosion resistance, especially when anodized or powder-coated, ensuring the light maintains its structural integrity and aesthetic appeal even when exposed to road salts, chemicals, and harsh atmospheric elements.
The inclusion of a grommet/base further enhances the sealing capabilities and provides an additional layer of protection against vibration, ensuring a snug fit and preventing moisture ingress at the mounting interface. This comprehensive approach to material selection and sealing technology guarantees reliable performance across a broad operational temperature range and under severe mechanical stress.
Industry Certifications & Regulatory Compliance
Compliance with stringent industry standards is a testament to the quality and performance of this LED strobe light. It boasts two critical certifications:
SAE J595 Class 1
The Society of Automotive Engineers (SAE) J595 standard defines performance requirements for electric emergency warning lights. "Class 1" is the highest intensity rating under this standard, indicating that the light provides superior visibility and is suitable for use as a primary warning device under all ambient light conditions, including full daylight. This certification ensures that the red strobe light meets rigorous criteria for:
- Chromaticity: Ensuring the emitted light falls within the specified color boundaries for red.
- Flash Energy: The total light output per flash, critical for attention-grabbing.
- Flash Rate: Consistency and range of flash frequencies.
- Intensity: The peak light intensity in candelas, guaranteeing visibility from various angles.
- Environmental Durability: Resistance to vibration, moisture, dust, and temperature extremes.
SAE J595 Class 1 compliance is essential for public safety vehicles, tow trucks, utility vehicles, and any application where the highest level of warning visibility is legally mandated or operationally critical.
CA13 Certified
California Title 13, Section 27000 of the California Vehicle Code, outlines specific standards for emergency vehicle warning lights in California. While often associated with the specific flash patterns required for police and fire vehicles, "CA13 certified" broadly indicates that the lighting product meets the stringent photometric, mechanical, and electrical requirements established by the California Highway Patrol (CHP) for emergency and warning lights. This certification is widely recognized and respected beyond California's borders, often serving as a de facto benchmark for high-quality, legally compliant warning lights across North America. Products meeting CA13 standards are proven to deliver consistent, reliable performance under the most demanding conditions, ensuring they are effective in their critical role of enhancing safety.
Installation Considerations
The provision of a 9.5-inch lead length offers adequate flexibility for connecting the light to the vehicle's electrical system, allowing for routing through panels or conduits to maintain a tidy and protected wiring harness. The "Blunt Cut" connector necessitates proper splicing and sealing techniques to ensure a waterproof and durable electrical connection. Utilizing appropriate heat-shrink tubing and marine-grade connectors is highly recommended to preserve the integrity of the IPX8 rating at the wiring interface.
Conclusion
The Ultra Thin 4.5 Inch Red LED Strobe Light is a sophisticated, high-performance warning device designed for professionals who cannot compromise on safety and reliability. Its ultra-thin profile enables unprecedented installation flexibility, while its robust aluminum housing and IPX8 waterproofing ensure exceptional durability in the harshest environments. Backed by advanced LED technology, 23 dynamic flash patterns with synchronous and alternating functions, and critical SAE J595 Class 1 and CA13 certifications, this strobe light delivers unparalleled visibility and compliance. The minimal 0.65 amp draw at 12 volts and a broad 12-24V operating range make it an energy-efficient and versatile solution for a wide spectrum of vehicles and applications. Further reinforced by a comprehensive five-year warranty, this product stands as a testament to superior engineering, providing a reliable and effective visual warning system that significantly enhances operational safety and efficiency across diverse industrial, commercial, and emergency service sectors.
