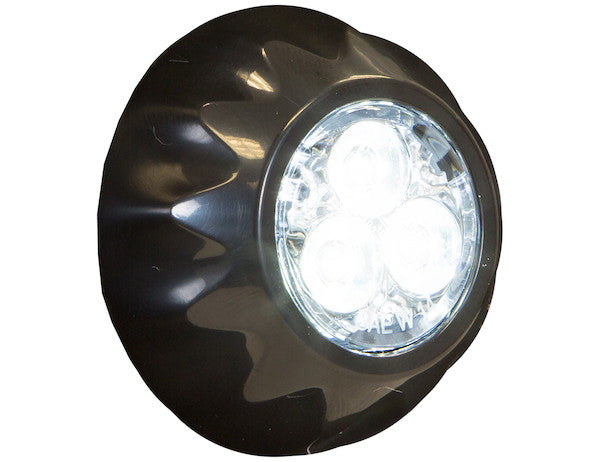

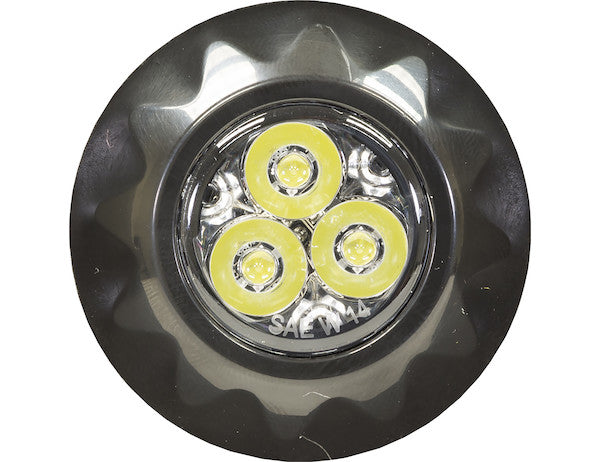

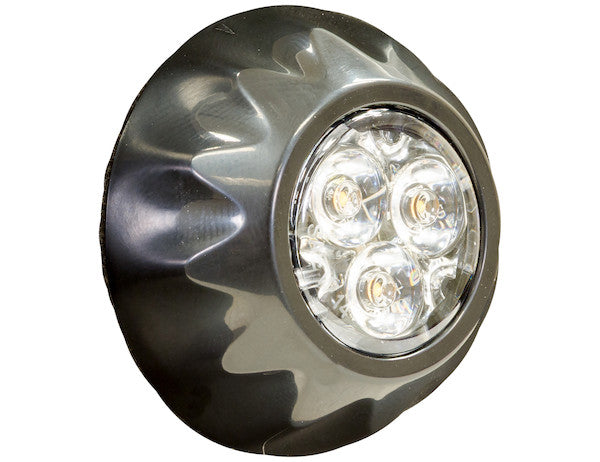

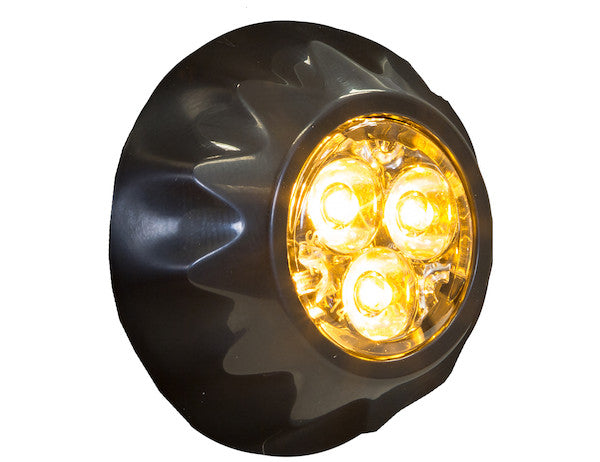

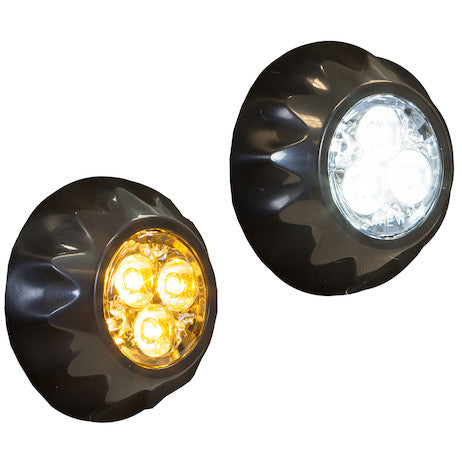

Surface/Recess Mounted LED Strobe Lights from Buyers Products feature three high-intensity LEDs per strobe head. The 1 in. round strobe lights feature 12 adjustable flash patterns and include a black bezel. Each LED strobe light is SAE J595 Class 1 rated for brightness and CA13 certified. The lights are available in clear or amber and are designed to be surface or recess mounted. They can also be installed inside a vehicle's headlights or tail lights. The lights are backed with a 5 year warranty. A chrome bezel and 90?? black mounting bracket are sold separately.
Specifications
| Alternating Function (Y/N) | Y |
|---|---|
| Amp draw at 12 Volts | 0.47 |
| Base / Mount Type | Surface |
| Certification | SAE J595 Class 1 |
| Class Level | 1 |
| Color | Clear |
| Connector | Blunt Cut |
| Grommet/Base Included | Y |
| Hard Wired or Plug | Hard Wired |
| Height | 1.570 |
| Housing Material | Aluminum |
| Lead Length | 9.5 |
| Lens Shape | Rectangular |
| Mount Type | Surface |
| Number of Flash Patterns | 16 |
| Number of Wires | 4 |
| Overall Width | 1.570 |
| Synchronous Function | Y |
| Type of Plug | Blunt Cut |
| Voltage | 12-24 |
Advanced Illumination: The Clear Surface/Recess Mount Round LED Strobe Light
The Clear Surface/Recess Mount Round LED Strobe Light from Buyers Products represents a pinnacle in advanced warning illumination technology, meticulously engineered to deliver uncompromising visibility and reliability in a diverse range of operational environments. Designed for professional applications, this compact yet powerful lighting solution integrates state-of-the-art LED technology with robust construction, ensuring compliance with stringent safety standards while providing exceptional performance.
Precision Engineering for Superior Visibility
At the core of this innovative strobe light is a sophisticated optical system featuring three high-intensity Light Emitting Diodes (LEDs) per strobe head. These advanced LEDs are selected for their superior luminous efficacy, long operational lifespan, and resistance to shock and vibration, far exceeding the durability of traditional incandescent or xenon strobe lamps. The "Clear" color designation signifies maximum light output and clarity, ensuring the emitted light penetrates adverse weather conditions, such as fog, rain, or snow, with minimal dispersion or absorption. The strategic placement and lensing of these LEDs are optimized to produce a highly concentrated and impactful flash, critical for capturing attention and enhancing safety in demanding situations. With a power draw of only 0.47 Amps at 12 Volts, these lights offer remarkable energy efficiency, minimizing strain on a vehicle's electrical system while delivering peak brightness.
Dynamic Signaling: Advanced Flash Patterns and Synchronization
A crucial feature of this LED strobe light is its versatility in signaling, offering up to 16 adjustable flash patterns. This extensive array of patterns allows operators to select the most effective visual warning sequence for specific scenarios, complying with various regional regulations or operational preferences. From rapid, attention-grabbing bursts to more sustained, warning flashes, the selection capabilities significantly enhance situational awareness. Furthermore, the inclusion of both "Alternating Function (Y)" and "Synchronous Function (Y)" capabilities is pivotal for multi-light installations. Synchronous functionality allows multiple strobe lights to flash in unison, creating a unified and highly visible warning signature. Conversely, alternating functionality enables lights to flash sequentially, often used for directional signaling or to create a dynamic visual sweep, which can be particularly effective in guiding traffic or indicating a hazard zone. This advanced control over flash patterns and synchronization ensures that emergency responders, utility personnel, and construction workers can establish a clear and consistent warning presence, reducing the risk of accidents.
Robust Construction for Unyielding Durability
The operational demands placed upon warning lights in commercial and emergency applications necessitate an uncompromising approach to construction. This LED strobe light is built with an aluminum housing, a material chosen for its exceptional strength-to-weight ratio, excellent thermal dissipation properties, and inherent corrosion resistance. This robust housing protects the sensitive internal electronic components from physical impacts, road debris, and harsh environmental elements. Designed to withstand extreme temperatures, vibrations, and moisture ingress, the unit provides reliable performance in all weather conditions, from intense heat to freezing cold. While a specific IP (Ingress Protection) rating is not explicitly detailed, the nature of its intended applications and materials strongly implies a high degree of resistance to dust and water, vital for exterior mounting. The commitment to durability is further underscored by the inclusion of a grommet/base, ensuring a secure and sealed installation against the mounting surface, mitigating potential points of vulnerability to environmental factors.
Regulatory Compliance: SAE J595 Class 1 and CA13 Certification
Adherence to industry-recognized safety and performance standards is paramount for warning lights. This Clear LED Strobe Light proudly bears the SAE J595 Class 1 certification, signifying its compliance with the Society of Automotive Engineers (SAE) J595 standard for Directional Flashing Optical Warning Devices. Class 1 certification denotes the highest intensity level, meaning the light is approved for use on vehicles that require maximum visibility, such as emergency vehicles, tow trucks, and construction equipment operating under challenging conditions, including bright daylight. This classification ensures the strobe light emits a sufficient level of candela to be noticed at significant distances, thereby providing ample warning time to other motorists and pedestrians. Beyond SAE J595, the product is also CA13 certified. CA13 refers to California Title 13, a stringent set of regulations in California governing the performance and mounting requirements for warning lights on authorized emergency vehicles, utility vehicles, and other specialized apparatus. While specific requirements may vary by color, for clear warning lights, CA13 often emphasizes light intensity, flash rates, and light output consistency over time, ensuring that the device meets rigorous operational parameters critical for public safety. These dual certifications underscore the product's superior engineering and its suitability for the most demanding regulatory environments across North America.
Versatile Mounting and Integrated Design
Flexibility in installation is a key attribute of this strobe light, offering both surface and recess mounting options. The 1-inch round form factor (with an overall width and height of 1.570 inches, likely accounting for the bezel) is optimally sized for discreet integration. Surface mounting provides a straightforward installation on any flat surface of a vehicle, utilizing the included black bezel for a clean, finished look. The black bezel seamlessly blends with most vehicle aesthetics, ensuring a professional appearance. For applications demanding an even more integrated and streamlined profile, recess mounting allows the light to be flush-mounted into a panel or bodywork, minimizing protrusion and enhancing aerodynamics while providing vandal resistance. An innovative aspect of its design is the capability for installation inside a vehicle's existing headlights or tail lights. This advanced integration technique provides a stealthy warning solution, making the light virtually invisible when not in operation, yet highly effective when activated. The 9.5-inch lead length provides sufficient wiring for versatile placement and connection to a vehicle’s electrical system, further simplifying installation. An optional chrome bezel and a 90-degree black mounting bracket are available separately, allowing for further customization and installation flexibility to meet specific aesthetic and functional requirements.
Electrical System Integration: Power and Connectivity
Designed for universal compatibility across a broad range of vehicles, this LED strobe light operates efficiently within a voltage range of 12-24 Volts DC. This wide voltage compatibility makes it suitable for both standard 12V automotive systems and heavier-duty 24V applications, eliminating the need for separate models or voltage converters. The minimal current draw of 0.47 Amps at 12 Volts is a testament to the high efficiency of its LED array, ensuring that multiple units can be installed without significantly impacting the vehicle's electrical load. Connectivity is achieved via a hard-wired system with a blunt cut connector, consisting of four wires. This robust connection method provides a highly reliable electrical interface, superior to plug-and-play options in terms of durability and resistance to environmental factors. The four-wire configuration typically includes positive, negative, synchronization, and pattern control wires, enabling comprehensive control over individual units and coordinated multi-light systems. This hard-wired approach ensures a secure and lasting connection, reducing the likelihood of disconnections or signal interruptions under demanding operating conditions.

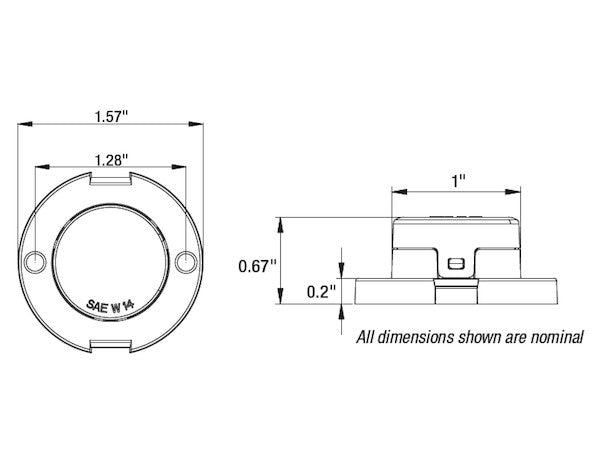

Dimensions and Form Factor: Precision in Design
The physical dimensions of the Clear Surface/Recess Mount Round LED Strobe Light are carefully considered to offer a balance between compact integration and effective light dispersion. With a primary descriptor of a "1 in. round strobe light" and an overall width and height of 1.570 inches, this unit presents a low-profile yet impactful design. While the specifications table indicates a "Rectangular" lens shape, this typically refers to the internal optical element or array structure, which is housed within the overall round external form factor and bezel. This internal rectangular lens optimization is crucial for directing the light from the three LEDs efficiently, ensuring a wide viewing angle and maximum intensity. The compact size of 1.570 inches in both width and height facilitates discreet placement in tight spaces, allowing for an aesthetic integration that complements vehicle design without creating excessive visual clutter, making it an ideal choice for both covert and overt applications where performance and appearance are equally important.
Applications and Operational Excellence
The Clear Surface/Recess Mount Round LED Strobe Light is an indispensable safety component across a multitude of industries and vehicle types. Its Class 1 certification makes it ideal for emergency vehicles, including police cars, ambulances, and fire apparatus, where maximum visibility is critical for public and responder safety. In the utility sector, these lights enhance the safety profile of service vehicles, ensuring road crews are clearly visible during roadside operations, day or night. Construction vehicles, municipal fleets, and even commercial transport can significantly benefit from the added layer of warning provided by these powerful strobes, especially in areas with high traffic density or poor visibility. The ability to install these lights inside headlights or taillights further expands their application to unmarked or specialized vehicles requiring discreet warning capabilities. The consistent, high-intensity output across all 16 flash patterns, coupled with synchronous and alternating functionality, enables operators to create comprehensive and effective warning zones, mitigating risks and improving operational efficiency.
Assurance of Quality: The 5-Year Warranty
Buyers Products stands firmly behind the quality and durability of the Clear Surface/Recess Mount Round LED Strobe Light, offering an industry-leading 5-year warranty. This extensive warranty period serves as a testament to the rigorous testing, superior materials, and precision manufacturing processes employed in the production of each unit. It provides customers with peace of mind, assuring them of a reliable, long-lasting product that is engineered to perform consistently in the most demanding conditions. This commitment to product excellence reinforces the strobe light's position as a premium choice for professional warning illumination needs.
