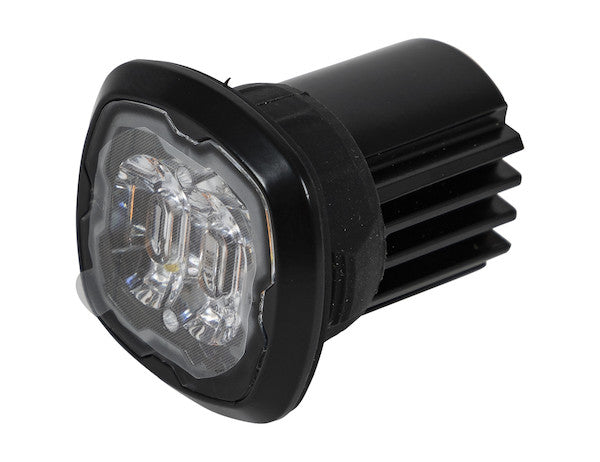

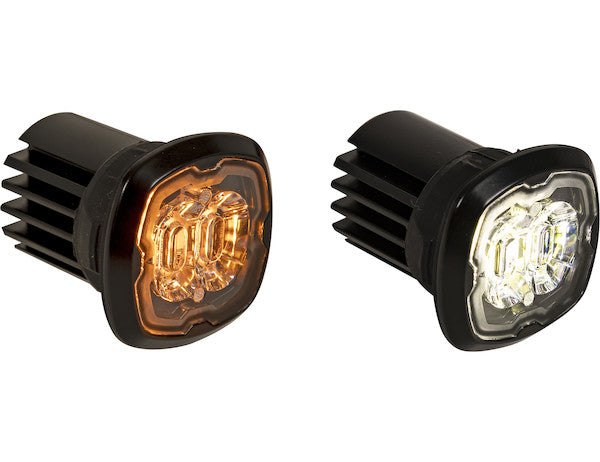

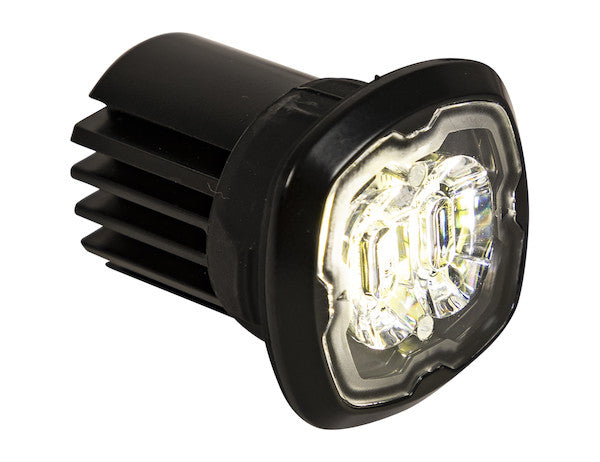

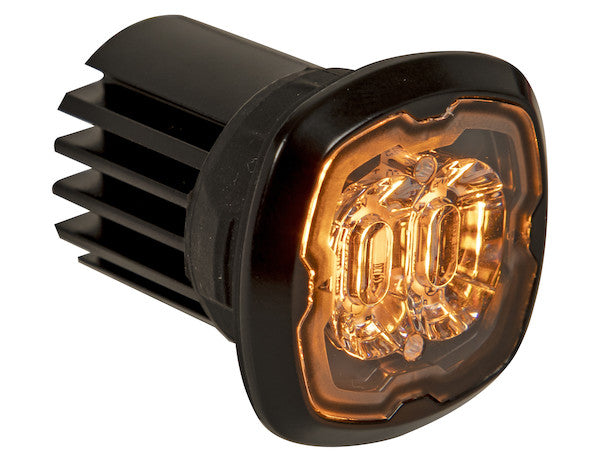

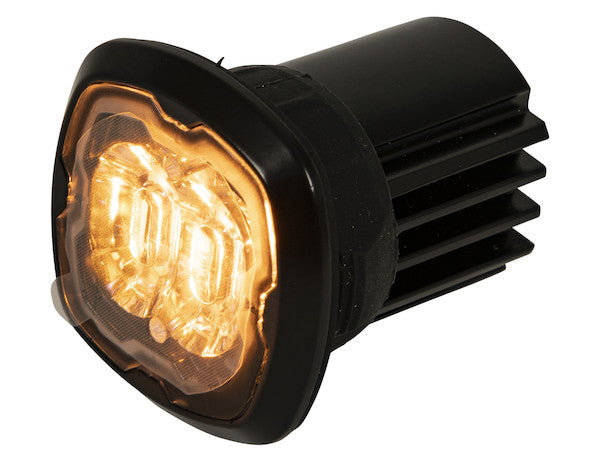

Flush/Surface Mounted LED Strobe Lights from Buyers Products feature six high-intensity LEDs per strobe head. The 1.5 in. square strobe lights feature 17 adjustable flash patterns. Each LED strobe light is SAE J595 Class 1 rated for brightness and CA13 certified. The lights are available in clear or amber and are designed to be flush or surface mounted. The lights are backed with a 5 year warranty. A 90?? mounting bracket is sold separately.
Specifications
| Alternating Function (Y/N) | Y |
|---|---|
| Amp draw at 12 Volts | 1.62 |
| Base / Mount Type | Flush/Surface |
| California Title 13 | True |
| Certification | SAE J595 Class 1 |
| Class Level | 1 |
| Color | Amber |
| Hard Wired or Plug | Hard Wired |
| Height | 1.54 |
| Housing Material | Aluminum |
| IP Rating | X7 |
| Lead Length | 9.5 |
| Lens Shape | Square |
| Mount Type | Flush/Surface |
| Number of Flash Patterns | 17 |
| Number of Wires | 4 |
| Overall Width | 1.44 |
| SAE Classification | J595 Class 1 |
| Synchronous Function | Y |
| Type of Plug | Blunt Cut |
| Voltage | 12-24 |
Advanced Technical Overview: 1.5 in. Flush/Surface Mount Amber LED Strobe Light
The 1.5 inch Flush/Surface Mount Amber LED Strobe Light from Buyers Products represents a cutting-edge solution for vehicular visibility and warning applications. Engineered for demanding professional environments, this compact yet powerful warning light integrates advanced LED technology with robust construction and versatile functionality. Designed to meet stringent industry standards, it provides superior visibility, operational reliability, and ease of integration across a diverse range of commercial and municipal vehicles.
Precision Illumination and Optical Design

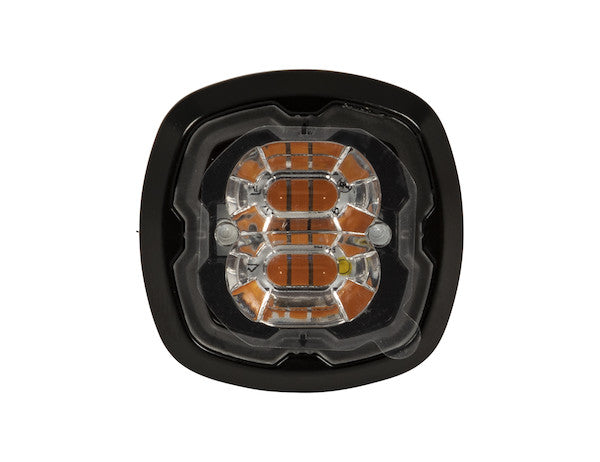

At the core of this strobe light's performance are its six high-intensity Light Emitting Diodes (LEDs) per strobe head. These LEDs are strategically arranged and coupled with an optimized optical lens system to maximize light output and dispersion. Unlike traditional incandescent lamps, LEDs offer distinct advantages critical for warning applications: significantly faster rise times, resulting in instantaneous illumination; extended operational lifespans, drastically reducing maintenance cycles; and superior energy efficiency. The amber color output is specifically chosen for its recognized efficacy in drawing attention and its widespread acceptance for non-emergency, utility, construction, and roadside assistance applications, conforming to various regional regulations and safety guidelines.

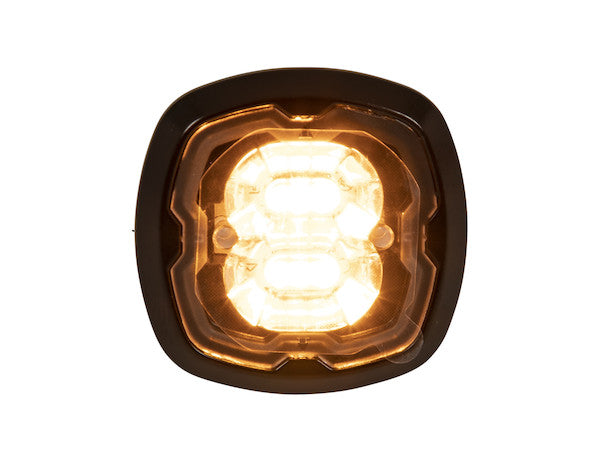

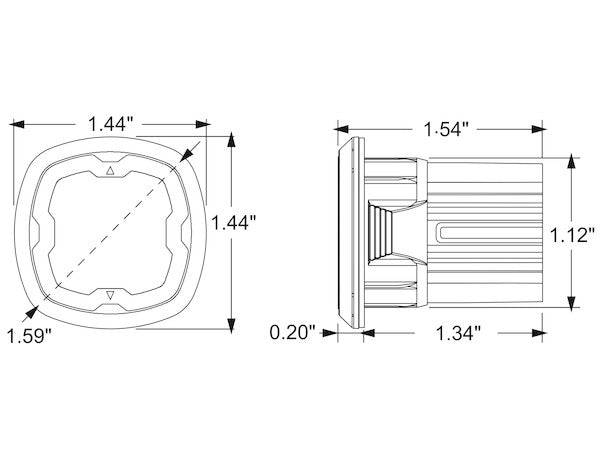

The compact 1.5-inch square form factor of the lens, combined with its overall dimensions (1.54 inches in height and 1.44 inches in width), allows for discreet yet effective placement on vehicles. This low-profile design minimizes aerodynamic drag and aesthetic intrusion, while still projecting a powerful warning signal. The use of high-intensity LEDs ensures that despite its small size, the light delivers a commanding presence, critical for maintaining safety in hazardous work zones or during critical operations.
Unparalleled Visibility and Certification: SAE J595 Class 1 and California Title 13
A primary determinant of a warning light's effectiveness is its photometric performance, which this product excels in, as evidenced by its SAE J595 Class 1 certification. The Society of Automotive Engineers (SAE) J595 standard specifies the minimum requirements for directional flashing optical warning devices for authorized emergency, maintenance, and service vehicles. Being certified as Class 1 signifies the highest level of light intensity and effective luminous output defined by this standard. This classification ensures that the strobe light is capable of providing optimal visibility even under adverse environmental conditions, such as bright daylight, heavy rain, fog, or snow, and over significant distances, thereby maximizing the reaction time for other road users.
The implications of a Class 1 rating are profound for professional operators. It means the light has undergone rigorous testing to confirm its candela output, flash rate, and flash duration meet or exceed the most demanding specifications for warning lights. This level of brightness is essential for applications where the safety of personnel and the public is paramount, such as on active roadways, construction sites, and utility work zones.
Furthermore, the strobe light is CA13 certified, indicating compliance with California Title 13 regulations. California Title 13 is one of the most stringent and comprehensive sets of standards for emergency vehicle warning lights in North America. This certification ensures that the light adheres to specific requirements regarding light intensity, flash patterns, beam angle, and electromagnetic compatibility (EMC) to prevent interference with other vehicle electronics. For entities operating within California or those seeking a universal standard of excellence, CA13 compliance guarantees that the light meets an exceptionally high benchmark for performance and safety, extending beyond mere brightness to encompass electrical and operational integrity.
Dynamic Operational Versatility: 17 Flash Patterns and Synchronization Capabilities
Adaptability to diverse operational scenarios is a hallmark of this LED strobe light, facilitated by its 17 adjustable flash patterns. This extensive array of patterns empowers operators to select the most appropriate warning signal for specific situations. Different patterns can convey varying levels of urgency or provide distinct visual cues, which is crucial for maximizing attention and minimizing confusion. For example, a rapid, highly intermittent flash pattern might be ideal for high-speed approaches or immediate hazard warnings, while a slower, more deliberate pattern could be suitable for stationary work zones where sustained visibility is required without excessive visual distraction.
The ability to select from multiple patterns also aids in complying with varying local regulations, which may dictate specific flash rates or sequences for certain vehicle types or operational contexts. Changing patterns is typically achieved via a dedicated control wire, allowing for easy integration into existing vehicle wiring harnesses and control systems.
Crucially, this strobe light incorporates both "Alternating Function" and "Synchronous Function," making it an ideal component for multi-light warning systems. Synchronous functionality allows multiple strobe lights installed on a single vehicle or an entire fleet to flash in unison, creating a powerful, cohesive, and easily recognizable warning signature. This synchronized flash significantly enhances the overall visual impact, making the vehicle more conspicuous from all angles and distances. The Alternating Function further expands this capability, enabling lights to flash in an alternating sequence (e.g., left lights flash while right lights are off, then vice versa), which adds a dynamic element to the warning, often perceived as more attention-grabbing than simultaneous flashing, particularly in high-traffic environments. These synchronization features are essential for creating professional, legally compliant, and highly effective warning light configurations on vehicles ranging from tow trucks and snow plows to utility service vans and agricultural equipment.
Engineered for Extreme Durability: Robust Construction and Environmental Protection
The operational longevity and reliability of warning lights in demanding outdoor and vehicular environments are directly tied to their construction materials and ingress protection. This strobe light features a housing meticulously crafted from high-grade aluminum. Aluminum is chosen for its superior properties: it is lightweight, minimizing added vehicle mass; inherently corrosion-resistant, critical for exposure to road salts, chemicals, and varying weather conditions; and an excellent thermal conductor. The latter characteristic is particularly vital for LED components, as efficient heat dissipation is key to maintaining LED performance, luminous output, and significantly extending their lifespan, preventing premature degradation due to thermal stress.
Further enhancing its resilience, the light boasts an IPX7 rating. The International Protection (IP) marking, as defined by IEC standard 60529, classifies and rates the degree of protection provided by mechanical casings and electrical enclosures against intrusion, dust, accidental contact, and water. An IPX7 rating specifically denotes protection against the effects of temporary immersion in water under standardized pressure and time conditions (typically, immersion up to 1 meter for 30 minutes). While the 'X' typically indicates no specific data for solid particle protection (e.g., dust), in the context of outdoor automotive applications, it strongly implies a high degree of sealing against environmental elements. This level of water resistance ensures reliable operation during heavy rainfall, automated vehicle washdowns, or even brief submersion incidents, making it exceptionally well-suited for vehicles frequently exposed to harsh weather or wet conditions.
The square lens shape not only contributes to the aesthetic but also helps in distributing the light effectively across a wide angle, preventing hot spots and ensuring uniform illumination for maximum visibility. The design focuses on creating a sealed unit that is impervious to moisture, dirt, and debris, common challenges faced by exterior vehicle components.
Seamless Integration and Power Management
Designed for universal compatibility, the strobe light operates within a broad voltage range of 12-24 Volts DC. This wide operating voltage allows for seamless integration into virtually any vehicle electrical system, from standard 12V automotive setups to 24V heavy-duty truck and equipment configurations, without the need for additional voltage converters or complex wiring modifications. This flexibility simplifies inventory management for distributors and installers and ensures broad applicability.
Electrical efficiency is another key attribute, with an amp draw of 1.62 Amps at 12 Volts. This relatively low current consumption minimizes the strain on the vehicle's electrical system and battery, allowing for multiple lights to be installed without requiring extensive upgrades to the vehicle's alternator or wiring infrastructure. The inherent energy efficiency of LED technology contributes to lower overall operating costs and reduced carbon footprint compared to traditional halogen or HID warning lights.

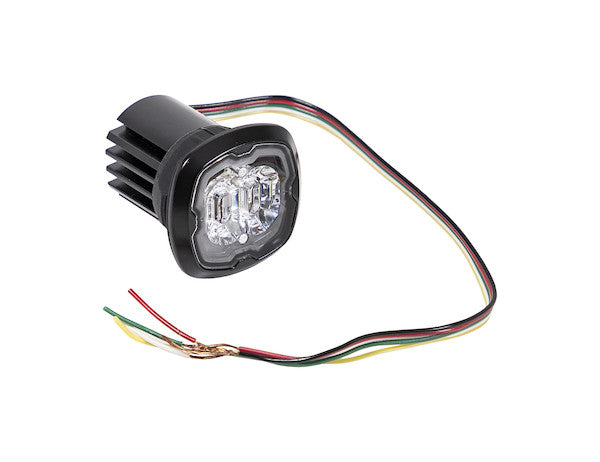

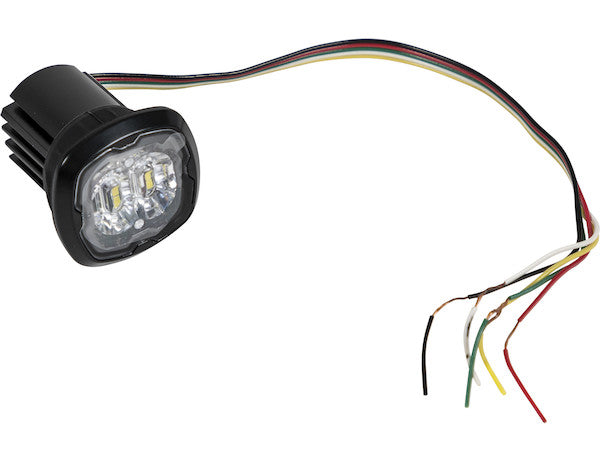

Installation is facilitated by a hard-wired connection featuring four wires with blunt-cut ends and a generous lead length of 9.5 inches. This configuration provides maximum flexibility for professional installers, allowing for custom wiring harnesses and precise integration into vehicle-specific control modules. The four wires typically include power, ground, a pattern selection wire, and a synchronization wire, enabling full control over the light's advanced features. The blunt-cut design allows for secure, permanent connections using appropriate connectors (e.g., heat-shrink butt connectors, solder joints) suitable for the demanding vehicular environment, preventing accidental disconnections or corrosion that might occur with pre-terminated plugs in some applications.

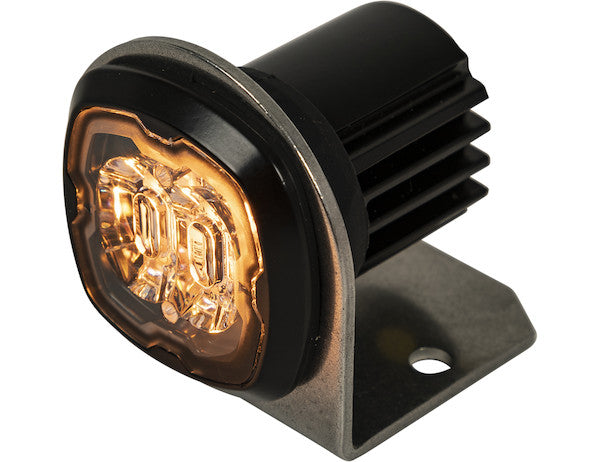

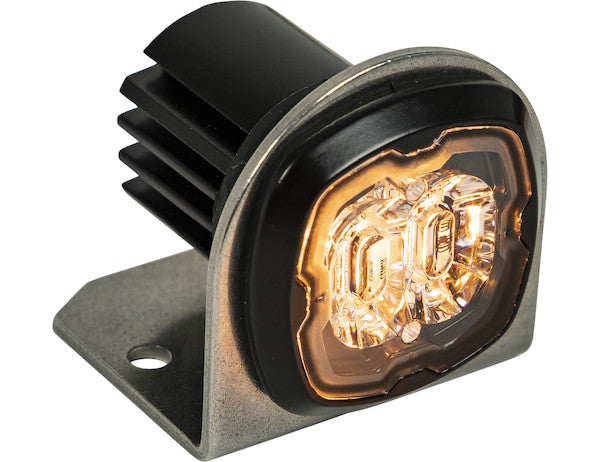

The "Flush/Surface Mount" type offers significant versatility in installation. Flush mounting allows the light to be recessed into a panel, bumper, or grille, providing a very low-profile and integrated appearance, protecting the light from external damage and enhancing aesthetics. Surface mounting, on the other hand, provides simpler installation directly onto a flat surface, with minimal vehicle modification. The optional 90° mounting bracket (sold separately) further expands installation possibilities, allowing for specialized angle mounting to optimize light projection or to conform to unique vehicle contours, ensuring maximum visibility regardless of the mounting location.
Comprehensive Applications and Investment Protection
Given its robust specifications and certifications, this 1.5 inch Amber LED Strobe Light is ideally suited for an extensive array of professional applications:
- Construction Vehicles: Excavators, bulldozers, loaders, dump trucks operating in active construction zones where high visibility is critical for preventing accidents.
- Utility Vehicles: Service trucks for electrical, gas, telecommunications, and water utilities, ensuring safety during roadside work or infrastructure maintenance.
- Towing and Recovery: Tow trucks and roadside assistance vehicles requiring prominent warning signals during breakdown recovery or accident scene management.
- Municipal Fleets: Snow plows, street sweepers, sanitation vehicles, and park maintenance equipment operating in public spaces.
- Agricultural Equipment: Tractors, harvesters, and other farm machinery that may operate on or near public roads, especially during planting and harvest seasons.
- Security and Patrol: Private security vehicles or non-emergency patrol units where a clear, visible warning signal is required without the intensity of emergency services lighting.
- Commercial Transport: Oversize load escorts or vehicles requiring supplemental warning lights for enhanced safety.
The investment in this high-performance warning light is safeguarded by a comprehensive 5-year warranty from Buyers Products. This extended warranty period underscores the manufacturer's confidence in the product's design, manufacturing quality, and long-term durability. It provides end-users with peace of mind, assuring them that they are investing in a reliable product that will perform consistently over its operational life, minimizing potential downtime and replacement costs. The warranty reflects a commitment to quality and customer satisfaction, reinforcing the product's value proposition as a professional-grade warning solution.
Conclusion
The 1.5 in. Flush/Surface Mount Amber LED Strobe Light is a meticulously engineered warning device designed for optimal performance, durability, and compliance in demanding professional environments. Its combination of six high-intensity amber LEDs, 17 versatile flash patterns, advanced synchronization capabilities, and robust aluminum housing with an IPX7 rating positions it as a leading solution for vehicular safety. Coupled with stringent certifications like SAE J595 Class 1 and California Title 13, and backed by a 5-year warranty, this strobe light offers an unparalleled blend of visibility, reliability, and long-term value. For any organization or individual seeking to enhance safety and operational efficiency through superior vehicular warning systems, this product stands out as an exemplary choice.
