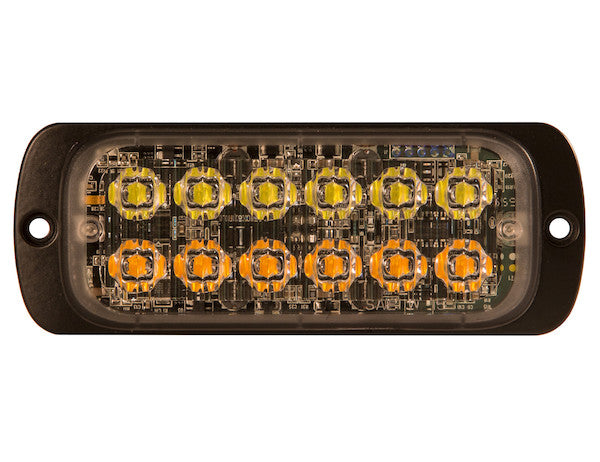

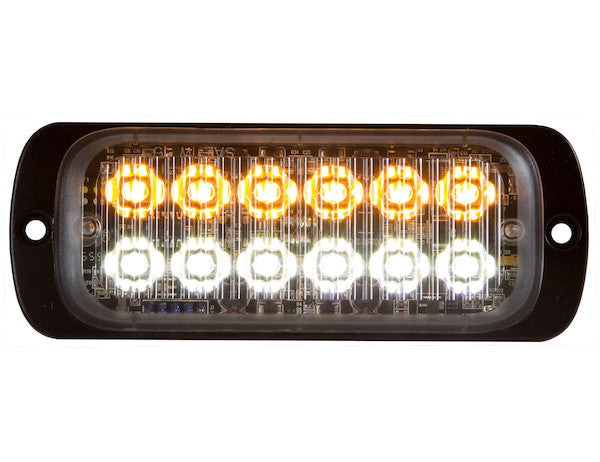

8892602 - Thin Dual Row 4.5 Inch Amber/Clear LED Strobe Light

Buyers Products Thin Dual Row 4.5 Inch LED Strobe Light Series is designed with an ultra-slim .35 profile to fit tight areas. The 12-24V strobe light has six LEDs and features 25 flash patterns with alternating and synchronous functions. It's available in your choice of several solid or color combinations. Solid colors have a SAE J595 Class 1 rating for brightness and are CA13 certified. All lights are IPX8 waterproof rated. Lights are backed with a 5 year warranty.

Specifications

Precision Engineered Warning: The Thin Dual Row 4.5 Inch Amber/Clear LED Strobe Light

In the demanding realm of commercial, municipal, and industrial operations, visibility and safety are paramount. The Thin Dual Row 4.5 Inch Amber/Clear LED Strobe Light represents a pinnacle of compact, high-performance warning illumination, meticulously engineered to provide exceptional visibility and reliable operation across a diverse range of applications. This technical exposition delves into the intricate design, advanced features, and robust construction that define this class-leading strobe light, emphasizing its adherence to stringent industry standards and its practical advantages for professional users.

Engineering for Versatility: The Ultra-Slim Profile and Compact Dimensions

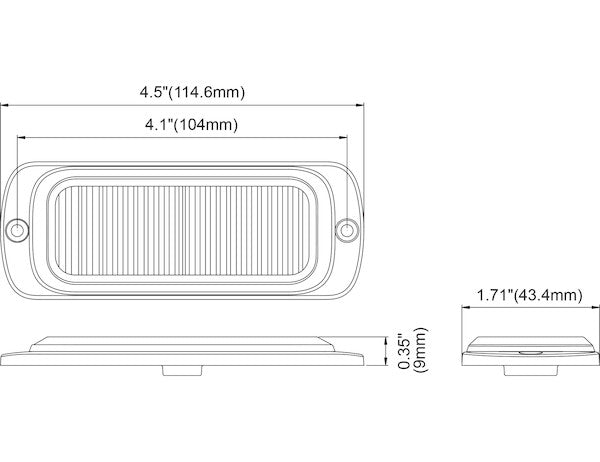

At the core of this innovative lighting solution is its ultra-slim .35-inch (approximately 8.9mm) profile. This remarkable thinness is not merely an aesthetic choice but a deliberate engineering decision to facilitate installation in environments where traditional, bulkier strobe lights are simply impractical. Vehicle compartments, grille recesses, bumper steps, headache racks, and compact machinery often present spatial constraints, and the ultra-slim design of this strobe light overcomes these challenges with ease. Its minimal protrusion reduces the risk of impact damage, maintains vehicle aerodynamics, and allows for discreet integration without compromising the vehicle’s original design or functionality. Coupled with an overall width of 4.10 inches (104.14mm) and a height of 1.71 inches (43.43mm), the rectangular form factor is optimized for surface mounting, providing a secure and low-profile installation. The included grommet/base ensures a flush and sealed fit against the mounting surface, further enhancing its durability and integration.

Advanced Illumination Technology: Dual Row Amber/Clear LEDs

The efficacy of a warning light hinges on its ability to command attention, and this unit achieves superior visibility through its advanced LED array. Featuring a dual-row configuration of six high-intensity LEDs, the light produces a powerful and distinct flash pattern. The dual-row design enhances light output and dispersion, ensuring a wider viewing angle and increased conspicuity from various perspectives. Each LED is strategically positioned to maximize light projection and minimize blind spots, critical for warning personnel and the public in dynamic operational zones. The choice of Amber/Clear LEDs is particularly significant. Amber is universally recognized as a warning color, widely mandated for roadside assistance, construction, utility, and slow-moving vehicles. Its high contrast against most backgrounds ensures immediate recognition. The integration of clear (white) LEDs offers a critical functional advantage. Clear light provides superior scene illumination, cutting through fog, dust, and darkness to illuminate the immediate work area. This combination allows for a single unit to serve dual purposes: providing a highly effective amber warning signal while also offering supplemental clear illumination for enhanced situational awareness during night operations or in poorly lit environments. LEDs, by nature, offer inherent advantages over traditional incandescent or xenon strobe lights: significantly longer lifespan (often tens of thousands of hours), lower power consumption, instant-on functionality, and superior resistance to shock and vibration. These attributes translate directly into reduced maintenance costs, improved operational uptime, and enhanced reliability in harsh operating conditions.

Unparalleled Visibility and Safety: SAE J595 Class 1 and CA13 Certifications

The credibility and legal compliance of a warning light are validated by its adherence to recognized industry standards. The Thin Dual Row LED Strobe Light proudly carries the SAE J595 Class 1 certification. The Society of Automotive Engineers (SAE) J595 standard specifies the performance requirements for omnidirectional, flashing amber warning lamps for vehicles over 80 inches wide. A "Class 1" rating is the highest designation, signifying the brightest and most effective warning lights suitable for use in all light conditions, including direct sunlight. This certification guarantees that the light meets rigorous standards for chromaticity (color accuracy), flash rate, light intensity, and environmental durability. For applications where maximum visibility and regulatory compliance are non-negotiable, a Class 1 rating is essential. Furthermore, the light is CA13 certified, indicating compliance with California Title 13 regulations. California Title 13 sets forth specific requirements for emergency vehicle warning lights concerning color, intensity, and flash patterns. While primarily a California standard, compliance often implies adherence to or exceedance of similar regulations in other states and jurisdictions, making this a globally robust and legally sound choice for fleet operators. These certifications provide absolute assurance that the light will perform as expected in critical safety scenarios, protecting both personnel and the general public, and mitigating legal risks associated with non-compliant equipment.

Dynamic Alerting Capabilities: 25 Customizable Flash Patterns

Adaptability is a hallmark of superior warning light design, and this strobe light offers an impressive array of 25 distinct flash patterns. This extensive selection allows operators to choose the most effective pattern for their specific application, environmental conditions, and regulatory requirements. From rapid, high-impact bursts designed to grab immediate attention to slower, more sustained flashes for specific signaling needs, the range of patterns ensures optimal visibility. Beyond individual unit performance, the integrated alternating and synchronous functions elevate the system's capabilities. When multiple strobe lights are installed on a single vehicle or across a fleet, the synchronous function allows them to flash in unison, creating a powerful, coordinated visual impact that is highly effective at signaling a large presence or a defined work zone. Conversely, the alternating function enables units to flash in an opposing sequence, providing a dynamic, eye-catching effect that can be particularly effective in high-traffic areas or for specific directional signaling. This programmability ensures that the visual warning presented to other road users is not only bright but also intelligent and contextually appropriate, significantly enhancing operational safety and communication.

Robust Construction and Environmental Resilience: IPX8 Rating and Aluminum Housing

Operating in outdoor, often unforgiving environments demands uncompromised durability. The Thin Dual Row LED Strobe Light is engineered with an IPX8 waterproof rating, representing the highest level of liquid ingress protection. This certification signifies that the light can withstand continuous immersion in water beyond 1 meter for extended periods, without suffering damage or diminished performance. This level of protection makes it impervious to heavy rain, snow, sleet, pressure washing, and even temporary submersion, crucial for vehicles operating in construction sites, marine environments, or areas prone to flooding. Dust, dirt, and other particulate matter are equally repelled, ensuring internal components remain clean and functional. The robust housing is constructed from high-grade aluminum. Aluminum is chosen for its exceptional strength-to-weight ratio, excellent thermal conductivity, and superior corrosion resistance. The aluminum housing effectively dissipates heat generated by the LEDs, preventing thermal degradation and ensuring a consistent light output and extended operational life. Its inherent resistance to rust, chemicals, and UV radiation ensures that the light maintains its structural integrity and aesthetic appearance over years of exposure to harsh weather elements and industrial solvents. The rectangular lens shape, crafted from durable polycarbonate, offers resistance to impact and abrasion while maintaining optical clarity for maximum light transmission. This combination of an IPX8 rating and an aluminum housing guarantees reliable performance in the most challenging operational scenarios, from arctic cold to desert heat, and through heavy precipitation.

Optimized Electrical Integration: 12-24V Universal Compatibility

Designed for broad applicability, the strobe light operates within a wide 12-24V DC voltage range. This universal compatibility ensures seamless integration with virtually any vehicle electrical system, from light-duty service trucks and trailers to heavy-duty construction equipment, agricultural machinery, and municipal fleet vehicles. This flexibility simplifies inventory management for fleet operators and installers, as a single product SKU can serve multiple vehicle types. Despite its powerful light output, the unit boasts an impressively low current draw of just 0.78 amps at 12 volts. This energy efficiency is a critical advantage, minimizing the strain on a vehicle's electrical system and battery, which is especially important for vehicles with multiple auxiliary electrical components. The reduced power consumption also contributes to lower fuel consumption and an extended operational life for the vehicle's charging system. For electrical connection, the light features a hard-wired design with a blunt cut connector and a generous 9.5-inch lead length. This configuration provides maximum flexibility for professional installation, allowing technicians to custom-fit the wiring to the vehicle's existing harness. The four-wire configuration typically includes a positive power input, a ground wire, a pattern selection wire, and a synchronization wire, enabling full control over the light's functions and seamless integration with other warning devices. This professional-grade wiring setup ensures secure, stable, and long-lasting electrical connections, minimizing troubleshooting and maintenance needs over the product's lifespan.

Long-Term Reliability and Support: The 5-Year Warranty

A testament to its uncompromising quality and robust engineering, the Thin Dual Row 4.5 Inch Amber/Clear LED Strobe Light is backed by a comprehensive 5-year warranty. This extended warranty period reflects the manufacturer's confidence in the product's durability, performance, and long-term reliability. For commercial and industrial applications where equipment downtime can result in significant financial losses, a substantial warranty provides peace of mind and protection of investment. It underscores a commitment to delivering products that not only meet but exceed demanding operational expectations, minimizing the total cost of ownership over the product's extensive service life.

Versatile Applications and Operational Benefits

The combination of compact design, high-intensity Amber/Clear LEDs, multi-voltage compatibility, and robust construction renders this strobe light exceptionally versatile across numerous sectors. It is an indispensable safety component for:

• Construction Vehicles: Enhancing visibility on active job sites, ensuring worker safety and alerting other heavy equipment operators.
• Utility and Municipal Fleets: Providing critical warning during roadside repairs, infrastructure maintenance, and emergency service operations.
• Roadside Assistance and Tow Trucks: Maximizing safety for operators and disabled motorists in hazardous traffic conditions.
• Agricultural Equipment: Improving conspicuity of slow-moving machinery on public roads and in fields.
• Commercial Fleet Vehicles: Adding an essential layer of safety for delivery, transport, and service vehicles operating in diverse environments.
• Snow Plows and Maintenance Vehicles: Crucial for visibility in adverse weather, ensuring public safety during road clearing and treatment.

By effectively signaling a vehicle's presence and operational status, this strobe light plays a vital role in preventing accidents, increasing operational efficiency, and complying with safety regulations, ultimately contributing to a safer working environment and public roadways.

Conclusion

The Thin Dual Row 4.5 Inch Amber/Clear LED Strobe Light stands as a testament to advanced warning light technology, meticulously designed to meet the rigorous demands of professional use. Its ultra-slim profile offers unparalleled installation flexibility, while the dual-row Amber/Clear LED array delivers powerful and versatile illumination. Adherence to SAE J595 Class 1 and CA13 certifications ensures industry-leading brightness and regulatory compliance. With 25 customizable flash patterns and synchronous/alternating functions, operators gain precise control over visual signaling. The IPX8 waterproof rating and durable aluminum housing guarantee reliable performance in the harshest conditions, complemented by a wide 12-24V compatibility and low current draw for efficient electrical integration. Backed by a 5-year warranty, this strobe light is not merely an accessory but a critical safety investment, engineered for long-term reliability and peak performance, ensuring optimal visibility and enhanced safety for any application.
