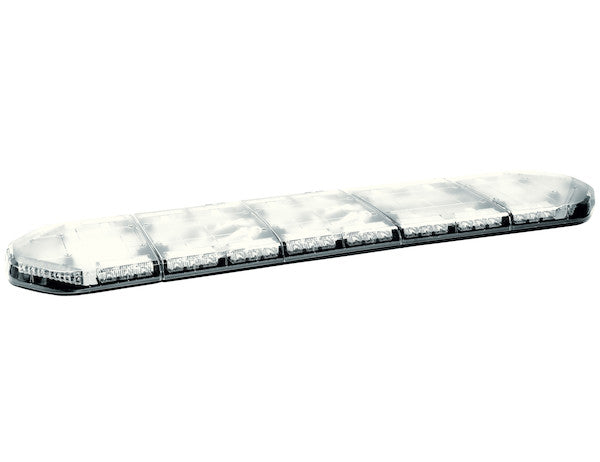

Buyers Products 60 Inch LED Modular Light Bars are available in seven standard configurations. The amber light bar is SAE Class 1 certified and has a CA13 rating. All models feature 11 flash patterns in five programmable groups for a total of 55 different possible flash sequences. A dimming mode also comes standard. Middle modules are reflective with three LEDs each. Corner modules have six LEDs each. Bright take down light modules are also available. See "Accessories" below for more details. The light bar's extruded aluminum frame is excellent at dissipating heat, and the sturdy polycarbonate lens is extremely resistant to impact. Two recessed mounting channels and a 10 ft pre-wired power/function cable make the light bar easy to install and operate. Mounting feet and controller are sold separately. Please contact Customer Service for more information. Modular light bars are backed with a 5-year warranty.
Specifications
| Amber Modules | 8 |
|---|---|
| Amp draw at 12 Volts | 16 |
| Base / Mount Type | Surface |
| Built-In Switch | No |
| Certification | CA13/SAE J845 Class 1/SAE J595 Class 1 |
| Class Level | 1 |
| Color | Amber/Red |
| Connector | Blunt Cut |
| Depth | - |
| Dimming Mode (y/n) | Yes |
| Hard Wired or Plug | Hard Wired |
| Height | 2.188 |
| Housing Material | Multiple |
| Lead Length | 15 |
| Lens Material | Polycarbonate |
| Lens Shape | Octagonal |
| Mounts Included | No |
| Number of Flash Patterns | 55 |
| Number of LEDs per Corner Strobe | 6 |
| Number of LEDs per Middle Strobe | 3 |
| Overall Width | 61 |
| Plug Included | No |
| Red Stop/Turn/Tail Modules? | Yes |
| Take Downs? | Yes |
| Traffic Adviser? | No |
| Type of Plug | Stripped Leads |
| Voltage | 12 |
| Wattage | 192 |
The 60 Inch Modular LED Light Bar: A Comprehensive Technical Overview for Enhanced Operational Safety and Efficiency
The Buyers Products 60 Inch Modular LED Light Bar represents a pinnacle in vehicular warning and utility lighting, meticulously engineered for demanding professional applications. This system, distinguished by its 60-inch overall width and configured with eight amber modules, two red stop/turn/tail modules, and two powerful take-down lights, is designed to deliver superior visibility, compliance, and functional versatility across a wide spectrum of operational environments. Its modular architecture underscores a commitment to flexibility, simplified maintenance, and long-term serviceability, making it an indispensable asset for commercial, municipal, utility, and emergency support fleets.
Advanced LED Optical Engineering and Multi-Color Functionality
At the core of this light bar’s exceptional performance lies its integration of high-intensity LED technology, optimized for maximum light output and dispersion. The configuration includes a total of eight amber modules, strategically placed to ensure comprehensive 360-degree warning visibility. These amber modules are critical for conveying caution and directing traffic, adhering strictly to industry-recognized standards for primary warning signals. The design incorporates two distinct module types: middle modules, each equipped with three advanced LEDs, and corner modules, featuring six LEDs. This deliberate differentiation in LED count per module is an aspect of sophisticated optical engineering, ensuring that frontal and rear visibility is robust, while corner modules provide enhanced off-axis illumination, crucial for intersection safety and broad area warning coverage.
Beyond its primary amber warning functions, this light bar extends its utility with two integrated red stop/turn/tail (STT) modules. These modules serve a dual purpose, acting as essential vehicle signaling lights in accordance with Federal Motor Vehicle Safety Standards (FMVSS) and local regulations. Their inclusion allows for consolidated lighting solutions, reducing the need for separate auxiliary tail lights and simplifying vehicle integration. The red STT functions contribute significantly to rear-end collision prevention and clear communication of vehicle intentions to following traffic, enhancing overall road safety during active operations.
Further augmenting its functional capabilities are the two bright take-down light modules. These modules project powerful white light forward, illuminating the immediate work area or scene ahead of the vehicle. This feature is invaluable for night-time operations, providing critical visibility for tasks such as securing accident scenes, identifying roadside hazards, or facilitating close-proximity work. The high lumen output of these take-down lights transforms dark environments into safely lit workspaces, thereby increasing operational efficiency and reducing potential hazards for personnel.
Unparalleled Compliance and Certification
The commitment to safety and regulatory adherence is explicitly demonstrated by the light bar’s multiple certifications. This unit is proudly SAE Class 1 certified, indicating it meets the highest intensity requirements for warning lights, ensuring maximum visibility in all conditions, including bright daylight and adverse weather. Specifically, it complies with SAE J845 Class 1 for directional flashing optical warning devices and SAE J595 Class 1 for unidirectional flashing optical warning devices. These certifications are not merely designations; they represent rigorous testing and proven performance under stringent optical output, vibration, temperature, and moisture resistance standards, verifying the product’s reliability in critical applications where visibility is paramount.
In addition to the SAE Class 1 ratings, the light bar carries a CA13 rating. This certification, specific to California Vehicle Code Section 25252.5, signifies compliance with strict performance and photometric requirements for emergency and warning lights within California, a state known for its stringent automotive regulations. This dual certification (SAE Class 1 and CA13) provides fleet managers and operators with the assurance that this lighting system meets or exceeds the most demanding performance benchmarks for warning illumination, ensuring legal operation and optimal safety performance across diverse jurisdictions.
Dynamic Flash Patterns and Intelligent Control Systems
Operational flexibility is a hallmark of this modular light bar, featuring 11 distinct flash patterns organized into five programmable groups. This sophisticated control architecture allows for a remarkable total of 55 different possible flash sequences. This extensive range of patterns provides operators with the ability to select the most appropriate visual signal for any given situation, from rapid, attention-grabbing emergency flashes to more measured, cautionary sequences. The ability to program groups of patterns allows for quick and efficient switching between commonly used configurations, streamlining operational response.
A crucial functional enhancement is the standard inclusion of a dimming mode. This feature allows operators to reduce the light output intensity, preventing glare and excessive illumination during night-time operations or in low-light environments. This not only enhances driver comfort for trailing vehicles but also minimizes light pollution, making the light bar adaptable to varying environmental conditions and preventing visual fatigue for those working in close proximity. The dimming mode reflects a comprehensive understanding of real-world operational demands, balancing high visibility with responsible light management.
Robust Construction and Thermal Management
Durability and longevity are fundamental to the design of equipment intended for rigorous outdoor applications. The light bar’s structural integrity is provided by an extruded aluminum frame. Aluminum is chosen for its exceptional strength-to-weight ratio, inherent corrosion resistance, and, critically, its superior thermal conductivity. In high-intensity LED applications, effective heat dissipation is essential to prevent thermal degradation of the LED components, which can shorten their lifespan and diminish light output. The extruded aluminum acts as an efficient heat sink, drawing heat away from the LEDs and maintaining optimal operating temperatures, thereby ensuring consistent performance and maximizing the operational life of the light bar.
Complementing the robust housing is the sturdy polycarbonate lens. Polycarbonate is a thermoplastic polymer renowned for its extraordinary impact resistance, making it virtually shatterproof—a critical attribute for equipment exposed to road debris, tree branches, and other potential impacts in challenging work environments. Beyond its mechanical strength, the polycarbonate lens offers excellent optical clarity, ensuring maximum light transmission without distortion, and superior UV stability, preventing yellowing or hazing over time due to prolonged sun exposure. This combination of materials ensures the light bar maintains its aesthetic and functional integrity even under the harshest environmental conditions.
Seamless Electrical Integration and Installation
Designed for professional installation and reliable long-term performance, the light bar features a 15-foot pre-wired power/function cable with blunt-cut, stripped leads. This "hard-wired" configuration, as opposed to a pre-terminated plug, offers significant advantages for custom vehicle installations. It allows for direct integration into a vehicle’s existing electrical system, facilitating clean, secure, and weatherproof connections that can be precisely tailored to the specific routing and power distribution requirements of the vehicle. This robust connection method minimizes points of failure and ensures consistent power delivery to all modules.
Operating efficiently on a standard 12-volt DC electrical system, the light bar exhibits a maximum amp draw of 16 Amperes and a total wattage of 192 Watts. These specifications are critical considerations for vehicle electrical system compatibility, requiring appropriate circuit protection and wire gauges to support the load. The modest current draw for a high-output, 60-inch warning system underscores the energy efficiency inherent in LED technology, reducing strain on the vehicle's alternator and battery while maximizing light output. The installation process is further simplified by two recessed mounting channels, providing secure and flush attachment points to the vehicle's surface. While mounting feet and a controller are sold separately, this modular approach allows installers to select specific mounting hardware and control interfaces that best suit the particular vehicle model and operational preferences.
Configurability, Serviceability, and Long-Term Value
The "modular" designation of this light bar is not merely a descriptive term; it signifies a core engineering philosophy that prioritizes adaptability and ease of maintenance. The ability to configure the light bar with various module types—including the specified amber warning, red stop/turn/tail, and white take-down lights—means that fleets can tailor their lighting solutions precisely to their operational needs. This modularity also extends to serviceability: individual modules can be replaced if damaged or upgraded in the future, extending the overall lifespan of the light bar and reducing total cost of ownership compared to monolithic designs. This design principle ensures that the investment in this lighting system provides long-term value and operational flexibility.
The Buyers Products 60 Inch Modular Light Bar is backed by an industry-leading 5-year warranty. This comprehensive warranty is a testament to the manufacturer’s confidence in the design, materials, and craftsmanship of the product. It provides peace of mind for fleet managers and vehicle operators, ensuring that their investment is protected against defects and guaranteeing reliable performance over an extended period in the demanding environments where this light bar is deployed.
Conclusion
The 60 Inch Modular LED Light Bar with its specific configuration of 8 amber, 2 red stop/turn/tail, and 2 take-down modules stands as a robust, compliant, and highly versatile lighting solution. Its advanced LED technology, adherence to stringent SAE Class 1 and CA13 certifications, comprehensive range of flash patterns with dimming capabilities, and durable construction from extruded aluminum and polycarbonate, collectively deliver unmatched performance. Engineered for demanding vehicular applications, it provides essential safety signaling, critical scene illumination, and long-term reliability. This light bar is an intelligent investment for organizations requiring superior visibility, operational efficiency, and certified performance on their fleet vehicles, ensuring safety for personnel, other motorists, and the public in a multitude of critical situations.
