Buyers Products LED Traffic Advisor/Strobe/Flood Lights are the ultimate in versatility. They combine an SAEJ595 Class 1 rated strobe, 16 different traffic arrows, and a bright flood light into a single fixture. The strobe function features 50 different flash patterns to suit your needs. An ultra low profile design with adjustable rear and angled mounts make the lights perfect for a wide variety of applications including dump trucks, construction vehicles, and more. Built to endure extreme conditions, these amber-clear lights have an IP67 rating for dust and water resistance. Their extruded aluminum housing that will never rust or corrode. The lights come in 34 and 42 in. lengths to suit your needs with a 25 ft wire cable included for easy installation. The lights are backed with a 5 year warranty.
Specifications
| Amp draw at 12 Volts | 7.5 |
|---|---|
| California Title 13 | True |
| Color | Amber/Clear |
| Depth | 33.7 |
| Hard Wired or Plug | Hard Wired |
| Height | 1.25 |
| Housing Material | Aluminum |
| IP Rating | IP67 |
| Lead Length | 25 |
| Lens Material | Polycarbonate |
| Lens Shape | Rectangular |
| Mounts Included | Rear and angled |
| Number of Flash Patterns | 50 |
| Number of Wires | 6 |
| Operating Temperature | -30 - 149 |
| Overall Width | 2.1 |
| SAE Classification | SAE J595 Class 1 |
| Traffic Adviser? | Yes - 16 different arrows |
| Type of Plug | Push-in Connectors |
| Voltage | 12 |
| Wattage | 72 |
Advanced Technical Overview: 34-Inch LED Traffic Advisor/Strobe/Flood Light
The 34-inch LED Traffic Advisor/Strobe/Flood Light by Buyers Products represents a pinnacle of versatile and high-performance illumination and signaling technology engineered for demanding professional applications. This singular fixture consolidates three critical functionalities – a robust traffic advisor, a powerful strobe warning light, and an integrated floodlight – into an ultra-low-profile, durable unit. Designed to meet the rigorous demands of commercial and municipal fleets, construction sites, and roadside assistance operations, this lighting solution enhances safety, improves operational efficiency, and ensures compliance with critical industry standards.
Integrated Multi-Functionality for Superior Operational Flexibility
At the core of this advanced lighting system is its unparalleled multi-functionality. Unlike traditional setups requiring separate units for different tasks, this 34-inch LED light combines distinct capabilities seamlessly, offering a streamlined solution for diverse operational scenarios:
Precision Traffic Advisor System
The integrated traffic advisor component is engineered to direct traffic with precision and clarity, significantly improving safety in dynamic work environments. Featuring 16 distinct arrow patterns, operators can select configurations for left, right, center-out, and split-arrow indications, among others. These patterns are crucial for guiding motorists safely around hazardous zones, stalled vehicles, or active construction areas. The high-intensity amber LEDs ensure maximum visibility even in bright daylight or adverse weather conditions, providing an unmistakable visual cue to approaching drivers. This capability is particularly vital for highway maintenance crews, utility workers, and emergency responders where clear traffic guidance is paramount to preventing accidents and facilitating smooth traffic flow. Furthermore, the unit's compliance with California Title 13, a stringent set of regulations for emergency vehicle lighting, underscores its reliability and suitability for high-stakes applications where regulatory adherence is non-negotiable.
High-Intensity Strobe Warning Light
Equipped with a powerful strobe light, this fixture meets and exceeds the SAE J595 Class 1 rating, signifying it as a primary warning device with superior light output and dispersion. The Class 1 designation mandates specific candela output levels and reliability standards, ensuring the light is exceptionally bright and visible from extended distances and through challenging environmental conditions. With 50 selectable flash patterns, operators have the flexibility to choose the most appropriate warning signal for their specific situation, ranging from rapid, attention-grabbing flashes for emergency alerts to more measured, consistent patterns for general cautionary signaling. The use of high-efficiency LEDs in an amber/clear color configuration maximizes visibility. Amber is universally recognized as a warning color in road safety, while the clear lens enhances overall light output and visual impact, providing a potent deterrent and warning mechanism to ensure the safety of personnel and the public.
Powerful Integrated Flood Light
Beyond its signaling capabilities, the unit incorporates a bright flood light function, transforming it into an essential tool for nighttime operations or dimly lit environments. This flood light illuminates the immediate work area, offering critical visibility for tasks such as equipment repair, cargo loading/unloading, or roadside assistance. The ability to activate a powerful floodlight directly from the same fixture that provides warning and traffic direction eliminates the need for separate external work lights, simplifying wiring, reducing vehicle clutter, and increasing operational efficiency. This integrated approach ensures that personnel have adequate illumination to perform tasks safely and effectively, reducing the risk of errors or accidents during off-peak hours or in low-light conditions.
Robust Engineering and Advanced Material Science for Unrivaled Durability
The 34-inch LED Traffic Advisor/Strobe/Flood Light is meticulously engineered to withstand the most demanding operational environments, ensuring long-term reliability and performance. Its construction reflects a deep understanding of the challenges faced by heavy-duty applications:
Premium Housing Construction
The housing is crafted from extruded aluminum, a material renowned for its exceptional strength-to-weight ratio, superior thermal conductivity, and inherent resistance to corrosion. Unlike steel, aluminum will never rust or degrade when exposed to moisture, road salts, or harsh chemicals, making it ideal for continuous outdoor exposure. The extrusion process creates a robust, monolithic structure that provides excellent protection for the internal components. Furthermore, aluminum's excellent heat dissipation properties are critical for LED longevity, effectively drawing heat away from the light-emitting diodes to maintain optimal operating temperatures, thereby extending the lifespan and consistent performance of the LEDs.
Advanced Lens Technology
The rectangular lens is manufactured from high-grade polycarbonate. This material is virtually unbreakable, offering superior impact resistance against road debris, branches, and other potential hazards. Polycarbonate also exhibits excellent optical clarity, ensuring maximum light transmission without distortion, and is highly resistant to UV degradation, preventing yellowing or clouding over time that can diminish light output and visibility.
IP67 Environmental Protection Rating
An IP67 rating signifies a formidable level of protection against environmental ingress. The "6" in IP67 denotes total protection against dust ingress, meaning that no dust particles can penetrate the housing to interfere with internal electronics. The "7" indicates protection against the effects of temporary immersion in water, specifically up to 1 meter for 30 minutes. This rigorous rating assures that the light will remain fully functional even when subjected to heavy rain, snow, power washing, or brief submersion, making it perfectly suited for applications where exposure to harsh weather and challenging site conditions is inevitable.
Optimized Operating Temperature Range
Designed for extreme climates, the unit boasts an impressive operating temperature range from -30°F to 149°F (-34°C to 65°C). This wide operational window ensures consistent performance whether in sub-freezing northern winters or scorching desert summers, preventing issues such as LED dimming, color shift, or complete failure due to thermal stress.
Precision Dimensions and Versatile Mounting
The physical dimensions and mounting options are carefully considered to maximize adaptability and ease of integration across a broad spectrum of vehicles:
- Dimensions: Measuring 33.7 inches in length (Depth in spec table refers to length), an ultra-low profile height of 1.25 inches, and an overall width (actual depth) of 2.1 inches, this 34-inch light bar is remarkably compact. Its slim design minimizes aerodynamic drag and allows for discreet installation without obstructing vehicle aesthetics or line of sight.

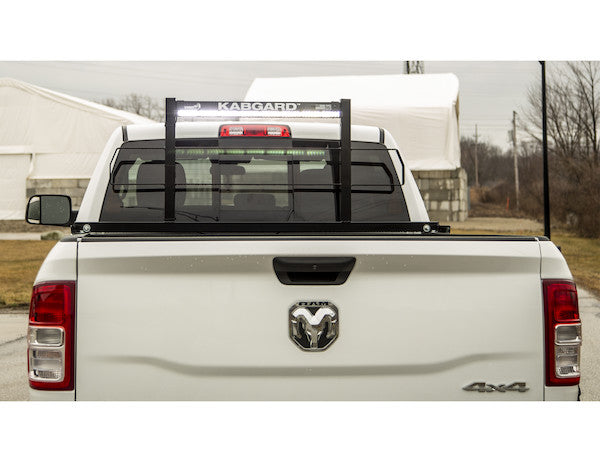

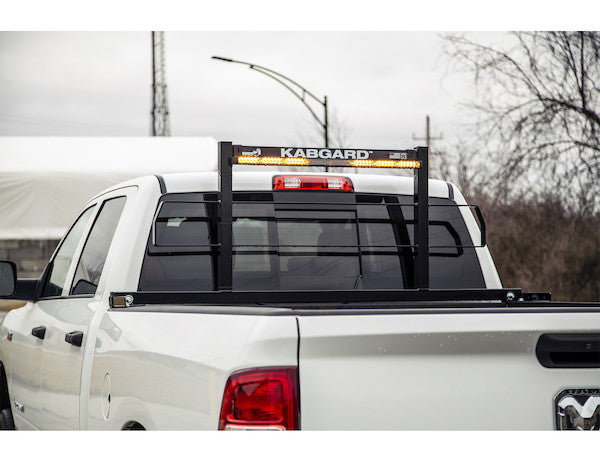

- Mounting: The inclusion of adjustable rear and angled mounts provides unparalleled flexibility for installation. This allows the light to be positioned optimally on various vehicle types, including dump trucks, service vehicles, tow trucks, and construction equipment, whether on headache racks, cab protectors, toolboxes, or other strategic locations. The adjustability ensures proper aiming for maximum effectiveness of both the traffic advisor and flood light functions.
Advanced Electrical Systems and Simplified Installation
The electrical design and installation features prioritize reliability, efficiency, and user-friendliness:
- Voltage and Power: Operating at a standard 12-volt DC system, this light is compatible with the vast majority of commercial vehicles. With a moderate amp draw of 7.5 amps at 12 volts and a total wattage of 72 watts, it delivers exceptional light output relative to its power consumption, minimizing strain on the vehicle's electrical system.
- Hard-Wired Connection: The hard-wired configuration ensures a robust and permanent electrical connection, critical for preventing disconnections or intermittent operation in rugged environments. The supplied push-in connectors simplify the wiring process, providing secure and insulated connections.
- 6-Wire Control System: The 6-wire lead provides comprehensive control over the unit's multiple functions. Typically, these wires facilitate connections for power, ground, and dedicated control signals for pattern selection, traffic advisor mode activation, and floodlight operation, allowing for precise management from a remote switch panel in the vehicle's cabin.
- Extended Lead Length: A generous 25-foot wire cable (lead length) is included, offering significant flexibility for installation without the need for additional wiring extensions. This ensures that the unit can be mounted at considerable distances from the power source and control module, accommodating larger vehicles or more complex routing requirements.
Real-World Applications and Enhanced Safety
The 34-inch LED Traffic Advisor/Strobe/Flood Light is an indispensable asset across a multitude of industries:
- Construction and Heavy Equipment: Enhances safety on job sites by warning approaching personnel and guiding traffic around heavy machinery, especially during active operations or low-light conditions.
- Municipal and Utility Fleets: Critical for roadwork, utility repairs, and waste management, providing clear signals for public safety and worker protection.
- Tow and Recovery Vehicles: Offers essential visibility for roadside assistance, ensuring operators can safely recover vehicles while alerting passing traffic.
- Agricultural Vehicles: Increases visibility for tractors and other large equipment operating on public roads, particularly during planting and harvest seasons.
- Commercial Transport: Provides added safety for large trucks, especially when making wide turns, stopping on shoulders, or operating in congested areas.
By providing clear visual cues and ample illumination, this multi-functional light significantly reduces the risk of collisions and improves overall operational safety for both workers and the public.
Long-Term Reliability and Manufacturer Confidence
Buyers Products stands behind the superior quality and durability of this LED lighting solution with a comprehensive 5-year warranty. This warranty underscores the manufacturer's confidence in the product's design, materials, and craftsmanship, offering peace of mind and protecting your investment over the long term. The adoption of high-quality, long-life LEDs means minimal maintenance requirements and significantly reduced replacement costs compared to traditional incandescent or halogen warning lights, contributing to a lower total cost of ownership.
Conclusion
The 34-inch LED Traffic Advisor/Strobe/Flood Light is a meticulously engineered, highly versatile, and exceptionally durable lighting solution designed for the most demanding professional applications. Its combination of a powerful SAE J595 Class 1 strobe, dynamic 16-pattern traffic advisor, and integrated work floodlight, all housed within a robust, IP67-rated extruded aluminum body, makes it an indispensable tool for enhancing safety and operational efficiency. Coupled with its broad operating temperature range, flexible mounting options, and a reassuring 5-year warranty, this LED light delivers unparalleled performance and reliability, setting a new standard for auxiliary vehicle lighting.
