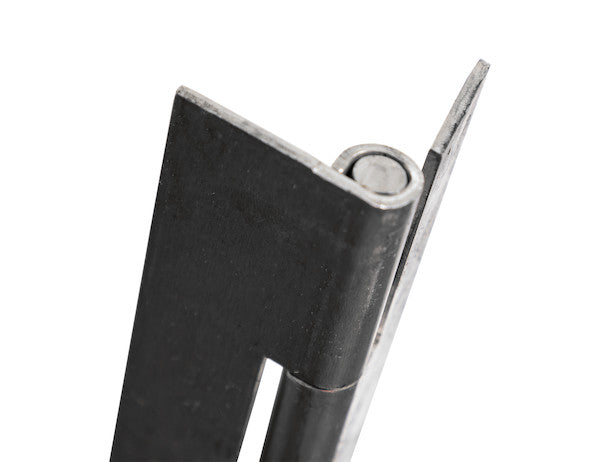

The Aluminum Continuous Hinge from Buyers Products is ideal for any application that sees frequent use or more potential for wear and tear. The hinge evenly distributes weight down the length of the lid or door, keeping it in position and minimizing stress. The aluminum hinge features equal leaves and full hard aluminum pins. It comes stocked in 72 in. lengths and a variety of widths, thicknesses, and gauges to meet your needs. They can be cut to size as needed. Longer (96 in.) lengths are available by special order. Please contact Customer Service for further information.
Specifications
| Hinge Length | 72.0 |
|---|---|
| Hinge Width | 3.00 |
| Knuckle Length (in.) | 1.00 |
| Leaf Width | 1.50 |
| Open Width (in.) | 3.00 |
| Pin Diameter (in.) | 1/4 |
| Thickness (in.) | .075 |
The Aluminum Continuous Hinge, exemplified by the robust 72-inch long variant with a 1/4-inch pin and a 3.0-inch open width, represents a superior engineering solution for applications demanding exceptional durability, uniform load distribution, and consistent operation. While the title refers to a .093-inch thickness, this specific model, as detailed in the specifications, features a .075-inch (approximately 14 gauge) thickness, providing an optimal balance of strength, weight, and material workability. This product is meticulously designed to excel in environments characterized by high cycle rates, significant weight bearing, or frequent exposure to wear and tear, ensuring a prolonged operational lifespan and reduced maintenance requirements.
Material Science and Fabrication: The Aluminum Advantage
The selection of aluminum as the primary material for this continuous hinge is fundamental to its performance characteristics. Aluminum alloys offer a compelling combination of properties that are highly advantageous for hinge applications. Specifically, the material's inherent corrosion resistance is a critical factor, making it suitable for both indoor and outdoor installations, particularly in environments exposed to moisture, chemicals, or saline conditions. Unlike steel, aluminum forms a passive oxide layer that naturally protects it from further oxidation, thereby eliminating the need for extensive protective coatings in many applications and reducing the risk of unsightly rust streaks.
Beyond corrosion resistance, aluminum exhibits an excellent strength-to-weight ratio. This characteristic is crucial for applications where minimizing overall weight is beneficial, such as in vehicle compartments, aerospace components, or portable equipment, without compromising structural integrity. The .075-inch thickness of the hinge leaves provides substantial rigidity and load-bearing capacity while keeping the hinge relatively lightweight compared to a steel counterpart of equivalent strength. The specific aluminum alloy used, typically from the 5000 or 6000 series, is selected for its superior formability, weldability, and mechanical properties. These alloys are often tempered (e.g., T6 for 6061) to enhance their tensile strength and yield strength through heat treatment, contributing to the hinge's overall robustness and resistance to deformation under stress. The "full hard" designation for the aluminum pins further indicates a material processed to achieve maximum hardness and wear resistance, which is critical for the long-term integrity of the hinge's pivot point.
The manufacturing process for continuous hinges often involves precision extrusion or rolling of aluminum sheets, followed by a forming process to create the interlocking knuckles. The consistency and accuracy achieved through these methods are vital for smooth articulation and proper alignment of the hinge leaves. Subsequent finishing processes may include deburring, tumbling, or anodizing to enhance surface hardness, further improve corrosion resistance, and achieve a desired aesthetic finish. The ability of aluminum to be easily cut, drilled, and fabricated on-site adds to the versatility of these hinges, allowing them to be tailored precisely to specific application requirements.
Architectural and Mechanical Principles of Continuous Hinges
The continuous hinge, often referred to as a piano hinge due to its historical application on piano lids, operates on a fundamentally different principle than conventional butt hinges. Rather than relying on two or three discrete pivot points, a continuous hinge extends along the entire length of the door, lid, or panel it supports. This design offers several significant mechanical advantages:
- Even Load Distribution: The most prominent benefit is the uniform distribution of stress across the entire length of the hinged component. This minimizes localized stress concentrations that can lead to warping, sagging, or premature failure in applications using multiple short hinges. For heavy or oversized doors, this translates to reduced strain on both the door and the frame, enhancing longevity for the entire assembly.
- Enhanced Support and Rigidity: By providing a continuous pivot point, the hinge maintains the integrity and alignment of the hinged element. This prevents lateral movement, racking, and twisting, which are common issues with improperly supported components. The 72-inch length of this hinge is particularly effective for large panels, industrial enclosures, or utility vehicle compartments where structural stability is paramount.
- Increased Security: The full-length design inherently offers superior security. Unlike butt hinges, which expose their pins and mounting screws, a continuous hinge typically has its fastening hardware concealed when the door is closed, making it significantly more resistant to prying, tampering, or forced entry. The continuous engagement of the leaves along the entire edge provides a formidable barrier.
- Smooth Operation: The multitude of knuckles and the consistent pin diameter along the length ensure a fluid and frictionless rotational movement. This results in smooth, quiet, and consistent operation, even under heavy loads or frequent use. The 1/4-inch pin diameter provides a robust pivot capable of withstanding significant shear and bending forces.
- Aesthetic Integration: The sleek, uninterrupted line of a continuous hinge offers a clean and professional appearance. This can be particularly desirable in architectural applications or on equipment where visual appeal is important. The ability to recess or flush-mount the hinge further contributes to a streamlined design.
Detailed Component Analysis: Precision Engineering
Each component of this Aluminum Continuous Hinge is engineered to contribute to its overall performance and longevity:
Hinge Leaves
The hinge leaves, with an equal width of 1.50 inches each, provide ample surface area for secure fastening. The total open width of 3.00 inches dictates the necessary mounting space and the offset when the hinge is fully opened. The .075-inch (approximately 1.9 mm) thickness of the aluminum leaves is a critical dimension that directly impacts the hinge's load-bearing capacity and rigidity. This thickness offers excellent resistance to bending and twisting, making it suitable for medium to heavy-duty applications. The precision of the leaf forming process ensures consistent knuckle alignment and engagement along the entire 72-inch length, which is crucial for uniform load distribution and smooth articulation. The equal leaf design ensures balanced mounting and symmetrical performance, simplifying installation and aesthetic integration.
Knuckles
The interlocking knuckles are the core of the continuous hinge mechanism. Each knuckle on this hinge measures 1.00 inch in length. The repeated pattern of these knuckles along the hinge’s length is what enables the continuous load distribution. The precise manufacturing tolerances for knuckle dimensions are paramount. Any inconsistencies could lead to binding, uneven wear, or reduced load capacity. The design ensures that stress is distributed across many small pivot points rather than concentrated on a few, minimizing fatigue and extending service life. The tight fit between the knuckles and the pin reduces play and slop, contributing to stable and controlled motion.
Hinge Pin
The hinge features a 1/4-inch (0.25 inches or 6.35 mm) diameter full hard aluminum pin. The pin is the central pivot around which the leaves rotate and is subject to significant shear and bending forces during operation. A larger diameter pin, such as this 1/4-inch variant, offers superior strength and wear resistance compared to smaller pins, making the hinge highly suitable for demanding applications with heavier loads or frequent cycling. The "full hard" designation for the aluminum pin indicates it has undergone specific hardening processes, which enhance its resistance to abrasion, deformation, and fatigue. While not as hard as steel, a full hard aluminum pin offers excellent performance within the aluminum hinge system, minimizing galvanic corrosion that can occur between dissimilar metals. Pin retention is achieved through methods such as swaging or staking at the ends, which permanently secure the pin within the knuckles while allowing for articulation. The consistency of the pin diameter along its entire 72-inch length is vital for uniform stress distribution and smooth movement.
Dimensional Specifications and Their Functional Implications
Understanding the specific dimensions of this hinge is essential for proper application and integration:
- Hinge Length (72.0 inches): This standard length provides extensive coverage for a wide array of applications, including full-height doors, long storage compartments, industrial access panels, and custom architectural elements. The ability to cut this length to size offers exceptional flexibility, allowing for precise customization without compromising the hinge's inherent benefits. This feature is particularly valuable for unique installations where standard hinge lengths are insufficient or excessive.
- Hinge Width / Open Width (3.00 inches): The total open width refers to the measurement of the hinge when laid flat, from the outer edge of one leaf to the outer edge of the other. This dimension is crucial for determining the mounting footprint and the standoff distance between the hinged components. With a 1.50-inch leaf width on each side, the hinge provides substantial surface area for secure fastening to a variety of substrates.
- Pin Diameter (1/4 inch): As discussed, the robust 1/4-inch pin is a key indicator of the hinge's heavy-duty capability. It signifies a high resistance to shear forces and a longer operational life, especially in high-stress applications.
- Thickness (.075 inches): This precise thickness ensures that the hinge can support considerable weight and withstand repetitive movements without deforming. It strikes a balance, being thick enough for strength yet manageable for cutting and drilling, making it versatile for both new construction and retrofit projects.
Versatile Applications Across Industries
The technical specifications and robust design of this Aluminum Continuous Hinge make it an ideal choice for a diverse range of industries and applications:
- Transportation and Automotive: Commonly used on truck toolboxes, utility vehicle compartments, RV doors, bus access panels, and trailers. Its ability to withstand vibration, distribute weight evenly, and resist corrosion is paramount in these mobile environments.
- Industrial and Manufacturing: Essential for safety guards on machinery, access doors for control cabinets, heavy-duty storage bins, and enclosures where frequent access and robust security are required.
- Marine Environments: The inherent corrosion resistance of aluminum makes these hinges perfect for boat hatches, marine access panels, dock boxes, and other applications exposed to saltwater or high humidity.
- Architectural and Commercial: Employed on heavy-duty interior and exterior doors, security gates, locker systems, and custom casework where aesthetics, durability, and smooth operation are valued.
- Furniture and Cabinetry: For large cabinet doors, workbench lids, and other custom furniture pieces requiring superior support and a clean, continuous line.
- Aerospace: In certain non-critical applications or internal components where lightweight strength and reliability are essential.
Installation and Maintenance Best Practices
Proper installation is critical to maximizing the performance and longevity of the Aluminum Continuous Hinge. Given its design, these hinges can be mounted using various methods:
- Fasteners: Typically, screws or rivets are used. For optimal strength and to prevent pull-out, fasteners should be spaced appropriately along the length of the hinge, ensuring engagement with the underlying substrate. Stainless steel fasteners are often recommended to prevent galvanic corrosion between dissimilar metals (aluminum hinge, steel fastener) and to match the corrosion resistance of the hinge.
- Welding: In some heavy-duty industrial or custom fabrication applications, the hinge may be welded directly to aluminum structures. This provides the strongest possible bond, but requires specialized welding techniques for aluminum.
When cutting the hinge to size, standard metalworking tools such as hacksaws, band saws, or abrasive chop saws can be used. It is important to ensure clean, straight cuts to maintain the hinge's integrity and aesthetic. Drilling for fasteners should be done with appropriate drill bits for aluminum, ensuring holes are correctly sized for the chosen fasteners to prevent material distortion or cracking.
Maintenance for aluminum continuous hinges is generally low. Regular inspection for any signs of wear, especially on the pin or knuckles, is recommended in high-cycle applications. Cleaning with mild detergents and water can maintain its appearance and prevent buildup of corrosive agents, especially in outdoor or harsh environments. Lubrication is typically not required for aluminum hinges unless specified for extremely high cycle rates or specific environmental conditions, as aluminum's low friction properties generally allow for smooth operation.
Commitment to Quality and Performance
This Aluminum Continuous Hinge from Buyers Products exemplifies a commitment to quality engineering and manufacturing. The meticulous selection of materials, adherence to precise dimensional tolerances, and robust design principles ensure that each hinge delivers consistent, reliable performance over its extensive operational lifespan. Whether specified for a new project requiring superior strength and durability or chosen as a replacement for an existing application that demands enhanced security and smooth operation, this hinge represents a sound investment in functional integrity and long-term value. The availability in standard 72-inch lengths with options for cutting to size, coupled with the potential for special orders of 96-inch lengths, underscores the product's adaptability to a broad spectrum of customer requirements. For critical applications, consulting with Customer Service to understand the full range of options and ensure optimal product selection is always recommended.
