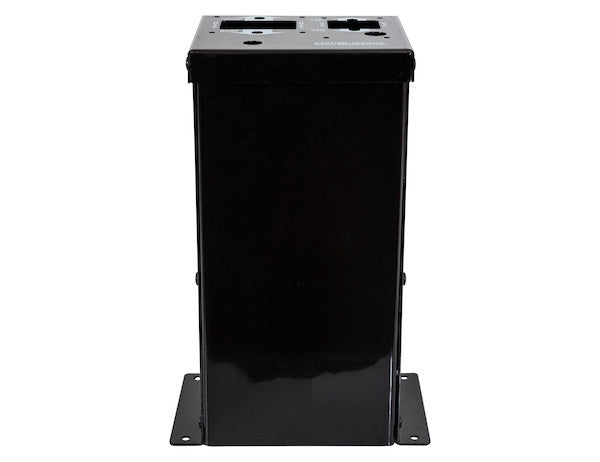

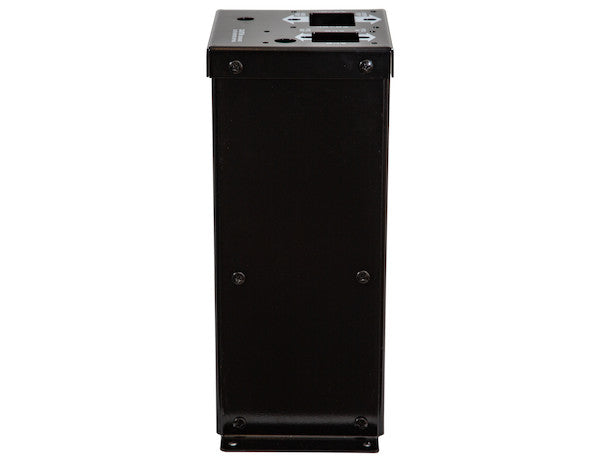

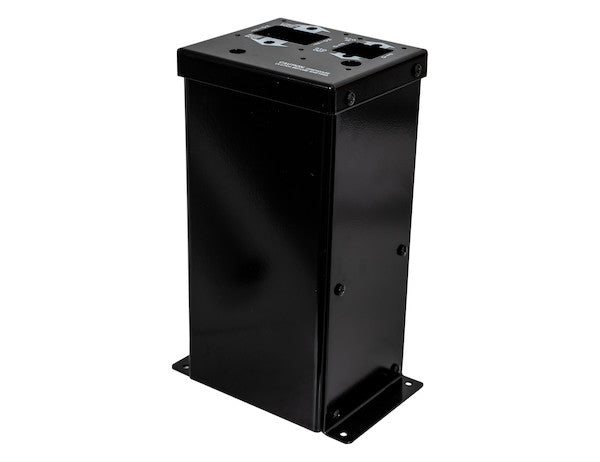

Buyers Products Air PTO/Air Hoist Console features black powder-coated steel construction. The top of the console is punched and lettered for mounting a Chelsea?? type PTO air valve and a Williams?? type hoist air valve. The console also has a standard 5/8 in. diameter capped hole for air tailgate switch or PTO light.
Specifications
| Color | Black |
|---|---|
| Depth | 6.125 |
| Finish | Powder-Coat |
| Height | 14.125 |
| Material | Carbon Steel |
| Width | 7.000 |
| Works With | Chelea Type PTO Air Valve & A Williams Type Hoist Air Valve |
Advanced Engineering and Ergonomics: The Black Air PTO/Air Hoist Console for Commercial Vehicle Integration
In the demanding environment of commercial and vocational vehicle operations, the efficiency, reliability, and ergonomic placement of critical control systems are paramount. The Buyers Products Black Air PTO/Air Hoist Console, standing at an optimal 14-1/8 inches (14.125 inches) in height, represents a meticulously engineered solution designed to facilitate the seamless integration and intuitive operation of power take-off (PTO) and hydraulic hoist systems. This console is not merely a mounting bracket; it is a foundational component for establishing a robust, operator-friendly control interface within the cab of heavy-duty trucks and specialized equipment.
Precision Manufacturing and Robust Construction
At the core of this console's exceptional durability and performance lies its construction from high-grade carbon steel. Carbon steel is selected for its superior strength-to-weight ratio, inherent rigidity, and resistance to deformation under the continuous stresses encountered in commercial vehicle applications. This material choice ensures that the console can withstand constant vibrations, impacts, and the rigorous daily use typical of municipal, construction, waste management, and agricultural fleets. The structural integrity provided by carbon steel is essential for securely housing critical pneumatic control valves, preventing unintended movement or damage that could compromise operational safety and efficiency.
Further enhancing resilience and extending service life, the console features a premium black powder-coat finish. This highly effective process applies a protective thermoset polymer layer, electrostatically applied and heat-cured, forming a hard, abrasion-resistant coating that tightly adheres to the metal. Its benefits are multi-faceted: excellent resistance against corrosion, rust, chipping, scratching, and UV fading. In environments exposed to moisture, road salts, chemicals, and extreme temperatures, this powder-coat finish ensures the console maintains its aesthetic and structural integrity for years, minimizing maintenance and preserving the vehicle's professional interior.
Optimized Dimensions for Ergonomic Integration
The Buyers Products Air PTO/Air Hoist Console's precise dimensions are carefully considered for optimal functionality and ergonomic placement within the vehicle's cab. At 14.125 inches (14-1/8 inches) high, 7.000 inches wide, and 6.125 inches deep, the console ensures efficient space utilization without obstructing driver visibility or access to other essential controls. This specific height is critical for positioning PTO and hoist air valves at an accessible, natural level, minimizing operator reaching or uncomfortable postures. Such thoughtful dimensioning significantly reduces operator fatigue during long shifts and enhances overall operational safety.
The console's compact yet functional footprint allows for flexible mounting options within various cab configurations. Whether mounted on the dashboard, to the floor, or integrated into an existing console structure, its dimensions facilitate a clean and professional installation. The black color and powder-coat finish further contribute to its seamless integration, providing a sleek, low-profile appearance that complements modern vehicle interiors and resists glare, ensuring clear visibility of valve lettering and indicators under various lighting conditions.
Engineered for Industry-Standard Valve Compatibility

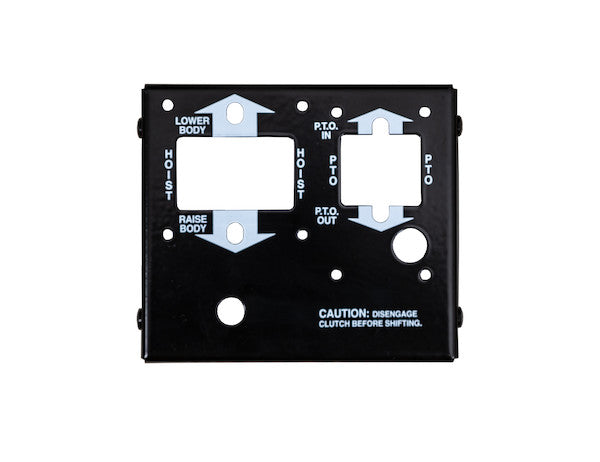

A cornerstone feature of this console is its pre-engineered compatibility with industry-standard air valves, specifically the Chelsea™ type PTO air valve and the Williams™ type hoist air valve. This dedicated design eliminates the guesswork and custom fabrication often associated with aftermarket installations, providing a direct and secure mounting solution for these widely used components. The top surface of the console is precisely punched and clearly lettered for each valve type, ensuring correct orientation and easy identification during both installation and operation.
Understanding PTO Air Valves and Their Importance
Power Take-Off (PTO) systems are indispensable in vocational trucks, serving as the mechanical interface between the vehicle's engine or transmission and auxiliary equipment. A PTO system diverts engine power to operate various hydraulic pumps, generators, compressors, or other specialized tools. Air-actuated PTO valves, like the Chelsea™ type, utilize pneumatic pressure to engage and disengage the PTO unit. Precise PTO control is critical for safe, efficient operation of equipment like:
- Dump Bodies: For operating hydraulic pumps to raise and lower the dump bed.
- Cranes and Lifts: Providing power to hydraulic systems for lifting and manipulating heavy loads.
- Snowplows and Salt Spreaders: Enabling hydraulic functions for blade positioning and material distribution.
- Vacuum Trucks: Powering vacuum pumps for liquid or debris collection.
- Refuse Compactors: Driving hydraulic cylinders for compaction mechanisms.
Understanding Hoist Air Valves and Their Importance
Hoist systems, particularly hydraulic hoists, are integral to vehicles designed for material handling and transport, such as dump trucks and car carriers. These systems rely on powerful hydraulic cylinders to lift heavy loads. A Williams™ type hoist air valve provides pneumatic control over hydraulic flow, allowing precise raising, holding, and lowering of the hoist mechanism. Key applications include:
- Dump Trucks: Controlling the hydraulic cylinder that elevates the truck bed to discharge bulk materials like gravel, sand, or asphalt.
- Roll-off Trucks: Operating the hydraulic system to load and unload waste containers or equipment.
- Tow Trucks/Wreckers: Managing the hydraulic boom and winch systems.
Integrated Auxiliary Control Point
Beyond its primary function of housing PTO and hoist controls, the Buyers Products console incorporates a standard 5/8-inch diameter capped hole. This thoughtful feature significantly enhances the console’s versatility. This pre-drilled opening is ideally sized for convenient installation of an air tailgate switch or a PTO light, eliminating time-consuming, costly field modifications that could compromise structural integrity or finish.
Functionality of the Auxiliary Hole:
- Air Tailgate Switch: In dump truck applications, an air-actuated tailgate switch provides remote control over the opening and closing of the tailgate. This feature is crucial for operators to manage the discharge of materials safely and efficiently, often without needing to exit the cab. Integrating this switch into the console alongside the hoist control streamlines the dumping process, improving workflow and reducing manual effort.
- PTO Light: A PTO light serves as a vital visual indicator, informing the operator when the PTO system is actively engaged. This safety feature helps prevent accidental vehicle movement with the PTO engaged, unintended operation of auxiliary equipment, or damage to the PTO unit itself. Placing this indicator prominently on the console ensures that the operator is always aware of the PTO's status, enhancing safety protocols.
- Other Ancillary Controls: The standard 5/8-inch diameter offers flexibility for other pneumatic or electrical auxiliary controls, depending on the specific vehicle's needs. This could include controls for air suspension dump, auxiliary brake systems, or other specialized functions that require a dedicated switch or indicator.
The inclusion of this capped hole underscores the console's design philosophy: to provide a comprehensive, ready-to-install control center that addresses multiple operational needs within a single, integrated unit.
Applications and Operational Advantage
The Buyers Products Black Air PTO/Air Hoist Console is an essential component for a wide array of vocational and commercial vehicle applications where pneumatic control of auxiliary systems is required. Its robust construction, precise compatibility, and ergonomic design make it ideal for:
- Heavy-Duty Dump Trucks: Enhancing the control of hydraulic dump bodies for construction, mining, and municipal operations.
- Refuse and Waste Management Vehicles: Providing reliable control for compactors, lifters, and roll-off systems.
- Snow and Ice Removal Trucks: Streamlining the operation of snowplows, spreaders, and de-icing equipment.
- Utility and Service Vehicles: Facilitating the control of cranes, aerial lifts, and other specialized tools.
- Agricultural Equipment: For commercial farm trucks requiring PTO power for various implements.
- Logistics and Material Handling Fleets: Where hydraulic hoists or PTO-driven equipment are integral.
By centralizing these critical controls in a single, durable, and intuitively designed console, fleet operators and vehicle upfitters can achieve several significant advantages:
- Increased Operational Efficiency: Quick, easy, and reliable access to PTO and hoist controls reduces cycle times and improves productivity.
- Enhanced Safety: Clear labeling, ergonomic placement, and optional PTO indicators contribute to safer vehicle operation and reduced risk of operator error.
- Reduced Installation Time and Cost: The pre-punched and lettered design, coupled with standard dimensions, simplifies the installation process, saving labor costs and minimizing vehicle downtime.
- Superior Durability and Longevity: Carbon steel construction with a powder-coat finish ensures the console withstands harsh environments, providing a long-lasting solution.
- Professional Aesthetic: A clean, integrated, and factory-finished appearance enhances the overall professionalism of the vehicle's interior.
- Standardization Across Fleets: Facilitates consistency in control layouts, aiding operator training and fleet maintenance.
Installation and Integration Considerations
While the console is designed for straightforward integration, professional installation is recommended to ensure optimal performance and safety. Key considerations during installation include:
- Secure Mounting: The console must be rigidly mounted to the vehicle’s structure to prevent movement during operation, ensuring stable control valve actuation.
- Air Line Routing: Proper routing and securement of pneumatic lines to the air valves are crucial to prevent kinking, chafing, or leaks.
- Electrical Connections: If a PTO light or other electrical auxiliary switch is utilized, appropriate wiring, fusing, and grounding practices must be followed.
- Clearance and Ergonomics: Confirming that the console placement does not impede other essential controls or driver movement, and that the valves are comfortably within reach.
- System Testing: Thorough testing of PTO engagement/disengagement and hoist functions post-installation to verify correct operation.
Conclusion
The Buyers Products Black Air PTO/Air Hoist Console, with its precise 14-1/8 inch height, represents a pinnacle of functional design and robust engineering for vocational vehicle control systems. Fabricated from high-grade carbon steel and protected by a durable powder-coat finish, it is built to endure the most demanding operational conditions. Its pre-punched and lettered configuration for Chelsea™ type PTO and Williams™ type hoist air valves, coupled with an integrated auxiliary control hole, streamlines installation and enhances operational ergonomics. This console is more than just an accessory; it is a critical investment in the safety, efficiency, and longevity of commercial vehicle fleets, providing a reliable and professional interface for essential pneumatic controls. By choosing this console, operators and fleet managers are opting for a superior solution that embodies durability, precision, and ease of use in the demanding world of heavy-duty applications.
