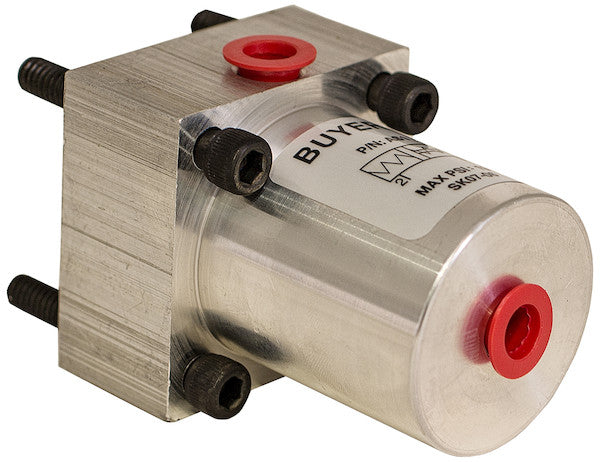

AS1 - Single Spool Air Cylinder Control Valve Accessory

Buyers Products AS1 Single Spool Air Cylinder is an air control option for Buyers Products directional control valves.

Specifications

The Buyers Products AS1 Single Spool Air Cylinder Control Valve Accessory: A Comprehensive Technical Overview

The Buyers Products AS1 Single Spool Air Cylinder Control Valve Accessory represents a critical component within sophisticated pneumatic control systems, offering a robust and reliable means to manage air flow to actuators. As a dedicated air control option specifically designed for integration with Buyers Products directional control valves, the AS1 facilitates precise and responsive command over pneumatic cylinders in a diverse array of industrial and mobile applications. This accessory is engineered to bridge the gap between operator input and the actuation of primary control mechanisms, leveraging the simplicity and inherent safety of pneumatic logic to achieve operational objectives.

At its core, the AS1 functions as a pneumatic pilot valve. In complex systems, it is often undesirable or impractical for an operator to directly actuate large, high-flow hydraulic or pneumatic directional control valves due to required forces, environmental constraints, or the need for remote operation. In such scenarios, smaller, more manageable pilot valves like the AS1 are employed to generate a control signal—in this case, a pneumatic pressure signal—that then shifts the spool of a larger, primary directional control valve. This hierarchical control architecture enhances safety, improves ergonomic design, and allows for greater flexibility in system layout. The single spool design of the AS1 underscores its focused functionality, providing a dedicated control path for a singular pneumatic operation, thereby simplifying its integration and operation within an existing or new control scheme.

Fundamental Principles of Pneumatic Control and Spool Valves

Pneumatic systems operate on the principle of using compressed air as a medium for power transmission. These systems are ubiquitous in industries ranging from manufacturing and construction to transportation and agriculture, primarily due to their cleanliness, simplicity, and inherent safety characteristics. Central to any pneumatic system are control valves, which are responsible for directing the flow of compressed air to various actuators, such as cylinders or motors, thereby converting pneumatic energy into mechanical work.

Spool valves, a common type of directional control valve, are characterized by a cylindrical spool that slides within a machined bore. The spool features lands and grooves that, depending on its axial position, align with various ports drilled into the valve body. This alignment dictates whether compressed air is directed to a specific output port, blocked, or vented to atmosphere. The precision of the machining and the careful design of the spool and bore are paramount to the valve's sealing integrity and operational responsiveness.

The "single spool" designation of the Buyers Products AS1 is indicative of its straightforward functionality. Unlike multi-spool valves that can independently control several functions simultaneously, a single spool valve is dedicated to managing the flow for a single operational circuit. For the AS1, this means it is optimized for controlling one specific pneumatic cylinder, typically by either extending or retracting it. This design philosophy prioritizes reliability and ease of use for a singular, discrete control action. Its function as an "accessory" further clarifies that it is not a standalone primary directional control valve capable of managing significant flow rates directly to large actuators, but rather a specialized component designed to interface with and pilot such primary valves.

Detailed Analysis of Technical Specifications

Understanding the specific technical attributes of the Buyers Products AS1 is crucial for proper system design, installation, and maintenance. Each specification provides insight into the valve's capabilities, limitations, and optimal application environments.

Electrically Operated (y/n): No

The designation "No" for electrical operation is a defining characteristic of the AS1 and carries significant implications for its suitability in various applications. A non-electrically operated pneumatic valve relies entirely on pneumatic pressure signals or mechanical actuation for its operation, eliminating the need for wiring, solenoids, or complex electrical control circuits. This offers several distinct advantages:

• Intrinsic Safety: In environments where explosive gases, flammable dusts, or other hazardous materials are present, electrical components can pose an ignition risk. Non-electric valves eliminate this risk, making the AS1 ideal for intrinsically safe applications where sparks or heat generation from electrical components are unacceptable.
• Immunity to Electrical Interference: In industrial settings replete with electromagnetic interference (EMI) or radio-frequency interference (RFI), electrical components can malfunction. A purely pneumatic valve is immune to such interference, ensuring reliable operation in electrically noisy environments.
• Reduced Wiring Complexity and Cost: Eliminating electrical components significantly simplifies system design, reduces installation time, and lowers material costs associated with wiring, conduits, and junction boxes. This contributes to a cleaner, more streamlined control panel or machine layout.
• Lower Power Consumption: As there are no electrical coils or circuits, the AS1 consumes no electrical power, making it a more energy-efficient choice in systems where electrical power is at a premium or desired to be minimized.
• Enhanced Reliability: With fewer potential points of failure compared to electro-pneumatic valves (e.g., coil burnout, wiring faults), non-electric valves often exhibit greater long-term reliability and reduced maintenance requirements.
• Suitability for Remote/Mechanical Actuation: The absence of electrical components means the AS1 can be directly integrated with mechanical linkages, levers, or purely pneumatic logic circuits for actuation, providing flexibility in control methodologies.

While offering these benefits, it is important to note that non-electrical operation may imply a reduced capacity for sophisticated electronic automation without the integration of additional pneumatic logic components. However, for direct, reliable control actions, its non-electrical nature is a significant advantage.

Inlet Port Size: 1/8 NPTF

The inlet port, designated at 1/8 NPTF (National Pipe Taper Fuel), specifies the connection point for the incoming compressed air supply that will be controlled by the valve. The "NPTF" designation is particularly important. NPTF threads are a type of National Pipe Thread designed to provide a mechanical seal without the need for a thread sealant, though sealants are often used for added security and to prevent galling. The taper of the threads creates an interference fit, causing the flanks of the male and female threads to compress against each other as they are tightened, forming a leak-tight seal. This characteristic is valuable in pneumatic applications where consistent, leak-free operation is paramount.

The 1/8-inch nominal size indicates a relatively small port, which is typical for pilot valves or control accessories. This size is well-suited for transmitting control signals rather than high-volume power air. It implies that the AS1 is designed for applications where the primary function is to send a pressure signal to a larger valve, rather than directly powering a large cylinder requiring high flow rates. The smaller port size contributes to the compact design of the valve and is generally sufficient for the rapid pressurization and depressurization of a pilot chamber.

Main Relief Setting: -

The hyphenated entry for "Main Relief Setting" signifies that the Buyers Products AS1 Single Spool Air Cylinder Control Valve Accessory does not incorporate an internal pressure relief mechanism. This is entirely consistent with its role as a control valve accessory or pilot valve. In a typical pneumatic system, main pressure regulation and relief are handled upstream by dedicated components such as pressure regulators and relief valves, often located immediately downstream from the air compressor or within the primary directional control valve it pilots. The AS1's function is solely to direct or block air flow, not to regulate the system's overall pressure or to protect against overpressure conditions. Relying on system-level pressure management simplifies the design of the AS1 and ensures that pressure integrity is maintained at a broader system level.

Maximum Flow Rate: -

Similar to the main relief setting, the absence of a specified "Maximum Flow Rate" for the AS1 is characteristic of its function. As a control valve accessory, its primary task is to transmit a pneumatic signal, which requires only a relatively small volume of air flow to actuate the spool of a larger primary valve. The actual maximum flow rate of the working air in the system is dictated by the primary directional control valve that the AS1 pilots, as well as the sizing of the compressor, air lines, and actuators. The flow capacity of the 1/8 NPTF ports on the AS1 is more than adequate for its signaling role, ensuring rapid and efficient transmission of control commands without being a limiting factor for the main system's performance.

Maximum Pressure: 125

The "Maximum Pressure" rating of 125 (typically measured in Pounds per Square Inch, PSI, in North American contexts) is a critical specification that indicates the highest operating pressure the valve can safely and reliably withstand. This rating suggests that the AS1 is engineered with robust materials and precise manufacturing tolerances to handle common industrial and mobile pneumatic system pressures, which typically range from 90 to 120 PSI. A 125 PSI rating provides a healthy safety margin for standard operating conditions and ensures durability under normal load fluctuations.

Components designed for this pressure range must exhibit excellent material strength for the valve body, effective sealing for internal components (such as O-rings or seals around the spool), and secure port connections. Exceeding this maximum pressure can lead to premature wear, seal failure, internal damage, or even catastrophic failure, posing significant safety risks and system downtime. Therefore, proper system design must ensure that the pressure supplied to the AS1 does not consistently exceed this specified maximum.

Out Port Size, Outlet Port Size, Work Port Size: 1/8 NPTF

The consistent specification of 1/8 NPTF for "Out Port Size," "Outlet Port Size," and "Work Port Size" highlights the unified pneumatic connection standard across the operational interfaces of the AS1. While these terms might sometimes be used interchangeably or refer to slightly different functional aspects in more complex valves, in the context of a single spool accessory, they all pertain to the connections responsible for delivering the controlled pneumatic signal to the actuated component (e.g., the pilot port of a larger valve) or for exhausting air from the controlled circuit. "Work Port Size" typically refers to the ports directly connected to the component being operated (e.g., a single-acting air cylinder or one side of a double-acting cylinder's pilot input).

The uniformity of the 1/8 NPTF size across these ports offers practical benefits:

• Simplified Plumbing: Using a single standard port size for all connections simplifies hose and fitting selection, reducing inventory complexity and potential for errors during installation.
• Balanced Signal Transmission: Consistent port sizing ensures that pneumatic control signals can be transmitted and exhausted efficiently and symmetrically, contributing to responsive valve actuation.
• Compact Design: Small port sizes allow for a more compact valve footprint, which is advantageous in applications where space is limited.

The NPTF threading, as discussed, ensures a robust, taper-thread seal, crucial for maintaining pressure integrity in pneumatic circuits and preventing costly air leaks.

Port Type: NPT

The "Port Type: NPT" specification reaffirms the use of National Pipe Taper threads for all connections on the Buyers Products AS1. NPT is a widely recognized and utilized standard for threaded connections in North America, particularly in hydraulic and pneumatic systems. The tapered nature of these threads means that as the male and female threads engage, they progressively tighten, creating a metal-to-metal seal. While NPTF (National Pipe Taper Fuel) offers an enhanced sealing capability through crest and root interference, standard NPT threads also rely on the taper. For optimal sealing and to prevent leaks over time, especially in dynamic or vibration-prone environments, the use of appropriate thread sealants (such as PTFE tape or liquid pipe thread sealant) is highly recommended with NPT connections. Proper application of these sealants fills any helical leak paths and provides lubrication during assembly, preventing galling.

Power Beyond (y/n): No

"Power Beyond" is a feature commonly found in hydraulic directional control valves, particularly those used in mobile equipment. It allows the main system's pressurized flow to be routed from one valve section to another in a series arrangement, even when the first valve is in its neutral position. This enables multiple hydraulic functions to be powered sequentially from a single pump. For the Buyers Products AS1, the "No" designation for "Power Beyond" is entirely expected and appropriate for its function as a pneumatic control valve accessory.

The AS1 is not designed to handle the primary power flow of a pneumatic system to subsequent components. Its role is to generate or transmit a control signal. It acts as a terminal point or a pilot input in a control circuit, rather than a pass-through component for system power. This characteristic reinforces its identity as a specialized control element, separate from the main power distribution network of a larger pneumatic or hydraulic system. System designers should account for this by ensuring that primary air supply is routed directly to the valves or components that require main system flow, while the AS1 receives only the necessary pilot air.

Operational Integration and Application Scenarios

The strategic value of the Buyers Products AS1 lies in its seamless integration with other Buyers Products directional control valves and its ability to facilitate complex control functions through simplified pneumatic means. As an air control option, the AS1 typically serves as the intermediary between an operator's manual input and the actuation of a larger, often more robust, primary directional control valve. This often involves the operator manipulating a lever, button, or foot pedal which, in turn, mechanically actuates the AS1. The AS1 then sends a pneumatic pressure signal to the pilot port of a main valve, causing its spool to shift and direct hydraulic fluid or high-flow air to the ultimate actuator.

Consider a common scenario in mobile hydraulics: a snow plow or dump body operation. An operator might engage a joystick or lever in the cab. This mechanical input could actuate the AS1. The AS1, receiving compressed air from the vehicle's air system, would then send a pressurized air signal (e.g., 90-120 PSI) to the pilot port of a larger, solenoid-operated hydraulic valve. This pneumatic signal would cause the hydraulic valve's spool to shift, allowing hydraulic fluid to flow to a lift cylinder, thereby raising or lowering the plow or dump body. This indirect method of control offers several benefits:

• Remote Operation: The AS1 allows for physical separation between the operator control and the high-pressure main valve, enabling remote control capabilities.
• Ergonomics: Smaller, easier-to-actuate pilot valves reduce operator fatigue compared to directly manipulating large, high-force valves.
• Protection of Main Valves: The AS1 shields the primary control valve from direct operator interaction, reducing wear and potential for damage.

Typical Applications

The Buyers Products AS1 Single Spool Air Cylinder Control Valve Accessory finds its utility in a broad spectrum of demanding applications where robust, non-electric pneumatic control is advantageous:

• Mobile Hydraulics: Vehicles such as dump trucks, refuse vehicles, snow plows, salt spreaders, and utility trucks frequently utilize air-over-hydraulic systems. The AS1 can control the pneumatic cylinders that, in turn, actuate the main hydraulic directional valves for functions like lifting dump beds, angling plows, or extending outriggers.
• Agricultural Equipment: In farm machinery, where robust, weather-resistant controls are essential, the AS1 can be used to pilot valves for various implement functions, such as controlling sprayer booms, tillage equipment, or harvesting components. Its non-electrical nature is especially beneficial in outdoor, often dirty, and damp environments.
• Industrial Automation: While often associated with mobile applications, the AS1 can also be found in industrial settings requiring direct pneumatic control of single-acting cylinders or as pilot valves for larger pneumatic or hydraulic systems on production lines, material handling equipment, or specialized machinery.
• Construction Machinery: Equipment like concrete mixers, paving machines, or mobile cranes (for non-critical auxiliary functions where air control is suitable) could employ the AS1 for dependable control inputs.
• Utility Vehicles: Service trucks, emergency vehicles, and municipal vehicles often rely on robust pneumatic systems for various ancillary functions, where the AS1 provides a reliable control interface.

Its non-electrical nature, combined with its robust pressure rating, makes it a preferred choice in applications where environmental harshness, safety from electrical hazards, or simplicity of control are paramount.

Installation Best Practices and System Longevity

Proper installation and adherence to best practices are crucial for maximizing the performance, reliability, and longevity of the Buyers Products AS1 Single Spool Air Cylinder Control Valve Accessory, as well as the entire pneumatic system. Given its role as a precise control component, meticulous attention to detail during setup is essential.

• Air Preparation: The quality of compressed air supplied to the AS1 is paramount. Contaminants such as moisture, particulate matter, and compressor oil residues can severely degrade internal seals, clog orifices, and lead to premature valve failure. Implementing a comprehensive Air Preparation Unit (FRL - Filter, Regulator, Lubricator) upstream of the AS1 and the main system is highly recommended. While the AS1 typically does not require lubrication (many modern pneumatic components are designed for non-lubricated air), a good quality filter and pressure regulator are indispensable to ensure clean, dry air at the correct operating pressure.
• Thread Sealants: Although NPTF threads offer inherent sealing capabilities, the use of an appropriate thread sealant (e.g., PTFE tape or a liquid pipe thread sealant compatible with pneumatic systems) on all 1/8 NPTF connections is strongly advised. This enhances leak prevention, especially under vibration or thermal cycling, and provides lubrication for easier assembly and disassembly without damaging the threads. Apply sealant carefully to the male threads, ensuring it does not enter the airflow path to prevent contamination.
• Mounting: Securely mount the AS1 to a stable surface using appropriate fasteners. Vibration can loosen connections and potentially damage the valve over time. Ensure that the mounting location provides adequate access for connection, inspection, and any future servicing.
• Hose and Tubing Selection: Select pneumatic tubing or hoses that are correctly sized for the 1/8 NPTF ports and rated for the maximum system pressure (125 PSI) and expected operating temperatures. Use durable, kink-resistant materials that are compatible with the operating environment and potential exposure to chemicals or UV radiation. Ensure all connections are tight and leak-free.
• System Flushing: Before connecting the AS1, it is good practice to flush the pneumatic lines upstream to remove any debris, metal shavings, or contaminants that may have accumulated during installation.
• Preventative Maintenance: Regular inspection of all pneumatic connections, tubing, and seals for signs of wear, damage, or leaks is crucial. Periodically check the air quality from the filter and drain any accumulated moisture. While the AS1 is a robust unit, proactive maintenance can significantly extend its service life and prevent unexpected downtime.

Conclusion – The Value Proposition of the AS1

The Buyers Products AS1 Single Spool Air Cylinder Control Valve Accessory stands as a testament to effective, reliable, and straightforward pneumatic control engineering. Its design, characterized by its non-electrical operation, compact 1/8 NPTF porting, and robust 125 PSI pressure rating, positions it as an indispensable component for applications requiring precise, durable, and safe pneumatic signaling. By serving as an efficient air control option for Buyers Products directional control valves, the AS1 facilitates streamlined interaction between operator input and the primary hydraulic or pneumatic actuators that drive demanding mobile and industrial equipment.

This accessory excels in environments where electrical interference is a concern, intrinsic safety is paramount, or where the simplicity of purely pneumatic logic is preferred over complex electrical systems. Its reliable performance, ease of integration, and minimal maintenance requirements contribute significantly to the overall efficiency, safety, and longevity of the systems it serves. For system designers and operators seeking a dependable, non-electrical pneumatic pilot valve to enhance the control of their heavy-duty equipment, the Buyers Products AS1 offers a compelling solution that embodies durability, precision, and operational peace of mind.
