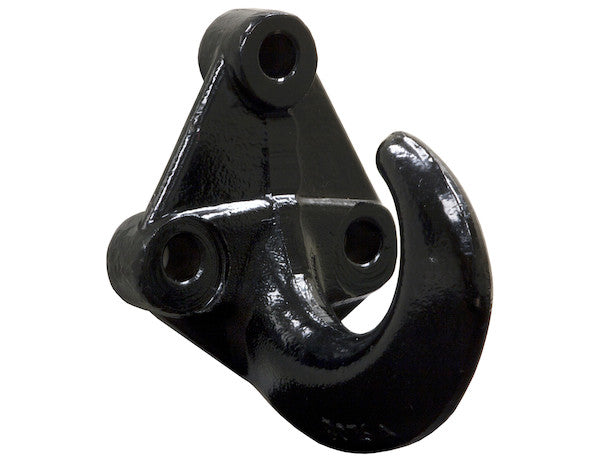

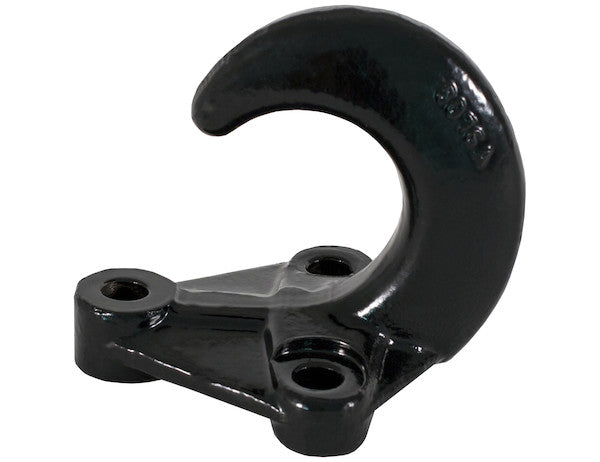

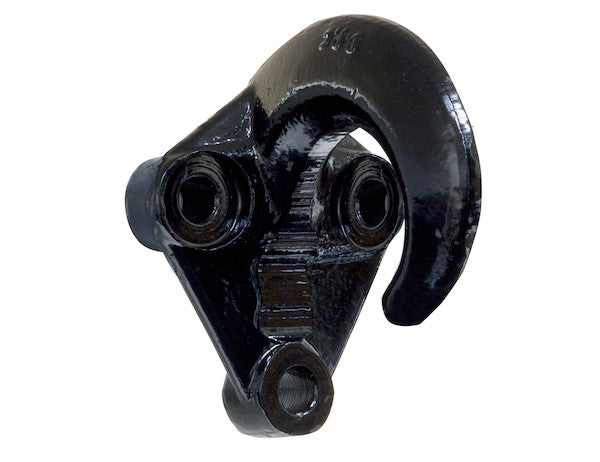

B076A - 3- Hole Black Powder Coated Drop Forged Bolt-On Heavy-Duty Towing Hook

The Bolt-On Heavy Duty Towing Hook from Buyers Products is made from rugged drop-forged steel to handle straight-line towing jobs up to 20,000 lb. It can be mounted to the front or rear of the truck's frame for recovery towing. A black powder-coated finish resists corrosion for long lasting use.

Specifications

The 3-Hole Black Powder Coated Drop Forged Bolt-On Heavy-Duty Towing Hook from Buyers Products represents an exemplary fusion of material science, precision engineering, and robust protective finishing, meticulously designed for the most demanding towing and recovery applications. This specialized component is engineered to provide unparalleled reliability and performance for commercial, industrial, municipal, and heavy-duty off-road vehicles requiring formidable towing and recovery capabilities. Its construction, specifications, and design philosophy are centered on delivering maximum strength, durability, and operational longevity under severe conditions.

At the core of this heavy-duty towing hook's superior performance is its material composition: rugged drop-forged steel. Forging is a metal forming process that involves shaping metal through localized compressive forces using hammers or presses. Specifically, drop forging utilizes a die (or set of dies) into which a heated metal billet is placed and then struck repeatedly with a descending ram. This process is critically different from casting, where molten metal is poured into a mold, or machining, where material is removed from a larger block. The distinguishing advantage of drop forging is the creation of an optimized grain structure within the metal. During forging, the metal's grain flow is aligned with the part's contour, eliminating internal voids, porosity, and imperfections commonly found in castings. This refined, directional grain structure significantly enhances the material's mechanical properties, leading to superior tensile strength, yield strength, and, crucially for towing applications, exceptional impact and fatigue resistance. These characteristics ensure the hook can withstand not only the sustained tension of straight-line towing but also the dynamic, often unpredictable shock loads inherent in vehicle recovery operations without brittle fracture or premature failure. The selection of a high-grade steel alloy for this forging process further guarantees that the hook can safely manage its impressive 20,000 lb capacity, providing a substantial safety margin above typical operational demands.

The structural integrity of any towing apparatus is intrinsically linked to its mounting interface. This towing hook features a robust bolt-on design, a deliberate choice over weld-on alternatives for several compelling reasons. A bolt-on mechanism simplifies installation significantly, eliminating the need for specialized welding equipment, certified welders, and the inherent risks associated with introducing heat-affected zones (HAZ) into the vehicle's frame. HAZ can potentially compromise the structural integrity and metallurgical properties of both the hook and the frame material. Furthermore, the bolt-on system allows for easier replacement or repositioning of the hook, offering greater flexibility and maintainability throughout its service life. The precise 3-hole mounting configuration is engineered to optimize load distribution across the attachment points, thereby minimizing stress concentrations on individual fasteners and the vehicle's frame. With mounting hole diameters of 0.562 inches and precise center-to-center spacing—2.812 inches vertically and 2.50 inches horizontally—this design ensures a secure, rigid connection that resists rotation, shearing forces, and bending moments even under extreme loads. The use of three attachment points, as opposed to two, provides superior stability and load transfer efficiency, distributing the forces more evenly and effectively anchoring the hook to the vehicle’s robust frame structure. It is imperative that appropriate grade hardware (e.g., Grade 8 bolts, nuts, and hardened washers) is used during installation, torqued precisely to vehicle manufacturer or engineering specifications, to ensure the full rated capacity and safety of the assembly.

Functionality and performance are paramount for a heavy-duty towing component. This hook is explicitly rated for a substantial 20,000 lb capacity. It is critical to understand this figure in the context of Working Load Limit (WLL), which is the maximum force or weight that a piece of lifting equipment, rigging, or accessory can safely support when new and in an undamaged condition. Towing and recovery equipment, particularly those manufactured by reputable companies like Buyers Products, typically incorporates a significant safety factor (often 3:1, 4:1, or even 5:1) between its WLL and its Minimum Breaking Strength (MBS), which is the load at which a component is expected to fail. This built-in safety margin ensures reliability under unforeseen dynamic loads or environmental stresses that might approach or momentarily exceed the nominal WLL. A 20,000 lb WLL positions this towing hook as ideal for a wide array of demanding tasks, including the towing of large commercial vehicles, utility trucks, construction equipment, and heavy trailers, as well as the recovery of such vehicles from challenging terrains, mud, snow, or ditches. Its design is optimized for straight-line towing, where sustained, linear pulling forces are applied, ensuring stable and controlled movement of the towed object. For recovery operations, where forces can be sudden, dynamic, and often involve snatching or jerking actions, the inherent toughness and impact resistance of drop-forged steel, combined with the secure 3-hole mounting, provide the necessary resilience to prevent catastrophic failure. The hook's geometry is also meticulously crafted to accommodate standard heavy-duty towing straps, chains, or cables, providing a secure and reliable attachment point that minimizes the risk of accidental disengagement under tension. The throat opening is designed to facilitate quick attachment while retaining the towing medium securely during operation.

Environmental durability is a non-negotiable attribute for equipment subjected to the harsh realities of outdoor and commercial use. This towing hook features a premium black powder-coated finish, offering superior protection against the elements. Powder coating is a dry finishing process where finely ground particles of pigment and resin are electrostatically charged and sprayed onto a grounded metallic surface. The charged powder particles adhere to the electrically grounded surfaces until the powder is heated and fused into a smooth coating in a curing oven. This process creates a uniform, durable, and high-quality finish that significantly outperforms conventional liquid paints in several key areas. Firstly, powder coating provides exceptional resistance to corrosion, forming an impenetrable barrier against moisture, road salt, chemicals, abrasive debris, and other environmental aggressors commonly encountered in towing and recovery scenarios. This prevents rust formation, preserving the structural integrity of the steel over extended periods. Secondly, the finish exhibits superior resistance to chipping, scratching, and abrasion, which are common wear factors for components exposed to the rigors of vehicle recovery and outdoor installation. The robust nature of the cured powder coat maintains the hook's aesthetic appeal, preventing premature degradation of its professional black finish, thereby extending both its functional life and its visual consistency with other vehicle accessories. The environmental benefits of powder coating, being a VOC-free (Volatile Organic Compounds) process, further align with modern sustainability practices, minimizing harmful emissions during manufacturing. This comprehensive protective layer ensures the hook retains its functional capabilities and professional appearance throughout its demanding operational lifespan, even when exposed to continuous outdoor exposure and challenging weather conditions.

Proper installation, consistent maintenance, and adherence to safety protocols are paramount to realizing the full potential and ensuring the long-term reliability of this heavy-duty towing hook. For installation, it is crucial to consult the vehicle manufacturer's recommendations for suitable frame attachment points and to ensure that the frame can safely accommodate the stresses associated with a 20,000 lb rated capacity. As previously mentioned, only high-grade fasteners (e.g., Grade 8 bolts, nuts, and hardened washers) should be utilized, and they must be torqued to the manufacturer's specified values to prevent loosening under vibration or stress, which could lead to catastrophic failure. It is advisable to perform a post-installation check after an initial period of use to re-verify fastener torque. Regular visual inspections are a critical component of maintenance. Users should routinely examine the hook for any signs of wear, deformation (such as bending, stretching, or twisting), cracks, excessive corrosion, or damage to the powder coat. Any hook exhibiting signs of structural compromise must be immediately taken out of service and replaced. Loose or damaged fasteners should be promptly addressed. While the powder coat offers excellent protection, localized damage exposing bare metal should ideally be touched up or professionally recoated to prevent localized corrosion that could spread. Cleaning the hook periodically to remove accumulated dirt, mud, or corrosive agents (like road salt) will also contribute to its longevity.

Safety in towing and recovery operations cannot be overstated. Strict adherence to the 20,000 lb Working Load Limit is non-negotiable; exceeding this capacity places undue stress on the hook, fasteners, and the vehicle's frame, dramatically increasing the risk of failure. It is equally important to use towing straps, chains, or cables that are themselves rated for at least the same capacity, if not higher, than the hook. Operators must avoid shock loading, which involves sudden, forceful jerking motions, as this can generate forces far exceeding the static weight of the towed vehicle, potentially pushing components beyond their MBS. Instead, forces should be applied smoothly and gradually. During any towing or recovery operation, all personnel must maintain a safe distance from the vehicle and the towing line, as components under extreme tension can store significant energy and, if they fail, can recoil violently. Understanding the weight ratings of the vehicle being towed and the towing vehicle itself, along with any specific towing limits set by the vehicle manufacturer, is also essential. For complex recovery situations, proper training in recovery techniques and the use of specialized equipment is highly recommended to ensure safety for all involved.

In conclusion, the 3-Hole Black Powder Coated Drop Forged Bolt-On Heavy-Duty Towing Hook from Buyers Products stands as a testament to engineering excellence, offering a robust, reliable, and durable solution for the most challenging towing and recovery requirements. Its foundation in rugged drop-forged steel ensures superior strength, impact resistance, and fatigue life. The meticulously designed 3-hole bolt-on mounting system provides secure integration and optimal load distribution. With a formidable 20,000 lb capacity, it is capable of handling heavy commercial and industrial vehicles with confidence. The black powder-coated finish provides a resilient barrier against environmental degradation, ensuring prolonged aesthetic appeal and functional longevity. When considering equipment that is critical to operational efficiency and safety in demanding environments, this towing hook delivers an uncompromising blend of performance, durability, and peace of mind, making it an indispensable asset for any heavy-duty fleet or vehicle requiring dependable towing and recovery capabilities.
