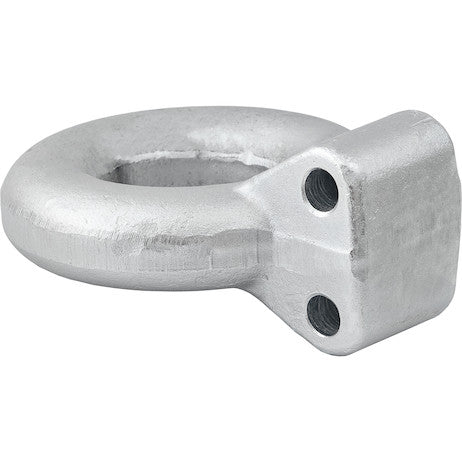

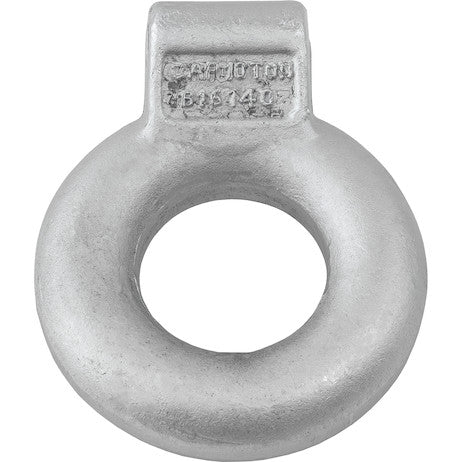

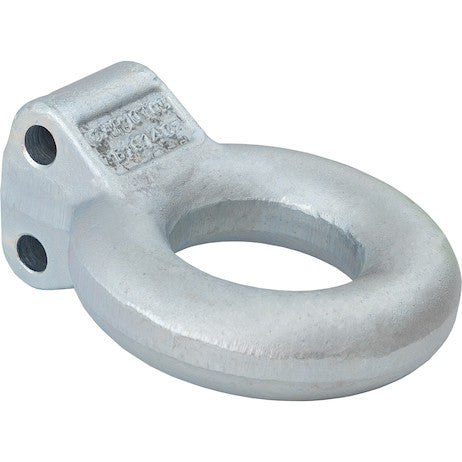

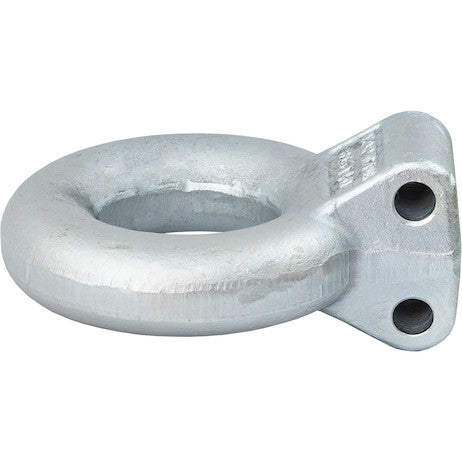

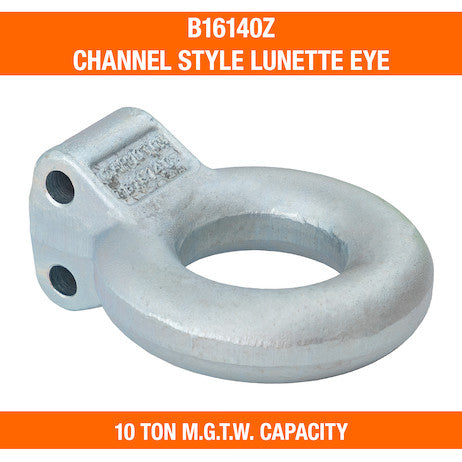

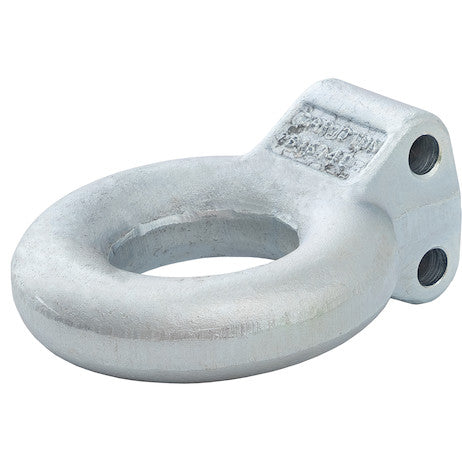

B16140Z - Zinc Plated 10-Ton Forged Steel Tow Eye 3 Inch I.D.

The Forged Steel Tow Eyes from Buyers Products are designed to be bolted into an adjustable channel bracket. This allows you to position the tow eye or lunette for level towing. Simply bolt the eye into the channel bracket at the position that fits your needs, and connect to the pintle hook on your truck. The eye has an interior diameter of 3 in. and is made of rugged forged steel to handle a maximum gross towing weight of 25,000 lb. Available in a corrosion-resistant zinc-plated finish or with no finish.

Specifications

Advanced Technical Overview: Zinc Plated 10-Ton Forged Steel Tow Eye 3 Inch I.D.

The Zinc Plated 10-Ton Forged Steel Tow Eye with a 3-inch Inner Diameter represents a pinnacle of engineering and material science, specifically designed for demanding heavy-duty towing applications. This component is not merely an accessory but a critical safety and performance element within a complete pintle hitch system. Manufactured by Buyers Products, a recognized leader in towing and truck equipment, this tow eye is meticulously engineered to provide exceptional strength, durability, and corrosion resistance, ensuring reliable operation under the most rigorous conditions.

Material Science and Manufacturing Excellence: Forged Steel

At the core of this tow eye's superior performance is its construction from high-quality forged steel. Forging is a metal forming process that involves applying compressive forces to shape metal, in contrast to casting where molten metal is poured into a mold. This process significantly enhances the material's structural integrity and mechanical properties, which are paramount for components subjected to high dynamic loads and stresses typical in heavy-duty towing.

The advantages of forged steel are numerous and directly contribute to the tow eye's robust nature:

• Superior Strength-to-Weight Ratio: Forging refines the grain structure of the steel, eliminating internal voids and porosity common in cast parts. This results in a denser, more homogenous material with significantly higher tensile strength, yield strength, and fatigue resistance. Forged steel can withstand greater loads and stresses without deforming or failing.
• Optimized Grain Flow: The forging process strategically aligns the grain flow of the steel to follow the contour of the part. This optimized grain flow provides directional strength, concentrating the material's resistance along critical stress points, such as the eye opening and mounting section. This inherent structural advantage minimizes the risk of cracking or brittle fracture under extreme pulling forces.
• Enhanced Impact Resistance: Due to its dense and uniform microstructure, forged steel exhibits superior toughness and impact resistance compared to cast alternatives. This characteristic is crucial for towing components that can experience sudden shocks, jolts, and vibrations during operation, particularly on uneven terrain or during abrupt stopping and starting.
• Improved Fatigue Life: Components in towing systems are constantly subjected to cyclic loading – repetitive stress cycles that can lead to material fatigue over time. The refined grain structure and absence of internal defects in forged steel contribute to a significantly extended fatigue life, ensuring the tow eye maintains its structural integrity over thousands of towing cycles.
• Reduced Material Variation: Forging processes result in tighter dimensional tolerances and a consistent material composition throughout the component. This predictability in material properties is vital for engineers to accurately calculate stress distributions and ensure the tow eye consistently meets its rated capacity.

The specific grade of steel utilized, while not always publicly disclosed, is chosen for its optimal balance of strength, ductility, and hardenability, often undergoing heat treatment processes to further enhance these properties. The robust 1.625-inch drawbar section provides ample cross-sectional area to distribute forces effectively, minimizing localized stress concentrations at the mounting points.

Advanced Corrosion Protection: Zinc Plating

Given the harsh operating environments typically encountered by heavy-duty towing equipment – exposure to moisture, road salts, chemicals, and abrasive elements – corrosion resistance is a critical design parameter. This tow eye features a premium zinc-plated finish, specifically described as "Zinc Plated Clear," which provides an advanced layer of protection against environmental degradation.

Zinc plating, also known as electro-galvanization, involves depositing a thin layer of zinc onto the steel substrate through an electrochemical process. The primary mechanism of protection offered by zinc is galvanic corrosion prevention. Zinc is a more reactive metal than steel; therefore, when both metals are exposed to an electrolyte (e.g., moisture, saltwater), the zinc acts as a sacrificial anode. It preferentially corrodes, protecting the underlying steel from rust and oxidation even if the coating is scratched or chipped.

Key benefits of the zinc-plated finish include:

• Extended Service Life: By effectively preventing rust and corrosion, the zinc plating significantly prolongs the operational lifespan of the tow eye, reducing the need for premature replacement and minimizing downtime for maintenance.
• Maintained Structural Integrity: Rust can weaken steel, leading to reduced load-bearing capacity and potential failure. The protective barrier ensures the forged steel retains its designed mechanical properties throughout its service life.
• Enhanced Aesthetic Appeal: The "Silver" color and "Zinc Plated Clear" finish provide a clean, professional appearance that resists tarnishing, contributing to the overall visual quality of the towing setup.
• Resistance to Environmental Aggressors: The plating offers robust protection against common corrosives such as road salts, industrial pollutants, and acidic rain, making it suitable for year-round use in diverse geographical locations.

A clear chromate passivation layer is typically applied over the zinc plating. This clear coat further seals the zinc, enhances its corrosion resistance, and provides a brighter, more uniform finish without altering the component's inherent color. This multi-layered approach to corrosion protection ensures the tow eye maintains optimal performance and appearance for an extended period, even in challenging weather conditions.

Precision Design and Adaptability: 3-Inch I.D. and Adjustable Mounting

The design of this tow eye reflects meticulous attention to industry standards and operational flexibility. Its 3.00-inch inner diameter (I.D.) is a widely recognized and utilized dimension in heavy-duty towing, ensuring broad compatibility with a variety of pintle hooks, including those rated for 20,000 lbs, 30,000 lbs, and even higher capacities. This standardization is crucial for interoperability across different fleets and trailer types, simplifying equipment management for commercial operators.

The 6.25-inch outer diameter (O.D.) of the eye provides a substantial amount of material around the internal bore, distributing stress effectively and ensuring the structural integrity necessary to manage the formidable 20,000 lbs (10-ton) Maximum Gross Towing Weight (M.G.T.W.) rating. This robust outer dimension works in conjunction with the forged steel construction to prevent deformation or failure under peak towing loads.

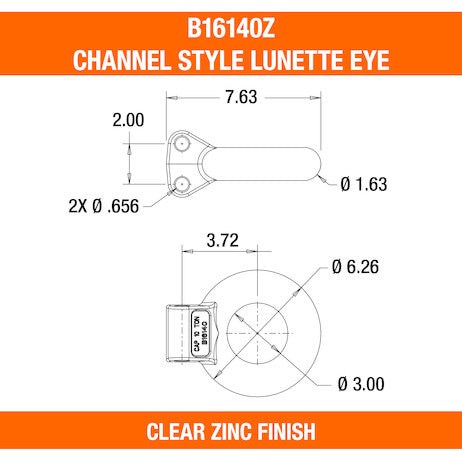

A key design feature is its compatibility with adjustable channel brackets. This bolt-on configuration, with mounting hole diameters of 0.656 inches and a vertical hole spacing of 2.00 inches, offers unparalleled versatility:

• Level Towing Optimization: The ability to adjust the tow eye's vertical position within a channel bracket is critical for achieving level towing. Maintaining a level trailer stance ensures proper weight distribution across all trailer axles and the tow vehicle's rear axle. This prevents excessive tongue weight (M.V.L. of 2,000 lbs) or insufficient tongue weight, both of which can lead to unstable towing, tire wear, reduced braking efficiency, and increased risk of trailer sway.
• Enhanced Safety: Level towing improves vehicle handling and stability, significantly reducing the likelihood of uncontrolled trailer movements, especially during emergency maneuvers or on uneven roads.
• Reduced Component Wear: Optimal alignment minimizes undue stress on the hitch components, trailer frame, tires, and suspension systems of both the tow vehicle and the trailer, extending the life of all related equipment.
• Customizable Configuration: The bolt-on design allows operators to quickly adapt the tow eye height to match various tow vehicle hitch heights and different trailer configurations, ensuring maximum flexibility across a diverse range of operational scenarios.

Proper installation requires the use of high-grade fasteners, typically SAE Grade 8 bolts, to match the strength of the forged steel tow eye and channel bracket. Adherence to manufacturer-recommended torque specifications for these bolts is paramount to ensure a secure, rigid connection that will not loosen under dynamic towing forces, maintaining the integrity of the entire hitch system.

Performance Metrics and Industry Compliance

The performance of this tow eye is quantified by its critical specifications, which adhere to stringent industry standards to ensure safety and reliability:

• Maximum Gross Towing Weight (M.G.T.W.): 20,000 lbs (10 Tons): This rating specifies the maximum combined weight of the trailer and its cargo that the tow eye is designed to safely handle. The 10-ton capacity positions this component squarely in the heavy-duty category, suitable for hauling large utility trailers, construction equipment, agricultural machinery, and various commercial loads. This rating includes a substantial safety factor, meaning the ultimate breaking strength is significantly higher than the rated M.G.T.W., providing an essential margin of safety.
• Maximum Vertical Load (M.V.L.): 2,000 lbs: Also known as tongue weight, the M.V.L. indicates the maximum downward force that the trailer's tongue can exert on the tow vehicle's hitch point. A proper tongue weight, typically 10-15% of the M.G.T.W. for conventional trailers, is crucial for stable towing. The 2,000 lbs M.V.L. capacity ensures that even with heavy tongue loads, the tow eye maintains its structural integrity.

These ratings are typically established through rigorous testing protocols, often in accordance with industry standards such as SAE J847 for "Full Trailer Towing Couplings and Hitches" and SAE J684 for "Trailer Couplings and Hitches." These standards prescribe tests for static strength, dynamic fatigue, and shock loading to validate the product's ability to withstand the stresses of real-world operation. Compliance with such standards assures users of the product's quality, safety, and performance capabilities.

Applications and Operational Environments

The Zinc Plated 10-Ton Forged Steel Tow Eye is engineered for a diverse array of demanding applications across various industries:

• Construction and Heavy Equipment: Ideal for towing concrete mixers, generators, air compressors, excavators, and other construction-grade equipment on job sites and public roads.
• Agriculture: Suitable for agricultural trailers, implements, and machinery, handling the robust demands of farm operations.
• Municipal and Utility Fleets: Excellent for government and utility service vehicles towing equipment, maintenance trailers, and specialized apparatus.
• Commercial Hauling: Provides a reliable connection for flatbed trailers, equipment transporters, and other commercial hauling operations where safety and durability are paramount.
• Industrial Use: Found in various industrial settings where heavy loads need to be moved efficiently and securely.

Its zinc-plated finish makes it particularly well-suited for outdoor use and environments where exposure to corrosive elements is common, including coastal regions, areas with heavy road salt application, and industrial zones.

Installation, Maintenance, and Safety Protocols

Proper installation and diligent maintenance are crucial for maximizing the lifespan and ensuring the safe operation of this high-capacity tow eye:

Installation:

1. Selection of Channel Bracket: Ensure the adjustable channel bracket is appropriately rated for the 20,000 lbs M.G.T.W. and is securely mounted to the trailer frame.
2. Bolt Selection: Utilize high-strength fasteners, typically Grade 8 bolts, nuts, and hardened washers, to match the strength of the forged steel components.
3. Positioning: Insert the tow eye into the desired vertical position within the channel bracket to achieve level towing, accounting for the loaded trailer.
4. Fastener Torque: Secure the tow eye to the channel bracket by tightening the bolts to the manufacturer's specified torque values. This is critical for preventing loosening and maintaining the structural integrity of the connection. Use a calibrated torque wrench for accuracy.
5. Final Check: Verify all fasteners are tight and the tow eye is securely seated within the channel bracket with no play.

Maintenance:

• Regular Visual Inspections: Prior to each towing operation, conduct a thorough visual inspection of the tow eye for any signs of wear, deformation, cracks, excessive corrosion, or damage to the zinc plating.
• Fastener Integrity: Periodically check the tightness of all mounting bolts. Vibrations and dynamic loads can cause fasteners to loosen over time.
• Pintle Hook Interface: Inspect the inside of the 3-inch eye for excessive wear or gouging from the pintle hook, which could indicate improper hitching or an excessively worn pintle hook.
• Cleaning: Keep the tow eye clean of dirt, mud, and road debris. While zinc plating is highly protective, removing contaminants helps preserve its integrity.

Safety Protocols:

• Adhere to Ratings: Never exceed the M.G.T.W. of 20,000 lbs or the M.V.L. of 2,000 lbs. Overloading can lead to catastrophic failure.
• Proper Hitching: Always ensure the pintle hook is fully closed and latched around the tow eye, and that any safety mechanisms are engaged.
• Safety Chains: Connect safety chains or cables between the tow vehicle and trailer in accordance with all local and federal regulations.
• Braking Systems: Verify that trailer braking systems are operational and properly adjusted.
• Driver Awareness: Operators should be familiar with the dynamics of towing heavy loads, including increased stopping distances, wider turning radii, and the potential for trailer sway.

Conclusion

The Zinc Plated 10-Ton Forged Steel Tow Eye with a 3-inch Inner Diameter is an exceptionally durable and reliable component designed for the most demanding heavy-duty towing tasks. Its superior forged steel construction, augmented by a robust zinc-plated finish, delivers unmatched strength, fatigue resistance, and corrosion protection. Coupled with its standardized 3-inch I.D. and compatibility with adjustable channel brackets for optimized level towing, this tow eye ensures maximum operational safety, prolonged service life, and consistent performance across a wide spectrum of commercial, industrial, and agricultural applications. Investing in this high-quality tow eye from Buyers Products means choosing a critical towing component engineered for unwavering reliability and peak performance, upholding the highest standards of safety and efficiency in heavy equipment transportation.
