Buyers Products Dual Axis Remote Valve Control is designed for greater flexibility in use and in installation. The dual axis control gives you the ability to operate two valves simultaneously. The lever can move in both front-to-back and left-to-right motions, making the valve control ideal for multi-movement applications such as snow plows.
Specifications

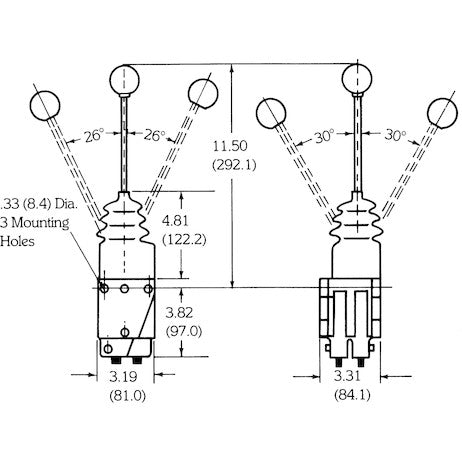

| Boot Height | 4.81 " |
| Description | Dual Axis Remote Valve Control |
| Mounting Plate Height | 3.82 " |
| Thickness | 3.31 " |
| Mounting Plate Width | 3.19 " |
| Mounting Hole Pattern | 3 Hole |
| Handle Length | 11.5 " |
| Number of Axis | Dual |
| Handle Material | Carbon Steel |
| Mounting Hole Diameter | 0.33 " |
| Can be stacked (y/n) | Yes |
Advanced Technical Overview: Dual Axis Remote Valve Control
The Buyers Products Dual Axis Remote Valve Control represents a sophisticated solution engineered for precision hydraulic system management, offering unparalleled operational flexibility and streamlined installation processes. This control mechanism is specifically designed to facilitate simultaneous operation of two distinct hydraulic valves, a critical capability for complex machinery requiring coordinated multi-directional movement. Its innovative dual-axis design allows for intuitive control inputs, translating lever movements along both the front-to-back (longitudinal) and left-to-right (lateral) planes into precise commands for connected hydraulic systems. This inherent versatility makes it an indispensable component for a wide array of demanding applications, particularly excelling in dynamic environments such as the operation of snow plows, where simultaneous control over blade lift/lower and angle/tilt functions is paramount.
Operational Mechanics and Ergonomics
The core functionality of the Dual Axis Remote Valve Control hinges on its ability to translate mechanical lever movements into hydraulic valve actuation signals. The control lever, fabricated from robust Carbon Steel, offers exceptional durability and tactile feedback, crucial for operators in challenging conditions. The 11.5-inch handle length provides ample leverage and ergonomic comfort, reducing operator fatigue during prolonged use. The dual-axis movement capability means that a single control lever can govern two independent hydraulic circuits. For instance, in a snow plow application, pushing the lever forward or pulling it backward might control the vertical position (lift/lower) of the plow blade, while moving the lever left or right might dictate its horizontal angle (tilt). This integrated control scheme simplifies the operator's interface, enhancing both efficiency and safety by reducing the need for multiple discrete controls.
The precision engineering of the internal mechanisms ensures smooth, consistent, and repeatable control inputs. Each axis typically operates an independent cable or linkage system that transmits the mechanical input to the respective hydraulic valve. The design minimizes backlash and hysteresis, allowing for fine adjustments and responsive control over the connected actuators. The inclusion of a durable boot, measuring 4.81 inches in height, serves a critical protective function. This boot shields the internal moving parts from environmental contaminants such as dust, moisture, salt, and debris, which are commonly encountered in heavy-duty applications like snow removal. This protective barrier significantly extends the lifespan of the control unit and ensures reliable performance under adverse conditions, reducing maintenance requirements and downtime.
Robust Construction and Installation Flexibility
The structural integrity of the Buyers Products Dual Axis Remote Valve Control is a cornerstone of its design philosophy. The specified dimensions and materials underscore its suitability for rigorous industrial and mobile hydraulic applications. The mounting plate, with a height of 3.82 inches and a width of 3.19 inches, provides a stable and secure interface with the host equipment. The 3.31-inch thickness of the unit further attests to its robust construction, designed to withstand significant operational stresses and vibrations typical in heavy machinery.
Installation is facilitated by a standard 3-hole mounting pattern, with each mounting hole having a diameter of 0.33 inches. This standardized pattern simplifies integration into existing control panels or custom installations, ensuring compatibility with a wide range of equipment without requiring extensive modifications. The thoughtful design considers not only the physical mounting but also the ease of connecting the control cables or linkages to the hydraulic valves. The "Can be stacked (y/n): Yes" specification is a particularly important feature for applications requiring multiple control units in close proximity. This stacking capability allows for efficient use of panel space, enabling complex control systems to be consolidated into a compact footprint, which is often a critical constraint in vehicle cabs or equipment operator stations. This modularity not only enhances installation flexibility but also simplifies future expansion or customization of the control system.
System Integration and Application Versatility
The Dual Axis Remote Valve Control is engineered for seamless integration into various hydraulic systems. Its primary function is to provide remote mechanical input to hydraulic directional control valves, which in turn govern the flow of hydraulic fluid to cylinders or motors. The compatibility with a wide range of hydraulic valves, including spool valves, allows system designers significant flexibility in component selection. The choice of Carbon Steel for the handle material is a deliberate one, balancing strength, durability, and cost-effectiveness. Carbon steel offers excellent tensile strength and resistance to fatigue, ensuring the control handle can withstand the repetitive forces exerted during operation. Furthermore, it can be treated or coated to enhance corrosion resistance, an important consideration for outdoor or corrosive environments.
Beyond snow plows, the utility of this dual-axis control extends to numerous other applications. Consider agricultural machinery, where a single lever could control the height and tilt of an implement, or construction equipment, where it might manage the boom lift and bucket angle of a loader. Forestry equipment, material handling systems, and specialized utility vehicles can all benefit from the precise, intuitive, and simultaneous control offered by this unit. The ability to control two axes from a single point significantly reduces operator cognitive load and physical strain, leading to improved operational efficiency and safety. In situations where space is at a premium and multiple functions need to be controlled with precision, this unit provides an elegant and effective solution.
Technical Specifications in Detail and Their Implications
- Boot Height (4.81"): As previously noted, this height ensures comprehensive protection of the pivot mechanism and internal components from environmental ingress. A taller boot offers a larger sealed volume, potentially accommodating greater lever travel and providing a more robust barrier against contaminants over the entire range of motion.
- Mounting Plate Height (3.82") & Width (3.19"): These dimensions define the footprint of the control unit on a mounting surface. They are critical for panel design and ensuring adequate space is allocated. The compact nature of these dimensions supports the "Can be stacked" feature, allowing for high-density control panel layouts.
- Thickness (3.31"): This dimension refers to the depth of the unit, typically from the mounting surface to the back of the housing. A substantial thickness indicates robust construction and sufficient internal volume for the lever mechanism and cable connections, without being excessively bulky.
- Mounting Hole Pattern (3 Hole) & Diameter (0.33"): The 3-hole pattern offers a secure, three-point attachment, preventing rotation and providing a stable mount. The 0.33-inch diameter holes are suitable for common fasteners (e.g., 5/16-inch bolts or screws), ensuring widely available hardware can be used for installation.
- Handle Length (11.5"): The generous handle length is a key ergonomic feature. A longer handle reduces the force required by the operator to achieve full lever travel, minimizing fatigue. It also allows for finer control and provides a greater physical throw, which can be advantageous for applications requiring precise modulation.
- Number of Axis (Dual): This fundamental specification underpins the unit's core capability: simultaneous, independent control over two distinct functions from a single point of interaction. This significantly enhances operational efficiency compared to single-axis controls.
- Handle Material (Carbon Steel): Carbon steel provides a high strength-to-weight ratio, excellent fatigue resistance, and good machinability. Its selection ensures the handle can withstand the mechanical stresses of continuous operation and resist bending or breaking under typical loads. Surface treatments can further enhance its environmental resilience.
- Can be stacked (Yes): This feature is invaluable for complex systems. It implies that the physical design allows multiple units to be placed adjacently, often interlocking or sharing mounting points, without interfering with each other's operation or installation. This modularity is a significant advantage for designers of custom control consoles or those needing to expand system capabilities.
Advanced Engineering Considerations and Future Adaptability
The design of the Buyers Products Dual Axis Remote Valve Control demonstrates an understanding of the long-term operational demands and environmental challenges faced by mobile hydraulic equipment. The mechanical advantage provided by the lever design ensures that the operator can actuate even high-force valves with relative ease. Furthermore, the selection of robust materials and the protective boot contribute to a product with a long operational lifespan and minimal service requirements, translating into lower total cost of ownership for end-users.
Looking ahead, the inherent mechanical nature of this control unit offers a degree of future adaptability. While primarily designed for direct mechanical linkage to hydraulic valves, its fundamental role as an input device could, with appropriate transducers, be integrated into electro-hydraulic systems. For instance, the mechanical output could drive potentiometers or Hall effect sensors, converting physical lever position into electrical signals for electronically controlled proportional valves. This potential for hybridization extends its applicability to emerging technologies and allows for a phased upgrade path for equipment. The robust and straightforward mechanical design also ensures ease of repair and maintenance, relying on well-understood principles and readily available components, distinguishing it from more complex electronic counterparts in terms of field serviceability.
In conclusion, the Buyers Products Dual Axis Remote Valve Control stands as a testament to practical, robust engineering. Its dual-axis capability, coupled with durable construction and thoughtful design for installation and protection, makes it an exemplary choice for demanding multi-movement hydraulic applications. From its ergonomic handle to its protective boot and stacking capability, every aspect is meticulously crafted to deliver reliable, precise, and user-friendly control in the most challenging operational environments.
