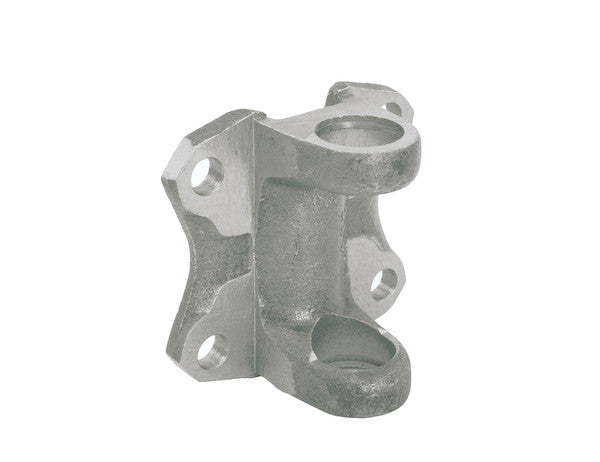

B22479 - B1310 Series Flange Yoke 3-3/4 Inch Diameter 4-Bolt Hole Pattern

Buyers Products B1310 Series Flange Yoke works seamlessly with heavy duty PTO driveline components in order to deliver reliable flexible coupling. The yoke is compatible with other major manufacturers' heavy duty driveline components. It comes in two different sizes and bore types to work with your system. The yoke is made of forged steel for strength and durability. It works with Buyers Products 5153XBA U-joint to provide smooth and continuous torque transfer. The B1310 Series Flange Yoke is perfect for heavy duty applications with the ability to handle up to 1560 inch pounds of torque at 1000 RPM continuous duty (approximately 25 HP).

Specifications

The Buyers Products B1310 Series Flange Yoke represents a critical component in the intricate mechanics of heavy-duty power take-off (PTO) driveline systems, engineered for uncompromising reliability and efficient torque transfer. Designed to integrate seamlessly with demanding applications, this flange yoke serves as an essential interface, connecting a universal joint (U-joint) to a flanged output or input, such as those found on transmissions, differentials, or PTO units. Its precise design, robust material specification, and adherence to industry standards ensure optimal performance in environments where continuous power delivery and durability are paramount. This detailed technical description will elaborate on the engineering principles, material science, performance characteristics, and application suitability of the B1310 Series Flange Yoke, providing an in-depth understanding for professional users and system integrators.

At its core, a flange yoke is a mechanical coupling device tasked with transmitting rotational motion and torque between two shafts that may not be perfectly aligned. In PTO driveline applications, this misalignment is common due to vehicle movement, chassis flex, and manufacturing tolerances. The B1310 Series Flange Yoke, in conjunction with a compatible U-joint, specifically the Buyers Products 5153XBA U-joint, forms a flexible coupling that accommodates angular and axial misalignments while maintaining constant velocity under varying loads. The U-joint's cruciform design, housed within the yoke's ears, allows for this dynamic flexibility, ensuring smooth and uninterrupted power flow from the power source to the driven equipment. This seamless interaction is crucial for preventing undue stress on driveline components, thereby enhancing the longevity and operational efficiency of the entire system.

The design of the B1310 Series Flange Yoke is meticulously engineered to meet the rigorous demands of heavy-duty service. A key dimension, as indicated by the product title, is its 3-3/4 inch Bolt Circle Diameter (BCD), precisely 3.750 inches. This specification dictates the diameter on which the centers of the mounting bolts are located, providing a standardized and secure attachment point to the mating flange. The 4-Bolt Hole Pattern further defines the mounting configuration, ensuring a stable and balanced connection. Each bolt hole possesses a diameter of 0.388 inches, engineered to accommodate standard fastening hardware with minimal clearance, which is vital for preventing slippage and maintaining torque integrity under dynamic loads. The overall Flange Diameter measures 4.625 inches, offering ample surface area for robust connection and load distribution, while the Pilot Diameter of 2.750 inches ensures concentric alignment with the mating flange, minimizing radial runout and mitigating potential vibration issues.

Beyond the flange interface, the structural integrity of the yoke body is paramount. The Yoke Diameter, specified at 3.469 inches, defines the overall dimension of the yoke's main body, providing the necessary bulk and strength to withstand torsional and bending stresses. The "Face to Pin Center" dimension of 1.375 inches is a critical parameter, precisely defining the distance from the mounting face of the flange to the centerline of the U-joint's bearing caps (or pin center). This dimension is crucial for ensuring correct U-joint fitment and articulation, preventing binding, and optimizing the working angles of the driveline. The Pin Hole Diameter, measuring 1.063 inches, is engineered to precisely accommodate the bearing caps of the specified U-joint, ensuring a snug yet freely articulating fit that facilitates smooth torque transfer without excessive play that could lead to premature wear or failure.

A fundamental aspect of the B1310 Series Flange Yoke's robustness lies in its material composition. While general industry descriptions may sometimes refer to "forged steel" for high-strength yokes, the specific B1310 Series Flange Yoke is fabricated from high-quality cast steel, as detailed in its specifications. Cast steel is an excellent material choice for components subjected to high static and dynamic stresses due to its superior strength-to-weight ratio, excellent shock absorption capabilities, and good fatigue resistance. The casting process allows for the creation of complex geometries with efficient material distribution, ensuring critical stress points are adequately reinforced. This material provides inherent damping characteristics that can help mitigate driveline vibrations, contributing to smoother operation and reduced wear on associated components. The "Plain" finish further indicates that the component is presented without additional coatings, allowing for immediate integration into systems or custom finishing as required by specific application environments.

The performance capabilities of the B1310 Series Flange Yoke are specified with impressive metrics, underscoring its heavy-duty classification. It is rated to handle up to 1560 inch-pounds of torque at 1000 RPM under continuous duty. To provide a broader understanding, 1560 inch-pounds is equivalent to approximately 176.2 Nm. At 1000 RPM, this torque translates to approximately 25 horsepower (HP) or 18.65 kilowatts (kW). Continuous duty ratings are critical, as they represent the maximum load a component can sustain indefinitely without overheating or experiencing accelerated wear, ensuring long-term reliability in demanding applications. For heavy-duty machinery, this level of torque and power handling capacity means the yoke can reliably transmit power for auxiliary functions such as hydraulic pumps, winches, compressors, or other PTO-driven equipment without fear of premature failure. It's important to note that while continuous duty specifies sustained operation, driveline components are often designed with a safety factor to momentarily handle higher peak torques during startup or transient load conditions, though adherence to the continuous rating is key for maximum service life.

Smooth and continuous torque transfer is not merely a matter of material strength but also of design precision and system integration. The B1310 Series Flange Yoke's compatibility with the Buyers Products 5153XBA U-joint is a testament to an engineered match, where the dimensions and tolerances of both components are optimized for minimal backlash, reduced vibration, and efficient power transmission. This synergy between yoke and U-joint is fundamental to preventing undesirable noise, vibration, and harshness (NVH) in the driveline, which can impact operator comfort, equipment longevity, and overall operational efficiency. The careful selection of component series, such as the B1310, ensures that the load-carrying capacity and dynamic characteristics are appropriately matched for the intended application, thereby preventing issues such as premature bearing wear, spline fretting, or even catastrophic component failure.

Durability and longevity are inherent attributes of the B1310 Series Flange Yoke, stemming from its robust cast steel construction and precise manufacturing. In heavy-duty applications, components are exposed to a myriad of environmental stressors, including abrasive dust, moisture, extreme temperatures, and corrosive agents. The inherent properties of cast steel offer good resistance to these factors, and the "Plain" finish allows for field application of protective coatings or paints if required by particularly harsh conditions. Furthermore, the design of the yoke minimizes stress concentrations, ensuring that the applied loads are distributed efficiently across its structure. Regular inspection and proper lubrication of the associated U-joint, as part of a comprehensive maintenance schedule, will further extend the operational life of the entire driveline assembly, ensuring sustained performance over many years of demanding service.

A significant advantage of the Buyers Products B1310 Series Flange Yoke is its compatibility with other major manufacturers' heavy-duty driveline components. This interchangeability is crucial for fleet operators and maintenance professionals who often work with a diverse range of equipment. Adherence to industry standards in terms of bolt patterns, U-joint series, and critical dimensions allows for easier procurement, replacement, and integration into existing systems, reducing downtime and simplifying inventory management. This flexibility makes the B1310 Series a versatile choice for repair and upgrade scenarios, ensuring that high-quality, reliable components are readily available to maintain operational continuity across various vehicle and equipment platforms. When selecting replacement parts, matching the correct series (e.g., B1310 in this case) is paramount to ensure proper fit, function, and load-bearing capacity, guaranteeing the integrity of the driveline system.

The applications for the B1310 Series Flange Yoke are diverse, primarily spanning the heavy-duty commercial and industrial sectors. These include, but are not limited to, municipal fleets (e.g., refuse trucks, salt spreaders, utility vehicles), construction equipment (e.g., concrete mixers, excavators, loaders with auxiliary hydraulic functions), agricultural machinery (e.g., tractors, harvesters, specialized implements requiring PTO power), and various forms of specialized industrial machinery. In each of these applications, the ability to reliably transfer significant torque and power from an engine's PTO to a piece of auxiliary equipment is fundamental to operational efficiency and productivity. The B1310 Series Flange Yoke's robust design and performance ratings make it ideally suited for these demanding environments where reliability is not just a preference but a critical operational requirement.

Proper installation and subsequent maintenance are critical for maximizing the performance and lifespan of the B1310 Series Flange Yoke and the entire driveline system. During installation, it is imperative to ensure that the mating flange surfaces are clean, free of burrs, and correctly aligned. Bolts must be torqued to manufacturer specifications using appropriate fastening hardware (high-strength bolts, nuts, and washers) to prevent loosening under vibration and load. The U-joint assembly requires careful handling to prevent damage to bearing cups and seals, and proper lubrication is essential to ensure smooth articulation and prevent premature wear. Regular inspections of the driveline components, including the flange yoke, U-joint, and associated shafts, should be conducted to identify any signs of wear, corrosion, or damage. Early detection of issues, such as excessive play in the U-joint, cracks in the yoke, or loosened fasteners, can prevent more significant failures and costly downtime. Adherence to manufacturer-recommended lubrication schedules for the U-joint is also vital for extending its service life and, by extension, the reliability of the entire PTO system.

In summary, the Buyers Products B1310 Series Flange Yoke stands as a testament to precision engineering and robust material selection for heavy-duty driveline applications. Its design, featuring a 3-3/4 inch Bolt Circle Diameter and a 4-Bolt Hole Pattern, coupled with its cast steel construction, ensures exceptional strength, durability, and reliable torque transmission. With a continuous duty rating of 1560 inch-pounds of torque at 1000 RPM (approximately 25 HP), it is perfectly suited for demanding PTO systems across various industries. Its compatibility with Buyers Products 5153XBA U-joints and other major manufacturers' components underscores its versatility and ease of integration. By choosing the B1310 Series Flange Yoke, operators and fleet managers invest in a component that delivers consistent performance, reduces maintenance requirements, minimizes downtime, and ultimately contributes to the overall efficiency and longevity of their heavy-duty equipment. This component is more than just a part; it is a critical enabler of power and productivity in the toughest operational conditions.
