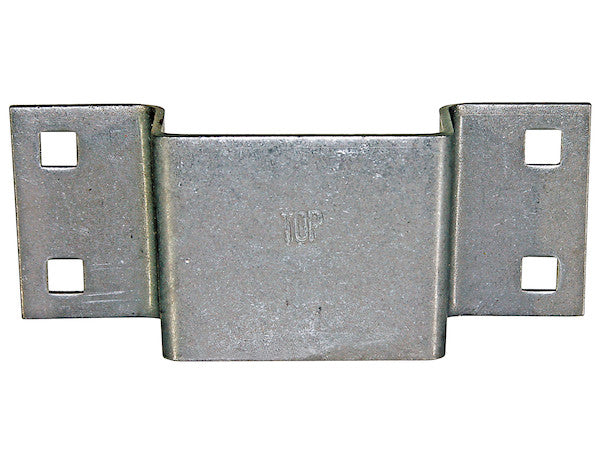

Buyers Products Tapered Bolt-On Stake Pocket is slightly tapered for a tight fit of the upright stake posts on a stake body. Each stake pocket is constructed from 14 Ga steel and can be painted to match vehicle or stake body. Pockets are available in plain or zinc finish.
Specifications
| Finish | Zinc Plated |
|---|---|
| Height (in.) | 2.50 |
| Material | Carbon Steel |
| Mounting Type | Bolt-On |
| Pocket Depth (in.) | 2.50 |
| Pocket Length Bottom | 2.875 |
| Pocket Length Top | 3 |
| Pocket Width Bottom (in.) | 2.875 |
| Pocket Width Top (in.) | 3.00 |
| Straight/Tapered | Tapered |
| Thickness (in.) | .120 |
| Width (in.) | 6.50 |
The Zinc Tapered Bolt-On Stake Pocket represents a meticulously engineered solution for robust and versatile cargo containment systems on a wide array of commercial and utility vehicles. Designed by Buyers Products, this component exemplifies precision manufacturing and material science, offering an unparalleled combination of strength, secure fitment, and long-term durability, all critical attributes for demanding operational environments. Its primary function is to provide a reliable receptacle for upright stake posts, thereby facilitating the rapid conversion of flatbed or utility trailers and truck beds into enclosed or semi-enclosed stake bodies, enhancing the safety and capacity for transporting various types of cargo.
At the core of this product's superior performance is its intelligently designed tapered geometry. The stake pocket features a distinct taper from its top opening to its bottom interior. Specifically, the top opening measures 3.00 inches by 3.00 inches (Pocket Length Top: 3.00 inches, Pocket Width Top: 3.00 inches), while the bottom interior dimensions narrow to 2.875 inches by 2.875 inches (Pocket Length Bottom: 2.875 inches, Pocket Width Bottom: 2.875 inches). This precisely calculated differential of 0.125 inches across both dimensions ensures that when a standard stake post, such as one with a 1.5-inch nominal thickness or a 3-inch nominal width, is inserted, it gradually wedges itself into the pocket. The tapering action creates a compressive force against the stake post, significantly reducing play, vibration, and rattling during transit. This tight fit is paramount for cargo stability, mitigating the risk of movement or detachment of the uprights, which could compromise load integrity or present a safety hazard. The pocket depth, measuring 2.50 inches, is optimized to provide ample seating for the stake post, contributing to vertical stability and load distribution without excessive protrusion or interference with other vehicle components.
Material selection is another critical factor in the Zinc Tapered Bolt-On Stake Pocket's robust construction. Crafted from high-grade carbon steel, this product is inherently designed for resilience. Carbon steel is chosen for its exceptional tensile strength, yield strength, and inherent toughness, properties essential for components subjected to dynamic loads, impacts, and abrasive forces typical in commercial hauling. Furthermore, carbon steel offers excellent weldability, though this particular model is designed for bolt-on installation. A key specification is the material thickness, which is a substantial 0.120 inches. This thickness, approximately equivalent to 11-gauge steel, positions the stake pocket well above many standard commercial-grade alternatives, which often utilize thinner gauges. The .120-inch wall thickness imparts superior structural rigidity, enhancing the pocket's resistance to bending, deformation, and fatigue cracking over its service life. This increased material mass directly translates to a higher load-bearing capacity and an extended operational lifespan, even under rigorous daily use and exposure to harsh external conditions.
To complement its robust carbon steel construction, the stake pocket undergoes a specialized zinc plating process, imparting a Zinc Plated finish. Zinc plating, often referred to as electro-galvanization, is a highly effective method of corrosion protection. During this process, a thin layer of zinc is electrolytically deposited onto the steel surface. Zinc acts as a sacrificial anode, meaning it corrodes preferentially to the underlying steel when exposed to corrosive elements like moisture, road salts, chemicals, and atmospheric pollutants. This cathodic protection mechanism significantly extends the service life of the stake pocket, preserving its structural integrity and aesthetic appearance over many years of operation. The zinc finish also provides enhanced abrasion resistance, preventing surface damage that could expose the base steel to corrosion. This protective layer ensures that the stake pocket maintains its functionality and structural reliability, reducing maintenance requirements and long-term replacement costs, a crucial economic advantage for fleet operators and individual users alike.
The bolt-on mounting type is a deliberate design choice that offers significant advantages over traditional weld-on applications. Bolt-on installation simplifies the attachment process, requiring standard tools and avoiding the need for specialized welding equipment or personnel. This translates to reduced installation time and labor costs. Furthermore, bolt-on components can be easily replaced or repositioned, offering greater flexibility in configuring or reconfiguring a vehicle's cargo containment system as operational needs evolve. The absence of welding eliminates concerns related to heat-induced material distortion, metallurgical changes, or potential weakening of the vehicle's frame or deck, which can sometimes occur with welded attachments. The overall width of the stake pocket, including its mounting flanges, is 6.50 inches, providing a substantial footprint for secure attachment to vehicle frame rails, rub rails, or deck edges. This broad mounting surface distributes fastening stresses over a larger area, further enhancing the structural integrity of the installation. Proper selection of corrosion-resistant fasteners, such as zinc-plated or stainless steel bolts, washers, and nuts, is recommended to ensure the longevity of the entire assembly and maintain the benefits of the stake pocket's zinc finish.
The versatility of the Zinc Tapered Bolt-On Stake Pocket extends to a broad spectrum of applications. It is an indispensable component for utility trailers, landscaping trailers, flatbed trucks, dump trailers, and various types of vocational and stake body trucks used in construction, agriculture, municipal services, and logistics. By enabling the rapid installation of upright stake posts, the product transforms an open cargo area into a secure perimeter, preventing shifting or spillage of diverse loads such as lumber, gravel, sand, agricultural produce, refuse, or equipment. The ability to easily remove or install these posts allows for quick adaptation of the vehicle to different cargo requirements, maximizing operational efficiency. For instance, a flatbed can be swiftly converted for hauling loose materials with stakes, and then revert to an open platform for oversized items, all without permanent modifications. This adaptability makes it a highly economical and practical solution for businesses requiring flexible transportation capabilities.
Performance and durability are paramount considerations for any commercial vehicle component, and this stake pocket excels in both regards. Its robust construction and engineered taper ensure exceptional load-bearing characteristics. The compressive fit of the stake post within the tapered pocket helps distribute static and dynamic loads more effectively across the pocket's full surface area, minimizing point stress concentrations. This design contributes to the overall structural integrity of the stake body system, allowing for the safe transport of significant payloads. The .120-inch carbon steel, coupled with the zinc plating, guarantees exceptional resistance to environmental degradation, including impacts from road debris, chemical exposure, and temperature fluctuations. The product is designed to withstand the rigors of continuous commercial operation, resisting fatigue from repeated loading and unloading cycles, and maintaining its structural integrity and functional performance throughout its extended service life. Compliance with general safety principles for cargo securement is inherent in its design, promoting safer transportation practices.
Maintaining the Zinc Tapered Bolt-On Stake Pocket for optimal longevity is straightforward. Regular inspections should be conducted to check for any signs of physical damage, corrosion, or loosening of mounting hardware. While the zinc plating offers excellent protection, severe impacts or prolonged exposure to exceptionally harsh conditions without periodic cleaning might eventually compromise the finish. In such cases, minor touch-ups with zinc-rich primer or paint can further extend its protective properties. Cleaning with mild detergents and water will remove accumulated dirt and road grime, preserving the integrity of the zinc coating. The inherent resilience of the carbon steel and the sacrificial nature of the zinc finish ensure that, with minimal attention, this stake pocket will provide years of reliable service, proving to be a cost-effective and enduring investment for any vehicle operator.
In summary, the Zinc Tapered Bolt-On Stake Pocket by Buyers Products is not merely an accessory; it is a meticulously engineered, high-performance component vital for enhancing cargo security and operational flexibility. Its innovative tapered design ensures an exceptionally tight and stable fit for upright stake posts, a critical factor for preventing cargo movement and ensuring safety. The use of robust 0.120-inch carbon steel provides superior strength and durability, making it highly resistant to physical stress and deformation. Furthermore, the advanced zinc plating offers formidable protection against corrosion, ensuring longevity and reducing maintenance in diverse and challenging environments. The bolt-on mounting system simplifies installation and offers unmatched versatility, allowing vehicle operators to adapt their cargo containment solutions quickly and efficiently. By combining precision engineering, superior materials, and a practical design, this stake pocket delivers a compelling value proposition, offering enhanced safety, efficiency, and a prolonged operational lifespan for commercial, industrial, and recreational hauling applications. It stands as a testament to Buyers Products' commitment to delivering robust and reliable solutions that meet the demanding requirements of today's transportation industry.
