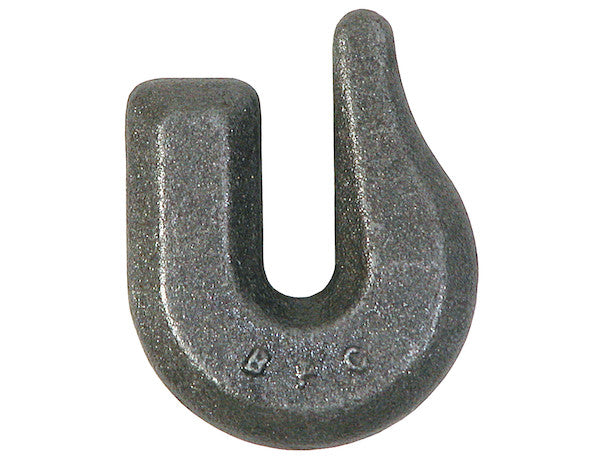

B2408W - 5/16 Inch Drop Forged Weld-On Heavy-Duty Towing Hook - Grade 43

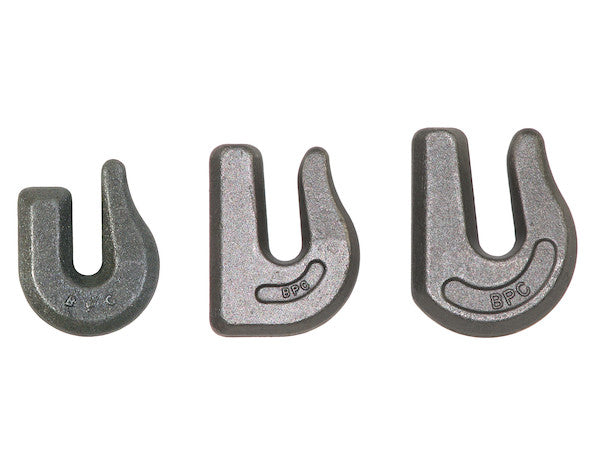

Weld-On Heavy Duty Tow/Recovery Hooks from Buyers Products are made of drop-forged steel for grade 43 chain attachment. The hooks are designed so a chain will catch and not slide through them. They are available in three sizes to fit different chain link diameters, for working load limits of 3900, 5400 or 9200 lb each.

Specifications

Advanced Technical Overview: The 5/16 Inch Drop Forged Weld-On Heavy-Duty Towing Hook - Grade 43

The Buyers Products 5/16 Inch Drop Forged Weld-On Heavy-Duty Towing Hook, classified under Grade 43, represents a critical component in robust towing and recovery systems. Engineered for unparalleled strength, durability, and secure attachment, this hook is specifically designed to integrate seamlessly with 5/16-inch Grade 43 chains, offering a substantial Working Load Limit (WLL) of 3,900 lbs. This detailed exposition delves into the material science, manufacturing processes, engineering principles, application guidelines, installation protocols, and safety standards that define this essential piece of equipment.

Material Science and Manufacturing: The Superiority of Drop-Forged Steel

The foundation of this towing hook's exceptional performance lies in its construction from drop-forged steel. Unlike cast or machined components, drop forging is a metallurgical process that significantly enhances the mechanical properties of the steel. In this process, a heated steel billet is subjected to compressive forces, typically through repeated blows from a mechanical hammer or press, forcing it into the desired hook shape within a die. This action refines the grain structure of the metal, aligning the internal grain flow with the contour of the hook. This optimized grain flow parallel to the component’s highest stress points imbues the hook with superior tensile strength, yield strength, and fatigue resistance. Furthermore, drop forging eliminates internal voids, porosity, and other material defects commonly associated with casting, resulting in a homogenous and dense structure that can withstand extreme loads and dynamic stresses without catastrophic failure.

The choice of steel alloy for such an application is crucial. Typically, medium-carbon alloy steels or micro-alloyed steels are selected, known for their excellent balance of strength, toughness, and weldability. These specific steel formulations are often heat-treated post-forging through processes such as quenching and tempering. Quenching rapidly cools the steel from an elevated temperature, forming a hard martensitic structure, while tempering reheats the steel to an intermediate temperature to improve ductility and reduce brittleness, optimizing the material's toughness and impact resistance. This meticulous control over material composition and thermo-mechanical processing ensures that the 5/16-inch hook not only meets but often exceeds the stringent requirements for heavy-duty towing applications, guaranteeing long-term reliability even under challenging environmental and operational conditions.

Grade 43 Chain Compatibility and Industry Standards

The designation "Grade 43" is paramount to understanding the operational parameters of this towing hook. Grade 43, also known as High Test or High Test Coil chain, refers to a specific class of chain with a higher strength-to-weight ratio than standard Grade 30 Proof Coil chain. These chains are typically made from heat-treated carbon steel and are widely utilized in towing, binding, and industrial applications where moderate strength and excellent ductility are required. The 5/16-inch dimension specifically dictates the appropriate link size this hook is designed to accommodate, ensuring a snug and secure fit that prevents slippage and concentrates forces effectively.

The Working Load Limit (WLL) of 3,900 lbs for this specific 5/16-inch hook is directly correlated with the WLL of corresponding Grade 43 chain. Industry standards such as those promulgated by the National Association of Chain Manufacturers (NACM) and the American Society of Mechanical Engineers (ASME) provide guidelines for chain and hardware ratings, including definitions for WLL, minimum breaking strength (MBS), and safety factors. The WLL is typically established by dividing the MBS by a safety factor, commonly 3:1 or 4:1 for lifting applications, and often a more conservative factor for towing to account for dynamic loading. By explicitly matching the hook's grade and capacity to Grade 43 chain, Buyers Products ensures system integrity, preventing potential failures that could arise from mismatched components with differing strength characteristics. This adherence to established standards is critical for safety, regulatory compliance, and predictable performance in demanding recovery operations.

Advanced Engineering Design for Secure Chain Retention

A critical engineering feature of the Buyers Products towing hook is its sophisticated geometry, specifically designed to ensure that a chain will "catch and not slide through them." This design philosophy centers on maximizing chain engagement and minimizing the risk of accidental disengagement under dynamic loads. The hook's throat opening, inner radius, and tip geometry are meticulously sculpted to create a secure pocket for the chain link. When a chain is properly seated, the contours of the hook cradle the link, distributing stress evenly across its surface. The design incorporates features such as a precisely angled tip and sufficient material thickness to resist deformation under tension, effectively creating a mechanical lock that holds the chain firmly in place. This securement is vital during towing or recovery, where sudden changes in tension, lateral forces, or vehicle movement could otherwise cause a lesser-designed hook to release the chain, leading to hazardous situations or further equipment damage. The ergonomic design also facilitates quick and easy attachment while simultaneously preventing inadvertent release, striking an optimal balance between usability and absolute security.

Furthermore, the robust construction of the hook ensures that stress concentrations are minimized. Advanced engineering principles, potentially validated through techniques such as Finite Element Analysis (FEA) in the design phase, ensure that the material is optimized to handle the 3,900 lb WLL across its entire structure. The thickness and curvature throughout the hook body, particularly at the bend (the area typically under highest stress), are engineered to prevent localized yielding or fracture. This attention to detail in the mechanical design is a testament to the product's heavy-duty rating and contributes significantly to its long-term reliability and safety profile.

Weld-On Installation: Technical Protocols and Structural Integration

The "weld-on" nature of this towing hook offers distinct advantages over bolt-on or clevis-pin alternatives, primarily in its ability to create a permanent, high-strength structural bond directly to the vehicle frame or a robust mounting plate. This method ensures maximum load transfer efficiency and minimizes potential points of failure often associated with bolted connections (e.g., loosening, shear failure of bolts). However, proper weld-on installation requires adherence to stringent technical protocols to guarantee the integrity of the attachment.

Key considerations for professional installation include:

1. Welding Process Selection: Suitable welding processes typically include Shielded Metal Arc Welding (SMAW), Gas Metal Arc Welding (GMAW/MIG), or Flux-Cored Arc Welding (FCAW). The choice depends on the specific base material of the vehicle frame, welder qualification, and environmental conditions.
2. Filler Material Specification: The welding electrode or wire must be carefully selected to match or exceed the mechanical properties of both the hook's forged steel and the vehicle's frame material. For high-strength steels, low-hydrogen electrodes are often preferred to mitigate the risk of hydrogen-induced cracking.
3. Surface Preparation: The mating surfaces of both the hook and the vehicle frame must be thoroughly cleaned of paint, rust, grease, and other contaminants. A clean, metallic surface is essential for proper weld penetration and fusion. Beveling the edges of the hook or frame may be necessary to achieve full penetration welds, especially for thicker sections.
4. Pre-heat and Post-Weld Heat Treatment: Depending on the carbon equivalent and alloy content of the base material and the hook, pre-heating the area around the weld joint may be required to slow the cooling rate, reduce thermal stresses, and prevent cold cracking. For certain critical applications, post-weld heat treatment (PWHT) might be considered to stress-relieve the joint and refine the weld microstructure, although this is less common for general towing hooks on vehicle frames.
5. Welder Qualification: All welding must be performed by certified welders in accordance with industry standards such as AWS D1.1 (Structural Welding Code – Steel) to ensure competency and adherence to established procedures.
6. Weld Joint Design and Placement: The hook should be positioned on a structurally sound section of the vehicle frame, preferably where stresses from towing are effectively distributed into the main structural members. Avoid welding onto thin gauge sheet metal or areas not designed to bear significant load. The weld pattern (e.g., full perimeter fillet weld, butt weld with backing plate) must provide sufficient contact area and penetration to support the 3,900 lb WLL with an adequate safety margin.
7. Inspection: Post-weld inspection, including visual examination for defects such as porosity, undercut, and cracks, is mandatory. For critical installations, non-destructive testing (NDT) methods like Magnetic Particle Inspection (MPI) or Ultrasonic Testing (UT) may be employed to detect subsurface imperfections.

Adhering to these technical specifications ensures that the weld-on attachment is as strong and reliable as the hook itself, integrating it as a permanent, load-bearing extension of the vehicle's chassis.

Operational Considerations and Application Specifics

The 5/16 Inch Drop Forged Weld-On Heavy-Duty Towing Hook, with its 3,900 lb WLL, is engineered for a diverse range of heavy-duty applications. Its primary utility lies in vehicle recovery, industrial towing, agricultural implement attachment, and construction equipment handling. Understanding the operational envelope is critical for safe and efficient use:

1. Working Load Limit (WLL): The 3,900 lb WLL signifies the maximum force that should be applied to the hook in direct tension. It is imperative that users never exceed this limit. Dynamic loads, such as those encountered during jerking or snatch recovery, can generate forces significantly higher than the static weight being moved. A safety factor is built into the WLL, but excessive shock loading can still lead to failure.
2. Angle of Pull: The WLL is typically rated for a straight-line pull. Forces applied at an angle reduce the effective capacity of the hook. Users must strive to maintain a direct line of pull whenever possible.
3. Proper Rigging: Always ensure the chain is correctly seated within the hook’s throat. Avoid side loading, tip loading, or loading the hook with multiple chains or components that do not fit properly, as these practices can severely compromise the hook’s integrity and lead to premature failure.
4. Environmental Factors: While forged steel offers inherent robustness, prolonged exposure to corrosive environments (e.g., salt water, de-icing chemicals) can lead to surface degradation. Regular inspection and protective coatings can mitigate these effects. Extreme temperatures can also influence material properties, although typically within ranges that do not significantly impact the WLL for most towing applications.
5. Dynamic vs. Static Loading: Recognize the difference between static towing (constant, steady pull) and dynamic recovery (sudden pulls, snatching). Dynamic forces can momentarily exceed the WLL if not managed properly. Techniques like using kinetic energy recovery ropes (KERRs) can help mitigate shock loads by absorbing energy gradually.

By understanding and adhering to these operational guidelines, users can maximize the performance and extend the service life of the Buyers Products towing hook while ensuring safety during critical operations.

Maintenance, Inspection, and Regulatory Compliance

Regular maintenance and meticulous inspection are non-negotiable for ensuring the continued safety and operational readiness of the 5/16 Inch Drop Forged Weld-On Heavy-Duty Towing Hook. While the drop-forged steel construction provides inherent durability, continuous exposure to harsh conditions and heavy loads necessitates a proactive approach to upkeep.

Key inspection points include:

1. Visual Inspection: Prior to each use, a thorough visual inspection is mandatory. Check for any signs of deformation, such as bending, twisting, or stretching of the hook body or throat opening. Look for nicks, gouges, cracks, excessive wear in the load-bearing areas, or heat damage (indicated by discoloration). Even minor damage can significantly compromise the hook's WLL and should warrant immediate removal from service.
2. Corrosion: Inspect for rust and other forms of corrosion, especially in critical load-bearing areas and around the weld joint. While surface rust is often cosmetic, deep pitting or structural corrosion can weaken the material.
3. Weld Integrity: Periodically inspect the weld joint for any signs of cracking, separation, or distress, particularly after severe loading events.
4. Component Matching: Always confirm that the hook is being used with appropriately sized (5/16 inch) and graded (Grade 43) chain. Mismatched components are a common cause of system failure.

Any hook exhibiting signs of damage, wear beyond acceptable limits, or questionable integrity must be immediately removed from service and replaced. Attempting to repair or straighten a damaged hook is strictly prohibited, as it can further compromise the material's structural properties and lead to catastrophic failure.

From a regulatory standpoint, adherence to recognized safety standards and best practices is paramount. Organizations such as the Occupational Safety and Health Administration (OSHA), ASME B30.10 (Hooks), and Department of Transportation (DOT) regulations for cargo securement and towing often provide guidelines applicable to the use and inspection of such equipment. Buyers Products designs its equipment with these standards in mind, but the end-user bears the ultimate responsibility for proper installation, operation, and ongoing maintenance to ensure compliance and worker safety.

Conclusion

The 5/16 Inch Drop Forged Weld-On Heavy-Duty Towing Hook - Grade 43 from Buyers Products embodies a commitment to engineering excellence and operational safety. Its foundation in superior drop-forged steel, precisely engineered geometry for secure chain retention, and compatibility with Grade 43 chain combine to deliver a robust and reliable solution for demanding towing and recovery tasks. The weld-on installation method, when executed according to stringent technical protocols, creates an integral and enduring attachment point. By adhering to proper operational guidelines, rigorous inspection schedules, and relevant industry standards, users can fully leverage the inherent strength and durability of this hook, ensuring efficient and safe operations across a wide spectrum of heavy-duty applications. This product stands as a testament to the meticulous design and manufacturing required for critical load-bearing components in the industrial and commercial sectors.
