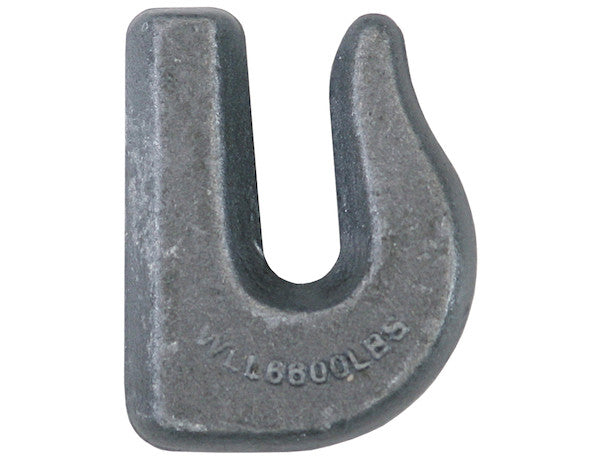

B2409W375 - 3/8 Inch Drop Forged Weld-On Heavy-Duty Towing Hook - Grade 70

Weld-On Heavy Duty Tow/Recovery Hooks from Buyers Products are made of drop-forged steel for grade 70 chain attachment. The hook fits 3/8 in. chain link diameters, for towing capacities of 6,600 lb respectively.

Specifications

The 3/8 Inch Drop Forged Weld-On Heavy-Duty Towing Hook, specified to Grade 70 standards, represents a pinnacle in robust and reliable load securement and recovery equipment. Engineered for superior performance in the most demanding applications, this hook from Buyers Products is an indispensable component for professional-grade towing and recovery operations. Its design integrates advanced material science with precise manufacturing techniques to deliver a product characterized by exceptional strength, durability, and operational safety. This comprehensive description delves into the technical attributes, material properties, application considerations, and safety protocols associated with this critical piece of heavy-duty hardware.

Advanced Material Science: The Superiority of Drop-Forged Steel

At the core of this towing hook's exemplary performance is its construction from drop-forged steel. Drop forging is a metalworking process that involves shaping metal through localized compressive forces, typically at elevated temperatures. Unlike casting, which involves pouring molten metal into a mold, or machining from plate, forging mechanically works the material, fundamentally altering its microstructure to enhance its mechanical properties. The process begins with heating a steel billet to a plastic state, then placing it between two dies (an upper die attached to a ram and a lower die on an anvil) which are then brought together under immense pressure or impact.

Benefits of Drop Forging for Critical Components:

• Enhanced Strength and Toughness: The forging process refines the grain structure of the steel, aligning the grain flow in the direction of the metal's primary stress patterns. This oriented grain flow significantly increases the material's tensile strength, yield strength, and toughness, making the hook far more resistant to deformation and catastrophic failure under heavy loads.
• Elimination of Internal Defects: Drop forging virtually eliminates internal voids, porosity, and other material defects commonly found in cast components. The intense compressive forces close up any internal gas pockets or shrinkage voids, resulting in a solid, homogenous material structure.
• Superior Fatigue Resistance: Components subjected to cyclical loading, such as those in towing and recovery, are prone to fatigue failure. Forged parts exhibit superior fatigue resistance due due to their refined grain structure and lack of internal defects, ensuring a longer operational lifespan under repeated stress cycles.
• Improved Ductility: While increasing strength, forging also enhances the steel's ductility, making it less brittle and more capable of deforming plastically before fracturing. This property is crucial in high-stress applications as it provides a margin of safety, often manifesting as visible deformation before complete failure, allowing for intervention.
• Consistent Quality: The controlled nature of the drop-forging process ensures a high degree of consistency in the mechanical properties and dimensional accuracy of each hook produced, vital for applications where reliability is paramount.

The selection of drop-forged steel for this 3/8-inch towing hook is not merely a manufacturing choice; it is a critical engineering decision that underpins the product's classification as "heavy-duty" and its ability to withstand the rigorous demands of professional towing and recovery environments.

Grade 70 Standard: The Benchmark for Performance

The designation "Grade 70" is a critical indicator of this hook's strength and suitability for specific applications. Grade 70, often referred to as transport chain or binder chain, is a high-strength, heat-treated carbon steel chain commonly used for load securement in transportation and heavy-duty towing. While this product is a hook, its Grade 70 rating signifies that it is engineered to be compatible with and possess mechanical properties commensurate with Grade 70 chain systems.

Key Characteristics and Advantages of Grade 70 Components:

• High Tensile Strength: Grade 70 steel undergoes a specific heat treatment process that significantly increases its tensile strength compared to lower grades such as Grade 30 (proof coil) or Grade 43 (high test). This higher strength-to-weight ratio allows for greater working load limits (WLL) for a given material cross-section.
• Durability and Wear Resistance: The heat treatment not only enhances strength but also improves the material's surface hardness, contributing to better wear resistance and a longer service life, particularly in abrasive or high-friction towing scenarios.
• Industry Standard Compliance: Grade 70 is a recognized standard within the Department of Transportation (DOT) and various industry bodies for securement applications, ensuring that components bearing this rating meet specific performance criteria for safety and reliability in heavy-duty transport and recovery.
• System Compatibility: It is paramount that all components within a towing or securement system (chain, hooks, binders, anchor points) are rated to the same or a higher grade. Using a Grade 70 hook with a lower-grade chain would compromise the overall system's integrity, limiting its WLL to that of the weakest component. This 3/8-inch hook is specifically designed to integrate seamlessly with 3/8-inch Grade 70 chain, ensuring a cohesive and high-performance system.

The Grade 70 rating of this weld-on hook guarantees that it is constructed from materials and processes designed to withstand the substantial forces encountered in heavy towing and recovery, providing users with confidence in its structural integrity.

Weld-On Application: Permanent Integration for Ultimate Strength

The "weld-on" characteristic of this towing hook is a significant design feature, offering distinct advantages over bolt-on or receiver-style attachments for specific heavy-duty applications. Weld-on components provide a permanent and exceptionally strong connection to the vehicle's frame, chassis, or equipment.

Technical Considerations and Benefits of Weld-On Installation:

• Direct Load Transfer: By welding directly to a robust structural member, the load applied to the hook is transferred directly and efficiently into the vehicle's frame. This eliminates potential weak points associated with mechanical fasteners, such as bolt shear or loosening over time.
• Maximized Strength-to-Space Ratio: Weld-on hooks can often be integrated into designs where space is limited, providing a high-strength anchor point without requiring the footprint of bolt patterns or receiver tubes.
• Customizable Placement: Unlike pre-drilled or fixed-mount options, weld-on hooks allow for precise positioning to optimize load angles and accessibility based on the specific recovery or towing scenario and the vehicle's geometry.
• Enhanced Security: A properly executed weld creates a monolithic connection, resistant to tampering, theft, or accidental detachment, which can be a concern with less permanent mounting methods.

Critical Welding Protocols for Safe Installation:

Given the safety-critical nature of towing and recovery, the installation of this weld-on hook requires adherence to stringent welding protocols:

• Qualified Personnel: Installation must be performed by a certified or highly experienced welder proficient in heavy structural welding, adhering to industry standards such as those set by the American Welding Society (AWS) or equivalent national bodies.
• Base Material Compatibility: The steel of the hook must be compatible with the steel of the receiving structure (e.g., vehicle frame). Understanding the metallurgical properties of both materials is crucial to select the correct welding filler metal and process parameters.
• Surface Preparation: The welding area on both the hook and the frame must be thoroughly cleaned, free of paint, rust, grease, and other contaminants. Proper surface preparation is essential for achieving adequate weld penetration and preventing weld defects.
• Welding Process Selection: Common processes suitable for heavy-duty structural welding include Shielded Metal Arc Welding (SMAW/Stick), Gas Metal Arc Welding (GMAW/MIG), or Flux-Cored Arc Welding (FCAW). The choice depends on the welder's expertise, equipment availability, and environmental conditions.
• Pre-heating and Post-cooling: For thicker materials or certain steel alloys, pre-heating the base metal around the weld zone may be necessary to reduce thermal stresses, prevent hydrogen embrittlement, and ensure proper fusion. Controlled post-weld cooling can also mitigate residual stresses.
• Proper Weld Technique: Achieving full penetration, consistent bead profile, and freedom from defects such as undercut, porosity, or cracks is paramount. Multi-pass welding techniques may be required for optimal strength.
• Inspection: Post-weld inspection, potentially including visual inspection, dye penetrant testing, or magnetic particle inspection, should be performed to confirm weld integrity.

The integrity of the weld directly determines the ultimate load-bearing capacity of the hook and, by extension, the safety of the entire towing operation. Proper installation transforms this high-grade component into a reliable, integral part of the vehicle's recovery system.

Engineered for Performance: Capacity and Sizing

This 3/8-inch towing hook boasts a substantial towing capacity of 6,600 lbs. This figure represents the Working Load Limit (WLL) – the maximum load that the hook is designed to safely support when new and in good condition, under specific operating conditions. It is crucial to distinguish WLL from the ultimate breaking strength (UBS), which is typically several times higher than the WLL and represents the point at which the component will fail. Industry standards often apply a safety factor (e.g., 4:1 for overhead lifting, though often lower for static towing) between WLL and UBS to account for variables such as shock loading, wear, and unforeseen stresses.

Understanding the 3/8 Inch Dimension:

The "3/8 inch" specification refers to the nominal diameter of the chain link that the hook is designed to securely engage. This precise sizing ensures proper fitment and prevents excessive play, which could lead to premature wear or localized stress concentrations. Mismatching hook and chain sizes can compromise efficiency and safety, making this standardized dimension a key aspect of system integration.

Application of 6,600 lb Capacity:

A 6,600 lb (3.3 US tons) WLL positions this hook firmly within the heavy-duty segment. This capacity is ideally suited for a wide range of applications, including:

• Medium-Duty Vehicle Recovery: Suitable for the recovery of larger SUVs, pickup trucks, commercial vans, and smaller utility vehicles from challenging situations like mud, snow, or ditches.
• Trailer Towing and Securement: Can serve as a robust anchor point for safety chains on trailers transporting heavy equipment, or for direct towing of utility trailers.
• Agricultural Equipment: Ideal for moving or recovering tractors, implements, and other farm machinery.
• Construction Equipment: Capable of assisting in the repositioning or recovery of compact excavators, skid steers, and other construction apparatus.
• Industrial Applications: Applicable in various industrial settings requiring secure attachment points for material handling or specific rigging tasks within its WLL.

Always operating within the specified WLL is non-negotiable for safety. Exceeding this limit dramatically increases the risk of component failure, potentially leading to property damage, injury, or fatality.

Design and Engineering: Beyond Raw Strength

The engineering of a heavy-duty towing hook involves more than just selecting strong materials. The geometry and design features play a crucial role in its functional performance and safety.

Key Design Elements:

• Hook Geometry (Throat, Saddle, Tip): The precise curvature and dimensions of the hook's throat and saddle are optimized to cradle the chain link securely, minimizing stress concentrations and preventing accidental disengagement under load. The tip is often designed to facilitate easy attachment while maintaining security.
• Shank/Mounting Base: The robust shank or mounting base of the weld-on hook provides ample surface area for a strong, reliable weld to the vehicle's frame, ensuring effective load transfer.
• Fatigue Resistance: Engineers utilize techniques like Finite Element Analysis (FEA) during the design phase to predict stress distribution under various loading conditions, identifying and mitigating potential fatigue points to extend the hook's operational life.
• Impact and Shock Load Tolerance: Towing and recovery operations are rarely static. The design must account for dynamic forces, sudden jerks, and shock loads. Drop-forged steel's inherent toughness makes it particularly resilient to such impacts.

While not explicitly mentioned, many heavy-duty hooks may feature a protective coating, such as powder coating or a specialized paint, to enhance corrosion resistance, especially in outdoor and harsh environments. This contributes to the longevity and aesthetic integrity of the product.

Operational Safety and Maintenance Protocols

The safe and effective use of the 3/8 Inch Drop Forged Weld-On Heavy-Duty Towing Hook necessitates adherence to strict operational safety protocols and a consistent maintenance regimen.

Pre-Use Inspection:

Before each use, a thorough visual inspection of the hook is imperative. Operators should look for:

• Deformation: Any signs of bending, twisting, stretching, or opening of the hook throat. Even slight deformation indicates the hook has been overloaded or subjected to excessive force and must be removed from service.
• Cracks or Fractures: Fine lines or cracks, particularly in high-stress areas like the bend or shank. These can propagate rapidly under load.
• Excessive Wear: Pitting, gouging, or significant material loss, especially in the load-bearing surfaces.
• Corrosion: While steel is robust, severe corrosion can degrade structural integrity.
• Weld Integrity: Inspect the weld joint for any signs of cracking, separation, or distress.

Any hook exhibiting these signs of damage must be immediately taken out of service and replaced. Attempting to repair a damaged hook by heating, bending, or welding (unless done by a qualified entity for a specific repair procedure with proper documentation) is extremely dangerous and strictly prohibited as it can alter the material's properties and compromise its WLL.

Proper Usage Techniques:

• Full Engagement: Always ensure the chain link is fully seated in the saddle of the hook. Avoid "tip loading" or "point loading," where the load is concentrated on the tip of the hook, as this drastically reduces the WLL and can lead to immediate failure.
• Avoid Side Loading: Hooks are primarily designed for in-line pulling. Side loading introduces complex stress vectors that the hook is not engineered to withstand, significantly reducing its effective capacity.
• Dynamic Loads: Be acutely aware of dynamic loading conditions. Sudden jerks, impacts, or rapid changes in direction can generate forces several times greater than the static weight of the load. Plan recovery operations to minimize shock loading.
• System Compatibility: Reiterate the importance of using the hook with Grade 70 chain and other components of equal or greater capacity.
• Operator Training: All personnel involved in towing and recovery operations must be thoroughly trained in safe rigging practices, equipment inspection, and understanding load dynamics.

Maintenance and Storage:

While a weld-on hook requires minimal ongoing maintenance, general good practices include keeping the hook clean and free of excessive dirt or debris. Storing the vehicle or equipment in a manner that protects the hook from extreme corrosive elements or physical damage when not in use can extend its lifespan. Periodic re-inspection of the weld joint should be part of the vehicle's maintenance schedule, especially after any severe towing events.

Conclusion

The 3/8 Inch Drop Forged Weld-On Heavy-Duty Towing Hook - Grade 70 from Buyers Products is a testament to precision engineering and robust manufacturing. Its foundation in drop-forged steel ensures superior mechanical properties, including enhanced strength, fatigue resistance, and ductility, essential for critical load-bearing applications. Adherence to Grade 70 standards guarantees compatibility with high-performance towing systems and provides a reliable working load limit of 6,600 lbs for 3/8-inch chain. The weld-on design offers a permanent, ultra-strong connection to vehicle frames or equipment, provided installation is conducted by qualified professionals adhering to stringent welding protocols. This hook is more than just a piece of hardware; it is a meticulously engineered component designed to maximize safety, efficiency, and longevity in the demanding fields of vehicle recovery, heavy equipment towing, and industrial applications. When integrated and operated correctly, it stands as a dependable asset, underpinning the success and safety of critical heavy-duty operations.
