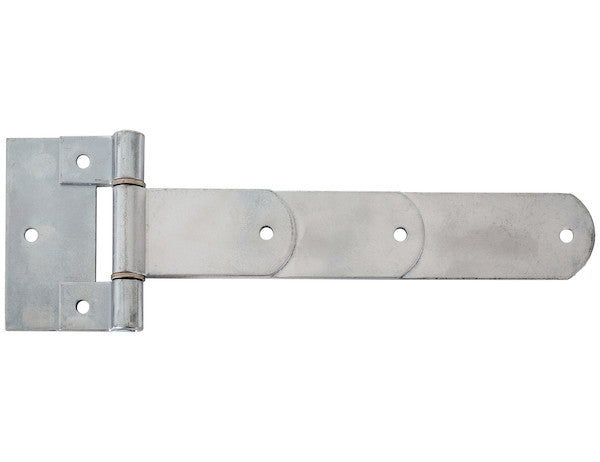

Buyers Products Steel Strap Hinge is ideal for trailer doors. It is made from 3/16 in. steel with a 2-1/4 in. wide strap. The hinge comes with a 1/2 in. pin and steel thrust bearings. It is available in three lengths to fit your application. Please contact Customer Service for further information.
Specifications
| Bracket Height (in.) | 5.00 |
|---|---|
| Bracket Width (in.) | 3.00 |
| Finish | Plain |
| Length (in.) | 10.56 |
| Material | Steel |
| Pin Size (in.) | 1/2 |
| Strap Length (in.) | 8.00 |
| Strap Width (in.) | 2.25 |
| Thickness (in.) | 3/16 |
Advanced Technical Overview: The 2.25 x 8 Inch Steel Strap Hinge with 1/2 Inch Steel Pin
The Buyers Products 2.25 x 8 Inch Steel Strap Hinge, featuring a robust 1/2 Inch Steel Pin and an overall dimension of 5 x 10.56 Inches, represents a meticulously engineered solution for heavy-duty articulation requirements across a diverse range of industrial and commercial applications. This product is not merely a component for rotational movement; it is a critical structural element designed for sustained performance under demanding conditions, embodying a synthesis of material science, mechanical engineering principles, and practical application insights. Its inherent strength, derived from high-grade steel construction and precision manufacturing, ensures reliability and longevity where lesser components would falter.
Material Integrity: The Foundation of Durability
At the core of this hinge's exceptional performance is its material composition: steel. Specifically, the hinge is fabricated from 3/16 inch (approximately 4.76 mm) thick steel. This gauge is critically chosen to impart superior mechanical properties, including high tensile strength, excellent yield strength, and remarkable resistance to fatigue. The structural integrity provided by this thickness is paramount in applications where components are subjected to significant static loads, dynamic forces, repetitive cycling, and potential impact. Steel, as an alloy, offers a unique balance of hardness and ductility, making it resilient to deformation, abrasive wear, and potential fracture under stress. The intrinsic characteristics of steel contribute to the hinge’s ability to maintain its form and function over extended periods, even in challenging operational environments. This substantial thickness ensures that the hinge body, particularly the strap, resists bending, twisting, and bowing, thereby preserving the alignment of the hinged assembly and preventing premature wear on the pin and bearings. It signifies a design philosophy focused on over-engineering for enhanced safety factors and operational longevity, reducing the total cost of ownership through minimized maintenance and replacement cycles.
Precision Engineering of the Strap Component: 2.25 x 8 Inches
The strap component, measuring 2.25 inches in width and 8 inches in length, is a key determinant of the hinge's load-bearing capacity and its ability to distribute stress effectively across the mounting surface. The 2.25-inch width provides a substantial surface area for secure attachment, whether through welding or robust bolting. This broad footprint is crucial for mitigating stress concentrations at the points of attachment, which can otherwise lead to material fatigue or failure in the door, gate, or frame structure. By spreading the load over a larger area, the hinge minimizes localized pressures, enhancing the overall structural integrity of the articulated system. Furthermore, the 8-inch length of the strap maximizes the leverage and support provided to the hinged element. This extended length allows for a greater moment arm, reducing the bending forces exerted on the hinge barrel and pin assembly, and concurrently, on the mounting hardware. In applications involving heavy doors or gates, this extended strap length is indispensable for preventing sag, maintaining proper alignment, and ensuring smooth, effortless operation. The thoughtful design of the strap geometry contributes significantly to the hinge's stability, making it highly resistant to torsional forces and shear stresses that are common in heavily utilized access points.
The Critical Role of the 1/2 Inch Steel Pin
The 1/2 inch (approximately 12.7 mm) steel pin serves as the primary pivot point, the functional axis around which the hinge articulates. Its robust diameter is a direct indicator of its capacity to withstand significant shear forces and bending moments. In any hinge assembly, the pin is often the component subjected to the highest localized stresses. By specifying a 1/2-inch diameter pin constructed from steel, Buyers Products ensures that this critical element possesses exceptional shear strength and resistance to flexural deformation. The use of steel for the pin material aligns with the overall construction of the hinge, guaranteeing material compatibility and consistent thermal expansion properties, which is vital for maintaining tight tolerances and smooth operation across varying temperatures. A precisely machined pin with an appropriate surface finish minimizes rotational friction, particularly when coupled with the integrated thrust bearings. The pin's robust nature is a safeguard against premature wear, galling, and eventual failure, which are common issues with undersized or inferior quality pins. Its secure integration within the hinge barrel is essential for preventing displacement during vigorous operation or under shock loads, thereby ensuring continuous, reliable articulation.
Functionality and Benefits of Integrated Steel Thrust Bearings
A distinguishing feature of this hinge is the inclusion of steel thrust bearings. These specialized bearings are designed to manage and reduce friction associated with axial (thrust) loads, which occur perpendicular to the rotational axis. In a hinge application, thrust loads arise from the weight of the door or gate, gravitational forces, and dynamic impacts, attempting to compress the hinge components along the pin's axis. Without thrust bearings, these forces would lead to direct metal-on-metal contact between the hinge leaves or between the barrel and pin assembly, resulting in increased friction, accelerated wear, heat generation, and potential for galling – a form of adhesive wear where material is transferred from one surface to another. The steel thrust bearings act as low-friction interfaces, significantly reducing the torque required to open and close the hinged element, promoting exceptionally smooth and silent operation. Furthermore, they play a crucial role in extending the operational lifespan of the hinge by protecting the critical load-bearing surfaces from abrasive wear and fatigue. By absorbing and distributing axial forces, these bearings minimize stress on the pin and the hinge knuckles, ensuring that the hinge maintains its structural integrity and functional precision over a vastly extended service life. The choice of steel for the bearing material ensures compatibility with the hinge's overall steel construction, offering durability and resistance to deformation under high compressive loads.
Overall Dimensions and Structural Integration: 5 x 10.56 Inches
The specified overall dimensions of 5 inches by 10.56 inches provide a comprehensive understanding of the hinge's physical footprint and its engineered capacity for structural integration. The overall length of 10.56 inches encompasses the full extent of the hinge assembly, from the outermost edge of the mounting bracket to the tip of the strap, providing ample space for effective load distribution and mounting stability. The bracket height of 5.00 inches (implying the vertical dimension of the fixed leaf or mounting component) and the bracket width of 3.00 inches further define the substantial nature of the fixed portion, enabling robust attachment to frames or primary structures. These dimensions are not arbitrary; they are the result of engineering calculations that balance compactness with the requirement for maximum mechanical advantage and resilience. The substantial overall size indicates that this hinge is designed for installations where a significant physical presence is necessary to manage the weight and operational dynamics of heavy doors, panels, or gates. This ensures that the hinge can be securely mounted to structural members, distributing forces over a broad area and preventing localized stress concentrations that could compromise the integrity of the base structure itself.
Versatile Applications and Industry Relevance
While ideally suited for trailer doors, the robust design and heavy-duty specifications of this steel strap hinge extend its utility across a broad spectrum of industrial, commercial, and agricultural applications. Its inherent strength and durability make it an indispensable component for:
- Heavy-Duty Trailers: Including cargo trailers, equipment haulers, livestock trailers, and specialty custom trailers, where door integrity and operational reliability are paramount for security and functionality.
- Industrial Gates: For manufacturing facilities, warehouses, secure compounds, and access points requiring robust and secure entry/exit solutions capable of withstanding frequent usage and harsh environments.
- Agricultural Equipment: Access panels, equipment doors, and components on farm machinery such as tractors, harvesters, and cultivators, which demand components resistant to vibration, dust, and outdoor exposure.
- Construction Machinery: For tool compartments, access hatches, and various hinged elements on excavators, loaders, and other heavy equipment, where components are subjected to extreme stress and impact.
- Utility and Municipal Infrastructure: Heavy access panels for underground vaults, electrical enclosures, or storage units where security and infrequent but reliable access are critical.
- Custom Fabrication Projects: For fabricators requiring high-strength articulation points in bespoke machinery, industrial enclosures, or specialized vehicle modifications.
Installation Best Practices, Maintenance, and Longevity
To maximize the performance and operational lifespan of the 2.25 x 8 Inch Steel Strap Hinge, proper installation and periodic maintenance are crucial. Given its heavy-duty nature, secure fastening is imperative, whether through welding for permanent, high-strength bonds or using appropriately sized, high-grade fasteners (e.g., bolts, nuts, washers) for mechanical attachment. Precision in alignment during installation is critical to ensure that the hinge operates smoothly and that stresses are evenly distributed, preventing binding or premature wear.
Regarding maintenance, particularly for a hinge with a "Plain" finish, protective treatment against environmental elements is highly recommended. While the steel itself is robust, an unfinished surface will be susceptible to oxidation (rust) when exposed to moisture and air. Application of industrial-grade paints, powder coatings, or galvanization will provide a durable barrier against corrosion, enhancing the hinge's aesthetic appeal and extending its service life in outdoor or corrosive environments. Regular lubrication of the pin and bearing areas with appropriate grease or lubricant will minimize friction, ensure smooth operation, and prevent wear. Periodic inspection for any signs of wear, loosening of fasteners, or structural fatigue is also advised, allowing for timely intervention and preventing potential failures. With conscientious installation and a simple, proactive maintenance regimen, this steel strap hinge is engineered to provide decades of reliable, trouble-free service, representing a long-term investment in the structural integrity and operational efficiency of the hinged system.
Performance Metrics: Durability, Reliability, and Operational Efficiency
The design and material specifications of this hinge culminate in a product that excels in key performance metrics critical for demanding applications. Its exceptional durability is a direct result of the 3/16 inch thick steel construction, which provides superior resistance to impact, abrasion, and cumulative fatigue from cyclic loading. This robust material choice ensures that the hinge can withstand the rigors of heavy use, minimizing the likelihood of structural compromise or deformation even under significant stress.
Reliability is a cornerstone of this product's engineering. The integration of a 1/2 inch steel pin, coupled with steel thrust bearings, ensures consistent, smooth articulation over an extended operational cycle. This precise mechanical design reduces internal friction and wear, translating into a hinge that performs predictably and without unexpected failure, even in environments characterized by extreme temperatures, vibrations, or shock loads. The ability of the thrust bearings to manage axial loads contributes significantly to this reliability, preventing issues like binding or premature wear of the pin and knuckles.
Operational efficiency is also enhanced. The smooth action facilitated by the thrust bearings and the robust pin minimizes the effort required to open and close heavy doors or gates, improving user experience and potentially reducing strain on automated opening mechanisms. Furthermore, the hinge's longevity translates directly into reduced downtime for maintenance or replacement, leading to increased productivity and lower operational costs over the life of the asset. This comprehensive approach to design ensures that the hinge not only endures but also contributes positively to the overall efficiency and safety of the system it serves.
The Strategic Advantage of a "Plain" Finish
The "Plain" finish specification for this steel strap hinge is a deliberate choice that offers distinct strategic advantages to industrial users and fabricators. Unlike pre-finished components, a plain steel hinge is delivered in its raw, unfinished state, allowing for complete customization of protective coatings to precisely match the specific requirements of the end application. This flexibility is invaluable in environments where standard finishes may be inadequate or where a specific aesthetic or functional coating is mandated.
For instance, an end-user requiring the hinge for a highly corrosive marine environment might opt for a specialized hot-dip galvanization or a multi-layer epoxy coating system that provides superior saltwater resistance. Conversely, an application in a dry, interior setting might only require a simple industrial primer and paint to match existing equipment. The plain finish allows the user to avoid the cost of removing a pre-applied finish that may not be suitable, and then reapplying a more appropriate one. It empowers the customer to integrate the hinge seamlessly into their existing finishing processes, whether that involves painting, powder coating, zinc plating, or other specialized treatments. This approach ensures optimal protection and integration, maximizing both the functional lifespan and the aesthetic consistency of the final assembly, ultimately providing a tailored solution that off-the-shelf coated hinges cannot match. It underscores a commitment to providing high-quality, adaptable base components for professional applications.
Conclusion: An Investment in Durability and Performance
The Buyers Products 2.25 x 8 Inch Steel Strap Hinge with a 1/2 Inch Steel Pin and steel thrust bearings is more than just a functional component; it is a meticulously engineered solution designed for the most demanding articulation tasks. Its robust 3/16 inch thick steel construction, coupled with precise dimensions and the strategic inclusion of thrust bearings, ensures unparalleled strength, durability, and smooth operation. From the critical shear resistance of the 1/2 inch pin to the load-distributing capabilities of the 2.25 x 8 inch strap, every aspect of this hinge is optimized for longevity and reliability in challenging environments. The substantial overall dimensions of 5 x 10.56 inches further signify its capacity to support heavy loads and withstand significant operational stresses.
Whether deployed on heavy-duty trailer doors, industrial gates, agricultural machinery, or custom fabrication projects, this hinge delivers consistent, high-performance articulation. Its "Plain" finish offers invaluable flexibility for custom protective coatings, ensuring perfect integration into any application. Representing a sound investment in operational efficiency and structural integrity, this hinge minimizes maintenance requirements and extends the service life of the associated equipment. For specific application parameters or to discuss the availability of this hinge in various lengths to perfectly fit your project, we encourage you to contact Customer Service for expert guidance and further information.
