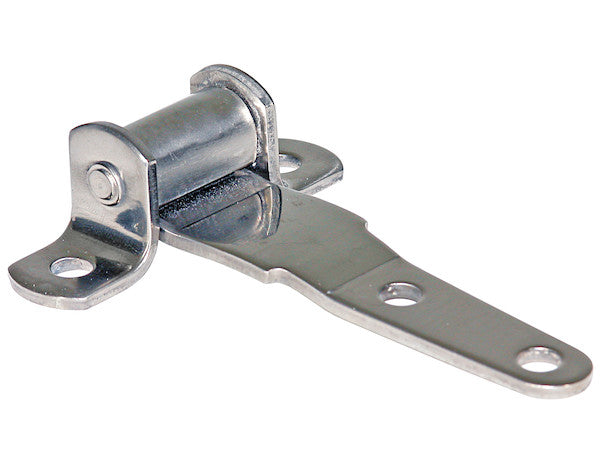

The Stainless Steel Strap Hinge from Buyers Products is constructed from 1/8 in. thick stainless steel for strength and corrosion resistance. It includes a 5/16 in. diameter nylon brushing pin.
Specifications
| Bracket Height (in.) | 2.75 |
|---|---|
| Bracket Width (in.) | 4.00 |
| Finish | Plain |
| Length (in.) | 4.00 |
| Material | Stainless Steel |
| Pin Size (in.) | 5/16 |
| Strap Length (in.) | 3.62 |
| Strap Width (in.) | 1.00 |
| Thickness (in.) | 0.125 |
Advanced Technical Overview: Stainless Steel Strap Hinge with Nylon Bushing Pin
The 1 x 3.63 Inch Stainless Steel Strap Hinge from Buyers Products, featuring an overall dimension of 2.75 x 4 inches and a precision 5/16-inch pin, represents a superior engineering solution for applications demanding robust performance, exceptional durability, and steadfast corrosion resistance. This detailed technical description aims to elucidate the multifaceted advantages derived from its material selection, design principles, and integrated componentry, providing a comprehensive understanding for engineers, procurement specialists, and industrial users.
Material Science: The Foundation of Durability – Stainless Steel
The cornerstone of this hinge's superior performance is its construction from high-grade stainless steel, specifically chosen for its metallurgical properties that are indispensable in demanding operational environments. At a nominal thickness of 1/8 inch (equivalent to 0.125 inches or approximately 3.175 mm), the material specification ensures an optimal balance between structural integrity and weight. Stainless steel, fundamentally an iron-based alloy containing a minimum of 10.5% chromium, forms a passive chromium oxide layer on its surface, which is self-repairing and provides intrinsic resistance to oxidation and various forms of corrosion. For applications requiring a robust strap hinge of this nature, grades such as AISI 304 or 316 are commonly employed. While the specific grade is not explicitly stated, the general attributes of stainless steel are paramount.
The resistance to corrosion is a primary driver for selecting stainless steel. Unlike carbon steel, which is susceptible to rust in the presence of moisture and oxygen, stainless steel maintains its structural and aesthetic integrity even in humid, wet, or chemically aggressive atmospheres. This characteristic is critical for outdoor installations, marine environments, food processing facilities, chemical plants, and any application where exposure to corrosive agents is a constant threat. The material's inherent ability to resist pitting, crevice corrosion, and general surface degradation translates directly into an extended service life and reduced maintenance requirements, thereby lowering the total cost of ownership over the product's lifecycle.
Beyond corrosion resistance, stainless steel exhibits excellent mechanical properties. Its high tensile strength, yield strength, and fatigue resistance ensure that the hinge can withstand significant static and dynamic loads without permanent deformation or premature failure. The 1/8-inch thickness of the strap directly contributes to its load-bearing capacity and rigidity, mitigating flexing or warping under operational stresses. Furthermore, stainless steel maintains its mechanical properties across a broad range of temperatures, offering reliable performance in both hot and cold environments where other materials might become brittle or lose strength. The "Plain" finish implies that the material's natural, unadorned surface is presented, which often includes a mill finish or a lightly brushed appearance, showcasing the material's inherent quality without additional coatings that could chip or wear off.
Precision Engineering and Manufacturing
The fabrication of this strap hinge involves precision manufacturing processes designed to ensure dimensional accuracy and consistent quality. The raw 1/8-inch thick stainless steel stock undergoes cutting, forming, and punching operations using advanced machinery. These processes are meticulously controlled to achieve the specified 2.75-inch bracket height, 4.00-inch bracket width (overall length), 3.62-inch strap length, and 1.00-inch strap width. The precision in these dimensions is crucial for ensuring proper fitment and alignment during installation, facilitating seamless integration with existing or new structural components.
The design of the strap hinge, characterized by its elongated leaves, distributes stress over a larger area of the mounting surface compared to a butt hinge. This design principle significantly enhances the hinge's ability to support heavier loads and provides increased stability for larger doors, gates, or panels. The accurate forming of the hinge barrels (knuckles) is critical for ensuring smooth articulation and proper alignment with the hinge pin. Any deviation in these tolerances could lead to binding, excessive wear, or premature failure of the hinge mechanism.
The Articulation System: 5/16-inch Pin with Nylon Bushing
A pivotal element contributing to the superior performance and longevity of this hinge is its articulation system, comprising a 5/16-inch diameter pin integrated with a nylon bushing. This deliberate design choice addresses common points of failure and operational inefficiencies found in less sophisticated hinge mechanisms.
The Significance of the 5/16-inch Pin:
The 5/16-inch (0.3125 inches or approximately 7.94 mm) diameter of the hinge pin is a carefully selected dimension, providing an optimal balance between shear strength, bending resistance, and the rotational dynamics within the hinge barrel. A pin of this diameter is sufficiently robust to withstand the shear forces generated during the opening and closing cycles of heavy components, preventing deformation or breakage under typical loads. The material of the pin, though not explicitly stated beyond its integration, is typically a hardened steel or stainless steel, engineered to resist wear and maintain its structural integrity over countless cycles.
Advantages of the Nylon Bushing:
The inclusion of a nylon bushing around the pin is a sophisticated engineering feature that dramatically enhances the hinge's operational characteristics and extends its service life. Nylon, a thermoplastic polymer, possesses several properties that make it an ideal material for this application:
- Low Coefficient of Friction: Nylon exhibits an inherently low coefficient of friction, especially when compared to metal-on-metal interfaces. This property ensures exceptionally smooth and quiet operation, minimizing the effort required to articulate the hinged component. The reduced friction also translates into less heat generation during movement, which is beneficial for sustained performance.
- Superior Wear Resistance: Nylon's excellent abrasion resistance means that the bushing effectively protects both the hinge pin and the internal surfaces of the hinge barrels from wear. Instead of metal rubbing directly against metal, which can lead to galling and material degradation, the nylon bushing absorbs the rotational friction, prolonging the life of the entire hinge assembly.
- Self-Lubricating Properties: Many grades of nylon possess self-lubricating characteristics, meaning they can operate effectively without the need for external greases or oils, or at least significantly extend lubrication intervals. This reduces maintenance requirements and makes the hinge suitable for environments where lubricants are undesirable (e.g., cleanrooms, food processing).
- Corrosion Resistance: Unlike metallic components, nylon is impervious to rust and most chemical degradation, ensuring that the critical articulation point remains functional even in highly corrosive or wet environments. This prevents seized hinges due to corrosion between the pin and barrel.
- Vibration and Noise Dampening: The inherent viscoelastic properties of nylon allow it to absorb minor shocks and vibrations, contributing to a quieter operation and reducing stress on the hinge and its mounting structure. This is particularly advantageous in applications where noise reduction is a priority.
- Dimensional Stability: While nylon can absorb moisture, leading to some dimensional changes, modern engineering grades are formulated to maintain sufficient dimensional stability within typical operating temperature and humidity ranges, ensuring consistent performance.
- Galvanic Corrosion Prevention: By acting as an insulating barrier between the stainless steel pin (if metal) and the stainless steel hinge leaves, the nylon bushing prevents potential galvanic corrosion that could occur if dissimilar metals were in direct contact in an electrolyte-rich environment.
The symbiotic relationship between the robust 5/16-inch pin and the low-friction, wear-resistant nylon bushing creates an articulation system designed for extreme longevity and consistent, trouble-free operation, significantly outperforming hinges with simple metal pins or less advanced bushing materials.
Structural Dimensions and Functional Adaptability
The overall dimensions of the hinge, measuring 2.75 inches in bracket height and 4.00 inches in overall length (which includes the combined width of both leaves), coupled with a 1.00-inch strap width and a 3.62-inch strap length, are critical specifications dictating its suitability for various applications.
- Overall Length (4.00 inches): This measurement provides ample surface area for mounting fasteners, ensuring a secure attachment to the intended structure. A longer overall length often implies greater leverage and load distribution, which is beneficial for heavy-duty applications.
- Bracket Height (2.75 inches): The vertical dimension of the hinge plate influences the hinge's profile and how it integrates aesthetically and structurally with the door or frame.
- Strap Length (3.62 inches) and Width (1.00 inch): The extended length and moderate width of the strap distribute the weight and forces across a wider area of the door or panel. This design is particularly advantageous for preventing sag or distortion in components made from lighter materials or those subjected to significant cantilevered loads. The 1-inch width provides substantial material for strength while remaining versatile for various panel thicknesses.
The strap hinge design intrinsically offers enhanced rigidity and load dispersion compared to standard butt hinges, particularly when supporting components with considerable weight or requiring increased stability. Its configuration allows for mounting across the face of a door or gate, offering both functional advantages in terms of support and a distinctive aesthetic that can be desired in certain architectural or industrial contexts.
Performance Characteristics and Operational Reliability
This Stainless Steel Strap Hinge is engineered for sustained performance under challenging conditions. Its design and material selection ensure:
- High Load-Bearing Capacity: The 1/8-inch thick stainless steel construction combined with the robust 5/16-inch pin provides excellent resistance to static and dynamic loads. The strap design effectively transfers these loads to the mounting surface, minimizing localized stress points on the hinged component.
- Fatigue Resistance: Stainless steel’s inherent fatigue resistance, coupled with the smooth operation facilitated by the nylon bushing, means the hinge can endure a high number of open-close cycles over its lifespan without material fatigue or premature mechanical failure.
- Resistance to Environmental Extremes: From frigid temperatures to high heat, and from dry desert conditions to salt-laden marine environments, the stainless steel body maintains its structural integrity and corrosion resistance. The nylon bushing also performs reliably across a significant temperature range.
- Low Maintenance: The combination of corrosion-resistant stainless steel and the self-lubricating, wear-resistant nylon bushing dramatically reduces the need for routine maintenance, such as cleaning, oiling, or component replacement, offering a superior long-term solution.
Versatile Applications Across Industries
Given its robust construction and advanced features, this Stainless Steel Strap Hinge is ideally suited for a broad spectrum of industrial, commercial, and specialized applications:
- Transportation Industry: Widely used on truck bodies, utility trailers, equipment compartments, RVs, and commercial vehicles where exposure to road salts, varying weather, and constant vibrations necessitate durable, corrosion-resistant hardware.
- Marine Environments: Essential for boat hatches, deck lockers, marine doors, and dock boxes due to its exceptional resistance to saltwater corrosion and humidity.
- Food Service and Medical Facilities: The hygienic properties of stainless steel, coupled with the low-maintenance, non-contaminating nature of the nylon bushing, make it suitable for equipment access panels, cabinet doors, and utility covers in environments requiring strict sanitation.
- Outdoor Enclosures and Gates: Ideal for securing outdoor electrical boxes, storage shed doors, industrial gates, and agricultural equipment where resistance to weather elements is paramount.
- Manufacturing and Industrial Equipment: For access panels, machine guards, and component enclosures that require frequent access and robust articulation.
- Architectural and Commercial Spaces: Suitable for heavy-duty utility doors, gates, and specific aesthetic applications where a visible, durable strap hinge is desired.
Installation and Long-Term Value
Proper installation is crucial to maximize the performance and longevity of this strap hinge. It requires appropriate fasteners (not included) that are compatible with both the hinge material (preferably stainless steel fasteners to avoid galvanic corrosion) and the mounting substrate. Accurate alignment of the hinges and secure fastening ensure optimal load distribution and smooth operation.
In conclusion, the 1 x 3.63 Inch Stainless Steel Strap Hinge with a 5/16-inch pin, boasting an overall dimension of 2.75 x 4 inches, is not merely a component but a meticulously engineered solution. Its selection of premium stainless steel, coupled with the intelligent integration of a nylon bushing, delivers a product characterized by superior strength, unparalleled corrosion resistance, exceptionally smooth and quiet operation, and extended service life. This hinge represents a strategic investment in reliability, minimizing downtime and maintenance costs across diverse and demanding applications, ensuring consistent performance and peace of mind for the end-user.
