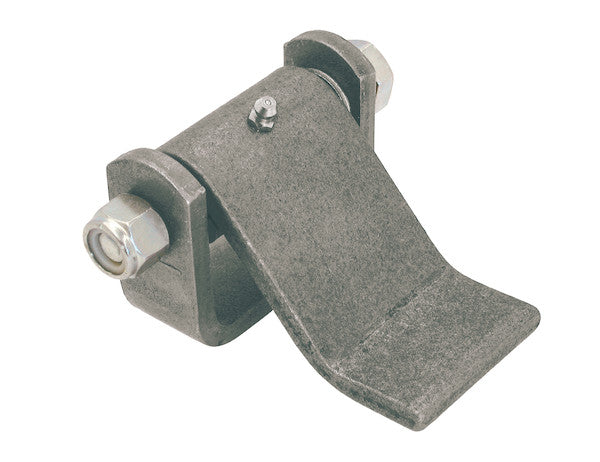

B2426FS - Formed Steel Hinge Strap with Grease Fittings - 3.85 x 4.33 x 2.44 Inch Tall

Buyers Products Formed Steel Strap Hinge includes grease fitting and comes complete with zinc washer, hex head cap screw and locknut, and plastic bushing. Each hinge is constructed from .31 in. thick steel for durability. An optional steel brushing is available.

Specifications

Advanced Technical Overview: Formed Steel Hinge Strap with Integrated Lubrication System

The Buyers Products Formed Steel Strap Hinge represents a robust and meticulously engineered solution for heavy-duty articulation requirements across a spectrum of industrial, commercial, and utility applications. Designed with an emphasis on durability, maintainability, and reliable performance, this hinge system integrates superior material selection with intelligent design features to deliver exceptional operational longevity.

Material Science and Fabrication of Formed Steel

The foundation of this hinge's resilience lies in its primary construction material: formed steel. Specifically, the strap hinge is manufactured from .31 inch (approximately 8mm) thick steel. This gauge is critical for applications demanding high load-bearing capacity and resistance to deformation under stress. The term "formed steel" denotes a manufacturing process where sheet or plate steel is shaped through bending, pressing, or stamping operations, as opposed to casting or machining from solid billet. This method offers several advantages, including:

• Enhanced Strength-to-Weight Ratio: Forming processes can create complex geometries that optimize material distribution, providing strength where needed without excessive weight.
• Material Uniformity: Formed steel typically exhibits consistent material properties throughout its structure, reducing the likelihood of internal defects often associated with casting.
• Cost-Effectiveness: For high-volume production, forming operations are generally more economical than extensive machining, allowing for competitive product pricing without compromising quality.
• Weldability: Carbon steel, commonly used for such applications, is highly amenable to welding, facilitating secure attachment to various structural components.

The specific type of steel utilized is typically a low-carbon or medium-carbon steel, selected for its optimal balance of strength, ductility, and formability. This material provides excellent tensile strength to resist pulling forces, and yield strength to prevent permanent deformation under heavy loads. The .31-inch thickness provides significant sectional modulus, which is a key factor in resisting bending and torsional forces commonly encountered in articulated mechanisms.

Precision Engineering and Dimensional Significance

The stated dimensions of 3.85 inches (strap length), 4.33 inches (hinge width), and 2.44 inches (hinge height) are not arbitrary but are carefully selected to optimize functionality and integration for specific operational envelopes. This "Short Leaf" style configuration is particularly suited for applications where the mounting surface on one side may be limited, or where the load distribution benefits from a more compact leaf design:

• Strap Length (3.85 inches): This dimension refers to the length of the primary leaf that attaches to one of the articulating surfaces. A longer strap provides a greater surface area for load distribution and fastener engagement, minimizing stress concentrations on the mounting substrate. Its substantial length ensures robust anchoring and resistance to pull-out or shear forces, particularly critical for heavy doors, gates, or access panels.
• Hinge Width (4.33 inches): This is the overall span of the hinge when closed or in its operational state, representing the distance from the outermost edge of one leaf to the outermost edge of the other. A wider hinge can distribute torsional loads more effectively across the pivot axis, contributing to greater stability and reducing play. It also provides a broader moment arm, beneficial for managing heavier door or lid weights.
• Hinge Height (2.44 inches): This dimension indicates the vertical extent of the hinge, which directly influences the length of the hinge pin and the bearing surface. A greater hinge height correlates with a longer bearing surface, which in turn reduces the pressure per unit area on the bushing, thereby extending the life of the pivot point. It also offers more vertical real estate for secure mounting.

The "Short Leaf" style implies that one of the hinge leaves is dimensionally more constrained than a full-length strap on both sides. This design is often chosen when space is at a premium on one side of the joint, yet a robust connection is still required. It requires careful consideration of mounting surface integrity and fastening methods to ensure adequate support.

Integrated Lubrication System: The Grease Fitting

A standout feature of this formed steel hinge strap is the inclusion of an integrated grease fitting (often referred to as a Zerk fitting). This component is paramount for ensuring the long-term operational integrity and performance of the hinge, especially in demanding environments. The benefits of a dedicated lubrication system are manifold:

• Reduced Friction and Wear: Regular lubrication with appropriate grease minimizes metal-to-plastic or metal-to-metal contact within the pivot mechanism, significantly reducing friction. This translates to smoother operation, less effort required to articulate the hinge, and dramatically reduced wear rates on the bushing and pin.
• Corrosion Protection: Grease forms a protective barrier against moisture, contaminants, and corrosive agents, which are prevalent in outdoor, industrial, or marine environments. This is particularly important for the internal components, which are susceptible to rust and degradation.
• Contaminant Purging: When fresh grease is applied through the fitting, it effectively purges old, contaminated grease, along with any accumulated dirt, dust, or abrasive particles that may have entered the bearing area. This keeps the internal mechanism clean and optimizes its lifespan.
• Extended Service Life: By mitigating friction, wear, and corrosion, the grease fitting significantly extends the operational lifespan of the hinge, reducing the frequency and cost of maintenance and replacement.
• Load Distribution: A properly lubricated bearing can better distribute dynamic and static loads across the bearing surface, preventing localized stress concentrations.

The type of grease recommended will typically be a heavy-duty, multi-purpose lithium-complex or calcium sulfonate grease, possessing excellent extreme pressure (EP) properties, water resistance, and adhesion characteristics. Routine lubrication, specified by the equipment manufacturer or best practices for the application, is crucial for realizing these benefits.

Comprehensive Componentry for Optimal Performance

The Buyers Products Formed Steel Strap Hinge is supplied as a complete assembly, incorporating several critical components engineered to work synergistically for maximum reliability:

1. Zinc Washer

The inclusion of a zinc washer serves multiple critical functions:

• Corrosion Resistance: Zinc coating provides sacrificial galvanic protection against corrosion for the underlying steel. In the presence of moisture, zinc corrodes preferentially to steel, protecting the hinge components. This is essential for outdoor or wet applications.
• Reduced Friction: Placed between moving or static components, washers can reduce friction during assembly and operation.
• Load Distribution: Washers help distribute the clamping load of the fastener over a larger area, preventing damage to the parent material and ensuring a secure connection.
• Isolation: In some cases, a washer can act as an isolator, preventing direct contact between dissimilar metals that could lead to galvanic corrosion.

2. Hex Head Cap Screw

The hex head cap screw is the primary fastener for the hinge's pivot point. These screws are chosen for their high tensile strength and ease of installation/removal using standard tools. Key attributes include:

• High Strength: Typically manufactured from high-grade steel (e.g., Grade 5 or Grade 8 for Imperial fasteners, or Class 8.8 or 10.9 for Metric), these screws provide the necessary clamping force and shear strength to secure the hinge leaves and pin assembly under dynamic and static loads.
• Positive Drive: The hexagonal head allows for high torque application, ensuring a tight and secure joint.
• Standardization: Hex head fasteners are universally recognized and readily available, simplifying maintenance and replacement.

3. Locknut

The locknut is a crucial component for maintaining the integrity of the fastener assembly, particularly in environments subject to vibration, shock, or cyclic loading. It prevents loosening of the nut due to these forces. Common types of locknuts include:

• Nylon Insert (Nyloc) Nuts: These nuts incorporate a nylon ring that deforms when the nut is tightened, creating friction against the screw threads and resisting vibrational loosening. They are effective for moderate temperatures.
• All-Metal Prevailing Torque Nuts: These nuts have deformed threads or non-circular sections that create interference with the bolt threads, providing locking action. They are suitable for higher temperatures where nylon inserts might degrade.

The locknut ensures that the pivot assembly remains securely tensioned, preventing unwanted play or catastrophic failure due to fastener backing out.

4. Plastic Bushing

The standard inclusion of a plastic bushing at the pivot point is a deliberate engineering choice, offering a range of benefits:

• Self-Lubrication: Many engineering plastics, such as Nylon, Acetal (Delrin), or UHMW-PE (Ultra-High Molecular Weight Polyethylene), possess inherent self-lubricating properties. This reduces the coefficient of friction even in the absence of external grease, and provides a backup in case of lubrication neglect.
• Corrosion Resistance: Plastic bushings are impervious to rust and many chemical corrosives that could affect metallic bearings.
• Vibration Damping: The inherent elasticity of plastic can absorb minor shocks and vibrations, contributing to quieter operation and reduced wear on adjacent metal components.
• Reduced Weight: Plastic is significantly lighter than metal, contributing to overall weight savings.
• Galvanic Corrosion Prevention: By isolating the steel hinge pin from other metallic components, the plastic bushing prevents galvanic corrosion that can occur when dissimilar metals are in contact in the presence of an electrolyte.
• Wear Resistance: Modern engineering plastics are formulated to offer excellent wear resistance against rotating or oscillating shafts, providing a sacrificial wear surface that is easily replaceable.

The specific plastic type would be chosen based on anticipated loads, operating temperature range, and environmental exposure to chemicals or UV radiation.

5. Optional Steel Bushing

While the plastic bushing is suitable for a wide range of applications, an optional steel bushing is available for specific, more demanding scenarios. The selection of a steel bushing over plastic typically occurs when:

• Higher Load Capacity: Steel bushings can withstand significantly higher compressive and shear loads than plastic, making them ideal for extremely heavy doors, gates, or components.
• Extreme Temperatures: Steel maintains its mechanical properties across a much broader temperature range than most plastics, which can soften at high temperatures or become brittle at very low temperatures.
• Abrasive Environments: In environments with high levels of abrasive dust or grit, certain hardened steel or bronze alloys may offer superior wear resistance compared to plastics, especially if combined with an effective lubrication regimen.
• Impact Resistance: Steel offers greater resistance to sudden impacts or shock loads.

When a steel bushing is employed, the reliance on the grease fitting for continuous lubrication becomes even more critical to prevent metal-on-metal wear and ensure optimal performance and longevity.

Performance Characteristics and Durability

The combination of .31-inch formed steel construction, precision dimensions, a comprehensive lubrication system, and robust componentry results in a hinge system with exceptional performance characteristics:

• High Load-Bearing Capacity: The thick steel and robust design allow the hinge to support substantial static and dynamic loads, making it suitable for heavy doors, ramps, and equipment access points.
• Extended Cycle Life: With proper lubrication and maintenance, the hinge is designed to withstand a high number of operational cycles without significant degradation in performance.
• Resistance to Environmental Factors: The materials and design inherently resist corrosion, abrasion, and the detrimental effects of dirt and moisture, particularly when regularly lubricated.
• Minimal Deflection: The substantial steel thickness and engineered dimensions minimize deflection and play, maintaining consistent alignment over time.

Applications Across Industries

The robust design and feature set of this formed steel strap hinge make it indispensable across numerous sectors, including but not limited to:

• Commercial and Industrial Vehicles: Truck body doors, trailer ramps, utility vehicle compartments, dump truck tailgates.
• Agricultural Equipment: Access doors on tractors, combine harvesters, gates on livestock trailers, implements.
• Construction Machinery: Access panels on excavators, loaders, enclosures for generators or control systems.
• Marine Applications: Heavy-duty boat hatches, dock gates (with appropriate surface treatments for enhanced corrosion resistance).
• Industrial Enclosures and Cabinets: Heavy-duty control panel doors, machine guards, security enclosures.
• Heavy Gates: Farm gates, industrial facility gates, security gates requiring robust articulation.

In all these applications, the hinge’s ability to withstand harsh environmental conditions—including extreme temperatures, dust, vibration, and moisture—while maintaining functional integrity, is paramount.

Installation, Maintenance, and Longevity

Proper installation and a consistent maintenance regimen are crucial for maximizing the lifespan and performance of the Formed Steel Hinge Strap:

• Installation: The hinge should be securely mounted to structural members capable of supporting the anticipated loads. Fasteners of appropriate size and strength, compatible with the mounting substrate, must be used. Proper alignment of the hinges (for multi-hinge installations) is essential to prevent binding and uneven wear.
• Lubrication: Adherence to a scheduled lubrication protocol using the integrated grease fitting is non-negotiable for optimal performance. The frequency of lubrication will depend on the operating environment, cycle frequency, and load conditions. Fresh grease should be applied until old, contaminated grease is purged from the bearing area.
• Inspection: Regular visual inspections for signs of wear, corrosion, loose fasteners, or damage to the hinge components should be conducted. Any excessive play or unusual noise during operation warrants immediate investigation.

By following these guidelines, the Buyers Products Formed Steel Strap Hinge is designed to provide years of reliable, maintenance-friendly service even in the most demanding operational contexts.

Conclusion

The Formed Steel Hinge Strap with Grease Fittings from Buyers Products represents a high-performance, meticulously engineered hardware component. Its robust .31-inch thick formed steel construction, precisely engineered dimensions (3.85 x 4.33 x 2.44 inches), and comprehensive suite of integrated components – including a zinc washer, hex head cap screw, locknut, and a choice between plastic or optional steel bushings – ensure exceptional durability and functional reliability. The critical inclusion of a grease fitting underscores its design for extended service life and ease of maintenance in demanding applications. This hinge is an ideal choice for engineers and professionals seeking a dependable and heavy-duty articulation solution for a wide array of industrial and commercial equipment.
