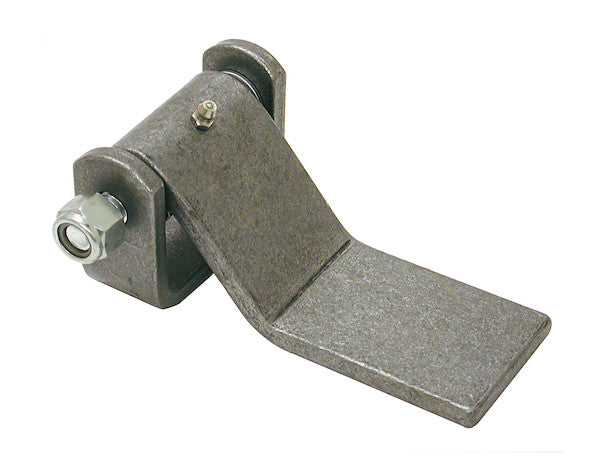

Buyers Products Formed Long Leaf Steel Strap Hinge has a longer leaf and is ideal for trailer doors and gates. The formed .31 in. thick steel hinge is weldable and comes complete with zinc washer, hex head cap screw with locknut, and plastic bushing. An optional steel bushing is available.
Specifications
| Bushing Material | Plastic |
|---|---|
| Hinge Height (in.) | 2.44 |
| Hinge Width (in.) | 4.33 |
| Strap Length (in.) | 5.85 |
| Strap Thickness (in.) | 0.31 |
| Style | Long Leaf |
Technical Overview: Formed Steel Hinge Strap with Integrated Lubrication System
The Buyers Products Formed Steel Hinge Strap, measuring 5.85 x 4.33 x 2.44 inches tall, represents a pinnacle of robust engineering and functional design tailored for demanding industrial, commercial, and heavy-duty applications. This long-leaf strap hinge is meticulously crafted from high-grade, formed steel, providing exceptional structural integrity and an extended operational lifespan. A distinctive feature of this hinge is the incorporation of grease fittings, which significantly enhance its durability and maintainability through a sophisticated lubrication system. Engineered for seamless integration via welding, this component is supplied with all necessary installation hardware, including a zinc washer, a hex head cap screw with a locknut, and a high-performance plastic bushing, with an optional steel bushing available for enhanced performance requirements.
Advanced Material Science and Fabrication
Precision Formed Steel Construction
The foundation of this hinge's superior performance lies in its formed steel construction. The steel, typically a high-strength low-alloy (HSLA) or structural carbon steel, undergoes a precise forming process. This cold-forming technique involves shaping the steel at room temperature, which not only yields precise dimensional accuracy but also enhances the material's mechanical properties. During forming, the grain structure of the steel is aligned along the stress lines, resulting in increased tensile strength, yield strength, and fatigue resistance compared to cast or cut components of equivalent thickness. This process eliminates internal stresses often found in other manufacturing methods, leading to a more stable and resilient component.
Optimal Thickness and Weldability
With a substantial thickness of 0.31 inches (approximately 5/16 inch), the steel strap is engineered to withstand significant static and dynamic loads without deformation. This robust gauge ensures high shear strength and resistance to bending moments, crucial for applications involving heavy doors and gates subjected to frequent operation and environmental stresses. The chosen steel alloy is specifically selected for its excellent weldability, a critical factor for secure and permanent installation in industrial settings. Its chemical composition allows for strong, metallurgical bonds with common welding techniques such as MIG (Gas Metal Arc Welding), TIG (Gas Tungsten Arc Welding), or SMAW (Shielded Metal Arc Welding). Proper welding ensures the hinge becomes an integral part of the structure, maximizing load transfer and overall system rigidity. Adherence to welding best practices, including surface preparation and appropriate heat input, is essential to leverage the full mechanical potential of the joint and prevent heat-affected zone degradation.
Engineered Design: The Long Leaf Strap Hinge Advantage
Strategic Geometry for Load Distribution
The "long leaf" design is not merely an aesthetic choice but a deliberate engineering decision to optimize mechanical performance. The extended length of the hinge leaf (5.85 inches) provides a significantly larger surface area for attachment to the door or gate frame. This extensive footprint ensures superior distribution of stress and load across the mounting surface, mitigating concentrated stress points that could lead to material fatigue or structural failure in shorter leaf designs. By spreading the load more broadly, the hinge minimizes localized stresses on both the hinge itself and the mounting substrate, thereby enhancing the overall longevity and reliability of the assembly.
Enhanced Stability and Mechanical Leverage
In applications such as trailer doors and heavy gates, where dynamic forces, vibrations, and impact loads are common, the long leaf design offers inherent stability. The increased distance from the pivot point to the extremities of the strap creates a greater moment arm, translating into enhanced mechanical leverage. This translates to smoother operation and reduced effort when opening or closing heavy access points, while simultaneously providing robust resistance against twisting and racking forces. The specified hinge width of 4.33 inches further contributes to lateral stability, preventing undue side-to-side movement or deflection under shear loads, ensuring the gate or door maintains proper alignment over its operational lifespan. The hinge height of 2.44 inches defines the pivot axis and provides adequate clearance for smooth articulation.
Integrated Lubrication System: Grease Fittings for Unrivaled Longevity
The Mechanism of Continuous Performance
A standout feature of this Formed Steel Hinge Strap is the incorporation of grease fittings, often referred to as Zerk fittings. These small but critically important components provide a direct conduit for introducing lubricant into the hinge's pivot mechanism, typically around the bushing and pin interface. This design facilitates proactive and reactive maintenance, ensuring that the critical moving parts are consistently enveloped in a protective film of grease.
Multi-faceted Benefits of Strategic Lubrication
The integrated lubrication system confers numerous advantages:
- Reduced Friction: Regular greasing minimizes direct metal-on-metal or bushing-on-pin contact, thereby dramatically reducing kinetic friction during operation. This translates to significantly smoother door or gate movement with reduced operational effort.
- Extended Lifespan: By preventing abrasive wear, galling, and scoring of the hinge pin and bushing, the lifespan of the hinge is substantially prolonged. The protective lubricant film acts as a sacrificial layer, absorbing wear and extending the operational cycles of the assembly.
- Superior Corrosion Protection: Grease serves as an excellent barrier against environmental contaminants such as moisture, dust, dirt, and corrosive agents. It seals the internal pivot area, preventing rust and oxidation from degrading critical components, which is paramount in outdoor or harsh industrial environments.
- Noise Abatement: Unlubricated hinges often produce irritating squeaking, grinding, or groaning noises due to excessive friction and wear. Consistent lubrication eliminates these undesirable sounds, contributing to a quieter and more professional operational environment.
- Enhanced Load Distribution: The hydrodynamic film created by the grease between mating surfaces can help to distribute radial and axial loads more evenly, preventing localized pressure points and reducing stress concentrations that could lead to premature failure.
- Streamlined Maintenance: The presence of grease fittings simplifies the lubrication process, allowing for quick, clean, and efficient replenishment of lubricant using standard grease guns. This reduces maintenance downtime and encourages regular servicing, which is vital for preventative care.
For optimal performance, selecting the appropriate grease type (e.g., lithium-complex, extreme pressure (EP) grease) tailored to the specific operating temperatures and load conditions of the application is recommended. A consistent lubrication schedule, informed by usage intensity and environmental exposure, will ensure the hinge operates at peak efficiency throughout its service life.
Precision Components: Bushings and Fasteners
Bushing Technology: Plastic vs. Optional Steel
The hinge system includes a crucial bushing component designed to absorb wear and minimize friction between the moving parts. The standard offering features a high-performance plastic bushing.
- Plastic Bushing: Typically manufactured from engineering plastics such as nylon, acetal, or high-density polyethylene (HDPE), these bushings offer several distinct advantages. They possess inherent self-lubricating properties (reducing the coefficient of friction even without external grease, though grease is still critical for longevity), excellent corrosion resistance, vibration dampening capabilities, and are generally lighter and more cost-effective. They are ideal for applications where moderate loads, impact absorption, and resistance to chemical ingress are priorities.
- Optional Steel Bushing: For applications demanding the utmost in load-bearing capacity, wear resistance, and rigidity, an optional steel bushing is available. These are typically made from hardened steel or bearing-grade bronze, offering superior compressive strength and abrasion resistance. Steel bushings are particularly suited for extremely heavy loads, high-frequency operation, or environments where high temperatures might compromise plastic materials. While steel-on-steel contact has a higher friction coefficient, the integrated grease fitting ensures that even with a steel bushing, proper lubrication is maintained, mitigating wear and promoting smooth operation under the most rigorous conditions. The choice between plastic and steel bushings should be dictated by the specific performance envelope and projected operational demands.
Robust Fastener System
Completing the hinge assembly is a meticulously selected fastener system designed for secure, long-term integrity:
- Hex Head Cap Screw: This high-strength fastener serves as the primary hinge pin, providing the pivot point around which the leaves articulate. Its hex head facilitates precise torque application during installation, ensuring proper tension and alignment. The material grade of the screw is chosen to withstand significant shear and bending stresses encountered during hinge operation.
- Locknut: To counteract loosening caused by continuous vibration, dynamic loads, and thermal expansion/contraction, a locknut is employed. Whether it's a nylon-insert locknut (Nyloc) or an all-metal prevailing torque type, its function is to provide resistance to loosening, maintaining the assembly's integrity and preventing catastrophic failure over time. Proper torquing of the locknut is paramount for both security and allowing free hinge movement.
- Zinc Washer: Positioned beneath the head of the cap screw, the zinc washer serves multiple critical functions. It distributes the clamping force more evenly over a larger surface area, preventing damage or galling to the hinge material during tightening. Furthermore, its zinc plating offers an initial layer of galvanic corrosion protection, preventing rust and ensuring the fastener system remains serviceable for future maintenance.
Versatile Applications and Environmental Resilience
While ideally suited for trailer doors and gates, the robust design and advanced features of this formed steel hinge strap extend its utility across a broad spectrum of demanding applications:
- Agricultural Machinery: Ideal for access panels, equipment covers, and tool compartments on tractors, combines, and other farm implements, where exposure to dirt, moisture, and heavy usage is common.
- Construction Equipment: Suitable for heavy-duty storage boxes, tool chests, and access doors on excavators, loaders, and other construction vehicles, requiring high resistance to impact and harsh conditions.
- Industrial Enclosures and Cabinets: Provides reliable access for machinery guards, electrical cabinets, and safety enclosures in factories and industrial facilities.
- Specialty Vehicles: Utilized in utility trucks, emergency vehicles, and off-road equipment for secure door and compartment access, where reliability is paramount.
- Material Handling Equipment: Applicable to various components on forklifts, carts, and trolleys, ensuring secure and smooth operation under repetitive stress.
Durability in Harsh Environments
The hinge's design and material selection ensure exceptional resilience against challenging environmental factors:
- Corrosion Resistance: The inherent properties of the steel, complemented by the protective grease within the pivot and the zinc-plated washer, offer significant resistance to rust and atmospheric corrosion, especially when the hinge is further protected by appropriate coatings or paint.
- Temperature Extremes: The robust steel construction and suitable lubricant choices allow for reliable operation across a wide range of temperatures, from freezing cold to intense heat, without significant degradation of mechanical properties.
- Vibration and Shock: The formed steel's strength, combined with the securely fastened locknut, ensures the hinge maintains its structural integrity and operational precision even when subjected to continuous vibration or sudden shock loads typical of mobile equipment.
- Dust and Debris: The grease within the fittings acts as a barrier, preventing ingress of fine particulate matter into the critical bearing surfaces, which would otherwise accelerate wear and cause seizing.
Installation and Maintenance Protocols
Welding Best Practices
Successful installation of this weldable hinge requires adherence to professional welding standards. Prior to welding, surfaces must be meticulously cleaned of any contaminants (e.g., rust, oil, paint) to ensure a strong, defect-free weld. Proper joint preparation, such as beveling for thicker sections, is crucial for full penetration welds. The use of appropriate welding consumables and techniques (e.g., pre-heating for thicker sections, controlling interpass temperature, multi-pass welding) will maximize the strength and longevity of the welded connection. Post-weld inspection for cracks, porosity, and proper fusion is highly recommended to guarantee structural integrity and safety.
Optimal Lubrication Schedule
The efficacy of the integrated grease fittings hinges on a consistent and appropriate lubrication regimen. The frequency of greasing will depend on several factors: the intensity of use (e.g., daily vs. weekly operation), the severity of the operating environment (e.g., exposure to water, dust, chemicals), and the type of grease employed. Generally, hinges on heavy-duty equipment should be inspected and greased quarterly, or more frequently under severe conditions. Using a high-quality, compatible lubricant will ensure peak performance and maximum protection against wear and corrosion.
Performance, Durability, and Total Cost of Ownership
Investing in the Buyers Products Formed Steel Hinge Strap translates into significant long-term value. Its design and material robustness guarantee consistent, reliable performance over an extended service life, drastically reducing the likelihood of unexpected failures and associated downtime. This enhanced durability minimizes maintenance requirements and replacement costs, contributing to a lower total cost of ownership throughout the product's operational lifespan. Furthermore, the secure and smoothly operating hinges contribute directly to improved operational safety, preventing accidental openings or uncontrolled movements of heavy doors and gates. This product embodies engineering excellence, offering a dependable solution for the most demanding applications where strength, longevity, and maintainability are paramount.
