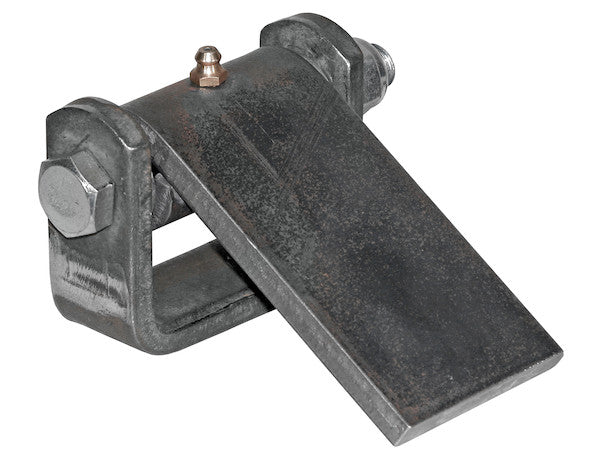

Buyers Products Formed Steel Straight Strap Hinge includes grease fitting and comes complete with zinc washer, hex head cap screw and locknut, and plastic bushing. Strap has a straight strap to fit numerous applications. An optional steel bushing is also available for increased durability.
Specifications
| Bushing Material | Plastic |
|---|---|
| Hinge Height (in.) | 2.44 |
| Hinge Width (in.) | 4.33 |
| Strap Length (in.) | 3.85 |
| Strap Thickness (in.) | 0.31 |
| Style | Straight Strap |
Technical Product Overview: Formed Steel Hinge Strap with Grease Fittings
The Buyers Products Formed Steel Straight Strap Hinge, precisely engineered to 3.85 x 4.35 x 2.44 inches, offers a robust solution for heavy-duty pivoting applications. Fabricated from high-grade formed steel, this hinge ensures superior strength, durability, and resilience in challenging environments. A key design feature is the integrated grease fitting, critical for proactive lubrication, significantly extending the hinge's operational lifespan by minimizing friction and wear. The comprehensive assembly includes essential fastening hardware: a zinc washer for load distribution and corrosion protection, a high-strength hex head cap screw as the pivot pin, and a secure locknut to prevent loosening under dynamic conditions. It integrates a low-friction plastic bushing, with an optional steel bushing available for enhanced wear resistance and higher load capacities. The straight strap configuration maximizes versatility, simplifying installation across diverse industrial and commercial mounting requirements. This hinge is designed for reliable, long-term performance in demanding operational settings.
Engineering Excellence: The Role of Formed Steel
Formed steel is the optimal material for this hinge strap, ideal for demanding mechanical applications. Steel, an iron-carbon alloy, offers exceptional tensile and yield strength and inherent ductility. The "formed" process, involving mechanical deformation, refines the steel's grain structure, enhancing mechanical properties. This yields superior structural integrity, withstanding significant static and dynamic loads without deformation or fatigue. Formed steel's hardness contributes to wear resistance, vital for components enduring operational stress and abrasion. Its robust nature resists bending, shearing, and torsional forces, making it ideal for heavy-duty doors, gates, and equipment requiring structural reliability. Precision manufacturing ensures consistent dimensions and tight tolerances, critical for reliable fitment and long-term performance, positioning this hinge as a durable, resilient solution.
Advanced Lubrication System: Integrated Grease Fittings
A critical design feature of the Buyers Products Hinge Strap is its integrated grease fitting (Zerk fitting). This component transforms the hinge into an actively maintainable system, extending its service life and ensuring optimal performance. Mechanical hinges experience frictional wear. Without effective lubrication, this leads to rapid degradation, increased effort, heat, and premature failure. The grease fitting provides a dedicated conduit for injecting heavy-duty lubricant directly into the hinge's internal bearing surfaces. This pressurized delivery ensures comprehensive lubrication of the pivot pin and bushing, reaching critical wear interfaces. Lubricant reduces friction, forms a protective barrier against moisture and corrosion, helps dampen shocks, and regular greasing flushes contaminated lubricant. This proactive maintenance capability is indispensable for harsh environments, reducing downtime and operational costs.
Secure Fastening System: Zinc Washer, Hex Head Cap Screw, and Locknut
Long-term reliability relies on robust fastening hardware. This hinge strap includes a comprehensive system: a zinc washer, hex head cap screw, and locknut. The hex head cap screw serves as the primary pivot pin, fabricated from high-grade steel for exceptional tensile and shear strength, enduring rotational and translational forces. Its hexagonal head allows high-torque tightening. The zinc washer distributes clamping force over a wider surface, preventing localized stress and material deformation. Its zinc plating provides sacrificial corrosion protection. The locknut, typically a nylon insert type, maintains fastening integrity under dynamic loads and vibrations. It creates an interference fit, resisting self-loosening and ensuring the pivot pin remains securely in place. This preserves hinge alignment and prevents operational failures from loose connections. These components form a robust, reliable, and secure fastening assembly vital for the hinge's overall performance.
Optimized Performance: Plastic vs. Optional Steel Bushing Technology
Bushing material selection is paramount for tailoring hinge performance. The Buyers Products hinge includes a plastic bushing, with an optional steel bushing for enhanced requirements. The plastic bushing, typically high-performance polymers, offers low friction for smooth articulation with reduced lubrication in moderate-duty applications. Plastic bushings are corrosion-resistant, lightweight, provide good vibration damping and noise reduction. They suit environments needing electrical isolation or chemical resistance. However, plastic bushings have load-bearing and temperature stability limitations, susceptible to creep and degradation. For superior resilience, higher load capacity, and extreme wear resistance, the optional steel bushing is preferred. Manufactured from hardened carbon or stainless steel, these bushings withstand greater compressive and shear forces, excelling in environments with continuous heavy loads, high-frequency articulation, or abrasive conditions. Steel bushings maintain mechanical integrity over a wider temperature range and, with proper grease lubrication, offer exceptional longevity. This choice optimizes the hinge for cost-effectiveness in general applications or maximum durability/load capacity in rigorous industrial settings, extending operational lifespan and reliability.
Design & Dimensional Implications: Straight Strap Configuration and Technical Specifications
The "straight strap" configuration enhances simplicity, strength, and versatility. This direct mounting surface facilitates straightforward attachment via welding or bolting, minimizing installation complexity and maximizing contact area for load distribution. This geometry bolsters structural integrity, ensuring the 0.31-inch strap thickness provides maximum resistance to bending and shear. The hinge's technical specifications are critical:
- Strap Length (3.85 inches): Dictates effective mounting area and influences load distribution, crucial for heavy doors/tailgates to prevent localized stress.
- Hinge Width (4.33 inches): Represents overall lateral footprint, essential for installation clearance and reflects hinge barrel robustness accommodating the pivot pin.
- Hinge Height (2.44 inches): Defines vertical stand-off, impacting clearance, aesthetic profile, and contributing to leverage during articulation.
- Strap Thickness (0.31 inches): This nearly one-third inch thickness indicates heavy-duty capacity. Thicker material directly correlates with superior resistance to bending, torsion, and shear, ensuring the strap withstands significant operational loads.
Versatile Applications in Demanding Industries
The Formed Steel Straight Strap Hinge with Grease Fittings suits diverse demanding applications across industries where structural integrity and sustained operational reliability are essential. In Commercial Transportation, this hinge is indispensable for truck tailgates, dump body side gates, utility trailer doors, and service body compartments, enduring vibration, impacts, and harsh road conditions. The Agricultural Sector benefits, utilizing these hinges for tractor access panels, grain hopper doors, and livestock trailer gates, all operating in corrosive, dirty outdoor environments. Within the Construction and Heavy Equipment Industry, these hinges are critical for excavator access panels, skid steer attachments, and heavy-duty job site storage units, withstanding severe operational stresses, dirt, and moisture. Beyond these, the hinge sees extensive use in General Industrial Fabrication and Manufacturing for industrial enclosures, heavy machinery access doors, robust facility gates, material handling equipment, and custom builds, providing a reliable pivoting solution where durability and ease of maintenance are paramount. Its adaptability, augmented by optional steel bushings, tailors performance for rigorous operational contexts.
Installation, Maintenance, and Long-Term Reliability
The Buyers Products Formed Steel Hinge Strap is designed for straightforward installation and long-term operational excellence through manageable maintenance. Its straight strap configuration simplifies mounting via welding or bolting. Proper alignment is critical for smooth articulation and preventing premature wear. Proactive maintenance, centered on the integrated grease fitting, is vital for extended service life. Regular lubrication, frequency dependent on operational intensity and environment, effectively reduces friction, prevents corrosion, and flushes contaminants. This simple procedure extends component life, minimizes operational effort, and reduces costly downtime. Robust formed steel, high-performance bushings, and accessible maintenance points ensure consistent, reliable performance, enhancing productivity, safety, and reducing total cost of ownership in demanding environments.
Conclusion
The Buyers Products Formed Steel Straight Strap Hinge with Grease Fittings exemplifies superior engineering for heavy-duty applications. Its high-strength formed steel, precision grease fitting, comprehensive fastening, and adaptable bushing options deliver unparalleled durability and reliability. This hinge represents a strategic investment for demanding industrial and commercial environments, ensuring robust, long-lasting performance and minimizing operational interruptions.
