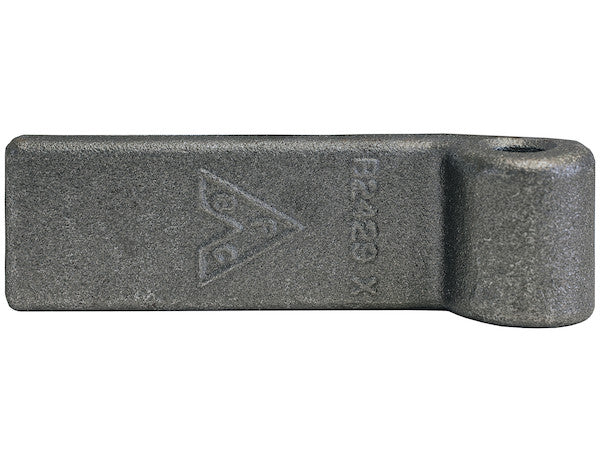

B2429X - Short Forged Hinge Strap - 1.5 x 4.38 Inch

Buyers Products Forged Hinge Strap is designed to offer strength with reduced weight on your trailer or truck. The strap can be welded, bolted, or riveted on, and works with Buyers Products Forged B2426E hinges.

Specifications

The Buyers Products Short Forged Hinge Strap, measuring precisely 1.5 x 4.38 inches, represents a pinnacle of engineering and material science applied to heavy-duty fastening solutions. This component is not merely a piece of metal; it is a meticulously crafted part designed to deliver superior strength, resilience, and operational longevity in the most demanding vehicular and industrial applications. Understanding its technical attributes and operational benefits is crucial for engineers, procurement specialists, and fabricators seeking optimal performance and reliability in their designs.

At the core of this hinge strap's exceptional performance lies its forged steel construction. Forging is a manufacturing process that involves shaping metal using localized compressive forces, typically through hammering, pressing, or rolling. Unlike casting, where molten metal is poured into a mold, or machining, which cuts away material, forging refines the internal grain structure of the steel. This process compacts the material, eliminating internal voids and porosity, and aligns the grain flow with the contour of the part. The result is a component with significantly enhanced mechanical properties, including higher tensile strength, improved fatigue resistance, and superior impact toughness compared to parts produced by other methods. Forged steel components are inherently less prone to brittle fracture, making them indispensable in applications where structural integrity under dynamic loads and harsh environmental conditions is paramount. The "Forged Steel" designation specifically indicates that the material has undergone this rigorous metallurgical process, ensuring maximum density and an optimized microstructure that contributes directly to the hinge strap's ability to withstand substantial forces without deformation or failure.

The dimensions of this hinge strap, 1.5 inches in width and 4.375 inches in length, are carefully selected to provide an optimal balance between load distribution, structural support, and spatial efficiency. The 1.5-inch width provides a robust surface area for attachment, whether through welding, bolting, or riveting. This substantial width ensures that stress is distributed effectively across the mounting surface, minimizing localized pressure points that could lead to material fatigue or failure over time. The 4.375-inch length, designated as "short," is critical for applications where space is constrained, or where a shorter lever arm is preferred for specific hinge geometries. In many truck and trailer designs, minimizing component footprint while maximizing strength is a constant design challenge. This short strap length addresses that challenge directly, allowing for secure attachment in compact areas without compromising the hinge's load-bearing capabilities. Furthermore, the precise length contributes to the overall rigidity of the hinge assembly, preventing excessive deflection or vibration during operation.

The 1/2-inch pin size is a critical specification directly impacting the hinge's shear strength and bearing capacity. The pin serves as the primary pivot point, and its diameter is directly proportional to its ability to resist shear forces induced by the weight and movement of the hinged component (e.g., a door, gate, or ramp). A 1/2-inch pin is robust enough for a wide range of medium to heavy-duty applications, providing a strong connection point that can handle significant static and dynamic loads. The compatibility with the Buyers Products Forged B2426E hinges is paramount. This ensures a precision fit, eliminating excessive play or slop in the hinge joint, which can lead to premature wear and reduced operational lifespan. The synergistic design between the strap and its complementary hinge component guarantees that the entire system operates as a cohesive unit, distributing stress evenly and facilitating smooth, reliable articulation.

The plain finish of the hinge strap is a practical and strategic choice. A plain finish, typically referring to raw, untreated steel, offers several advantages. Firstly, it provides an ideal surface for secondary processing, such as welding. The absence of coatings, paints, or plating simplifies the welding process, eliminating the need for extensive surface preparation and reducing the risk of contamination in the weld pool. This ensures stronger, cleaner welds with optimal metallurgical bonding. Secondly, a plain finish allows the end-user or fabricator to apply a custom protective coating tailored to the specific environmental conditions of the application. This could include primer and paint for general corrosion resistance, galvanization for superior protection in highly corrosive environments (e.g., marine or road salt exposure), or specialized coatings for chemical resistance. This flexibility provides a cost-effective solution, as users are not paying for a pre-applied finish that may not meet their specific requirements or could interfere with their chosen installation method. For many internal or protected applications, a plain finish might even suffice, with minimal maintenance required.

The versatility in installation methods—welded, bolted, or riveted—further enhances the utility of this forged hinge strap. Each method offers distinct advantages depending on the application requirements:

• **Welding:** Welding provides the strongest and most permanent attachment. Forged steel is highly weldable, but proper techniques are essential. Pre-heating may be required for thicker sections or specific steel alloys to prevent thermal stress and cracking. Using appropriate filler metals compatible with the base material ensures a homogeneous and robust weld joint. Welding is ideal for structural applications where the hinge strap becomes an integral part of the vehicle or equipment frame, offering maximum shear and tensile strength with a flush, streamlined appearance.
• **Bolting:** Bolting offers flexibility, allowing for easier replacement or adjustment of the hinge strap if necessary. The dimensions and material strength of the strap are designed to accommodate bolting without compromising integrity. When bolting, the selection of appropriate bolt grades (e.g., Grade 8 for high strength) and proper torque specifications are crucial to achieve a secure, vibration-resistant connection. Pre-drilled holes in the hinge strap facilitate precise alignment and rapid assembly, making this method suitable for both OEM production and field repairs.
• **Riveting:** Riveting creates a strong, semi-permanent mechanical joint known for its excellent shear strength and vibration resistance. Historically, riveting has been a staple in heavy vehicle and aircraft construction due to its reliability in dynamic environments. Modern riveting techniques, utilizing high-strength rivets and specialized tooling, provide a durable fastening solution that is particularly effective in applications exposed to constant shock and vibration, where bolts might loosen over time.

The ability to choose among these installation methods provides unparalleled adaptability, allowing engineers and fabricators to select the most appropriate and cost-effective solution for their specific design and operational context.

The intended application on trailers and trucks underscores the hinge strap's robust design and performance characteristics. In the demanding environment of commercial transport, components are subjected to continuous vibration, impact, varying temperatures, and exposure to corrosive elements. This forged hinge strap is engineered to withstand such conditions, ensuring the reliable operation of doors, gates, ramps, and compartment lids on a wide array of vehicles, including:

• **Utility Trailers:** For securing rear gates, side panels, and toolboxes.
• **Cargo Trailers:** For main entry doors and access panels.
• **Dump Trucks and Trailers:** For tailgate mechanisms, ensuring secure containment of bulk materials.
• **Flatbed Trailers:** For securing removable stakes or side rails.
• **Service and Work Trucks:** For tool compartment doors, cabinet lids, and utility body panels, where frequent access and robust security are essential.
• **Emergency Vehicles:** Where reliability and durability cannot be compromised under critical operational scenarios.

The "short" designation is particularly advantageous in scenarios where longer straps might interfere with other vehicle components, restrict opening angles, or create excessive cantilever stress on smaller doors or panels. Its compact form factor allows for integration into tight spaces, maintaining the clean lines and functional efficiency of the vehicle's design.

The commitment to quality by Buyers Products is evident in the specification of "Forged Steel" and the precise dimensional controls. Buyers Products is a respected manufacturer known for its adherence to stringent industrial standards, ensuring that their components meet or exceed the performance expectations of their customers. This hinge strap is not a generic off-the-shelf item but a purpose-built component designed for longevity and consistent performance within a specified operational envelope. This reliability translates into reduced downtime for vehicle operators, lower maintenance costs, and enhanced safety for both equipment and personnel.

In summary, the Buyers Products Short Forged Hinge Strap, with its 1.5 x 4.38-inch dimensions and 1/2-inch pin size, is a meticulously engineered component offering superior structural integrity and operational flexibility. Its forged steel construction provides unparalleled strength, fatigue resistance, and impact toughness, making it ideally suited for the rigorous demands of truck and trailer applications. The plain finish offers installation versatility and customization options for environmental protection. Its compatibility with Buyers Products Forged B2426E hinges ensures a cohesive and high-performing hinge system. For OEMs, custom fabricators, and fleet maintenance professionals who prioritize durability, reliability, and robust performance in their heavy-duty fastening solutions, this forged hinge strap stands as an exemplary choice, delivering long-term value and operational confidence.
