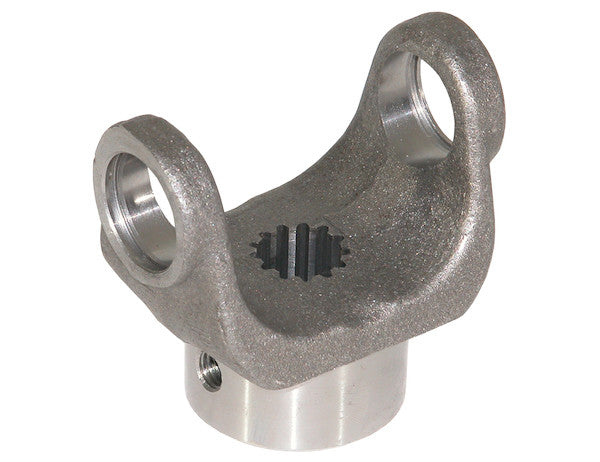

B243331 - B1310 Series End Yoke 7/8 -13 Inch Spline Bore

Buyers Products B1310 Series End Yoke works seamlessly with heavy duty PTO driveline components in order to deliver reliable flexible coupling. The yoke is compatible with other major manufacturers' heavy duty driveline components. It comes in a variety of bore sizes and shapes to work with your system. The yoke is made of forged steel for strength and durability. It works with the Buyers Products 5153XBA U-joints to provide smooth and continuous torque transfer. The B1310 Series End Yoke is perfect for heavy duty applications with the ability to handle up to 1560 inch pounds of torque at 1000 RPM continuous duty (approximately 25 HP).

Specifications

The Buyers Products B1310 Series End Yoke with a 7/8 -13 Inch Spline Bore represents a critical component engineered for the most demanding heavy-duty power take-off (PTO) driveline applications. This meticulously designed end yoke serves as the primary interface between the power source, typically an output shaft from a transmission or gearbox, and the universal joint (U-joint) that initiates the driveline's angular transmission of rotational energy. Its robust construction and precise specifications ensure unparalleled performance, longevity, and seamless integration within complex mechanical systems.

At the core of its design is the specialized 7/8 inch spline bore with 13 splines. A spline bore, unlike a traditional keyway or press-fit connection, utilizes multiple parallel teeth or grooves (splines) machined into the bore that precisely mate with corresponding splines on the shaft. This configuration offers several significant advantages crucial for heavy-duty applications. Firstly, splines distribute the transmitted torque over a much larger surface area compared to a single key, significantly reducing localized stress concentrations and thereby minimizing the risk of shear failure or wear. This superior load distribution enhances the overall fatigue life of both the yoke and the connected shaft. Secondly, spline connections inherently provide a more positive and precise engagement, virtually eliminating backlash and improving the accuracy of torque transfer, which is vital for applications requiring exact positioning or synchronous operation. The 7/8-inch nominal diameter is common in many industrial and agricultural PTO systems, signifying its broad applicability, while the 13-spline count ensures a fine pitch and robust engagement, optimizing the interface for high-torque loads. The precision manufacturing of this spline bore is paramount; even microscopic deviations can lead to uneven load distribution, premature wear, and potential component failure. Buyers Products adheres to stringent quality control measures to ensure that each spline bore meets exacting tolerances, guaranteeing a perfect fit and maximum power transmission efficiency.

The B1310 Series is engineered to operate flawlessly within systems requiring substantial power throughput. Its stated capacity to handle up to 1560 inch-pounds of torque at 1000 RPM for continuous duty is a testament to its robust design and material integrity. To fully appreciate this specification, it's important to understand the relationship between torque, RPM, and horsepower (HP). One horsepower is equivalent to 63,025 inch-pounds per minute, or approximately 5,252 foot-pounds per minute. Therefore, 1560 inch-pounds at 1000 RPM translates to approximately 25 continuous horsepower (HP = (Torque in in-lbs * RPM) / 63,025). This metric signifies the maximum torque the component can consistently transmit without exceeding its design limits for thermal stability, material fatigue, and structural integrity over extended operational periods. For intermittent duty cycles, the yoke might withstand higher peak torque loads, but its continuous duty rating provides a reliable benchmark for sustained performance in demanding environments such as agricultural implements, construction machinery, and industrial drives. This capacity classification ensures that engineers and system integrators can confidently select the B1310 Series End Yoke for applications where reliable power delivery is non-negotiable.

Material selection is a critical factor in the performance and durability of any driveline component, and the B1310 Series End Yoke utilizes forged steel. Forging is a manufacturing process that involves shaping metal through localized compressive forces, typically using hammers or presses. This process results in a superior metallurgical grain structure compared to casting. In forged steel, the grain flow is aligned with the shape of the component, enhancing its strength, toughness, and resistance to impact and fatigue. Unlike cast components which can suffer from internal voids, porosity, or inconsistent grain structures that act as stress risers, forged steel is dense and homogeneous, offering maximum material integrity. This inherent strength and durability are indispensable for components subjected to dynamic loads, torsional stresses, and vibrations characteristic of heavy-duty driveline operations. The 'Plain' finish indicates a standard, un-coated surface, which is typical for internal driveline components where environmental exposure is minimized or where subsequent coatings are applied by the end-user or system integrator. This choice prioritizes the inherent strength of the forged material and cost-effectiveness, without compromising performance within its intended application.

Compatibility is a cornerstone of the B1310 Series' utility. Designed to be compatible with other major manufacturers' heavy-duty driveline components, this end yoke offers invaluable flexibility for equipment owners and maintenance professionals. This interoperability means that the B1310 Series can serve as a direct replacement or upgrade within existing systems, simplifying inventory management, reducing downtime, and broadening sourcing options for critical spare parts. Adherence to industry-standard dimensions and specifications ensures that users are not locked into proprietary systems, promoting a more efficient and adaptable ecosystem for heavy equipment maintenance and repair. This strategic design choice reflects Buyers Products' commitment to providing practical, real-world solutions that integrate seamlessly into diverse operational environments.

The synergy between the B1310 Series End Yoke and the Buyers Products 5153XBA U-joint is pivotal for achieving smooth and continuous torque transfer. The U-joint, a fundamental component of any driveline, accommodates angular misalignment between rotating shafts while transmitting power. The end yoke's precise geometry, including its bore diameter and the overall configuration of its 'ears' that house the U-joint's bearing caps, is engineered to perfectly mate with the 5153XBA U-joint. This optimized interface minimizes play, reduces wear, and ensures efficient power transmission even under varying operating angles. The "Joint Angle" specification of 15 degrees, though a reference for the driveline's potential operating angle, implicitly signifies the design's consideration for typical U-joint articulation. While the actual maximum operating angle of the U-joint itself might differ, the yoke is dimensioned to support efficient operation within common driveline configurations. By pairing the B1310 Series End Yoke with its recommended U-joint, users can expect a harmonized assembly that delivers superior performance, extended service life, and reduced maintenance requirements due to optimized load sharing and minimized vibrational stresses across the driveline.

Several specific dimensions outlined in the product specifications further highlight the engineered precision of the B1310 Series End Yoke. The "Center Line to End of Hub" measurement of 2.56 inches is crucial for driveline length calculations and proper spacing within the assembly. This dimension ensures adequate engagement length with the input shaft and appropriate positioning of the U-joint within the overall driveline geometry. The "Hub Dia (in.)" of 2.000 inches indicates the overall diameter of the yoke's hub, which is important for clearance considerations within the machinery and for providing sufficient material thickness around the spline bore to withstand torsional forces. The "End of Hub to Centerline of Set Screw Hole" at 0.625 inches pinpoints the location of the set screw. The inclusion of a 3/8-16 set screw is a critical detail. While the spline connection primarily handles torque transfer, the set screw provides an essential axial retaining force, preventing the yoke from sliding off the shaft during operation. This dual mechanism ensures both robust torsional engagement and secure axial retention, vital for operational safety and reliability, especially in applications where sudden stops, starts, or changes in direction can exert significant axial forces. The absence of a keyway in the specifications is consistent with a spline bore design, as the splines themselves fulfill the rotational locking function more effectively than a traditional key.

The B1310 Series End Yoke finds its application in a vast array of heavy-duty scenarios where reliable power transfer is paramount. This includes, but is not limited to, agricultural equipment such as tractors driving implements (mowers, tillers, balers), construction machinery like excavators and loaders utilizing PTO-driven attachments, commercial vehicles with auxiliary power systems for winches, pumps, or hydraulic systems, and various industrial machinery requiring robust mechanical power transmission. Its ability to withstand continuous high torque and its durable forged steel construction make it an ideal choice for environments characterized by extreme conditions, including exposure to dirt, moisture, shock loads, and prolonged operational hours. The robust design mitigates common failure modes associated with lesser components, offering a higher degree of operational continuity and reducing the total cost of ownership through minimized downtime and replacement part expenditures.

Beyond its technical specifications, the B1310 Series End Yoke embodies the commitment of Buyers Products to engineering excellence and customer satisfaction. Each component is manufactured to rigorous standards, reflecting years of expertise in heavy-duty equipment. The emphasis on high-quality materials and precision machining ensures that every end yoke not only meets but often exceeds industry expectations for strength, durability, and performance. The design process takes into account not only the immediate functional requirements but also the long-term operational stresses and environmental factors that heavy-duty components must endure. This holistic approach to engineering results in a product that performs reliably under pressure, contributes to the overall efficiency of the driveline system, and enhances the safety of the equipment it serves.

Installation and maintenance considerations are also straightforward, thanks to the precision engineering of the B1310 Series. Proper installation involves ensuring the splines are clean and adequately lubricated to facilitate smooth engagement with the shaft, followed by correctly tightening the set screw to the specified torque. Regular inspection of the yoke for signs of wear, corrosion, or damage, particularly around the spline bore and the U-joint connection points, is recommended as part of a routine maintenance schedule. The inherent durability of forged steel means that with proper care, the B1310 Series End Yoke will provide many years of trouble-free service, making it a cost-effective choice for demanding applications. Its professional-grade construction assures users of a product that is built to last, providing peace of mind in critical operational contexts.

In summary, the Buyers Products B1310 Series End Yoke with its 7/8 -13 Inch Spline Bore is a highly specialized and exceptionally robust component. Its forged steel construction, precise spline bore engineering for optimized torque distribution, impressive continuous duty torque rating, and meticulous dimensional specifications all converge to deliver a product of superior reliability and performance. Designed for seamless integration with industry-standard heavy-duty driveline components, particularly the Buyers Products 5153XBA U-joint, this end yoke stands as a premier solution for demanding agricultural, construction, and industrial PTO applications. It represents an investment in durability, operational efficiency, and system integrity, ensuring that power is transmitted smoothly, consistently, and reliably, even in the most challenging operational environments.
