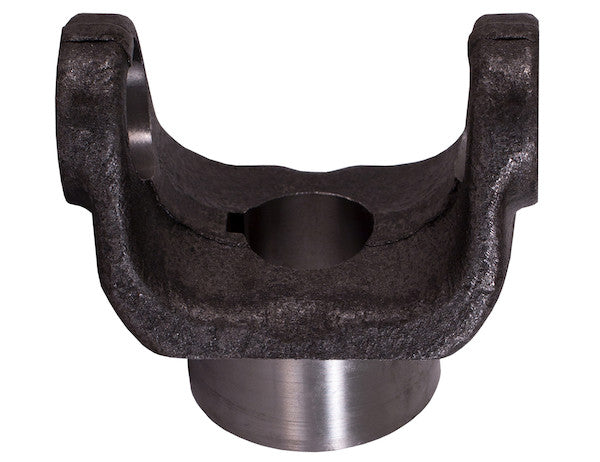

Buyers Products B1310 Series End Yoke works seamlessly with heavy duty PTO driveline components in order to deliver reliable flexible coupling. The yoke is compatible with other major manufacturers' heavy duty driveline components. It comes in a variety of bore sizes and shapes to work with your system. The yoke is made of forged steel for strength and durability. It works with the Buyers Products 5153XBA U-joints to provide smooth and continuous torque transfer. The B1310 Series End Yoke is perfect for heavy duty applications with the ability to handle up to 1560 inch pounds of torque at 1000 RPM continuous duty (approximately 25 HP).
Specifications
| Bore Dia/Width (in.) | 1.000 |
|---|---|
| Bore Type | Round |
| Center Line to End of Hub | 2.56 |
| End of Hub to Centerline of Set Screw Hole | 0.625 |
| Finish | Plain |
| Hub Dia (in.) | 2.000 |
| Joint Angle | 15 |
| Keyway At | - |
| Keyway Size (in.) | 0.250 |
| Material | Forged Steel |
| Series | B1310 |
| Set Screw At | - |
| Set Screw Size | 3/8-16 |
B1310 Series End Yoke: Precision Engineering for Heavy-Duty Driveline Applications
The Buyers Products B1310 Series End Yoke, specifically designed with a 1-inch round bore and a 1/4-inch keyway, represents a pinnacle of precision engineering tailored for demanding power transmission systems. As a critical component within heavy-duty Power Take-Off (PTO) drivelines, this end yoke is meticulously crafted to facilitate robust and reliable flexible coupling, ensuring the seamless transfer of rotational power from a power source to an auxiliary implement or driven component. Its design adheres to stringent industry standards, making it not only highly effective within Buyers Products' own driveline ecosystems but also ensuring comprehensive compatibility with a broad spectrum of heavy-duty driveline components from other major manufacturers. This versatility underscores its value as a foundational element for a wide array of industrial, agricultural, and commercial applications where dependable power delivery is paramount.
The Critical Role of an End Yoke in Power Transmission Systems
In any mechanical system that requires the transfer of rotational motion and torque, the integrity and performance of each component are absolutely vital. The end yoke serves as the primary interface between a rotating shaft – typically an output shaft from a gearbox, PTO unit, or engine – and the universal joint (U-joint) assembly of a driveshaft. Its fundamental purpose is twofold: first, to securely connect to the driven or driving shaft, and second, to provide a mounting point for the cross and bearing assembly of a U-joint. This connection must be capable of transmitting significant torque without slip or undue vibration, while simultaneously accommodating angular misalignment between the driving and driven shafts, a common occurrence in dynamic operational environments. Without a precisely engineered end yoke, even the most robust driveline system would be susceptible to premature wear, energy loss, and catastrophic failure. The B1310 Series, with its specific 1-inch round bore and 1/4-inch keyway configuration, is engineered to establish an exceptionally rigid and reliable connection to a corresponding keyed shaft, forming an integral part of a balanced and efficient driveline. The harmonious interaction of the yoke with the U-joint is crucial for ensuring smooth and continuous torque transfer, minimizing stress on adjacent components, and extending the overall operational life of the entire power transmission system.
Unpacking the B1310 Series: Design, Materials, and Dimensional Precision
The B1310 Series End Yoke exemplifies a fusion of superior material science and meticulous design. The choice of forged steel as its primary material is not arbitrary; forging is a manufacturing process that enhances the material’s structural integrity by refining its grain structure, resulting in exceptional strength, durability, and resistance to fatigue, impact, and wear. This makes forged steel ideally suited for applications subjected to continuous heavy loads and dynamic stresses, distinguishing it from cast or machined components which may lack the same level of inherent material toughness. The "Plain" finish indicates a natural, un-coated surface, often chosen for its functional robustness and cost-effectiveness in industrial environments where aesthetic considerations are secondary to performance and structural integrity. This finish is suitable for applications where further coating or plating will be applied by the end-user, or where the natural properties of the forged steel are sufficient for environmental protection.
Central to the B1310 Series' functionality is its precise bore configuration: a 1.000-inch round bore complemented by a 0.250-inch keyway. The round bore ensures a concentric fit on a matching shaft, minimizing radial runout and potential imbalance. The keyway, a slot cut into the bore, engages with a corresponding key on the shaft. This key-and-keyway interface is a time-tested mechanical locking mechanism, providing a positive, non-slip connection that efficiently transmits rotational torque, preventing relative rotation between the shaft and the yoke. To further secure this connection and prevent axial movement, a 3/8-16 set screw is incorporated. The position of this set screw, typically aligned over the key or directly onto the shaft, ensures additional security against both rotational slip and axial disengagement, critical for maintaining driveline stability under varying load conditions. The exact placement, specified by the "End of Hub to Centerline of Set Screw Hole" at 0.625 inches, ensures optimal engagement.
Dimensional specifications are paramount for proper fit and function. The "Hub Diameter" of 2.000 inches provides ample material for the bore and keyway, contributing to the yoke's strength and stability. The "Center Line to End of Hub" measurement of 2.56 inches is a crucial dimension for driveline length calculations and proper alignment with the U-joint. This distance determines the effective working length of the driveline and is vital for preventing driveshaft bind or over-compression. The precise manufacturing of these dimensions ensures that the B1310 Series End Yoke integrates perfectly within driveline assemblies, facilitating smooth operation and maximum power transfer efficiency, while minimizing detrimental vibrations and stresses that could lead to premature component failure.
Performance Under Pressure: Torque, RPM, and Angular Capability
The operational specifications of the B1310 Series End Yoke highlight its capability to withstand demanding working conditions. Rated for a continuous duty capacity of 1560 inch-pounds of torque at 1000 RPM, which equates to approximately 25 horsepower, this component is engineered for sustained performance in heavy-duty applications. Understanding these figures is crucial for proper system design and selection. Torque, measured in inch-pounds, represents the twisting force the yoke can transmit, while RPM (revolutions per minute) denotes the rotational speed. The "continuous duty" rating signifies that the yoke can reliably operate at these maximum stated parameters over extended periods without experiencing detrimental overheating, accelerated wear, or structural fatigue. This contrasts with intermittent duty ratings, which allow for higher peak loads but only for short durations.
The ability to handle 25 HP continuously at 1000 RPM underscores its suitability for a range of agricultural implements, industrial machinery, and commercial vehicle auxiliary systems. These applications often require consistent power delivery to hydraulic pumps, generators, compressors, or other driven equipment. Exceeding these continuous duty limits without proper consideration can lead to reduced component lifespan or immediate failure. Furthermore, the "Joint Angle" specification of 15 degrees is critical. This angle defines the maximum recommended operating angle for the universal joint that connects to the yoke. While U-joints can typically operate at higher momentary angles, continuous operation at excessive angles significantly increases wear, generates heat, and reduces efficiency. A 15-degree joint angle indicates a design optimized for smooth power transmission within typical driveline deflections encountered in heavy equipment, ensuring minimal stress on the U-joint bearings and surrounding components, thereby maximizing the lifespan of the entire driveline assembly and maintaining optimal mechanical efficiency.
The robust construction and precise engineering of the B1310 Series ensure that the transmitted torque is applied smoothly, reducing torsional vibrations that can be detrimental to connected shafts and equipment. The combination of forged steel material, accurate bore and keyway tolerances, and appropriate set screw engagement collectively contributes to the yoke's ability to maintain structural integrity and transmit power effectively, even when subjected to dynamic and cyclical loading inherent in continuous operation.
Seamless Integration and Broad Compatibility
The design philosophy behind the Buyers Products B1310 Series End Yoke emphasizes both seamless integration within existing systems and broad compatibility across the heavy-duty driveline industry. This is a critical advantage for operators and manufacturers who require components that can readily interface with diverse equipment fleets without extensive modifications. The statement that it "works seamlessly with heavy duty PTO driveline components" highlights its fundamental role in Power Take-Off systems. PTO systems are ubiquitous in industries ranging from agriculture to construction, providing a standardized method for transferring mechanical power from a prime mover (like a tractor engine or truck transmission) to ancillary equipment such as balers, sprayers, chippers, winches, and hydraulic pumps. The B1310 Series Yoke, with its standardized bore and keyway dimensions, facilitates this power transfer by securely attaching to the PTO output shaft and initiating the driveline connection.
Furthermore, its compatibility with "other major manufacturers' heavy duty driveline components" is a testament to its adherence to common industry standards and specifications. This interoperability significantly reduces complexity for maintenance and procurement, allowing users to integrate the B1310 Series Yoke into heterogeneous driveline setups without concern for proprietary interfaces. This flexibility is invaluable in environments where equipment from multiple vendors must operate harmoniously. Specifically, the B1310 Series is engineered to pair perfectly with Buyers Products 5153XBA U-joints. Universal joints are the heart of any driveshaft, allowing for angular misalignment while transmitting rotational motion. The yoke provides the essential mounting surfaces – typically two lugs or ears – for the cross and bearing cups of the U-joint. The precise dimensions and robust construction of the B1310 Series ensure a secure and true fit for the U-joint, which is crucial for minimizing play, reducing vibration, and maximizing the U-joint’s operational life. A proper yoke-to-U-joint interface is paramount for achieving smooth and continuous torque transfer, preventing premature wear of the U-joint bearings, and maintaining the overall dynamic balance of the driveline. This holistic approach to component design ensures that the entire driveline system functions as a cohesive and efficient unit, capable of withstanding the rigors of heavy-duty applications across a variety of sectors, including but not limited to agricultural machinery, industrial power units, commercial trucking, and specialized construction equipment.
Installation, Maintenance, and Longevity
Proper installation and diligent maintenance are critical factors in maximizing the operational lifespan and ensuring the safe performance of the B1310 Series End Yoke and the entire driveline system. The 1-inch round bore with a 1/4-inch keyway requires careful attention during installation. The shaft receiving the yoke must be clean, free of burrs, and precisely match the yoke's bore and keyway dimensions. The key should fit snugly within both the shaft's keyseat and the yoke's keyway, providing a positive mechanical lock for torque transmission. The 3/8-16 set screw, once the yoke is properly positioned on the shaft, must be tightened to the manufacturer's specified torque. This set screw performs a crucial role in preventing axial movement of the yoke along the shaft and provides additional security against rotational slip, especially in applications subject to varying loads or vibrations. Over-tightening can damage the shaft or the set screw threads, while under-tightening can lead to looseness and eventual failure. Consulting the relevant installation guides and torque specifications is always recommended for optimal performance and safety.
Beyond initial installation, a comprehensive preventative maintenance strategy is essential. Regular inspection of the end yoke and the entire driveline should be part of a routine maintenance schedule. Key areas for inspection include:
- **Keyway and Key:** Check for any signs of wear, deformation, or fretting corrosion, which could indicate movement or inadequate fit.
- **Set Screw:** Verify that the set screw remains securely tightened and that there are no signs of stripping or damage to the screw or its threads.
- **Bore and Shaft Interface:** Look for evidence of wear, scoring, or material loss that could compromise the secure fit between the yoke and the shaft.
- **U-Joint Connection:** Inspect the U-joint bearing cups and the yoke's bearing bores for signs of wear, corrosion, or looseness. Proper lubrication of the U-joint, as per its own specifications, is also vital as the yoke is a direct interface.
- **Balance:** Drivelines, particularly those operating at higher speeds, must be balanced to prevent excessive vibration. While the end yoke itself is manufactured to strict tolerances to ensure inherent balance, the overall driveline assembly should be checked periodically, as wear on any component can affect balance.
Buyers Products' Commitment to Engineering Excellence
The Buyers Products B1310 Series End Yoke is a testament to Buyers Products' unwavering commitment to engineering excellence, quality manufacturing, and deep understanding of the demands placed on heavy-duty driveline components. Each yoke is produced through a rigorous manufacturing process that begins with the selection of premium forged steel, chosen for its superior mechanical properties. This material undergoes precise machining to achieve the critical dimensions of the 1-inch round bore, 1/4-inch keyway, and other specified tolerances. Throughout the production cycle, stringent quality control measures are implemented, including dimensional inspections, material testing, and final product evaluations, to ensure that every B1310 Series End Yoke meets the highest standards of accuracy, consistency, and performance.
By adhering to established industry standards for driveline components, Buyers Products ensures that the B1310 Series End Yoke offers not only robust performance but also reliable interchangeability and predictable behavior within complex mechanical systems. This dedication to quality translates directly into tangible benefits for the end-user: enhanced system reliability, reduced maintenance requirements, and an extended service life for both the yoke and the associated driveline components. The ability of this end yoke to consistently handle 1560 inch-pounds of torque at 1000 RPM continuous duty is a direct reflection of its robust design and the quality of its construction, providing users with the assurance that their power transmission systems will operate efficiently and dependably, even under the most challenging operational conditions. Choosing the B1310 Series End Yoke means investing in a component that embodies durability, precision, and the peace of mind that comes with a product engineered to excel in the heavy-duty sector.
