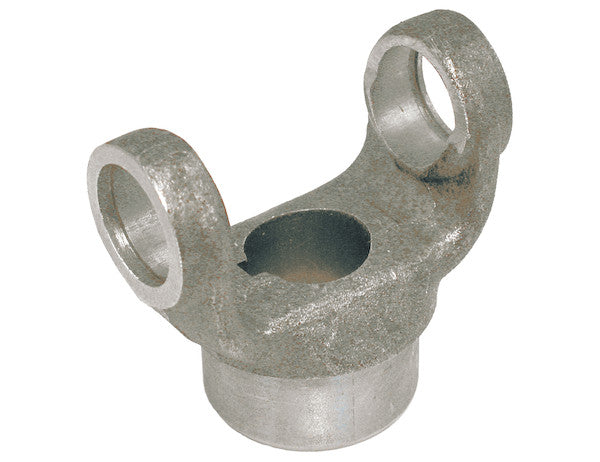

B24503 - B1310 Series End Yoke 1-1/8 Inch Round Bore With 1/4 Inch Keyway

Buyers Products B1310 Series End Yoke works seamlessly with heavy duty PTO driveline components in order to deliver reliable flexible coupling. The yoke is compatible with other major manufacturers' heavy duty driveline components. It comes in a variety of bore sizes and shapes to work with your system. The yoke is made of forged steel for strength and durability. It works with the Buyers Products 5153XBA U-joints to provide smooth and continuous torque transfer. The B1310 Series End Yoke is perfect for heavy duty applications with the ability to handle up to 1560 inch pounds of torque at 1000 RPM continuous duty (approximately 25 HP).

Specifications

Comprehensive Technical Overview: B1310 Series End Yoke for Heavy-Duty Driveline Applications

The Buyers Products B1310 Series End Yoke, featuring a precisely engineered 1-1/8 inch round bore and a 1/4 inch keyway, represents a critical component in heavy-duty Power Take-Off (PTO) driveline systems. This component is specifically designed to provide a robust, reliable, and flexible coupling interface between a rotating shaft and a universal joint, facilitating seamless power transmission in demanding industrial, agricultural, and commercial environments. Its meticulous construction and adherence to rigorous performance standards ensure optimal system integration and sustained operational integrity.

Fundamentals of Driveline Mechanics and the End Yoke's Role

Drivelines are sophisticated mechanical systems engineered to transmit power and rotational motion efficiently, often across varying angles and distances. Within such a system, the end yoke serves as a pivotal terminal component, directly connecting to the driving or driven shaft and interfacing with a universal joint (U-joint). This U-joint is crucial for accommodating angular misalignment between components while maintaining a near-constant velocity power transfer when properly phased. The B1310 Series End Yoke’s design is predicated on upholding these fundamental principles, ensuring that power delivery is smooth, vibration-free, and highly efficient. Its role is not merely to connect, but to be an integral part of a dynamically balanced system, critical for the overall longevity and performance of heavy machinery.

Material Science Excellence: The Superiority of Forged Steel

A cornerstone of the B1310 Series End Yoke's exceptional performance and durability is its construction from high-quality forged steel. The forging process is a sophisticated metalworking technique that significantly enhances the mechanical properties of the material compared to casting or machining from bar stock. During forging, the steel is subjected to immense compressive forces, which refines its internal grain structure and aligns the grain flow to follow the contour of the component. This results in several critical advantages:

• Increased Tensile Strength: The forged steel exhibits superior resistance to pulling and stretching forces, preventing deformation or fracture under high load.
• Enhanced Fatigue Resistance: Forging eliminates internal voids and minimizes stress concentrators, which is crucial for components subjected to cyclic loading and continuous rotation, thereby extending the operational life.
• Superior Impact Strength: The uniform and dense grain structure allows the yoke to absorb and withstand sudden shock loads and impacts without fracturing, a common occurrence in heavy-duty applications.
• Improved Wear Resistance: A denser, more homogeneous material structure contributes to greater surface hardness and reduced material degradation over time, even under abrasive conditions.

This metallurgical advantage ensures that the B1310 Series End Yoke can consistently endure the high torsional loads, dynamic forces, and mechanical stresses inherent in heavy-duty PTO systems, leading to reduced maintenance requirements and an extended service life.

Precision Engineering: Bore and Keyway Design for Positive Torque Transfer

The precise dimensional specifications of the B1310 Series End Yoke are central to its robust performance. The 1-1/8 inch round bore (1.125 inches) is engineered to provide a snug, concentric fit onto a corresponding cylindrical shaft. This exact fit is paramount in minimizing radial play, which if present, can lead to excessive vibration, fretting corrosion, and premature wear, ultimately compromising the efficiency and longevity of the power transmission system. Conicity and surface finish within the bore are carefully controlled to ensure optimal shaft engagement.

Complementing the precise bore is the integrated 1/4 inch keyway (0.250 inches). This feature is the bedrock of positive, non-slip torque transmission. A keyway is a carefully machined slot within the bore, designed to house a parallel key that also seats into a corresponding keyseat on the shaft. Once the key is properly installed, it creates a mechanical interlock, physically preventing any relative rotational movement between the yoke and the shaft. In high-torque applications, relying solely on frictional forces, such as those generated by a set screw, is insufficient and will invariably lead to slippage, severe wear on the shaft, and potential catastrophic failure. The 1/4 inch keyway size is specifically dimensioned to match the torque capacity of the B1310 series, ensuring that the shear strength of the key is appropriately aligned with the system's operational requirements. This design choice underscores the B1310 Series End Yoke's commitment to secure, reliable, and efficient power delivery under the most demanding conditions.

Integration and Interoperability within Driveline Systems

A significant advantage of the Buyers Products B1310 Series End Yoke lies in its adherence to established industry standards, ensuring broad compatibility with other major manufacturers' heavy-duty driveline components. This commitment to interoperability simplifies component selection, streamlines inventory management for maintenance and repair operations, and offers engineers greater flexibility in system design. By conforming to widely accepted dimensional and performance criteria, this end yoke facilitates seamless integration into existing equipment fleets across various sectors.

Specifically, the B1310 Series is designed to work in conjunction with Buyers Products 5153XBA U-joints. This proven pairing ensures optimal dimensional harmony and mechanical performance. The precisely machined ears of the B1310 end yoke are configured to securely accept the bearing cups of the 5153XBA U-joint, establishing a robust and precise connection. This integrated design approach not only simplifies assembly but also guarantees smooth rotational movement and minimizes internal stresses within the universal joint itself, leading to a cohesive, highly efficient, and durable power transmission solution.

Advanced Performance Parameters: Torque, RPM, and Horsepower Capabilities

The B1310 Series End Yoke is engineered to excel in performance-critical applications, demonstrated by its impressive operational metrics. It is capable of reliably handling up to 1560 inch-pounds of torque. Torque, representing the rotational force transmitted, is a primary indicator of a component's strength and its ability to drive heavy loads. This substantial torque capacity signifies the yoke's robust design and suitability for severe-duty cycles.

Furthermore, the yoke is rated for continuous operation at 1000 RPM (revolutions per minute). The term "continuous duty" is critical, indicating that the component can maintain this rotational speed for extended periods without exceeding its thermal or mechanical design limits. This is paramount for applications requiring sustained power delivery, such as agricultural implements, industrial conveyors, or hydraulic pump drives, where intermittent operation is not feasible. Sustained high RPM operation demands superior material fatigue resistance and precise balancing.

These torque and RPM ratings translate to an approximate power handling capability of 25 horsepower (HP). Horsepower provides a relatable metric for the total power the yoke can transmit, derived from the fundamental relationship between torque and rotational speed. This power rating positions the B1310 Series End Yoke as an ideal choice for a diverse range of mid-to-heavy duty applications where consistent and reliable power transfer is non-negotiable, ensuring machinery operates efficiently without compromise.

Detailed Dimensional Specifications and Their Functional Importance

Beyond the primary bore and keyway dimensions, other specifications of the B1310 Series End Yoke are crucial for proper fitment, system design, and operational integrity:

• Center Line to End of Hub (2.56 inches): This dimension is vital for driveline assembly planning. It defines the distance from the centerline of the universal joint's cross to the furthest end of the yoke's hub. Engineers rely on this measurement for accurate driveline length calculations, ensuring correct shaft engagement and clearance within the operational envelope, preventing issues such as binding or over-extension during articulation.
• End of Hub to Centerline of Set Screw Hole (0.625 inches): This specification precisely locates the set screw hole relative to the hub's end. It guides proper shaft insertion depth, ensuring that the set screw effectively engages the shaft, ideally into a corresponding dimple or flat. This provides crucial axial retention, preventing the yoke from sliding off the shaft under dynamic loads, and offering secondary rotational security.
• Hub Diameter (2.000 inches): The external diameter of the yoke's hub is critical for clearance considerations. This dimension ensures that the yoke can rotate freely within the machine's housing or surrounding components without interference, minimizing the risk of wear or damage due to contact.
• Joint Angle (15 degrees): While the U-joint defines the actual articulation capacity, this 15-degree specification typically indicates the maximum recommended continuous operating angle for the universal joint that interfaces with this yoke. Adhering to this limit is essential for maximizing U-joint life, minimizing vibration, and preventing excessive heat generation and premature wear on bearings and seals. Exceeding this angle can significantly reduce the overall driveline's lifespan and efficiency.
• Finish (Plain): A plain finish implies that the component retains the inherent surface condition resulting from the forging and machining processes, without additional decorative or corrosion-resistant coatings like paint or plating. For many heavy-duty industrial applications, especially when the component operates within a protected or lubricated environment, a plain finish is functionally adequate and cost-effective.
• Set Screw Size (3/8-16): This specifies the thread size and pitch of the set screw used for shaft retention. A 3/8-16 set screw denotes a robust fastening mechanism capable of applying substantial clamping force. Proper torque application for this set screw, as per manufacturer guidelines, is essential during installation to ensure secure axial positioning and complement the keyway's rotational security.

Installation Best Practices and Maintenance for Longevity

To fully realize the designed lifespan and performance of the B1310 Series End Yoke, meticulous attention to installation and ongoing maintenance is crucial. Proper installation begins with thorough shaft preparation, ensuring that the shaft is clean, free of burrs, correctly dimensioned, and features a properly machined keyseat and chamfer to facilitate smooth engagement. The key itself must be selected for precise fit within both the shaft keyseat and the yoke keyway to establish a robust mechanical lock. The 3/8-16 set screw must be torqued to the manufacturer's specified value, ensuring secure axial retention. Furthermore, proper driveline alignment and phasing are paramount to minimize vibration, reduce stress on universal joints and bearings, and maximize the operational life of the entire system. Regular inspection for signs of wear, corrosion, and fatigue, along with maintaining U-joint lubrication schedules (if applicable) and verifying set screw tightness, are vital proactive maintenance steps. Adhering to these best practices ensures that the B1310 Series End Yoke consistently delivers its expected performance and durability.

The Buyers Products Advantage

Choosing the Buyers Products B1310 Series End Yoke is an investment in unparalleled quality, engineering precision, and robust manufacturing standards. Buyers Products is renowned for its steadfast commitment to delivering components that not only meet but often exceed the stringent performance requirements of heavy-duty commercial and industrial equipment. The B1310 Series embodies this commitment, offering a product that is rigorously tested and built to withstand the most challenging operational environments. By opting for Buyers Products, customers gain access to components backed by extensive industry experience, ensuring superior reliability, exceptional durability, and ultimately, a maximized return on investment through minimized downtime and prolonged service life of their critical machinery.

Conclusion

The Buyers Products B1310 Series End Yoke with its 1-1/8 inch round bore and 1/4 inch keyway stands as a quintessential component for heavy-duty power transmission applications. Its construction from forged steel ensures superior strength and fatigue resistance, while its precise dimensions guarantee a secure and efficient connection. With the capacity to handle up to 1560 inch-pounds of torque at 1000 RPM continuous duty (approximately 25 HP), and proven compatibility with other major driveline components, including Buyers Products 5153XBA U-joints, this end yoke is engineered for uncompromising performance. For professionals demanding the highest levels of reliability, durability, and operational efficiency from their PTO driveline systems, the B1310 Series End Yoke represents an indispensable and technically sound solution, ensuring seamless power transfer and extended equipment longevity.
