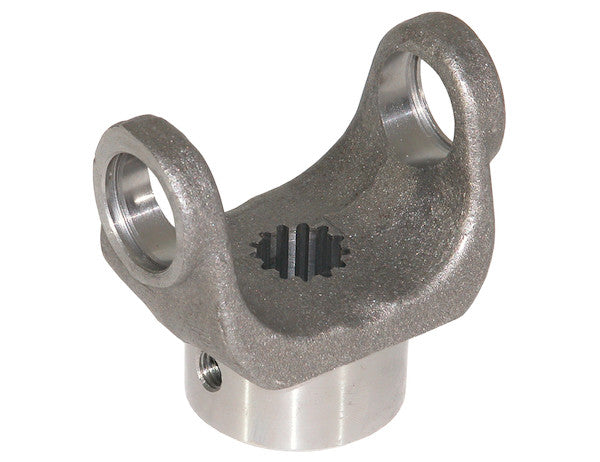

B24573 - B1310 Series End Yoke 1-1/4 Inch Round Bore With 1/4 Inch Keyway

Buyers Products B1310 Series End Yoke works seamlessly with heavy duty PTO driveline components in order to deliver reliable flexible coupling. The yoke is compatible with other major manufacturers' heavy duty driveline components. It comes in a variety of bore sizes and shapes to work with your system. The yoke is made of forged steel for strength and durability. It works with the Buyers Products 5153XBA U-joints to provide smooth and continuous torque transfer. The B1310 Series End Yoke is perfect for heavy duty applications with the ability to handle up to 1560 inch pounds of torque at 1000 RPM continuous duty (approximately 25 HP).

Specifications

The B1310 Series End Yoke: Precision Engineering for Demanding Driveline Applications

The Buyers Products B1310 Series End Yoke stands as a testament to robust engineering and materials science, meticulously designed to meet the rigorous demands of heavy-duty power transmission systems. As a critical component within a Power Take-Off (PTO) driveline, this end yoke facilitates reliable and flexible coupling, ensuring seamless transfer of torque from a power source to an auxiliary implement or driven machinery. This specific configuration, featuring a 1-1/4 inch round bore with a precisely machined 1/4 inch keyway, is engineered for secure attachment to corresponding shafts, providing an uncompromising connection vital for continuous operation in challenging environments.

Understanding the End Yoke's Integral Role in Driveline Systems

Driveline systems are the backbone of countless industrial, agricultural, and commercial applications, responsible for transmitting mechanical power from one point to another, often between misaligned shafts or where angular articulation is required. A PTO driveline, specifically, connects a vehicle's or machine's transmission to an external accessory, such as a pump, generator, or agricultural implement. The end yoke serves as the crucial interface, linking the input/output shaft of the PTO or driven component to the universal joint (U-joint) of the driveline. Its primary function is to securely grip the shaft while providing the foundational structure for the U-joint, allowing for angular displacement and smooth, continuous torque transfer even when operating axes are not perfectly collinear.

The B1310 Series End Yoke's design, with its robust forged steel construction, is optimized for these strenuous conditions. Flexible coupling is not merely about accommodating misalignment; it's about minimizing internal stresses within the driveline, reducing wear on bearings, and dampening torsional vibrations, all of which contribute to the longevity and efficiency of the entire power transmission system. Without a high-quality end yoke providing a stable and precisely dimensioned connection point, even the most advanced U-joints and driveline shafts would be compromised, leading to premature failure, excessive noise, and inefficient power delivery.

Advanced Material Science: The Advantage of Forged Steel

The selection of material is paramount for components subjected to high torque, shock loads, and cyclic stresses. The B1310 Series End Yoke is fabricated from forged steel, a deliberate choice that confers significant metallurgical advantages over alternative manufacturing processes like casting or machining from bar stock. Forging is a manufacturing process involving the shaping of metal through localized compressive forces. This process refines the grain structure of the steel, aligning it with the component's contours and creating a continuous grain flow that enhances the material's inherent strength, toughness, and fatigue resistance.

• Superior Strength-to-Weight Ratio: Forged steel typically exhibits higher tensile strength, yield strength, and impact resistance compared to cast iron or even certain machined steels, allowing the yoke to withstand greater operational stresses without deformation or fracture.
• Enhanced Durability and Fatigue Life: The refined grain structure eliminates internal voids, gas pockets, and other metallurgical defects often found in cast components, which can act as stress concentrators and lead to fatigue failure. The B1310's forged construction ensures a longer service life, particularly in applications involving frequent start-stop cycles or continuous, high-load operation.
• Improved Ductility: While exceptionally strong, forged steel retains a degree of ductility, allowing it to deform slightly under extreme loads before catastrophic failure, offering a safety margin not always present in brittle materials.
• Resistance to Wear: The dense, uniform grain structure of forged steel contributes to better wear resistance, crucial for areas interacting with the U-joint bearings and the shaft connection.

This commitment to forged steel construction underscores Buyers Products' dedication to delivering components that not only meet but exceed the demands of heavy-duty applications, ensuring exceptional reliability and reduced downtime for the end-user. The "Plain" finish indicates a natural metallic surface, signifying that the primary protective properties are derived from the material's intrinsic strength and resistance, often allowing for specific coatings or treatments by the user if desired for enhanced corrosion protection in highly aggressive environments.

Precision Engineering and Critical Geometric Parameters

The performance and longevity of a driveline system are heavily dependent on the precision of its individual components. The B1310 Series End Yoke's specifications highlight the meticulous engineering involved in its design:

• Bore Diameter (1.250 in., Round): The 1-1/4 inch round bore is precision-machined to ensure a snug fit with the corresponding drive shaft. A precise bore diameter is critical for concentricity, minimizing radial runout, and ensuring that the torque is distributed evenly around the shaft, preventing localized stress concentrations.
• Keyway Size (0.250 in.): The inclusion of a 1/4 inch keyway is a standard and highly effective method for transmitting torque positively between the yoke and the shaft. A keyway and matching key prevent rotational slip, ensuring that 100% of the rotational force is transferred. The accuracy of this keyway's dimensions is vital for a tight, backlash-free fit, which mitigates wear and potential damage under fluctuating loads.
• Set Screw Size (3/8-16): While the keyway handles rotational force, the 3/8-16 set screw is employed to secure the yoke axially onto the shaft, preventing it from sliding along the shaft during operation. The specified thread size indicates a robust fastening mechanism, typically requiring a specific torque for secure engagement.
• End of Hub to Centerline of Set Screw Hole (0.625 in.): This dimension specifies the exact location of the set screw hole relative to the end of the yoke's hub. This precise placement ensures that the set screw engages the shaft effectively without weakening the hub material excessively or interfering with other components.
• Hub Diameter (2.000 in.): The 2-inch hub diameter provides sufficient material thickness around the bore, keyway, and set screw hole to withstand the forces exerted during torque transmission and shaft retention. A generously sized hub contributes to the overall strength and durability of the connection.
• Center Line to End of Hub (2.56 in.): This dimension is critical for driveline length calculations and proper universal joint articulation. It defines the distance from the center of the U-joint cross (which the yoke mates with) to the end of the yoke's hub where it meets the shaft. Correct dimensional matching across driveline components prevents binding, ensures proper U-joint operating angles, and optimizes overall driveline performance and longevity.
• Joint Angle (15 degrees): While typically associated with the universal joint itself, the mention of "Joint Angle 15" within the yoke specifications likely refers to the maximum recommended or design operating angle for the associated U-joint (such as the Buyers Products 5153XBA) when integrated with this yoke. U-joints operate most efficiently at minimal angles, and exceeding design limits can lead to increased vibration, heat, and premature wear. A maximum operating angle of 15 degrees signifies the robust capacity of the B1310 Series to support demanding applications where some degree of angular misalignment is unavoidable.

Unrivaled Performance and Operational Capacity

The B1310 Series End Yoke is engineered to excel in heavy-duty applications, evidenced by its impressive performance ratings. It is capable of handling up to 1560 inch-pounds of torque at 1000 RPM in continuous duty. This translates to approximately 25 horsepower, a substantial power output for a component of this size.

• Torque (in-lb): Torque is the rotational force that causes an object to rotate. 1560 inch-pounds signifies the maximum rotational force the yoke can reliably transmit.
• RPM (Revolutions Per Minute): This indicates the speed at which the shaft is rotating. The combined rating of torque at a specific RPM provides a comprehensive understanding of the power handling capability.
• Horsepower (HP): Horsepower is a measure of power, which is the rate at which work is done. The approximation of 25 HP is derived using the formula: HP = (Torque in in-lb * RPM) / 63,025. In this case, (1560 * 1000) / 63,025 ≈ 24.75 HP, confirming the "approximately 25 HP" rating.
• Continuous Duty: This crucial specification means the yoke is designed to operate consistently at the stated torque and RPM without overheating or experiencing accelerated wear. This is a higher standard than intermittent duty ratings, signifying its suitability for applications requiring prolonged, sustained power transmission.

This level of performance ensures that the B1310 Series End Yoke can reliably transmit power in the most demanding scenarios, minimizing the risk of operational disruptions due to component failure. The meticulous design, coupled with the superior properties of forged steel, contributes to exceptional fatigue life, crucial for components under constant rotational and torsional stress.

Seamless Compatibility and System Integration

A significant advantage of the Buyers Products B1310 Series End Yoke is its broad compatibility. Engineered to work seamlessly with "other major manufacturers' heavy duty driveline components," this flexibility is invaluable for users. It means that the B1310 can be integrated into existing systems, serving as a reliable replacement part or facilitating custom driveline assemblies without being restricted to a single brand ecosystem. This interchangeability is often achieved through adherence to industry standards and specifications (e.g., SAE, ASAE), ensuring that critical dimensions and interface geometries align across different manufacturers' products.

Furthermore, the specific mention of its compatibility with Buyers Products 5153XBA U-joints highlights a designed synergy. Universal joints like the 5153XBA are responsible for accommodating angular misalignment between shafts while transmitting torque. The end yoke provides the critical mounting points for the U-joint's bearings (caps), ensuring that the U-joint can articulate smoothly and efficiently. The precise machining of the yoke's ears and bearing surfaces is essential for the proper fit and function of the U-joint, directly impacting the overall smoothness of torque transfer and the lifespan of both components.

Diverse Applications Across Industries

The robust design and high-performance capabilities of the B1310 Series End Yoke make it an indispensable component across a broad spectrum of heavy-duty applications:

• Agricultural Machinery: Tractors utilizing PTOs to power balers, mowers, tillers, sprayers, grain augers, and manure spreaders rely heavily on dependable end yokes. The B1310 is perfectly suited for the harsh, dusty, and often high-impact conditions encountered in farming.
• Construction Equipment: Skid steers, mini excavators, concrete mixers, trenchers, and other compact construction machinery often employ PTO-driven attachments. The yoke's durability ensures continuous operation on demanding job sites.
• Municipal Vehicles: Salt spreaders, street sweepers, snow blowers, and various auxiliary power units on municipal trucks require robust driveline components to operate effectively in diverse weather conditions and demanding service schedules.
• Industrial Power Transmission: Beyond mobile equipment, the B1310 Series can be found in stationary industrial applications such as driving pumps, compressors, conveyors, and generators, where reliable and efficient torque transfer is paramount for production continuity.
• Marine Applications: In certain marine auxiliary drives or propulsion systems, where space might be constrained and robustness critical, such end yokes can provide reliable connections.

In all these applications, the cost of downtime due to component failure can be substantial. By offering a component engineered for strength, durability, and consistent performance, the B1310 Series End Yoke contributes directly to enhanced operational efficiency and reduced maintenance expenditures.

Installation, Maintenance, and Best Practices for Optimal Performance

While the B1310 Series End Yoke is designed for extreme durability, its optimal performance and longevity are contingent upon correct installation and adherence to best maintenance practices. Proper procedure ensures that the component performs as intended and integrates seamlessly into the driveline system.

• Pre-Installation Checks: Before installation, it is crucial to inspect the shaft for any burrs, nicks, or damage that could impede a smooth fit or compromise the keyway engagement. Ensure the shaft's diameter precisely matches the yoke's 1-1/4 inch bore. The keyway in the shaft must also be clean and correctly sized for the 1/4 inch key. Cleanliness of both the bore and shaft surface is paramount to prevent debris from causing an imperfect fit or accelerated wear.
• Installation Procedure: The yoke should slide onto the shaft with a firm but not excessively tight fit. Align the keyway in the yoke with the keyway in the shaft, then insert the key. Once the key is in place and the yoke is seated to the correct depth (often determined by the driveline length or a shoulder on the shaft), the 3/8-16 set screw must be properly tightened. Adhering to manufacturer-recommended torque specifications for the set screw is critical to prevent axial movement without over-tightening, which could deform the hub or damage the shaft.
• Driveline Alignment and Phasing: Proper driveline alignment is paramount. Universal joints should operate at minimal working angles (ideally less than 3 degrees for continuous high-speed operation, though the 15-degree joint angle indicates capacity for higher angles in specific designs) and must be correctly phased. Phasing refers to the relative angular position of the yokes at each end of the driveline. Incorrect phasing can lead to significant vibrations, torsional oscillations, and premature failure of universal joints and other driveline components.
• Routine Inspection: Regular visual inspections are vital. Check for any signs of wear on the yoke ears, corrosion, cracks in the forged steel, or loosening of the set screw. The connection to the U-joint should be free of excessive play. Any noticeable vibration or noise during operation should prompt an immediate inspection of the driveline, including the end yokes.
• Lubrication: While the end yoke itself generally does not require lubrication (unless specifically treated or coated), the associated universal joint does. Ensure that the U-joint is greased according to its manufacturer's specifications. Proper lubrication significantly extends the life of the U-joint and, by extension, reduces stress on the end yoke.
• Troubleshooting: Common issues related to yokes include vibration (often due to misalignment, worn U-joints, or bent yokes), noise (clicking, clunking, or squealing, indicative of worn U-joints or loose connections), and premature failure (usually a result of excessive torque, misalignment, or fatigue). Addressing these symptoms promptly can prevent more extensive and costly damage to the entire power transmission system.
• Safety Considerations: Always ensure that the power source is disengaged and locked out before performing any installation, inspection, or maintenance on driveline components. Rotating machinery poses significant safety hazards.

The Uncompromising Choice for Heavy-Duty Performance

In conclusion, the Buyers Products B1310 Series End Yoke, with its 1-1/4 inch round bore and 1/4 inch keyway, represents an exceptional choice for professionals seeking uncompromising reliability and performance in heavy-duty PTO driveline applications. Its core strength lies in its forged steel construction, a material choice that ensures superior resistance to stress, fatigue, and wear, leading to a significantly longer operational lifespan compared to less robust alternatives. The precision engineering evident in every dimension, from the bore and keyway to the specific placement of the set screw and the defined centerline distances, guarantees a precise fit and optimal torque transfer.

Capable of managing substantial power – 1560 inch-pounds of torque at 1000 RPM continuously, equating to approximately 25 HP – this end yoke is not just a component; it is an assurance of uninterrupted productivity. Its designed compatibility with Buyers Products 5153XBA U-joints and other major manufacturers' components provides flexibility for integration into diverse systems, simplifying maintenance and replacement processes. For demanding sectors such as agriculture, construction, and municipal services, where reliability directly translates to profitability and operational continuity, the B1310 Series End Yoke stands as a fundamental, high-performance solution. Choosing this end yoke means investing in a durable, precision-engineered product that will withstand the rigors of strenuous operations, minimize downtime, and contribute to the overall efficiency and longevity of your critical machinery.
