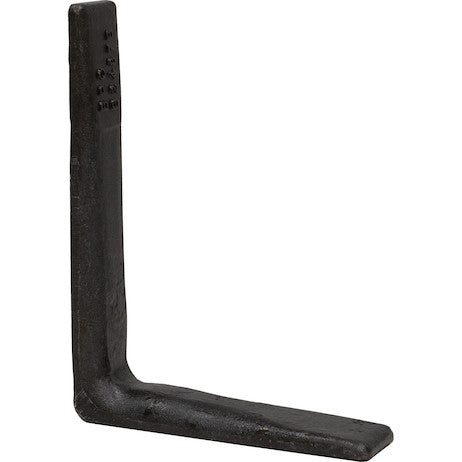

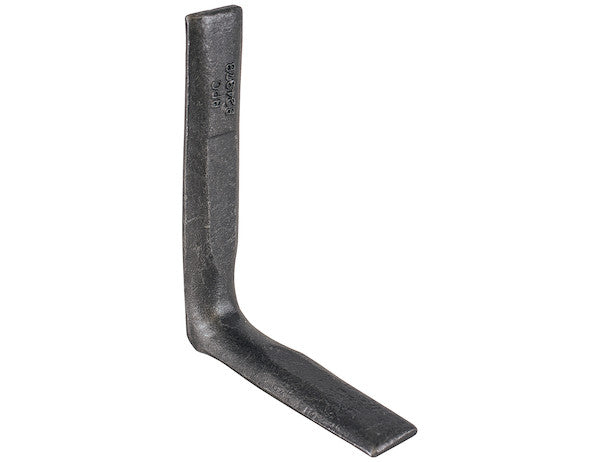

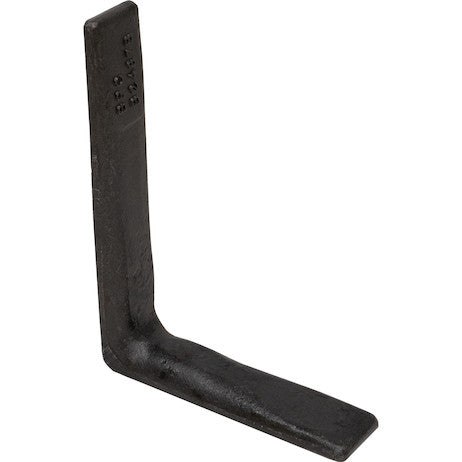

B2487B - Drop Forged Corner Iron - 8 x 6 x 1.5 Inch Wide

Buyers Products Corner Iron is made from drop forged steel and is designed for box van or enclosed trailer body corner reinforcement. Choose from two sizes for the best fit for your application.

Specifications

Technical Overview: Drop Forged Corner Iron for Structural Reinforcement

The Buyers Products Drop Forged Corner Iron, specifically the 8 x 6 x 1.5 inch wide model, represents a critical component engineered for the robust reinforcement of structural corners in box vans, enclosed trailers, and various commercial vehicle bodies. This product is meticulously designed to counteract the extreme stresses and dynamic forces experienced by vehicle corners, ensuring enhanced structural integrity, extended service life, and superior operational safety. The selection of drop-forged carbon steel as the primary manufacturing material underscores a commitment to unparalleled strength and durability, positioning this corner iron as an indispensable asset for fleet managers, vehicle manufacturers, and maintenance professionals.

The Advanced Metallurgy and Manufacturing Process: Drop Forging

The exceptional performance of this corner iron is fundamentally attributed to its manufacturing method: drop forging. This advanced metallurgical process surpasses conventional techniques like casting or stamping by shaping solid metal billets under immense localized compressive forces. During drop forging, the metal is heated to a plastic state and precisely forced into a die cavity, a process that inherently refines and directs the internal grain structure of the steel. This controlled grain flow aligns with the component's contour, particularly around critical stress points, endowing the corner iron with significantly higher tensile strength, superior fatigue resistance, and robust impact toughness. Unlike cast components prone to random solidification and internal defects, drop forging ensures a dense, homogenous microstructure devoid of voids or stress risers. This results in consistent and predictable mechanical properties. The mechanical working involved also enhances the yield and ultimate tensile strength through strain hardening, making the component exceptionally resilient against the constant vibration, torsional stresses, and potential impacts inherent to commercial vehicle operations. This engineered structural integrity is paramount for long-term reliability.

Material Selection: Carbon Steel for Optimal Performance

The choice of carbon steel as the material for this drop forged corner iron is deliberate and highly optimized for its demanding application. Carbon steel, an alloy predominantly comprising iron and carbon (with carbon content typically ranging up to 2.1% by weight), is selected for its superior balance of mechanical properties. The specific grade employed is carefully chosen to ensure an optimal equilibrium between high tensile strength, necessary hardness for wear resistance, sufficient ductility to absorb energy without brittle fracture, and overall cost-effectiveness, making it the ideal material for heavy-duty structural components in commercial transport environments.

Key properties of carbon steel that make it ideal for this application include:

• High Tensile Strength: Carbon steel offers excellent resistance to breaking under tension, a crucial characteristic for structural reinforcement components that bear significant static and dynamic loads.
• Impact Resistance: Especially when drop forged, carbon steel exhibits superior toughness, capable of absorbing and distributing energy from sudden impacts without fracturing. This is vital for vehicle corners prone to collision or accidental contact.
• Fatigue Resistance: The refined grain structure from drop forging, combined with the inherent properties of carbon steel, provides exceptional resistance to fatigue failure, which is the weakening of a material caused by repeatedly applied loads. Given the constant vibrations and fluctuating stresses on trailer corners, high fatigue resistance ensures long-term reliability.
• Weldability: Most grades of carbon steel are readily weldable, facilitating robust and secure integration into existing vehicle structures. This allows for permanent attachment methods, crucial for high-stress applications.
• Cost-Effectiveness: Carbon steel offers a superior strength-to-cost ratio compared to more exotic alloys like stainless steel or lightweight materials such as aluminum, making it a pragmatic choice for heavy-duty commercial applications where performance cannot be compromised but economic viability is also a consideration.

While carbon steel is susceptible to corrosion, its inherent mechanical advantages, particularly when drop forged, make it the preferred material for structural integrity in demanding environments. Subsequent surface treatments, discussed below, adequately address corrosion concerns.

The Critical Function of Corner Reinforcement: Mitigating Structural Stress

Vehicle corners, especially on box vans and enclosed trailers, represent significant structural vulnerability, continually subjected to a complex array of forces that can compromise the vehicle's integrity. These include high torsional stresses during maneuvers and over uneven terrain, direct impact loads from minor collisions, and relentless dynamic loads and vibrations from operational use. Furthermore, shear forces where panels meet, and long-term risks of structural sagging and deformation, collectively necessitate robust reinforcement. The Buyers Products Drop Forged Corner Iron directly addresses these challenges. It functions as a concentrated load-bearing and load-distributing element, substantially strengthening the union of vertical and horizontal structural members. This engineered reinforcement prevents localized deformation, mitigates cracking, and significantly enhances the overall rigidity of the vehicle body, thereby extending operational life and improving safety and handling characteristics.

Dimensional Precision: 8 x 6 x 1.5 Inch Wide

The specified dimensions of 8 x 6 x 1.5 inches are critical for proper fitment and effective reinforcement. Let's delineate what each dimension signifies in the context of the corner iron's application:

• Length (8.00 inches): This dimension refers to the vertical or horizontal extent of the corner iron along one of its primary axes. An 8-inch length provides substantial coverage for corner reinforcement, allowing for multiple securement points (e.g., bolts or weld seams) and distributing stresses over a broader area of the trailer body.
• Depth (6.00 inches): This dimension typically refers to the measurement along the perpendicular axis to the length, often indicating the height of one of the flanges or the overall profile depth of the L-shaped cross-section. A 6-inch depth ensures that the reinforcement extends sufficiently into the body structure, providing deep engagement with the corner’s framing members.
• Width (1.50 inches): This dimension refers to the width of the flanges that extend from the corner apex. A 1.5-inch wide flange provides an ample surface area for attachment to the trailer panels or frame. This width is crucial for transmitting forces effectively from the body panels to the robust drop-forged core of the corner iron, preventing localized tear-out and ensuring a strong, reliable connection.

These dimensions are carefully chosen to optimize the balance between structural contribution, compatibility with common trailer construction profiles, and ease of installation. Buyers Products offers this corner iron in a range of sizes to accommodate the diverse design specifications of various box vans and enclosed trailers, ensuring a precise and effective solution for each unique application.

Plain Finish: Versatility and Customization with Essential Protection

The "Plain" finish specification indicates that the drop forged carbon steel corner iron is supplied without any pre-applied protective coatings. While this might initially seem to be a limitation, it is, in fact, a deliberate design choice that offers significant advantages for professional installers and manufacturers:

• Optimal Weldability: A plain steel surface is ideal for welding. The absence of paint, primer, or galvanization ensures maximum penetration and adhesion of weld material, facilitating strong, metallurgical bonds essential for structural components. Removing coatings from pre-finished parts prior to welding is a time-consuming and often imperfect process, whereas a plain finish streamlines fabrication.
• Customizable Corrosion Protection: The plain finish allows the end-user or vehicle manufacturer to apply a custom protective coating that precisely matches the vehicle's paint scheme or meets specific environmental resistance requirements. This could include primers followed by topcoats, powder coating, or even specialized anti-corrosion treatments tailored to extreme operating conditions. This flexibility ensures seamless integration and optimal long-term aesthetic and protective performance.
• Reduced Initial Cost: Omitting factory-applied finishes reduces the overall manufacturing cost, making the high-performance drop-forged product more economically accessible.

It is imperative that after installation, especially if welding is used, the plain carbon steel surface be thoroughly cleaned and then treated with an appropriate corrosion protection system. For outdoor and vehicle applications, this typically involves:

• Surface Preparation: Cleaning, degreasing, and potentially abrasive blasting to create an ideal surface profile for coating adhesion.
• Primer Application: An anti-corrosive primer (e.g., zinc-rich epoxy primer) to provide the primary barrier against oxidation.
• Topcoat Application: A durable topcoat (e.g., automotive-grade enamel, polyurethane, or powder coat) that offers UV resistance, abrasion resistance, and matches the vehicle's aesthetics.

Proper post-installation finishing is crucial to unlock the full potential longevity of the carbon steel and protect it from environmental degradation, ensuring the structural reinforcement remains effective for decades.

Installation Best Practices for Maximum Efficacy

The effectiveness of the Drop Forged Corner Iron is heavily dependent on correct installation. Professionals should adhere to the following best practices:

• Structural Integration: The corner iron should be securely fastened to both the outer skin and, ideally, the underlying structural framework of the trailer or box van. This ensures that loads are transferred directly to the main structural members, rather than relying solely on the outer sheeting.
• Attachment Methods:
  • Welding: For permanent and high-strength applications, welding (e.g., MIG, TIG, or stick welding) provides the most robust connection. Ensure proper penetration, bead integrity, and adherence to welding codes and best practices for carbon steel. Post-weld cleaning and corrosion protection are essential.
  • Bolting: High-grade bolts, washers, and nuts (e.g., grade 8 or equivalent) should be used, with appropriate torque specifications. Drilled holes should be precise and deburred to prevent stress concentrations. Consideration should be given to backing plates or internal reinforcement when bolting through thinner panels to distribute clamping forces.
• Alignment and Fitment: Prior to final attachment, ensure the corner iron is perfectly aligned with the existing structural lines of the vehicle. Any misalignments can introduce pre-existing stresses or aesthetic discrepancies.
• Sealant Application: For applications where water ingress is a concern, apply an appropriate industrial-grade sealant around the perimeter of the installed corner iron to prevent moisture accumulation and subsequent corrosion in hidden cavities.

Engineered for Durability and Long-Term Value

The Buyers Products Drop Forged Corner Iron is more than just a piece of hardware; it is an engineered solution to a common and critical structural challenge in commercial vehicle operations. By leveraging the superior material properties of drop-forged carbon steel and precision dimensional specifications, this corner iron delivers:

• Enhanced Structural Longevity: Significantly extends the operational life of vehicle bodies by preventing premature corner degradation.
• Improved Safety: Reduces the risk of structural failure, protecting cargo and personnel.
• Reduced Maintenance Costs: By reinforcing vulnerable areas, it minimizes the need for costly repairs associated with corner damage.
• Preservation of Resale Value: A structurally sound and well-maintained vehicle retains greater value over time.

Buyers Products is renowned for its commitment to manufacturing high-quality, durable components for the work truck and trailer industries. This Drop Forged Corner Iron stands as a testament to that legacy, offering a robust, reliable, and economically sensible solution for superior corner reinforcement. Choosing this product ensures that vehicle corners are equipped to withstand the most challenging operational demands, providing peace of mind and enduring performance.
