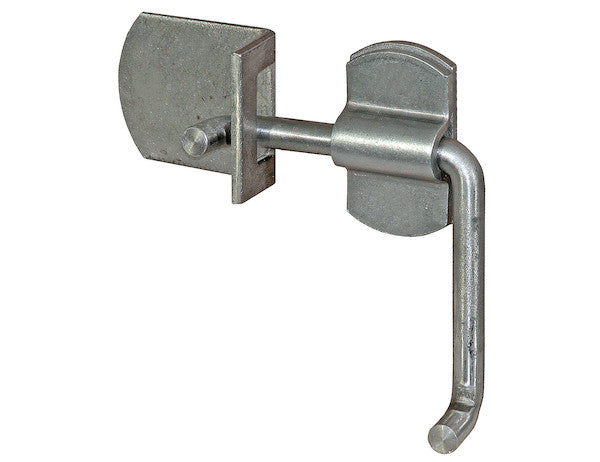

Buyers Products Straight Side Security Latch Set is a basic latch set for flat surface fastening and can be used for stake bodies, trailers, gates, and numerous other applications. Available in either a plain finish bolt-on style, zinc finish bolt-on style, or plain finish weld-on style, the set can be installed for either right- or left-hand operation. Pieces are also sold individually for customization and repair needs.
Specifications
| Bolt Diameter (in.) | 0.50 |
|---|---|
| Bolt Length (in.) | 4.69 |
| Finish | Plain |
| Handle Length | 4.60 |
| Mounting Type | Weld-On (No Holes) |
| Number of Mounting Holes | 0 |
| Orientation (Right Hand/Left Hand) | Both |
| Straight/Corner | Straight |
Advanced Technical Overview: Weld-On Straight Side Security Latch Set
The Buyers Products Weld-On Straight Side Security Latch Set represents a robust and versatile fastening solution engineered for demanding industrial, commercial, and agricultural applications. Designed for permanent integration onto flat surfaces, this latch system provides superior security and operational reliability where bolt-on alternatives may not suffice or where structural integrity benefits from a welded connection. This comprehensive technical description delves into the design principles, material science, functional mechanics, installation considerations, and diverse applications that underscore the efficacy and value of this specialized security latch set.
Precision Engineering and Design Philosophy
At the core of the Weld-On Straight Side Security Latch Set is a meticulous engineering approach focused on durability, adaptability, and secure engagement. The "Straight Side" designation refers to its design optimized for linear fastening requirements, making it ideal for the perimeter of gates, cargo doors, equipment enclosures, and access panels that present a flat mounting surface. This design ensures that the latch components align seamlessly with the structural elements, facilitating a clean aesthetic and maximizing load transfer efficiency.
The "Security Latch Set" nomenclature highlights its primary function: to provide a firm and reliable closure, thereby enhancing the security of enclosed spaces or restrained components. The inherent strength of a welded connection, combined with the robust construction of the latch components, deters unauthorized access and prevents accidental openings, even under dynamic stress conditions such as vibration during transport or heavy operational use.
Material Selection and Finish Characteristics
This particular variant of the Buyers Products latch set features a "Plain" finish. In metallurgical terms, a plain finish typically indicates that the components are constructed from raw, untreated steel. While specific alloy grades are not detailed, the selection of steel for weld-on applications generally implies a material with excellent weldability characteristics, such as low to medium carbon steels. These materials offer a favorable balance of tensile strength, yield strength, and ductility, essential for absorbing operational stresses without permanent deformation or catastrophic failure.
The plain finish offers distinct advantages for weld-on installations. The absence of a pre-applied coating (like zinc plating) eliminates the need for grinding or chemical stripping before welding, which can save considerable time and effort during fabrication. This also prevents the generation of hazardous fumes often associated with welding galvanized or coated materials, contributing to a safer working environment. However, it is imperative to acknowledge that a plain finish necessitates post-welding treatment for corrosion protection. For applications exposed to moisture, chemicals, or atmospheric elements, subsequent steps such as painting, powder coating, hot-dip galvanizing, or applying a rust-inhibiting primer are critical to prevent oxidation and ensure the long-term integrity and appearance of the installation. This allows the end-user or fabricator maximum flexibility in selecting a corrosion protection system that aligns with their specific environmental conditions and aesthetic requirements.
Weld-On Mounting: The Foundation of Strength and Customization
The defining characteristic of this latch set is its "Weld-On (No Holes)" mounting type. This method offers unparalleled advantages over traditional bolt-on installations in scenarios demanding maximum strength, permanent attachment, and highly customized positioning.
- Superior Structural Integration: Welding creates a metallurgical bond between the latch components and the parent structure. This monolithic connection eliminates points of weakness associated with fasteners, such as shear forces on bolts or loosening due to vibration. The load is distributed more broadly across the welded interface, significantly increasing the assembly's resistance to static and dynamic loads.
- Enhanced Security: A welded latch is inherently more secure against tampering or forced removal than a bolted assembly. Without exposed fasteners, there are no nuts or bolts to be unthreaded, cut, or otherwise compromised, greatly enhancing the physical security of the secured enclosure or item.
- Customizable Positioning: The absence of pre-drilled mounting holes grants the installer complete freedom in positioning the latch components. This flexibility is invaluable in custom fabrication projects, irregular surfaces, or retrofit applications where precise alignment and optimal leverage points are critical. It allows for on-site adjustment to achieve perfect engagement between the bolt and the keeper, regardless of minor manufacturing tolerances in the primary structure.
- Corrosion Resistance at Attachment Points: Unlike bolted connections which can create crevice corrosion sites between mating surfaces and around fastener threads, a properly executed weld provides a continuous, impervious seal, preventing moisture ingress at the attachment point, especially after appropriate post-weld finishing.
- Streamlined Aesthetics: A welded connection often results in a cleaner, more integrated appearance, free from visible bolt heads or nuts, which can be desirable for both functional and aesthetic reasons.

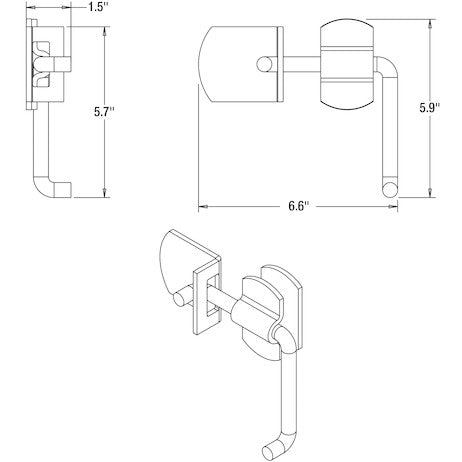

Dimensional and Operational Specifications
Understanding the dimensional specifications provides insight into the latch's load-bearing capacity and operational characteristics:
- Bolt Diameter (0.50 in.): A ½-inch diameter bolt is a substantial component, indicating a design intent for significant shear and tensile strength. This dimension is crucial for resisting forced entry attempts and maintaining engagement under heavy vibration or impact loads. It strikes a balance between robust strength and manageable operational effort.
- Bolt Length (4.69 in.): The generous bolt length ensures deep and secure engagement with the keeper. This extended reach is beneficial for applications where there might be a slight offset between the latch body and the keeper or where thicker frame members are involved. It also contributes to the security by providing ample material to resist bending or shearing forces.
- Handle Length (4.60 in.): The ergonomic handle length provides sufficient leverage for easy operation, even when the latch is under some tension or exposed to adverse conditions (e.g., mud, ice). A well-proportioned handle minimizes operator fatigue and allows for positive engagement and disengagement with minimal effort, enhancing overall user experience and operational efficiency.
- Orientation (Both - Right Hand/Left Hand): This critical feature significantly enhances the product's versatility. The design allows for installation to accommodate either right-hand or left-hand opening mechanisms. This flexibility simplifies inventory management for distributors and provides installers with the adaptability to orient the latch optimally for user access, spatial constraints, or specific security requirements, without needing to stock separate SKU's for opposing orientations.
Functional Mechanics and Performance Attributes
The operational mechanism of the Straight Side Security Latch Set is straightforward yet highly effective. It typically comprises a latch body with an integrated handle and a bolt, paired with a separate keeper (or strike plate). The handle articulates the bolt into and out of engagement with the keeper. The design ensures a positive lock, where the bolt robustly seats into the keeper, resisting dislodgement from external forces or vibrations. The solid steel construction of both the bolt and keeper ensures a durable mating surface, minimizing wear over repeated cycles.
Key performance attributes include:
- High Shear Strength: The ½-inch bolt, once engaged and properly welded, offers substantial resistance to forces attempting to shear the bolt.
- Fatigue Resistance: Engineered for repeated operation, the steel components are designed to withstand numerous cycles of engagement and disengagement without material fatigue, crucial for equipment in continuous operation.
- Vibration Immunity: The welded installation, coupled with the positive locking mechanism, makes this latch highly resistant to self-disengagement due to vibration, a common issue in mobile equipment and heavy machinery.
- Impact Resistance: The robust material selection and solid design provide excellent resistance to impact, protecting against accidental damage or deliberate forceful attempts to breach the security.
Diverse Industrial Applications
The Weld-On Straight Side Security Latch Set's inherent strength, permanent attachment, and flexibility make it indispensable across a multitude of demanding applications:
- Heavy-Duty Trailers and Commercial Vehicles: Securing cargo doors, tailgate assemblies, toolboxes, and access panels on flatbed trailers, utility trailers, dump trailers, and enclosed cargo transporters. The weld-on nature is paramount for resisting the constant vibrations and impacts experienced on roadways.
- Agricultural Machinery and Equipment: Fastening gates on livestock trailers, access hatches on grain carts, covers on planters, and various components on tractors and implements where durability and resistance to harsh environmental conditions (dirt, moisture, agricultural chemicals) are critical.
- Construction Equipment and Job Sites: Securing battery compartments, engine access panels, tool storage units, and safety gates on excavators, loaders, bulldozers, and site fencing. The plain finish allows for on-site welding and subsequent painting to match equipment colors or provide robust anti-corrosion protection.
- Industrial Enclosures and Cabinets: Providing secure closures for electrical cabinets, control panel doors, hazardous material storage units, and machinery guards in manufacturing plants, warehouses, and industrial facilities, where security and structural integrity are non-negotiable.
- Custom Fabrication and OEM Projects: An ideal component for custom-built enclosures, bespoke vehicle modifications, and original equipment manufacturing where standard bolt patterns are not suitable, or a permanent, high-strength attachment is desired.
- Marine Applications (with post-treatment): For securing access hatches, battery boxes, and storage lockers on workboats, barges, or docks. The plain finish mandates a rigorous post-welding coating (e.g., hot-dip galvanizing, marine-grade paint systems) to withstand saline environments.
- Utility and Municipal Vehicles: Securing compartments on service trucks, refuse vehicles, and public works equipment, where reliability and resistance to frequent use and adverse weather are essential.
Installation Best Practices and Post-Welding Treatment
Proper installation of the Weld-On Straight Side Security Latch Set is crucial for maximizing its performance and longevity:
- Surface Preparation: Ensure that both the latch components and the mating structure are clean, dry, and free from rust, oil, paint, or other contaminants. This allows for optimal weld penetration and strength.
- Positioning and Alignment: Precisely position the latch body and the keeper to ensure smooth, full engagement of the bolt without binding. Temporarily clamp or tack-weld components in place for verification before final welding. Account for any minor thermal distortion that might occur during the welding process.
- Welding Technique: Use appropriate welding parameters (current, voltage, wire/rod selection) suitable for the material thickness of the latch and the base structure. Employ robust fillet welds, ensuring full penetration and continuity around the perimeter of the mounting flanges. Multiple passes may be required for optimal strength.
- Cooling: Allow welded components to cool naturally to minimize residual stresses and distortion.
- Post-Welding Cleanup: Remove any slag, spatter, or sharp edges resulting from the welding process using grinding or wire brushing.
-
Corrosion Protection (Mandatory for Plain Finish): Given the plain finish, immediate and comprehensive corrosion protection is essential, especially for outdoor or corrosive environments. This can include:
- Primer and Topcoat: Applying a high-quality industrial primer followed by a durable topcoat (e.g., epoxy, polyurethane) suitable for the operating environment.
- Powder Coating: A highly durable and aesthetically pleasing finish, typically applied in a controlled factory setting after welding.
- Hot-Dip Galvanizing: For maximum corrosion resistance, especially in marine or chemical environments, although this usually requires the entire assembly to be dipped after fabrication.
- Rust Inhibitors: For temporary protection or less demanding indoor applications.
Maintenance and Longevity
While designed for minimal maintenance, periodic inspection of the Weld-On Straight Side Security Latch Set is recommended. This includes checking the integrity of the welds, ensuring smooth operation of the bolt, and verifying the condition of the corrosion protection. Lubrication of moving parts (the bolt shaft, pivot points) with a suitable grease or dry lubricant can enhance operational smoothness and extend lifespan. Any signs of wear or damage should be addressed promptly to maintain optimal security and functionality.
Conclusion
The Buyers Products Weld-On Straight Side Security Latch Set stands as a testament to industrial-grade fastening solutions, offering an unparalleled combination of strength, security, and adaptability. Its weld-on mounting method provides a permanent, high-integrity connection, making it ideal for the most demanding applications across various sectors. With its robust ½-inch bolt, ergonomic handle, and flexible orientation, this latch set ensures reliable and secure closure for critical access points and containment areas. The plain finish offers fabricators the flexibility to apply tailored corrosion protection, integrating the latch seamlessly into diverse structural and environmental contexts. For professionals seeking a durable, secure, and customizable latching mechanism that withstands the rigors of heavy-duty operation, this weld-on solution represents an optimal engineering choice.
